P1074 on 2020-2021 Ford Transit 3.5L V6: Likely P0174 'Lean' Code Causes & Fixes

What's Unique About the 2020-2021 Ford Transit

For this specific Transit generation, the P0174 code is directly linked to a manufacturing issue identified in Ford Technical Service Bulletin (TSB) 21-2106. It points to a kinked evaporator emissions fresh air vent line on vans built before November 30, 2020. This TSB provides a unique and highly probable first step for diagnosis that is specific to this platform. Additionally, a known issue with the cowl drain design can lead to water saturating the engine air filter, which can also cause lean codes, another problem specific to the Transit platform.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle
• Hesitation or stumbling during acceleration
• Reduced fuel economy
• Engine running rough
• Possible hissing noise from the engine bay indicating a vacuum leak.
• Difficulty filling the fuel tank (slow fill), when associated with the EVAP hose TSB.

Most Likely Causes

1. Kinked Evaporator Emissions Fresh Air Vent Line (TSB 21-2106) 🔴 High Probability A documented manufacturing issue on vehicles built on or before November 30, 2020. The hose routing can cause it to kink, restricting vapor flow and triggering lean and EVAP codes.
   How to confirm: Visually inspect the EVAP fresh air vent line for kinks or sharp bends. This TSB also applies if you experience slow fuel filling or have other EVAP codes (P0451, P0455, P0456, P0496, P1450) along with P0171/P0174.
   Typical fix: Reposition the hose to remove the kink and secure it in place with a zip tie as described in the service procedure for TSB 21-2106.
   Est. part cost: $0-$1
2. Vacuum Leak (Intake Manifold Gaskets, PCV Hoses) 🟡 Medium Probability Intake manifold gaskets are a known weak point on this engine family, leading to unmetered air entering the engine. Hoses can also become brittle and crack.
   How to confirm: A smoke test is the most effective method. 🎬 See how to perform a smoke test to find leaks. Alternatively, you can carefully spray carb cleaner or a propane torch (unlit) around the intake manifold and vacuum lines with the engine running; a change in idle RPM indicates a leak. A hissing sound near the top of the engine is also a strong indicator.
   Typical fix: Replace the faulty gasket or hose. Intake manifold gasket replacement is a more involved job.
   Est. part cost: $10-$120
3. Dirty Mass Airflow (MAF) Sensor 🟡 Medium Probability Oil vapor from the PCV system or fine dust that gets past the air filter can contaminate the sensor's delicate wire, causing it to under-report airflow.
   How to confirm: Remove the sensor (located in the intake tube after the air filter box) and visually inspect for dirt or oil residue on the sensing elements.
   Typical fix: Clean the sensor using a dedicated Mass Airflow Sensor cleaner spray. Do not touch the wires. If cleaning doesn't resolve the issue, the sensor may need replacement.
   Est. part cost: $10-$15 (cleaner)
4. Water-Saturated Air Filter ⚪ Low Probability The cowl panel drains under the windshield are known to clog with leaves and debris. This can cause rainwater to overflow into the engine bay and directly onto the air filter housing, saturating the filter and causing the MAF sensor to give incorrect readings.
   How to confirm: Open the air filter box and inspect the air filter for signs of moisture, water staining, or being physically wet. Check the cowl drains for blockages. 🎬 Watch how these cowl drains clog and cause water leaks.
   Typical fix: Replace the wet air filter and clear the cowl drains to prevent recurrence.
   Est. part cost: $20-$50 (air filter)
5. Faulty Canister Purge Valve ⚪ Low Probability This is a common failure part on many Ford vehicles. It can get stuck open, creating a constant vacuum leak.
   How to confirm: With the engine idling, disconnect the vapor line from the purge valve. If you can feel vacuum suction from the valve's port with the electrical connector unplugged, it is stuck open and has failed.
   Typical fix: Replace the canister purge valve.
   Est. part cost: $25-$70

Rare But Worth Checking

• Clogged or Faulty Fuel Injector on Bank 2: This would only affect Bank 2. It's less common than a vacuum leak or MAF issue, which often affect both banks. It might be accompanied by a misfire code for a specific cylinder on Bank 2.
• Low Fuel Pressure: Caused by a weak fuel pump or clogged fuel filter. This would typically cause lean codes on both banks (P0171 and P0174), not just one.

Diagnosis Steps

1. Verify the code with a scanner. Confirm if it is P0174 or if other codes like P0171 are present.
2. Check TSB 21-2106: If the vehicle was built before Nov 30, 2020, inspect the evaporator emissions fresh air vent line for kinks. This is the most likely cause.
3. Inspect Air Filter and Cowl Drains: Open the air filter housing to check for a wet air filter. If wet, replace the filter and clear debris from the cowl drains located under the windshield.
4. Inspect for Obvious Vacuum Leaks: Listen for hissing sounds around the engine. Check that the air intake tube is secure and all vacuum hoses are connected and not cracked or broken.
5. Clean the MAF Sensor: Remove the MAF sensor and clean it with a dedicated MAF sensor cleaner. Allow it to dry completely before reinstalling.
6. Test the Canister Purge Valve: Disconnect the outlet hose with the engine running to check for constant vacuum, which indicates it's stuck open.
7. Perform a Smoke Test: If the leak hasn't been found, a smoke test is the most reliable way to find hidden vacuum leaks from sources like intake manifold gaskets.
8. Check Fuel Pressure: If both banks are lean (P0171 & P0174), check fuel pressure to rule out a weak fuel pump or clogged filter.
9. Test the Oxygen Sensor: Only after all other possibilities are exhausted, test the O2 sensor's response using a scan tool to confirm it is functioning correctly.

Parts You'll Likely Need

• Zip Tie — To secure the kinked evaporator emissions fresh air vent line as per TSB 21-2106, which is a primary cause for this code on this specific vehicle.
  OEM price range: $1
  Aftermarket price range: $1
• Mass Airflow (MAF) Sensor Cleaner — A dirty MAF sensor is a very common cause of lean codes. Cleaning is a cheap and effective first diagnostic step before replacing any parts.
  Trusted brands: CRC, WD-40 Specialist
  Aftermarket price range: $10-$15
• Intake Manifold Gasket Set (OEM #Fel-Pro MS 97118-1 (aftermarket)) — Failed intake manifold gaskets are a common source of vacuum leaks that cause lean codes on Ford's 3.5L engines.
  Trusted brands: Motorcraft, Fel-Pro
  OEM price range: $70-$120
  Aftermarket price range: $40-$80
• Canister Purge Valve (OEM #CX-2695 (Motorcraft)) — A common Ford part that fails by sticking open, creating a vacuum leak that can set lean codes.
  Trusted brands: Motorcraft, Dorman, Standard Motor Products
  OEM price range: $40-$70
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• P0171 — This is the lean code for Bank 1 (passenger side). If both P0171 and P0174 are present, it strongly suggests a problem affecting the entire engine, like the MAF sensor, intake gaskets, or fuel pressure.
• P0451, P0455, P0456, P0496, P1450 — These are EVAP system codes. Their presence alongside P0174 strongly points to the kinked EVAP vent line issue described in TSB 21-2106.

Technical Service Bulletins (TSBs) & Recalls

• TSB 21-2106: Addresses a kinked evaporator emissions fresh air vent line causing lean codes (P0171/P0174) and various EVAP codes.

Platform-Specific Known Issues

• TSB 21-2106: Some 2017-2021 Transit vehicles built on or before 30-Nov-2020 may experience a slow fuel fill condition and/or an illuminated MIL with DTCs P0171, P0174, P0451, P0455, P0456, P0496 and/or P1450 due to a kinked evaporator emissions fresh air vent line.

Mechanic-Grade Diagnostic Values

• Long-Term Fuel Trim (LTFT) at Idle — expected: -5% to +5%. Failure: Sustained positive values above +15% confirm a lean condition; the code typically sets when LTFT exceeds +20-25%. If trims are high at idle but normalize with RPM, a vacuum leak is likely.
• Mass Airflow (MAF) Sensor Reading at Idle — expected: 4-7 grams/second (g/s) for a 3.5L V6 on a warm engine.. Failure: Significantly lower readings (e.g., <3 g/s) suggest a dirty sensor or a vacuum leak occurring after the sensor.
• Mass Airflow (MAF) Sensor Reading at 2500 RPM — expected: 15-25 g/s, increasing linearly with RPM.. Failure: A reading that doesn't increase smoothly or is significantly lower than expected points to a faulty sensor or a major intake leak.
• Low-Side Fuel Pressure (Key On, Engine Running) — expected: Approximately 55 PSI +/- 5 PSI for the port-injected 3.5L engine.. Failure: Pressure significantly below specification indicates a weak low-pressure fuel pump or clogged filter. This typically causes lean codes on both banks.
• Upstream O2 Sensor (HO2S B2S1) Voltage — expected: Rapidly fluctuating between approximately 0.1V (lean) and 0.9V (rich).. Failure: A sensor that is slow to respond or is stuck low (e.g., < 0.2V) may be faulty, but this is usually a correct reading of a lean condition, not the cause of it.
• Port Fuel Injector Resistance — expected: 11 to 18 ohms.. Failure: A reading of infinity (open circuit) or near zero (short circuit) indicates a faulty injector. All injectors should have similar resistance values.

Scan Tool Commands That Help

• Ford IDS / FORScan / Capable Scan Tool: Reset Keep Alive Memory (KAM) — After replacing a component like a MAF sensor or fixing a major vacuum leak, resetting the KAM clears the old learned fuel trim adaptations. This forces the PCM to relearn fuel strategy immediately, which can resolve driveability issues faster. If a scan tool function is unavailable, disconnecting the battery ground cable for at least 5 minutes is an alternative.
• Ford IDS / FORScan / Capable Scan Tool: Fuel Injector Activation / Buzz Test — To individually test injectors on Bank 2 if a specific cylinder is suspected. The command activates the injector solenoid, which should produce an audible click. A lack of a click or no change in short-term fuel trim during activation points to a faulty injector or wiring issue.

Wiring & Ground Locations

• Bank 2, Sensor 1 O2 Sensor — The upstream oxygen sensor located on the driver's side exhaust manifold, before the catalytic converter.. This is the primary sensor that detects the lean condition on Bank 2. While rarely the cause, its wiring can be damaged, leading to incorrect signals.
• MAF Sensor Connector — In the air intake tube, immediately following the air filter housing.. A loose connection or damaged wiring at this connector can cause incorrect airflow readings, leading to lean codes on both banks. On some Ford MAF sensors, expect to see a 5V reference, ground, and a signal wire whose voltage changes with airflow.
• PCV Valve Hoses — The PCV valve is typically located on a valve cover. On the 3.5L/3.7L family, it is often on the rear (firewall side) valve cover. Hoses run from the valve to the intake manifold.. A cracked, disconnected, or deteriorated PCV hose is a common source of unmetered air (a vacuum leak) entering the intake manifold, causing a lean condition.

Real Owner Repair Stories

• Reddit user, r/FordExplorer (2018 Ford Explorer Sport with 3.5L EcoBoost) — P0171 and P0174 codes with long-term fuel trims stuck at +29% on both banks.
  ❌ Tried (didn't work) Smoke test (no leaks found), Testing with water and propane (no leaks found), Checking fuel pressure (readings were good), Cleaning injectors, Replacing intake manifold seals
  ✅ What actually fixed it Replacing all six fuel injectors and the fuel rail pressure sensor resolved the lean codes.

"I Checked Everything" — The Actual Cause

• In some cases with the 3.5L EcoBoost engine, lean codes P0171 and P0174 can persist even after a smoke test shows no vacuum leaks. The underlying cause was found to be faulty fuel injectors and a failing fuel rail pressure sensor, which were not providing adequate fuel despite low-pressure side readings being normal.
• A cracked flexible air intake tube (the 'accordion' section) between the MAF sensor and the throttle body can cause a lean code. This type of leak may not always show up on a smoke test if the crack only opens under engine torque or vibration. A thorough visual and physical inspection of the tube is required.

Model Year Variations Within This Range

• 2020-2021: The standard 3.5L V6 engine in the 2020-2021 Transit is a Port Fuel/Direct Injection (PFDI) design, featuring two injectors per cylinder (one direct, one port). This is a change from earlier, simpler port-injection-only engines and differs from the twin-turbo 3.5L EcoBoost which is GDI-only. This dual-injector system adds complexity to fuel system diagnosis compared to older models.
• Vehicles built on or before Nov 30, 2020: These vehicles are subject to TSB 21-2106 for a kinked evaporator emissions fresh air vent line. Vehicles built after this date should have the corrected hose routing from the factory, making this cause much less likely.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Driveshaft Flexible Coupling Failure 🔴 High — Common enough to trigger multiple recalls (17S15, 19S38) on 2015-2017 models. While the 2020-2021 models were not part of the main recall, driveshaft issues, including loose bolts on AWD models, have been noted in recalls for the 2020 model year. (Ref: Recall 19S38 (supersedes 17S15), Recall for 2020 AWD models)
• Harsh or Erratic 10-Speed Automatic Transmission Shifting 🟠 Medium — A widely discussed issue across many Ford models using the 10R80 transmission, including the 2020+ Transit. Owners report clunky, jerky, or delayed shifts. (Ref: Various TSBs exist for software reprogramming, but owner satisfaction with the fix varies.)

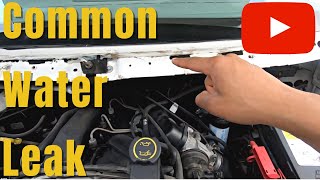

• Water Intrusion from Cowl Drain 🟠 Medium — A known design issue where clogged cowl drains under the windshield can cause water to overflow into the engine bay, saturating the air filter and potentially causing lean codes or other electrical issues. (Ref: TSB 18-2321 addressed this for earlier models, but the design principle and potential for issues persist in the 2020-2021 models according to forum discussions.)
• Rearview Camera Malfunction 🟡 Low — Subject to a broad recall (22V-142) affecting many Ford models, where a software error can cause the rearview camera to display a blank image. (Ref: Ford Recall 22S14 / NHTSA 22V-142)
• Shifter Cable Bushing Degradation 🟠 Medium — A recall was issued for 2013-2021 Transit Connect models with the 2.5L engine where the bushing attaching the shifter cable to the transmission can detach, preventing the vehicle from being in the selected gear. (Ref: Ford Recall 22S43 / NHTSA 22V-413)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, used parts are generally not recommended due to the nature of the common failures. Gaskets and seals should always be new. Sensors and electronic components have a finite lifespan and buying used carries a high risk of inheriting a worn or faulty part. The only exception might be a large, non-wear hardware component like an intake manifold if the original is physically cracked, but even then it must be thoroughly inspected and cleaned.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For an intake manifold: Check for cracks, especially around mounting points and injector ports.
• Ensure all threaded inserts are intact and not stripped.
• Verify the part is from the exact same engine type (PFDI vs. EcoBoost vs. standard V6) as designs differ.

OEM-only on this vehicle (don't cheap out):

• Mass Airflow (MAF) Sensor: While some aftermarket brands work, many are poorly calibrated and can cause persistent performance issues. Motorcraft is the safest bet to avoid diagnostic headaches.
• Fuel Injectors: Especially for the PFDI or GDI engines, OEM injectors are recommended to ensure correct flow rates and spray patterns. An owner who fixed P0171/P0174 on a 3.5L EcoBoost only found success after installing new OEM injectors.

Aftermarket brands forum-validated for this vehicle:

• Fel-Pro: For intake manifold gaskets.
• Standard Motor Products (SMP): Often a reliable alternative for sensors and valves like the canister purge valve.

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white-box' electronic sensors (MAF, O2 sensors) from online marketplaces. These frequently have high failure rates or are improperly calibrated, leading to more codes and wasted time.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0171 — This is the companion code for Bank 1 (System Too Lean). It frequently appears with P0174 because systemic issues like a vacuum leak, faulty MAF sensor, or fuel delivery problem affect both engine banks.
• P1450 — Unable to Bleed Up Fuel Tank Vacuum. This Ford-specific code can be triggered along with P0174 by the same root cause: a kinked evaporator emissions fresh air vent line, as described in TSB 21-2106.
• P0451 — Evaporative Emission System Pressure Sensor/Switch Range/Performance. This code is specifically mentioned in TSB 21-2106 as a potential companion to P0174 when the cause is a kinked EVAP vent line.
• P0455 — Evaporative Emission System Leak Detected (gross leak). Can be set alongside P0174 if the kinked EVAP vent line described in TSB 21-2106 is the underlying fault.
• P0456 — Evaporative Emission System Leak Detected (very small leak). Another EVAP code that can be triggered by the restricted airflow from the kinked vent line mentioned in TSB 21-2106.
• P0496 — Evaporative Emission System High Purge Flow. This code is also listed in TSB 21-2106 as being potentially caused by the same kinked EVAP hose that triggers lean codes like P0174.
