P0017 on 2007-2017 Jeep Patriot 2.4L: Crank/Cam Correlation Causes and Fixes

What's Unique About the 2007-2017 Jeep Patriot

The 2.4L World Engine in the Jeep Patriot uses a dual Variable Valve Timing (VVT) system that relies heavily on oil pressure to adjust both the intake and exhaust camshafts. This system is known to be sensitive to oil level, viscosity, and quality. Consequently, many P0017 codes on this platform are triggered by simple oil maintenance issues before progressing to actual hardware failure like solenoids or sensors. The engine is also known for oil consumption, which can exacerbate this issue if the level is not checked regularly.

Symptoms You May Notice

• Check Engine Light is on
• Rough or uneven idle
• Engine stalling, especially at low speeds or when coming to a stop
• Reduced engine power and poor acceleration
• Engine may enter a 'limp mode' with a hard RPM limit (e.g., 4000 RPM)
• Decreased fuel economy
• Rattling noise from the engine on startup (indicates timing chain issue)

Most Likely Causes

1. Low or Dirty Engine Oil 🔴 High Probability The VVT system is operated by oil pressure. Low levels or sludge from infrequent oil changes can prevent the cam phasers from adjusting correctly, causing a correlation error. These engines can consume oil between changes, making regular checks essential.
   How to confirm: Check the engine oil dipstick for proper level and inspect the oil's condition. If it is low, black, or sludgy, this is the first item to address.
   Typical fix: Top off the oil to the correct level or perform a complete oil and filter change using the manufacturer-specified viscosity (5W-20). Clear the code and drive to see if it returns.
   Est. part cost: $30-$60
2. Failed Exhaust VVT Solenoid (Oil Control Valve) 🟡 Medium Probability The solenoid can get clogged with sludge or fail electrically, preventing it from properly directing oil flow to the exhaust cam phaser. It's a very common failure point for this code.
   How to confirm: You can test the solenoid's resistance with a multimeter or apply 12V to see if it actuates. A common and effective diagnostic trick is to swap the exhaust solenoid with the intake solenoid (they are identical). Clear codes and drive. If the code changes to P0016 (intake correlation), the solenoid is confirmed bad.
   Typical fix: Replace the exhaust VVT solenoid. They are often replaced in pairs (intake and exhaust) as a preventative measure. 🎬 See this walkthrough on how to replace the VVT solenoid.
   Est. part cost: $40-$80
3. Failed Exhaust Camshaft Position Sensor ⚪ Low Probability The sensor provides the cam position signal to the PCM. Heat and age can cause it to fail, sending an incorrect or no signal.
   How to confirm: Inspect the sensor and its wiring for damage. You can swap it with the intake cam sensor (they are identical) to see if the code changes to P0016. A scan tool can also monitor the sensor's live data.
   Typical fix: Replace the exhaust camshaft position sensor.
   Est. part cost: $30-$70
4. Stretched Timing Chain or Failed Tensioner ⚪ Low Probability Over time, especially with poor oil maintenance, the timing chain can stretch, or the hydraulic tensioner can weaken. This creates slack and alters the mechanical timing between the crank and cams, which the sensors detect. This is an interference engine, meaning a timing failure can cause pistons to hit valves.
   How to confirm: This is a more involved diagnosis. A key symptom is a rattling noise from the timing cover area, especially on a cold start. A mechanic would need to remove the valve cover to physically inspect the chain for slack. If both P0016 and P0017 are present, a timing chain issue is highly likely.
   Typical fix: Replace the timing chain, guides, and tensioner. This is a labor-intensive job.
   Est. part cost: $200-$400

Rare But Worth Checking

• Failed Crankshaft Position Sensor: While possible, it's less common for the crankshaft sensor to cause a single camshaft correlation code. It would typically cause more severe running issues, a no-start condition, or a P0335 code.
• Clogged Oil Passages: Severe sludge from infrequent oil changes can block the small oil passages leading to the VVT solenoids or cam phasers, starving them of oil pressure even if the oil level is full.
• PCM Software Glitch: TSB 18-018-07 REV. A for the 2.4L engine suggests that P0016/P0017 can sometimes be triggered by a software issue. The fix involves flashing the PCM with updated software and often replacing both VVT solenoids (oil control valves) at the same time.
• Damaged Camshaft Reluctor Wheel/Tone Ring: The tone ring on the camshaft, which the sensor reads, can be damaged or slip, causing incorrect readings. This is a rare mechanical failure.

Diagnosis Steps

1. Check Engine Oil: Verify the oil level is full and the oil is clean. If low or dirty, perform an oil change with 5W-20 oil, clear the code, and drive to see if it returns. This is the most common fix.
2. Scan for Other Codes: Check for any other related codes that could point to a specific component (e.g., sensor circuit codes like P0340).
3. Inspect Wiring: Visually inspect the wiring and connectors for the exhaust camshaft position sensor, crankshaft position sensor, and exhaust VVT solenoid for any damage, corrosion, or loose connections.

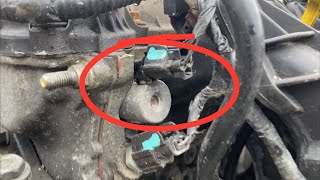

4. Test the VVT Solenoid (Solenoid Swap): The intake and exhaust VVT solenoids are identical and easily accessible on top of the valve cover. 🎬 Watch: See exactly where these VVT solenoids are located. Swap their positions. Clear the codes and drive the vehicle. If the code changes to P0016 (intake correlation), the solenoid you moved to the intake side is faulty and needs replacement. This is a highly reliable diagnostic step.
5. Test the Camshaft Sensor (Sensor Swap): The intake and exhaust camshaft position sensors are also identical. If the solenoid swap doesn't identify the issue, swap the sensors. If the code changes to P0016, the sensor is the culprit.
🎬 Watch: A helpful guide on testing and fixing P0017 codes.
6. Inspect Mechanical Timing: If all else fails, the issue is likely mechanical (timing chain). This involves removing the valve cover to inspect the timing chain for excessive slack. A distinct rattling noise on startup is a strong indicator. This step is best left to a professional if you are not experienced.
7. Check for TSBs: A dealer can check if any PCM software updates are available for your vehicle's VIN that address this code, such as TSB 18-018-07 REV. A.

Parts You'll Likely Need

• Exhaust Variable Valve Timing (VVT) Solenoid (OEM #4884483AC) — This solenoid controls oil flow to the exhaust cam phaser and is a common failure point due to clogging or electrical issues. It is identical to the intake solenoid.
  Trusted brands: Mopar, Dorman, Standard Motor Products (SMP), NGK/NTK
  OEM price range: $60-$90
  Aftermarket price range: $30-$60
• Camshaft Position Sensor (OEM #68080819AD) — This sensor reads the camshaft's position. An incorrect signal will cause a correlation fault. The intake and exhaust sensors are typically identical and can be swapped for diagnosis.
  Trusted brands: Mopar, Delphi, Bosch, NGK/NTK
  OEM price range: $50-$80
  Aftermarket price range: $25-$50
• Crankshaft Position Sensor (OEM #5033307AE) — This sensor provides the primary engine position signal. While a less common cause for P0017 alone, it can fail and disrupt the timing correlation.
  Trusted brands: Mopar, Delphi, Bosch
  OEM price range: $45-$70
  Aftermarket price range: $20-$40
• Timing Chain Kit — If the chain has stretched or the tensioner/guides have failed, a complete kit is needed to restore mechanical timing. This is the most intensive and expensive repair for this code.
  Trusted brands: Mopar, Cloyes, Melling
  OEM price range: $250-$400
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0016 — This is the correlation code for the intake camshaft. If both P0016 and P0017 are present, it strongly suggests a base timing issue, like a stretched timing chain, a failed crank sensor, or a problem with the oil supply affecting both VVT phasers.
• P0340 — This is a circuit code for the camshaft position sensor. If seen with P0017, it points more directly to a problem with the sensor itself or its wiring, rather than a mechanical timing issue.

Technical Service Bulletins (TSBs) & Recalls

• TSB 18-018-07 REV. A: Addresses P0016/P0017 codes on some 2.4L engines. Recommends a PCM software update and often replacement of the VVT solenoids (oil control valves) to resolve false correlation codes.
• TSB 23-007-17 REV. C: Pertains to front and rear crossmember (subframe) corrosion on 2008-2012 Patriot/Compass/Caliber models, extending the warranty for this specific issue. While not related to P0017, it's a critical safety issue for the platform.

Platform-Specific Known Issues

• Owner Experience: The Solenoid Swap: A common repair story found on forums for the Jeep Patriot and its platform mates (Compass, Caliber) involves the P0017 code appearing with rough idle. The owner first performs an oil change, which sometimes resolves the issue. If the code returns, they swap the easily accessible intake and exhaust VVT solenoids. After clearing the codes and driving, a P0016 code appears. This confirms the original exhaust solenoid was faulty, and replacing it permanently resolves the problem. This is the most frequently successful DIY repair after an oil change.
• Repair Story: The Hidden Timing Chain Problem: An owner on a forum described chasing a P0017 code for weeks. They replaced the oil, the exhaust VVT solenoid, and the camshaft position sensor with no luck. The vehicle also had a faint rattling noise on cold starts that was initially dismissed. Eventually, a mechanic confirmed the timing chain had stretched. After a costly timing chain replacement, the P0017 code was finally resolved. This highlights the importance of listening for secondary symptoms like engine noise.

Mechanic-Grade Diagnostic Values

• VVT Solenoid Coil Resistance — expected: Approximately 7.6 Ohms. Failure: A reading outside the specified range for your particular coil, or any reading to ground (short).
• Camshaft Position Sensor - Power Wire Voltage — expected: Approximately 5V with key on, engine off (KOEO).. Failure: No voltage or significantly lower voltage indicates a wiring or PCM issue.
• Camshaft Position Sensor - Signal Wire Voltage (Static) — expected: Approximately 4.8V - 5V (KOEO).. Failure: No voltage or significantly lower voltage.
• Camshaft Position Sensor - Signal Wire Voltage (Dynamic) — expected: Voltage should drop to near 0V when a ferrous metal object passes in front of the sensor.. Failure: Voltage does not change or drop, indicating a failed sensor.
• Camshaft Position Sensor - Ground Wire Check — expected: Should show battery voltage (~12V) when probing between the sensor's ground pin and the positive battery terminal.. Failure: No or low voltage indicates a bad ground connection for the sensor.

Scan Tool Commands That Help

• OBD-II Scanner (Advanced): Camshaft Position Sensor Relearn / Crank Angle Sensor Error (CASE) Relearn — After replacing a camshaft or crankshaft position sensor, the PCM may need to relearn the new sensor's position and variance. Failure to do so might cause the P0017 code to persist even with a good part.
• Chrysler WiTech or equivalent: VVT Solenoid Actuator Test — A bidirectional scanner can command the VVT solenoid to actuate on demand. This allows a technician to monitor the camshaft angle response in live data to see if the solenoid and phaser are functioning mechanically, without having to remove parts.

Wiring & Ground Locations

• G104 — Located on the right front of the engine compartment.. This is a primary engine compartment ground. Poor connection here due to corrosion can cause floating grounds and erratic behavior from various engine sensors, including the cam and crank sensors.
• G305 — Located in the left kick panel area, inside the cabin.. This is a body ground point. While less likely to directly cause a P0017, poor grounds in this area can affect modules that communicate with the PCM, potentially causing confusing diagnostic issues.
• Grounds near battery / alternator — A stack of ground wires on a frame stud in front of the battery, and another ground connection near the alternator.. Owners have reported significant electrical issues, including random warning lights and sensor problems, stemming from corrosion at these specific ground points. The eyelets can crumble, creating poor connections that are hard to diagnose visually without disturbing them.
• Camshaft Sensor Connector — On the top of the valve cover, connecting to the camshaft position sensor.. When testing, this is where you will back-probe for power, ground, and signal voltage. The center pin is typically ground, with the outer two being 5V power and signal.

Real Owner Repair Stories

• YouTube video on a Dodge Caliber (Dodge Caliber with 2.4L World Engine (shared with Patriot)) — Check Engine Light with codes P0365, P0366, and P0017.
  ❌ Tried (didn't work) The owner was concerned it was a timing chain issue due to the vehicle's high mileage.
  ✅ What actually fixed it Replacing both the intake and exhaust camshaft position sensors resolved the trouble codes and the Check Engine Light went out.
• Opinautos forum user (2009 Jeep Patriot 2.4L, 117,000 km) — Check Engine Light with P0017 (pending) immediately after having the cylinder head gasket replaced and head resurfaced. Engine sometimes felt like it was running on one less cylinder.
  ❌ Tried (didn't work) One user in the thread reported that replacing the crank and cam sensors did not fix the code on their vehicle.
  ✅ What actually fixed it The original poster did not provide a final resolution, but the symptoms appearing directly after major engine work (head gasket) strongly suggest the mechanical timing was not set correctly during reassembly, leading to the correlation code.

OEM Part Supersession History

• 4884483AA → 4884483AB, then 4884483AC — Standard part revision and improvement by the manufacturer.
  Heads up: The latest part number, 4884483AC, is the correct service replacement for all previous versions and fits the entire 2007-2017 model range.

Model Year Variations Within This Range

• 2014-2017: For the 2014 model year, Jeep Patriots with front-wheel drive and the 2.4L engine began using a Hyundai 6-speed conventional automatic transmission instead of the Continuously Variable Transmission (CVT) that was common in earlier years. This does not directly affect the P0017 code's cause but is a significant powertrain change within the generation.
• 2011: The Patriot received a minor facelift for the 2011 model year with revised exterior styling (bumpers, fog lamps) and an updated interior. Engine and VVT system hardware related to P0017 remained the same.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature CVT Failure 🔴 High — Common in 2007-2014 models, especially pre-2010. Symptoms like whining, overheating warnings, and loss of acceleration can appear early in the vehicle's life.
• Front & Rear Subframe Corrosion 🔴 High — Widespread in vehicles operated in the 'salt belt'. Can lead to catastrophic failure. A design flaw where the A/C drain drips onto the subframe can accelerate rust. (Ref: Chrysler extended the warranty to 10 years (X69 Warranty Extension) and issued TSB 23-007-17 REV C for this issue on 2008-2012 models.)
• Water Leaks into Cabin 🟠 Medium — Common across all model years. Leaks often originate from clogged sunroof drains, failed seals around the rear dome light (even on models without a sunroof), or a clogged A/C evaporator drain hose.
• Failing Throttle Body 🟠 Medium — Can cause the electronic throttle control (ETC) warning light to illuminate, leading to limp mode, stalling, and lack of power.
• Excessive Oil Consumption 🟠 Medium — The 2.4L World/TigerShark engine is known for consuming oil between changes, sometimes due to issues with piston rings. This makes maintaining the correct oil level critical to prevent VVT-related codes like P0017.
• Cracked Plastic Thermostat Housing 🟡 Low — The plastic housing on the side of the cylinder head can deform from heat cycles, causing a sudden and catastrophic coolant leak.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, using a used part is generally not recommended for electronic components like sensors or solenoids. The cost savings are minimal compared to new aftermarket parts, and the risk of getting a part with a short remaining lifespan is high. A used part makes sense only for cosmetic or simple mechanical items, not critical engine sensors.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a VVT solenoid, ensure the screen is perfectly clean and intact, with no signs of sludge or debris.
• For any sensor, check that the plastic connector is not brittle, cracked, or heat-damaged.
• Ask for the donor vehicle's mileage; avoid high-mileage donors for any electronic part.
• Ensure there is no corrosion on the electrical pins.

OEM-only on this vehicle (don't cheap out):

• Timing Chain Kit: While good aftermarket kits exist, for a job this labor-intensive, using an OEM Mopar kit is often recommended for guaranteed fit and longevity.

Aftermarket brands forum-validated for this vehicle:

• NGK/NTK (for sensors and solenoids)
• Dorman (widely available, often with design improvements)
• Standard Motor Products (SMP)
• Cloyes (for timing components)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded parts from online marketplaces should be avoided. They often have high failure rates and may not meet OEM specifications, causing codes to return.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0016 — The intake-side equivalent of P0017; often appears if a faulty solenoid or sensor is swapped from the exhaust to the intake side during diagnosis.
• P0340 — A camshaft sensor circuit code that can appear alongside P0017 when the sensor or its wiring is failing.
• P0011 — Related to VVT system performance; often mentioned in the context of oil-flow issues affecting cam phaser position.
• P0014 — Exhaust camshaft timing over-advanced; shares similar root causes like faulty VVT solenoids or oil sludge.
