P0012 on 2018-2023 Nissan Kicks 1.6L: Intake Cam Timing Over-Retarded Causes and Fixes

What's Unique About the 2018-2023 Nissan Kicks

The 1.6L HR16DE engine in the Nissan Kicks uses an electronic Variable Timing Control (eVTC) system on the intake side, while the exhaust side uses a conventional hydraulic VVT phaser. Unlike purely hydraulic systems, the intake side uses a dedicated electric motor to change the camshaft's position. While this system is precise, it is still highly dependent on clean engine oil with the correct viscosity to function properly. Problems like low oil levels, oil consumption, or stretched timing chains—which have been reported on this engine family—can prevent the eVTC system from making its commanded adjustments, leading directly to code P0012.

Symptoms You May Notice

• Check Engine Light is on
• Reduced engine power and sluggish acceleration
• Rough or unstable idle
• Engine may stall, especially at stops
• Decreased fuel economy
• Engine is hard to start
• A rattling noise from the engine, especially on cold starts.

Most Likely Causes

1. Low or Dirty Engine Oil 🔴 High Probability The VVT system requires clean, pressurized oil to operate. The HR16DE engine family has reports of oil consumption, making low oil levels a frequent issue that can trigger P0012. Dirty or incorrect viscosity oil can clog the tiny passages in the IVT control solenoid and phaser.

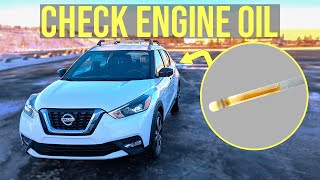

   How to confirm: Check the engine oil dipstick. The oil level should be between the 'L' and 'H' marks. 🎬 Watch: How to properly check your Kicks oil level. Inspect the oil's color and consistency; it should not be black, sludgy, or gritty. A technician on YouTube noted a P0012 on a 2020 Kicks was caused by an oil change that was 10,000 miles overdue, leading to a seized phaser. 🎬 Watch: A technician explains why this oil issue happens.
   Typical fix: If the oil is low, top it off with the manufacturer-specified grade (typically 0W-20 synthetic). If the oil is old or dirty, perform a complete oil and filter change.
   Est. part cost: $30-$70
2. Faulty Intake Valve Timing (IVT) Control Solenoid 🟡 Medium Probability This solenoid is an electro-hydraulic valve that can become clogged with sludge from dirty oil or fail electrically over time. It is a common failure point for many VVT systems and can get stuck.
   How to confirm: After checking the oil, inspect the IVT solenoid's wiring for damage. You can remove the solenoid (usually held by one 10mm bolt) and inspect its screens for debris. A more advanced test involves applying 12V to see if the internal plunger actuates, or checking its resistance with a multimeter. The expected resistance is typically between 6.9 and 7.9 ohms at 68°F (20°C).
   Typical fix: Clean the solenoid with brake cleaner if it's merely clogged. However, replacement is the most reliable fix.
   Est. part cost: $40-$120
3. Stretched Timing Chain or Failed Tensioner ⚪ Low Probability The HR16DE engine family has been known to suffer from premature timing chain stretch, especially with poor maintenance. When the chain develops slack, the base camshaft timing becomes retarded, and the eVTC system may not be able to compensate, triggering P0012. A brief rattle on a cold start is a classic early warning sign of timing chain wear.

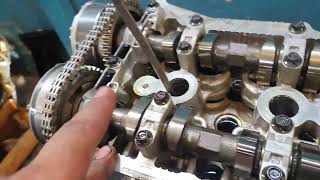

   How to confirm: Listen for a distinct rattling or scraping noise from the passenger side of the engine, especially during a cold start, that may last for a few seconds. Confirmation requires removing the valve cover and/or timing cover to physically inspect the chain for slack and check the tensioner's extension. This is an advanced diagnostic step.
   Typical fix: Replace the timing chain, tensioner, and guides. This is a labor-intensive job that often requires professional service.
   Est. part cost: $150-$400
4. Failed Intake Camshaft Phaser / Sprocket ⚪ Low Probability The phaser is the mechanical gear that the electric motor acts upon. It contains internal bearings that can seize, preventing it from adjusting the cam timing correctly. This failure is often a direct result of poor oil maintenance. A technician diagnosed a 2021 Kicks with P0012 where the phaser was found to be physically locked and would not rotate, confirming it was the point of failure.
   How to confirm: This is difficult to confirm without ruling out all other causes. A simple physical check can be performed by removing the eVTC actuator motor and attempting to spin the sprocket by hand; it should spin freely. If it is seized, it has failed. Advanced diagnostics, such as in-cylinder pressure analysis, can also point to a phaser issue by revealing an abnormal intake waveform.
   Typical fix: Replace the intake camshaft phaser assembly. This repair also involves removing the timing chain and should be performed by an experienced technician. The part was noted to be on backorder from Nissan dealers, indicating it may be a somewhat common failure.
   Est. part cost: $200-$350

Rare But Worth Checking

• Faulty Camshaft Position Sensor: While possible, this is an uncommon cause for P0012. This code typically indicates an actual mechanical timing problem, not a sensor reporting error. The sensor simply reports the position it sees, and is more likely to be accurate.
• Damaged Wiring or Connectors: Check the wiring harness and connector going to the IVT control solenoid for any signs of fraying, corrosion, or oil contamination, which can disrupt the signal from the ECM.
• Low Battery Voltage: On modern cars like the Kicks, low battery voltage can cause various modules to report erroneous codes. Nissan's own diagnostic procedure with the CONSULT tool requires connecting a smart charger if voltage is below 12.6V to ensure accurate diagnosis.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0012 is the primary code present.
2. Check the engine oil level and condition. This is the most common and cheapest fix. Top up or change the oil and filter if necessary using the correct 0W-20 synthetic oil.
3. Clear the code and test drive the vehicle. If the code does not return, the issue was oil-related.
4. If the code returns, inspect the wiring and connector for the intake IVT control solenoid (located on the top of the valve cover) for any damage or loose connections.
5. Remove the IVT control solenoid (one 10mm bolt). Inspect the mesh screens for sludge or debris. Clean if dirty, but replacement is often necessary.
6. Test the solenoid's resistance with a multimeter. It should be between 6.9 and 7.9 ohms. If it's out of spec or shows an open circuit, it has failed.
7. If the solenoid and oil are good, listen carefully for a timing chain rattle on a cold start. A rattling noise points towards a stretched chain or bad tensioner.
8. If no obvious cause is found, advanced diagnostics are needed. This includes checking live data on a scan tool for commanded vs. actual cam angle, or performing mechanical tests like checking timing marks and chain tension, which may require professional help. A technician on YouTube used in-cylinder pressure analysis to confirm a bad phaser on a 2021 Kicks.

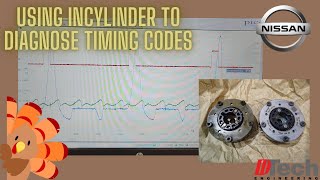

🎬 See how a pro uses pressure analysis to diagnose timing.

Parts You'll Likely Need

• Intake Valve Timing (IVT) Control Solenoid (OEM #23796-ED00D) — This solenoid controls oil flow to the cam phaser and is a frequent failure point, either by getting clogged with debris or failing electrically. Note: The Pass 1 part number appears to be for a different application; 23796-ED00D is more commonly cited for the HR16DE.
  Trusted brands: Hitachi, Dorman, NTK/NGK, Standard Motor Products (VVT142)
  OEM price range: $90-$150
  Aftermarket price range: $28-$90

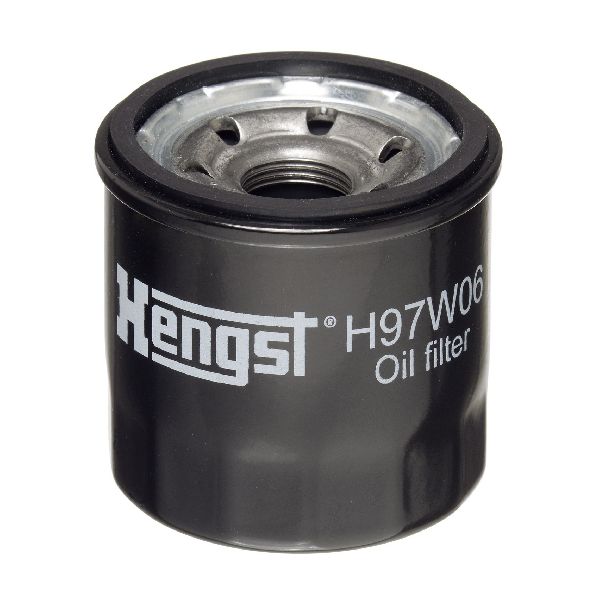

• Engine Oil and Filter — Low or dirty oil is the number one cause of VVT system problems. Using the correct viscosity (0W-20) is critical.
  Trusted brands: Mobil 1, Castrol, Valvoline, Pennzoil
  OEM price range: $50-$90
  Aftermarket price range: $30-$70
• Timing Chain Kit (Chain, Guides, Tensioner) (OEM #13028-5RB0A (Chain only)) — If the chain has stretched, it must be replaced along with its guides and tensioner to restore proper base engine timing. This is a known issue in the HR16DE engine family.
  Trusted brands: OSK, Cloyes
  OEM price range: $250-$400 (for kit)
  Aftermarket price range: $150-$250 (for kit)

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #NTB25-007: While specifically addressing other Nissan models, this bulletin notes that a Check Engine Light with DTC P0196 for the Engine Oil Temperature (EOT) sensor may have DTC P0012 for "Intake Valve Timing Control B1" stored along with it. The manufacturer instructs to follow specific diagnostic procedures for the EOT sensor in these cases.

Platform-Specific Known Issues

• Oil Consumption Concerns: The HR16DE platform can be prone to oil consumption. A technician documented a 2020 Kicks that was consuming one quart of oil every 1,000 miles, leading to a misfire code and eventual diagnosis of failed piston rings requiring engine replacement. This makes checking the oil level the absolute first step for a P0012 code.
• Timing Chain Rattle on Cold Start: A common symptom of a stretching timing chain on the HR16DE is a rattling noise upon cold startup that subsides after a few seconds as oil pressure builds. If you hear this noise in conjunction with a P0012 code, the timing chain system is the most likely culprit.
• Real World Repair: Locked Phaser: A detailed diagnostic video on YouTube for a 2021 Nissan Kicks with P0012 showed the root cause to be a mechanically locked (seized) intake camshaft phaser. The technician confirmed this after checking oil, the solenoid, and finally removing the valve cover to inspect the timing components directly.
• Real World Repair: Stretched Timing Chain: A post on the International Automotive Technicians Network (iATN) detailed a 2018 Nissan Kicks with an intermittent P0012 code and lack of power. The fix was replacing the timing chain, tensioner, and guides, which resolved the issue.

Mechanic-Grade Diagnostic Values

• Intake VVT Control Solenoid Resistance — expected: 6.9 - 7.9 Ohms at 68°F (20°C). Failure: A reading of infinity (OL) indicates an open circuit. A reading significantly outside the specified range indicates a faulty coil.
• In-Cylinder Pressure Waveform (Intake Stroke) — expected: A relatively smooth and uniform pressure curve during the intake stroke on a known-good engine.. Failure: On a 2021 Kicks with a failed phaser, a significant and abnormal dip in pressure was observed during the intake stroke, indicating a breathing problem caused by incorrect valve timing.

Scan Tool Commands That Help

• Nissan CONSULT-III Plus: Active Test — Used to command specific components, like the IVT solenoid, to function. This helps verify if the ECM can control the component and if the component responds, isolating the problem between wiring, the ECM, or the part itself.
• Nissan CONSULT-III Plus: Intake Valve Timing Control Relearn / Idle Air Volume Learn — After replacing the electric intake phaser (eVTC actuator), a relearn procedure is required for the system to recognize the new part's parameters and operate correctly. An Idle Air Volume Learn is also recommended to ensure the engine breathes correctly at idle after the repair.

Wiring & Ground Locations

• ECM Connector E19 — The main connector for the Engine Control Module (ECM), located in the engine bay.. This connector houses all the signal and ground wires for the engine management system. Poor connections here can cause a wide range of issues.
• ECM Ground Terminals 157, 159, 162 — These are specific pins on the ECM connector (E19) that provide ground paths for the module.. A poor ECM ground can cause erratic behavior and incorrect readings from sensors, potentially leading to false diagnostic trouble codes. Verifying a solid ground is a key step in advanced electrical diagnosis.
• Main Engine Ground — While not explicitly detailed for the Kicks in the search, a common Nissan practice is a primary ground strap from the engine block/intake manifold to the battery negative terminal and another from the cylinder head to the firewall.. The eVTC actuator is an electric motor that requires a stable voltage and ground to function precisely. A weak engine ground can affect its performance and ability to accurately adjust cam timing.

Real Owner Repair Stories

• DTech Engineering YouTube Channel (2021 Nissan Kicks 1.6L) — No power, loss of brake vacuum assist, P0012 and P052B codes present.
  ❌ Tried (didn't work) Vehicle was brought from another shop that had already attempted unspecified repairs.
  ✅ What actually fixed it The technician diagnosed a seized intake camshaft phaser. It would not rotate by hand. Advanced diagnosis using an in-cylinder pressure transducer confirmed an abnormal intake waveform. Replacing the intake phaser/sprocket resolved all issues. A relearn procedure for the electric phaser was performed after the repair.
• Total Upgrade Automotive Training YouTube Channel (2020 Nissan Kicks 1.6L) — P0012 code, loss of power.
  ❌ Tried (didn't work) The video focuses directly on the cause, but implies that simpler checks would not have found the issue.
  ✅ What actually fixed it The root cause was a seized intake variable timing sprocket (phaser). The failure was attributed to a severely neglected oil change (10,000 miles past due). The technician demonstrated that the sprocket should spin freely but was completely seized. Replacing the sprocket fixed the vehicle. The part was noted to be on backorder from the dealer at the time.
• NHTSA ODI #11673606 — An owner reported that the vehicle intermittently does not have power, citing code P0012 for the camshaft. The owner expressed concern about the safety risk of being rear-ended due to the sudden loss of power.
• NHTSA ODI #11686393 — A report describes a vehicle being towed twice to a dealership for the same issue, with codes P0012 for camshaft timing and P0196 for the engine oil temperature sensor. The dealership initially replaced the oil sensor to address the fault.
• NHTSA ODI #11697478 — An owner reported that after their vehicle was towed, a diagnostic scan retrieved several codes including P0012 and P0196.
• NHTSA ODI #11710327 — A complaint notes that a vehicle entered limp mode with a "take to dealer" warning, showing codes P0012, P0196, P0507, and P161F.

Model Year Variations Within This Range

• 2018-2023: The Nissan Kicks received a facelift for the 2021 model year, which included cosmetic and technology updates. However, the 1.6L HR16DE engine and its eVTC system remained mechanically consistent throughout the 2018-2023 generation for the North American market. Therefore, the causes and fixes for P0012 are the same across this year range.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0300 — Random/Multiple Cylinder Misfire code. Often appears alongside P0012 on the HR16DE engine when severe oil consumption leads to internal engine damage, such as failed piston rings.
• P0011 — Intake Camshaft Position Timing - Over-Advanced. This is the companion code to P0012 (Over-Retarded) and is triggered by the exact same components failing, such as a clogged IVT control solenoid, low 0W-20 oil, or a seized phaser.
• P0335 — Crankshaft Position Sensor 'A' Circuit. Noted in Nissan Kicks owner forums as a related drivability code that can appear when the engine's base timing or sensor readings are disrupted.
• P0106 — Manifold Absolute Pressure (MAP) Sensor Performance. Mentioned in Kicks owner forums alongside crankshaft sensor issues; abnormal intake valve timing (P0012) can alter intake manifold vacuum, potentially triggering a MAP sensor code.
