P0010 on 1998-2006 BMW 3-Series (E46) M54: Intake VANOS Solenoid Circuit Fault Causes and Fixes

What's Unique About the 1998-2006 BMW 3-Series (E46)

The BMW M54 engine uses a 'Double VANOS' system, acting on both the intake and exhaust camshafts. Code P0010 isolates the problem to the intake side. A key feature of this platform is that the intake and exhaust VANOS solenoids are identical and easily accessible at the front of the engine, allowing for a simple diagnostic swap. Failure of these solenoids is a very common issue on the M54 engine as it ages, often due to internal coil failure or becoming clogged with oil sludge.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle
• Hesitation or stumbling on acceleration, often described as the engine feeling 'stuck in the mud' at low RPM.
• Noticeable loss of engine power, especially at lower RPMs, sometimes followed by a surge of power around 3,000 RPM.
• Decreased fuel economy; some owners report significant drops in MPG that recover after the fix.
• Engine may be difficult to start in some cases
• Engine stalling, especially when coming to a stop

Most Likely Causes

1. Failed Intake VANOS Solenoid 🔴 High Probability The VANOS solenoids are a known common failure point on the M54 engine due to age, heat cycles, and internal wear of the electromagnetic coil, leading to an open circuit. Sludge from infrequent oil changes can also clog the solenoid's internal passages and cause it to fail.
   How to confirm: Swap the intake solenoid (upper) with the identical exhaust solenoid (lower). Clear the codes and run the engine. If the fault code changes to P0020 ('B' Camshaft Position Actuator Circuit), the solenoid is confirmed bad. Alternatively, test the solenoid's resistance with a multimeter; a healthy M54 solenoid should read approximately 10-12 ohms. An open circuit (infinite resistance) confirms failure.

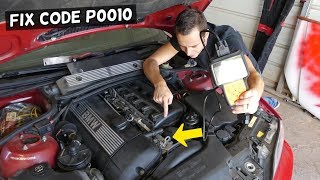

   Typical fix: Replace the faulty VANOS solenoid. It is held in by a 32mm nut or specialized socket and sealed with an O-ring. 🎬 See this step-by-step solenoid replacement walkthrough No special programming is required after replacement.
   Est. part cost: $40-$150
2. Damaged Wiring or Electrical Connector 🟡 Medium Probability The plastic electrical connectors at the front of the engine become brittle over time from heat and can crack, causing a poor connection. The wiring insulation can also degrade and break, leading to an open circuit.
   How to confirm: Visually inspect the connector for cracks, corrosion, or loose pins. Unplug it and check for oil contamination. If the solenoid swap test does not move the code, perform a continuity test on the wiring harness between the solenoid connector and the DME.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail.
   Est. part cost: $15-$40
3. Low or Dirty Engine Oil ⚪ Low Probability The VANOS system is hydraulic and relies on clean oil and proper pressure. While low/dirty oil more commonly causes performance codes (P0011/P0012), severe sludge can clog the solenoid's internal passages and potentially cause electrical strain or a stuck valve that leads to the DME flagging a circuit fault.
   How to confirm: Check the engine oil level on the dipstick and inspect its condition. If the oil is very old, dark, or below the minimum level, this should be addressed first.
   Typical fix: Perform an oil and filter change using a BMW-approved oil (such as LL-01). In some cases, cleaning a salvageable solenoid with brake cleaner may restore function.
   Est. part cost: $60-$100

Rare But Worth Checking

• Failed Engine Control Module (DME): This is very rare, but if the solenoid and wiring are confirmed to be good, the driver circuit within the DME could be the source of the electrical fault. This should be the last item to check after all other possibilities are exhausted.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0010 is present. Note any other codes.
2. Check the engine oil level and condition. Top up or change if necessary.
3. Locate the two VANOS solenoids on the front of the engine, near the top. The intake solenoid ('A') is the upper one.
4. Inspect the intake solenoid's electrical connector for obvious damage, corrosion, or oil saturation. Ensure it is plugged in securely.
5. The Swap Test: Mark the original intake solenoid. Unplug both solenoids. Use a 32mm wrench or thin-walled socket to remove both the intake (upper) and exhaust (lower) solenoids. Swap their positions (install the original intake solenoid in the exhaust position and vice-versa).
6. Clear all fault codes with the scanner.
7. Start the engine and let it run for a few minutes, then drive if necessary to trigger the light. Re-scan for codes.
8. If code P0020 ('B' Camshaft Position Actuator Circuit) appears, the solenoid you moved to the exhaust position is faulty and must be replaced. This is the most common outcome.
9. If code P0010 returns, the problem lies in the wiring harness for the intake solenoid or, rarely, the DME. The solenoid itself is likely good.
10. Wiring Check: If P0010 returns, unplug the connector and use a multimeter to test the wiring. Check for continuity between the DME and the connector pins and verify voltage/ground signals.
11. If the wiring is good, the final step would be to test the DME, which is best left to a professional with BMW-specific diagnostic tools like ISTA.

Parts You'll Likely Need

• VANOS Solenoid (OEM #11361432532) — This is the actuator that the P0010 code refers to. It is the most common component to fail, causing the electrical circuit fault. Both intake and exhaust solenoids use the same part number.
  Trusted brands: Genuine BMW, Febi Bilstein, VDO (often the OEM supplier), URO Parts
  OEM price range: $120-$180
  Aftermarket price range: $40-$90
• VANOS Solenoid Connector Pigtail — If the connector is cracked, brittle, or the wiring is damaged near the plug, replacing the pigtail is the correct repair. This is less common than the solenoid itself failing.
  Trusted brands: Genuine BMW, URO Parts
  OEM price range: $30-$50
  Aftermarket price range: $15-$25

Related Codes That Often Appear With This One

• P0011 — If the solenoid is mechanically stuck in addition to having an electrical fault, a 'Timing Over-Advanced' code may appear alongside the circuit code.
• P0012 — If the failing solenoid causes the camshaft to not advance as commanded by the DME, a 'Timing Over-Retarded' code may be triggered alongside the P0010 circuit fault.

Platform-Specific Known Issues

• Solenoid Cleaning vs. Replacing: Some owners have had success removing the solenoid, cleaning it thoroughly with brake cleaner, and actuating the internal piston with a 12V source to free it up. This can sometimes restore function if the failure is due to sludge, but if the internal coil is broken (an open circuit), replacement is the only option. A post on E46Fanatics details a user who fixed a P0014 (exhaust equivalent) with a junkyard part after cleaning failed, noting the significant improvement in fuel economy.
• Confusion with VANOS Seals: The M54 is famous for another VANOS issue: degraded internal piston seals made of Buna rubber, which harden and fail over time. This typically causes a lack of low-end torque and rough idle but does NOT usually cause the P0010 electrical circuit code. 🎬 Watch: How to test your VANOS system P0010 points to the solenoid or wiring. While replacing the seals is a common and recommended maintenance item (using upgraded Viton seals), it will not fix a P0010 code.

Mechanic-Grade Diagnostic Values

• VANOS Solenoid Coil Resistance — expected: 10.5 - 11.5 Ohms. Failure: Infinite resistance (Open Loop) or a value significantly outside the expected range indicates a failed coil.
• VANOS Solenoid Connector Voltage (Key On, Engine Off) — expected: One pin should have 12V (battery voltage) and the other is the ground signal from the DME.. Failure: Absence of 12V power points to a problem with the power supply or fuse, while a missing ground signal when commanded points to a wiring or DME issue.

Hidden / Shadow Codes Worth Checking

• 212 (0xD4): This is the BMW-specific hexadecimal fault code for 'VANOS, inlet, mechanical fault or jammed'. While P0010 is purely electrical, this code often appears alongside it if the solenoid is both electrically failed and mechanically stuck. (see via BMW-specific diagnostic software like INPA, ISTA, or high-end scanners capable of reading manufacturer codes.)
• 7A (0x4D): Another BMW FC for 'Camshaft control, inlet, open circuit'. This is the direct BMW equivalent to the generic P0010, pointing specifically to the electrical circuit fault for the intake VANOS solenoid. (see via BMW-specific diagnostic software like INPA or ISTA.)

Scan Tool Commands That Help

• ISTA/D: Vanos Test Plan / Component Activation — After confirming the P0010 code, a technician can use ISTA to run a full system test on the VANOS. It will attempt to actuate both solenoids and measure the camshaft angle response. For a P0010, the test will likely fail on the intake side immediately, confirming the DME cannot command the solenoid. This is a definitive way to confirm the fault location before swapping parts.
• INPA: Activate VANOS Inlet Solenoid — INPA allows for direct, manual activation of the intake and exhaust solenoids with the engine running. When activating the intake solenoid at idle, the engine should stumble or die. If activating the solenoid in INPA produces no change in engine behavior, but swapping the solenoids makes the exhaust activation fail, the solenoid is confirmed bad. If P0010 is present and the activation fails to cause a stumble, it confirms the signal is not reaching or being acted upon by the solenoid.

Wiring & Ground Locations

• A6000 (DME) — Located in the electronics box (E-box) on the passenger side of the engine bay, under the cabin air filter housing.. This is the Engine Control Module that controls and monitors the VANOS solenoid circuit. All wiring tests for the solenoid harness will terminate at one of the DME's large multi-pin connectors.
• DME Connector X60004, Pin 10 — On the Siemens MS45 DME, this specific pin is the signal wire for the VANOS intake solenoid valve.. When P0010 persists after a solenoid swap, a technician must perform a continuity test from the solenoid's electrical connector back to this specific pin to rule out a break in the wiring harness.
• DME Connector X60002, Pin 5 — On the Siemens MS43 DME, this pin is the signal for the VANOS intake solenoid.. For vehicles with the MS43 DME, wiring continuity for the P0010 fault must be checked back to this pin. This highlights a key model variation in wiring.

Real Owner Repair Stories

• Reddit user u/NikkiE46bmwm3 (BMW E46 M3 (S54 Engine, similar VANOS architecture)) — Check Engine Light with codes P0010 and P0012.
  ❌ Tried (didn't work) Initial diagnosis was uncertain, considered camshaft position sensor.
  ✅ What actually fixed it The user started by replacing the VANOS solenoid. After replacing the solenoid and clearing the codes, the Check Engine Light and all pending/stored codes were resolved, confirming the bad solenoid was the root cause.

OEM Part Supersession History

• 11361432532 → 11367585425 (for some newer applications, but 11361432532 remains the primary number for E46 M54) — The part was updated for newer engine platforms (like the N52/N54), but the original design is still used and sold for the M54. The core function and fitment are identical.
  Heads up: While the newer 11367585425 may physically fit, sticking with the specified 11361432532 from a reputable OEM or aftermarket supplier is recommended to ensure correct electrical characteristics for the MS43/MS45 DME.

Model Year Variations Within This Range

• 2000-2002 vs 2003-2006: The DME (ECU) changed from the Siemens MS43 to the MS45 around 2003. While the P0010 code and the solenoid part number remain the same, the pinout location on the DME for the intake VANOS solenoid is different. For MS43 it is Pin 5 on connector X60002, and for MS45 it is Pin 10 on connector X60004. This is critical for advanced wiring diagnostics.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cooling System Overhaul 🔴 High — Very common. Components like the plastic expansion tank, water pump with plastic impeller, and thermostat are prone to failure, typically between 60,000-100,000 miles. Failure can cause rapid overheating and lead to a warped cylinder head.
• Rear Subframe Carrier Panel Cracks 🔴 High — A widespread and infamous issue affecting all E46 models, including non-M cars. Torsional stress causes the sheet metal of the rear axle carrier panel (where the subframe mounts) to fatigue and crack over time, regardless of driving style. (Ref: While no official recall was issued in many regions, BMW did settle a class-action lawsuit and offered inspection/repair programs for a time. Reinforcement plates are a common aftermarket solution.)
• VANOS Internal Seal Degradation 🟠 Medium — Affects nearly all M52TU and M54 engines. The original Buna rubber piston seals inside the VANOS unit harden and shrink by 50,000 miles, causing loss of hydraulic pressure. This leads to a significant loss of torque below 3,000 RPM and unstable idle, but does not typically set a circuit fault code like P0010.
• Crankcase Ventilation (CCV) System Failure 🟠 Medium — Commonly fails around 75,000-120,000 miles. The oil separator and its associated plastic hoses become clogged and brittle, leading to high oil consumption, blue smoke from the exhaust, rough idle, and lean fault codes. Often called the 'cyclone separator'.
• Cracked Intake Air Boots 🟡 Low — The rubber boots between the mass air flow sensor and the throttle body are prone to cracking with age, causing unmetered air to enter the engine. This results in lean codes, a rough idle, and hesitation.
• Window Regulator Failure 🟡 Low — Extremely common. The plastic clips that hold the window glass to the regulator mechanism break, causing the window to fall into the door, become misaligned, or fail to move.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used VANOS solenoid from a junkyard is a reasonable choice for a quick, low-cost diagnostic test. If swapping in a used part resolves the P0010 code, it confirms the original solenoid was the failure point. However, due to the high failure rate and unknown history, it is not recommended as a permanent replacement.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the electrical connector for any cracks or broken locking tabs.
• Inspect the small oil screen ports for heavy sludge or debris; clean ports suggest a well-maintained donor engine.
• If possible, test the resistance with a multimeter before purchase; it should be between 10-12 Ohms.
• Avoid solenoids from engines that show obvious signs of heavy oil leaks or coolant contamination.

Aftermarket brands forum-validated for this vehicle:

• Febi Bilstein
• VDO (often the original OEM supplier)
• Dorman (reported by users to be a reliable alternative)

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand solenoids from online marketplaces often have high premature failure rates due to poor quality internal windings and seals.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0020 — This is the 'B' (Exhaust) Camshaft Position Actuator Circuit code. Because the M54 uses identical solenoids for intake and exhaust, P0020 often appears during diagnostic 'swap tests' to confirm a P0010 solenoid failure.
• P0011 — A performance-related code for the intake camshaft. While P0010 is a circuit fault, P0011 can be triggered by the same root causes like low or dirty engine oil and sludge.
• P0012 — Intake camshaft timing over-retarded. This often accompanies P0010 when the solenoid fails to hydraulically move the VANOS unit to the requested position.
• P0014 — The exhaust-side equivalent for camshaft timing over-advanced; related through shared failure modes of the Double VANOS solenoids.
