U0402 on 2014-2017 Jeep Cherokee: Invalid TCM Data Causes and Fixes

What's Unique About the 2014-2017 Jeep CHEROKEE 🎬 Watch: Overview of common Jeep Cherokee problems and fixes

The 2014-2017 Jeep Cherokee (KL generation) uses a complex 9-speed automatic transmission (ZF 9HP) that was notoriously problematic, especially in its early years. Many issues were software-related, leading to numerous Technical Service Bulletins (TSBs) and software updates from FCA (now Stellantis). The existence of TSB #9003785, which instructs technicians to call a specific factory engineer for this code, highlights how sensitive and known this issue is to the manufacturer. TSBs like 18-014-16 Rev. A directly link U0402 to the need for PCM and TCM software updates.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Harsh or erratic shifting
• Vehicle enters 'limp mode' (stuck in a single gear)
• Delayed engagement when shifting from Park to Drive or Reverse
• "Service Shifter" or "Service Transmission" message on the dashboard
• Sudden, unexpected downshifts while driving
• Transmission Tip-In Bump (when accelerating out of 4th gear)
• Flashing traction control light

Most Likely Causes

1. Outdated or Corrupt TCM/PCM Software 🔴 High Probability The ZF 9HP transmission in this Cherokee had numerous software bugs from the factory that were addressed through a series of updates. TSBs 18-014-16 and 18-063-17 Rev. A specifically call for reprogramming the PCM and TCM to fix U0402 and related codes.
   How to confirm: A Jeep dealership or a qualified shop with a wiTECH scan tool can check the current software version against the latest available from the manufacturer. This is the first step in any diagnosis for this code.
   Typical fix: Reprogramming (flashing) the Powertrain Control Module (PCM) and then verifying the Transmission Control Module (TCM) has the latest software. A battery charger must be used during the flash to ensure stable voltage.
   Est. part cost: $0
2. Faulty Transmission Control Module (TCM) 🟡 Medium Probability If software updates fail to resolve the code, or if the module cannot be programmed at all, the TCM itself can have an internal hardware failure. An owner complaint (ODI #11120918) notes that even after two attempts to program the TCM, the light came right back on, suggesting a hardware failure.
   How to confirm: This is confirmed when the U0402 code returns immediately after a successful software flash, or if the wiTECH tool reports that it cannot communicate with or flash the TCM.
   Typical fix: Replace the Transmission Control Module. This must be followed by programming it to the specific vehicle's VIN.
   Est. part cost: $803-$811
3. Wiring or Connector Issues ⚪ Low Probability All modern cars are susceptible to wiring problems. A poor connection, corroded pin, or damaged wire between the TCM, PCM, and the transmission can corrupt the CAN bus data signal. A user on a Trackhawk forum suggested checking the STAR connector junction, where the transmission CAN bus wires are located.
   How to confirm: Visually inspect the wiring harness to the TCM and transmission for damage. A technician would use a multimeter to check for continuity and proper voltage at the TCM connectors, specifically the CAN bus high and low lines.
   Typical fix: Repairing the damaged wire or cleaning/reseating the corroded connector. Applying dielectric grease can prevent future corrosion.
   Est. part cost: $5-$100
4. Internal Transmission Failure (e.g., Valve Body) ⚪ Low Probability While less common than software issues for this specific code, internal mechanical or hydraulic failures can cause the TCM to send invalid data as a secondary effect. One owner reported a valve body replacement was performed to fix shifting issues, after which a U0402 code appeared that required a TCM relearn (ODI #11111856), showing the interplay between components.
   How to confirm: This is usually diagnosed after all software and electrical issues have been ruled out. It often involves other transmission-specific trouble codes (like for solenoids) and requires physical inspection and pressure testing.
   Typical fix: Repair or replacement of the faulty internal transmission component, such as the valve body or solenoids. This is a last resort after software and TCM replacement have failed.
   Est. part cost: $800-$2000+

Rare But Worth Checking

• Low Battery Voltage or Charging System Issue:

Diagnosis Steps

1. Check for any applicable TSBs or Recalls for your vehicle's VIN. This is the most critical first step. TSBs 18-014-16 and RRT 15-003 are highly relevant.
2. Check battery health and charging system voltage to rule out power supply issues. Voltage should be stable and within the 13.5V-14.5V range with the engine running.

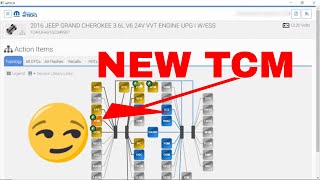

3. Using a dealer-level scan tool (wiTECH), check for the latest available software for the PCM and TCM. If updates are available, perform the flash procedure, starting with the PCM.
4. After flashing, clear all DTCs. The wiTECH application will prompt this automatically.
5. Perform the 'Transmission Quick Learn' procedure as specified by the manufacturer in TSB 21-013-16 Rev. B. 🎬 See how to perform a transmission quick learn procedure This is required to reset and learn clutch adaptive values after a flash or repair.
6. If the code returns, inspect the TCM wiring harness and connectors for any signs of damage, corrosion, or loose pins. Pay attention to the main harness connectors and the STAR connector junction.
🎬 Watch: How to find the TCM fuse and relay location
7. Test the power and ground circuits for the TCM to ensure it's receiving stable voltage.
8. If software is up-to-date and wiring is intact, suspect a faulty TCM. An attempt to reprogram it again may fail, confirming the diagnosis.
9. If other transmission-specific codes are present, further diagnosis of internal components like the valve body or solenoids may be necessary.

Parts You'll Likely Need

• Transmission Control Module (TCM) Software Update — This is the most common and manufacturer-recommended first step to resolve the communication error, as documented in multiple TSBs.
  OEM price range: $150-$300 (Labor for flashing)
  Aftermarket price range: N/A
• Transmission Control Module (TCM) (OEM #68225514AB) — If software updates do not fix the issue or cannot be completed, the module itself is the likely culprit. This part must be programmed to the vehicle after installation.
  Trusted brands: Mopar
  OEM price range: $803-$811
  Aftermarket price range: $200-$500 (Remanufactured)

Related Codes That Often Appear With This One

• U1424 — Stands for 'Implausible Engine Torque Signal Received'. This code is explicitly mentioned alongside U0402 in TSB 18-014-16 and TSB 18-063-17 as being resolved by the same PCM/TCM software update. They are part of the same core communication problem.
• P0978 — This is a transmission solenoid circuit code. It was reported alongside U0402 in one NHTSA complaint (ODI #10895379), suggesting a potential link between the communication fault and a specific solenoid control issue, though this is less common.
• P1DD2-00 — Stands for 'Torque Request Signal From TCM Denied'. This code is also listed with U0402 and U1424 in TSB 18-063-17 for the related Ram ProMaster City, indicating it's part of the same family of software-related torque management communication errors.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #9003785: Mentions DTC U0402 specifically and advises technicians to call a specific engineer before working on the unit.
• Bulletin #18-014-16 Rev. A: Addresses MIL illumination with DTC U0402 and U1424, with the fix being to reprogram the PCM and verify the TCM has the latest software.
• RRT #15-003: Involves reprogramming the TCM and PCM and notes that if an active U0402 code is set during the relearn procedure, normal diagnostics should be followed.
• Customer Satisfaction Notification W84: A software update procedure that also mentions checking for U0402 during the post-flash relearn process.
• Bulletin #21-013-16 Rev. B: Details the mandatory 'Quick Learn' procedure required after transmission repairs or software flashes to ensure proper shift quality.

Platform-Specific Known Issues

• NHTSA TSB #9003785 specifically calls out DTC U0402 on 2017 models, instructing technicians to contact a specific factory engineer before proceeding with repairs, indicating a known, complex issue.
• NHTSA Owner Complaint #10733536 mentions that a recall (R01) to flash the TCM and PCM was performed to address this code.

Mechanic-Grade Diagnostic Values

• CAN Bus Network Resistance — expected: Approximately 60 Ohms. Failure: A reading of 120 Ohms indicates an open circuit or a missing terminating resistor. A reading near 0 Ohms indicates a short between the CAN High and CAN Low wires.
• CAN High Voltage to Ground — expected: Approximately 2.6V - 2.7V (average). Failure: Significant deviation from this voltage suggests a short to power or ground on the CAN High line.
• CAN Low Voltage to Ground — expected: Approximately 2.3V - 2.4V (average). Failure: Significant deviation from this voltage suggests a short to power or ground on the CAN Low line.
• TCM Power Supply Voltage — expected: 11.5V - 13.5V. Failure: Voltage below this range can cause the module to send corrupt data or reset unexpectedly.

Hidden / Shadow Codes Worth Checking

• U0402-00: The '-00' suffix is a generic fault type indicator used by FCA, often seen on dealer-level scan tools like wiTECH. It doesn't add much diagnostic information beyond the base code but confirms it's a standard 'Invalid Data' fault. (see via This is typically visible on a wiTECH or other advanced, manufacturer-specific scan tool.)

Scan Tool Commands That Help

• wiTECH: Proxy Configuration Alignment (Proxi) — This procedure is mandatory after replacing the TCM or certain other modules. It synchronizes the vehicle's configuration across all modules on the network. Failure to perform a Proxi alignment will cause a flashing odometer and can set numerous communication (U-prefix) codes, including U0402.
• wiTECH: Transmission Quick Learn — This function must be performed after reprogramming the TCM or replacing the valve body. It resets and relearns the adaptive values for clutch engagement points, ensuring smooth shifting. Skipping this step can lead to persistent harsh shifting even after a software fix.
• wiTECH: Restore Vehicle Configuration — If a module replacement or programming event goes wrong, this function can be used to restore the vehicle's original configuration from a backup stored in the BCM, which can resolve mismatches that trigger communication codes.

Wiring & Ground Locations

• TCM CAN Bus Pins — On the main TCM connector (C1, a 60-pin connector), the CAN-C High wire is typically on Pin 45 (White/Light Green) and CAN-C Low is on Pin 46 (White/Dark Green).. These are the specific pins a technician must test for correct resistance (60 Ohms) and voltage to diagnose a physical network problem affecting the TCM.
• G904A — Located under the driver's door sill, within the main body wiring harness.. This is a primary ground point for the Body Control Module (BCM) and other interior components. While not the direct ground for the TCM, a poor connection here can cause network-wide communication instability, indirectly leading to codes like U0402.
• Transmission to TCM Harness — This harness runs from the transmission case up into the engine bay to connect to the TCM. The part number for a 2015 2.4L model is 68241722AA as an example.. This entire harness is a common point of failure. Damage from heat, vibration, or corrosion in its connectors can cause high resistance or open circuits, directly leading to U0402. In some documented cases, replacing this harness was the final fix after software updates failed.
• STAR Connector — FCA vehicles use STAR (Service Technical Assistance Resource) Connectors as junction points for the CAN bus. There are several, including one under the center console and another behind the instrument panel.. A loose pin or corrosion within the STAR connector that serves the CAN-C bus (the transmission bus) can disrupt communication between the TCM and other modules, causing this code.

Real Owner Repair Stories

• JeepCherokeeClub.com forum user (2014 Jeep Cherokee) — Check engine light with code U0402, erratic shifting.
  ❌ Tried (didn't work) Multiple TCM/PCM software flashes by the dealer., Clearing codes (they would return).
  ✅ What actually fixed it The dealership eventually replaced the entire wiring harness that runs between the transmission and the TCM. Testing of the old harness revealed high resistance on several pins, indicating an internal wire break or corrosion.
• Reddit r/JeepCherokee user (2014 Jeep Cherokee) — Intermittent no-start condition, 'Service Shifter' light, and code U0402.
  ❌ Tried (didn't work) Replacing the battery., Checking and cleaning battery terminal connections.
  ✅ What actually fixed it The Transmission Control Module (TCM) itself was failing intermittently. Replacing the TCM and performing the required Proxi Alignment procedure resolved all symptoms.
• NHTSA ODI #11111856 (2017 Jeep Cherokee) — Harsh shifting issues, followed by a check engine light with code U0402.
  ❌ Tried (didn't work) The dealership first replaced the transmission valve body to address the shifting complaints.
  ✅ What actually fixed it After the valve body replacement, the U0402 code appeared. The final fix was performing a 'TCM relearn' procedure, which recalibrated the control module to the new hardware.

OEM Part Supersession History

• Multiple, e.g., 68249614AA → Multiple, e.g., 68225514AB, 68315880AA — Hardware and internal logic revisions to address reliability issues and software incompatibilities found in early-build modules.
  Heads up: Using an older, non-superseded part number or a used module from a vehicle with different options can cause programming to fail or lead to immediate U0402 codes. It is critical to use a new part or a remanufactured unit that is programmed to the specific vehicle's VIN. Some replacements require multiple part numbers to be ordered together.

Model Year Variations Within This Range

• 2014-2015: These early models were most affected by the initial ZF 9HP transmission software and hardware issues. They were the subject of numerous recalls and TSBs specifically for harsh shifting, sudden shifts to neutral, and communication errors. Fixes for these years almost always start with ensuring all recall-related software flashes have been performed.
• 2016-2017: While still using the same core transmission, these later models benefited from factory-installed software and hardware improvements. While U0402 can still occur, it's slightly less likely to be a simple missing update compared to the 2014-2015 models. TSB #9003785 from 2017 specifically calls out U0402 and directs techs to call the factory, suggesting more complex or nuanced issues were appearing by this time.
