P0521 on 2011-2017 Chevrolet Caprice: Oil Pressure Sensor Performance Causes and Fixes

What's Unique About the 2011-2017 Chevrolet Caprice

The 2011-2017 Caprice PPV (Police Patrol Vehicle) uses either the 6.0L L77 V8 or the 3.6L LFX V6, both of which are known for oil pressure sensor issues across multiple GM platforms. The sensor's location at the rear of the engine, tucked under the cowl and behind the intake manifold, makes what should be a simple repair a significant labor challenge. 🎬 Watch: This secret tool makes the difficult sensor removal much easier. Due to the heavy-duty use and potential for extended idling in these former police vehicles, issues like oil sludge clogging the sensor's filter screen are common. Furthermore, the L77 V8 features Active Fuel Management (AFM), which is highly dependent on correct oil pressure to function, making this code particularly important to address.

Symptoms You May Notice

• Check Engine Light is on
• Oil pressure gauge reads zero, maxed out, or fluctuates wildly.
• Low Oil Pressure warning message on the instrument cluster.
• Engine running rough or making unusual ticking/knocking noises (if oil pressure is genuinely low).
• Engine stalling.

Most Likely Causes

1. Faulty Engine Oil Pressure Sensor (Sending Unit) 🔴 High Probability This is a very common failure point on GM V8 and V6 engines of this era. The sensor itself fails internally, leading to incorrect readings. It is not uncommon for replacement sensors to be faulty out of the box, so using a genuine OEM part is highly recommended.

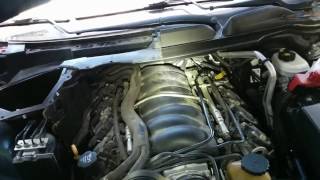

   How to confirm: After verifying the actual oil pressure with a mechanical gauge is good, 🎬 Watch: How to diagnose a faulty sensor versus actual low pressure. if the scan tool data from the sensor is erratic, incorrect, or reads high pressure with the engine off, the sensor is bad. A good sensor should show 4.8V-5.2V on the reference wire and signal voltage around 1.3V at idle.
   Typical fix: Replace the engine oil pressure sensor and the filter screen below it.
   Est. part cost: $40-$90
2. Clogged Oil Pressure Sensor Filter Screen 🔴 High Probability A small, thimble-shaped screen sits under the sensor to protect it. This screen can become clogged with oil sludge or debris from normal wear, restricting oil flow to the sensor and causing a false low reading. This is a primary cause cited in TSBs 🎬 See how to replace the sensor and screen on this platform. and owner forums.
   How to confirm: During sensor replacement, the screen will be visibly clogged with dark, thick sludge or debris. It can be pulled out with a pick.
   Typical fix: The screen should always be pulled out and replaced when the sensor is replaced to prevent a repeat failure.
   Est. part cost: $5-$15
3. Incorrect Oil Filter or Low/Dirty Oil 🟡 Medium Probability GM has issued service bulletins noting that some aftermarket oil filters can cause pressure reading issues. Specifically for V8 models, using a PF48E filter instead of the recommended UPF48R can trigger P0521 due to differences in internal bypass valve design. Low or degraded oil can also cause pressure to fall out of the expected range.
   How to confirm: Check the oil level and condition on the dipstick. Verify the part number of the installed oil filter. A user on a Chevy forum noted that switching to a Mobil 1 M1-113A filter resolved their recurring P0521 issue.
   Typical fix: Perform an oil change with the correct viscosity oil (5W-30) and a high-quality OEM (ACDelco UPF48R for V8) or recommended aftermarket filter.
   Est. part cost: $40-$70
4. Wiring or Connector Issue ⚪ Low Probability The wiring harness to the sensor is in a high-heat area at the back of the engine, making it susceptible to becoming brittle, oil-soaked, or damaged over time, especially during other repairs near the intake manifold.
   How to confirm: Visually inspect the connector and wiring for breaks, corrosion, or oil contamination. Test for 5V reference, good ground, and signal continuity at the connector. Wiggling the harness while monitoring scan tool data can reveal intermittent connections.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail. Common pigtail part numbers include ACDelco PT1825 or GM 88988320.
   Est. part cost: $15-$35

Rare But Worth Checking

• Failing Oil Pump / Sticking Pressure Relief Valve: If a mechanical gauge confirms genuinely low oil pressure across the RPM range (e.g., below 20-25 psi at hot idle), the oil pump may be failing or its pickup tube O-ring may have hardened. The L77 V8 uses a high-volume pump, and a stuck pressure relief valve in the oil pan is another possibility.
• Worn Internal Engine Bearings: In very high-mileage engines (over 150k-200k miles), excessive clearance in the main or rod bearings can cause a true loss of oil pressure. This is a worst-case scenario requiring an engine rebuild or replacement. A forum user with 210k miles on a G8 GT confirmed pressures of 26psi at hot idle, which is borderline but acceptable.

Diagnosis Steps

1. Check the engine oil level and condition. Top up or change the oil if it is low, old, or dirty. Ensure the correct oil viscosity (typically 5W-30) is used.
2. Verify the correct oil filter is installed. GM recommends an ACDelco UPF48R filter for the V8 to rule out filter-related issues.
3. Connect a scan tool to read the oil pressure reported by the ECM. Note the reading at cold idle, hot idle, and while increasing RPM. Compare this to expected values. For the L77 V8, hot idle pressure should be at least 22-24 PSI at 1000 RPM. For the LFX V6, hot idle can be as low as 20-25 PSI.
4. CRITICAL STEP: Connect a mechanical oil pressure gauge to the engine. The port is typically where the oil pressure sensor is located. Compare the mechanical gauge reading to the scan tool data.
5. If the mechanical gauge shows good, stable pressure but the vehicle's gauge/scan tool shows erratic or incorrect readings, the oil pressure sensor is faulty.
6. If the mechanical gauge confirms low oil pressure, the problem is more severe. Investigate the oil pump, pickup tube O-ring, or internal engine components.
7. If replacing the sensor, inspect its electrical connector and nearby wiring for any signs of damage, corrosion, or oil saturation. Test the 3-wire connector for 5V reference, ground, and signal continuity.

Parts You'll Likely Need

• Engine Oil Pressure Sensor (OEM #12673134 (supersedes 12616646), ACDelco D1846A) — This is the most common cause of P0521. The sensor fails internally, providing incorrect readings to the ECM. Always use a genuine OEM part to avoid premature failure.
  Trusted brands: ACDelco, Delphi
  OEM price range: $50-$90
  Aftermarket price range: $30-$60
• Engine Oil Pressure Sensor Filter Screen (OEM #12585328) — This small screen, located under the sensor, frequently clogs with sludge and should always be replaced with the sensor to ensure a lasting repair.
  Trusted brands: ACDelco, Dorman
  OEM price range: $8-$15
  Aftermarket price range: $5-$10
• Oil Pressure Sensor Connector Pigtail (OEM #GM 88988320 / ACDelco PT2319) — If the original connector is brittle, cracked, or oil-soaked, it must be replaced to ensure a good connection to the new sensor.
  Trusted brands: ACDelco, Dorman, EFI Connectors
  OEM price range: $25-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0522 — This code indicates 'Engine Oil Pressure Sensor/Switch Circuit Low Voltage', which can be triggered by the same failing sensor or a wiring short to ground.
• P0523 — This code indicates 'Engine Oil Pressure Sensor/Switch Circuit High Voltage', also often caused by the same internal sensor failure or a short to voltage.
• P06DE / P06DD — These codes relate to the 'Engine Oil Pressure Control Solenoid Valve' being stuck on or off. They can appear alongside P0521, especially if there is significant oil contamination or sludge affecting the variable displacement oiling system.

Technical Service Bulletins (TSBs) & Recalls

• TSB #10-06-01-008M: Addresses engine oil consumption on AFM engines, including the L77. The fix involves installing an AFM oil deflector and potentially a revised valve cover to reduce oil being pulled through the PCV system. This is relevant as oil consumption can lead to low oil levels, triggering P0521.
• A widely referenced GM TSB (number varies, but includes #SB-10059078-4342) notes that using non-OEM or incorrect oil filters (specifically the PF48E model instead of UPF48R on V8s) can cause code P0521.
• TSB #PIP4786C: Directly addresses P0521 and low oil pressure warnings, advising technicians to inspect the valve lifter oil filter (the screen under the sensor) as a primary diagnostic step.
• TSB #PIP4690G: Notes that high oil pressure readings (up to 110 PSI on cold start) can be normal for the 3.6L LFX V6 engine and should not be considered a fault.

Platform-Specific Known Issues

• The 6.0L L77 V8 engine in the Caprice PPV features Active Fuel Management (AFM), which can be sensitive to oil pressure. Issues with AFM lifters have been noted in class-action lawsuits and TSBs for this engine family. Maintaining correct oil pressure is critical for the proper function of this system. A faulty sensor can mask or mimic lifter issues.

Mechanic-Grade Diagnostic Values

• 5V Reference Circuit Voltage — expected: 4.8V - 5.2V. Failure: Voltage outside this range indicates a wiring issue or a fault in the ECM.
• Low Reference Circuit to Ground Resistance — expected: Less than 1.0 Ω. Failure: Resistance greater than 1.0 Ω indicates an open or high resistance in the ground circuit.
• Scan Tool Oil Pressure (Key On, Engine Off) — expected: Less than 8 kPa (1.2 psi). Failure: A reading higher than this with the engine off strongly suggests a faulty sensor or a short in the signal circuit.
• Minimum Mechanical Oil Pressure (L77 V8, Hot Idle) — expected: At least 22-24 PSI at 1,000 RPM.. Failure: Pressure significantly below this indicates a mechanical fault (oil pump, bearings, relief valve).
• DTC P0521 Set Condition — expected: N/A. Failure: The ECM flags the code when measured pressure is 6.8 psi lower or 7.3 psi higher than expected for more than 4 seconds.

Wiring & Ground Locations

• EOP Sensor Connector (V8) — At the top rear of the engine block, behind the intake manifold, near the firewall.. This connector is the primary interface for the sensor. Its terminals must be clean and secure for proper readings. It has three pins: Pin 1 (Low Reference), Pin 2 (5V Reference), and Pin 3 (Signal).
• ECM Connector X2 (Gray) — At the Engine Control Module (ECM).. The signal from the oil pressure sensor (Tan/White wire on some models) terminates at a specific pin on this connector (e.g., Pin 50 on some GM trucks). Testing continuity between the sensor and this pin can rule out a broken wire.

Real Owner Repair Stories

• Reddit user in r/ChevyTrucks (Chevrolet Truck (year/model not specified, but common GM issue)) — Recurring P0521 code after replacing the oil pressure sensor once.
  ❌ Tried (didn't work) Replacing the oil pressure sensor., Noting the sensor screen had already been removed previously.
  ✅ What actually fixed it Switching to a Mobil 1 M1-113A oil filter resolved the recurring issue. Another user confirmed this fix worked for them as well.

OEM Part Supersession History

• 12596951, 12621234 → 12673134 — Standard part evolution for improved reliability and performance.
  Heads up: While older numbers may still be found, 12673134 is the current recommended genuine GM replacement part. Using aftermarket versions has been reported to cause repeat failures.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, buying used parts is generally not recommended. The primary failure components—the sensor and its filter screen—are inexpensive wear items. A used wiring connector pigtail could be a viable option if it is in excellent physical condition with no brittleness or corrosion.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, inspect for any cracks in the plastic connector body.
• Ensure the wiring insulation is still flexible and not hardened or cracked from heat.
• Check for any signs of oil saturation, which can degrade the plastic and wiring over time.
• Verify the terminal pins inside the connector are clean and free of green or white corrosion.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Pressure Sensor: Many owners and technicians report that aftermarket sensors fail prematurely or are faulty out of the box, causing the P0521 code to return quickly. Using a genuine ACDelco/GM sensor (part #12673134) is strongly advised for a lasting repair.
• Engine Oil Pressure Sensor Filter Screen: This is a very low-cost part that is critical to the repair. There is no benefit to using a used one, which may be partially clogged. Always install a new OEM screen.

Aftermarket brands forum-validated for this vehicle:

• Mobil 1 (M1-113A) or WIX for the oil filter, as some users have reported these resolving filter-related P0521 issues.

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white-box' oil pressure sensors are frequently cited as unreliable.
• Some lower-cost aftermarket oil filters have been linked to P0521 due to incorrect internal bypass valve specifications, as noted in GM service bulletins.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0520 — A companion code for the same component. While P0521 indicates a range/performance issue with the oil pressure sensor, P0520 indicates a general electrical circuit malfunction. Both point to a faulty sensor, connector, or wiring.
• P0522 — Indicates the Engine Oil Pressure Sensor/Switch Circuit is reading low voltage. This can be caused by the same issues as P0521, such as a short in the wiring or an internally failed sensor.
• P0523 — Indicates the Engine Oil Pressure Sensor/Switch Circuit is reading high voltage. This often points to a wiring issue (open circuit) or a failed sensor, which are common causes shared with P0521.
• P0300 — Random/Multiple Cylinder Misfire. If P0521 is triggered by a genuine and severe low oil pressure condition, it can cause rough running, ticking/knocking noises, and misfires due to issues with lifters or other internal components, leading to a P0300 code.
• P3400 — Cylinder Deactivation System. The context states the L77 V8's Active Fuel Management (AFM) is sensitive to oil pressure. An incorrect pressure reading from a faulty sensor can cause issues with the AFM system's operation, potentially triggering this or other related AFM codes.
