P0461 on 2014-2024 Ram ProMaster 2500: Causes and Fixes for Fuel Level Sensor Faults

What's Unique About the 2014-2024 Ram ProMaster 2500

A key feature of the Ram ProMaster that simplifies this repair is an access panel located on the floor, often between the driver and passenger seats, near the driver's right hip. This panel allows direct access to the top of the fuel tank to replace the fuel pump module without having to perform the labor-intensive job of dropping the entire fuel tank, which is required on many other vehicles. While some Ram trucks are prone to software issues causing this code, on the ProMaster it more commonly points to a direct hardware failure of the sending unit itself.

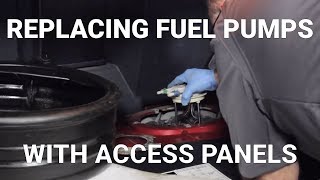

Generation note: The 2014-2024 Ram ProMaster is a single generation in North America, but it received a major facelift for the 2023 model year. 🎬 Watch: Step-by-step fuel pump replacement on a Ram ProMaster. The fundamental design of the fuel system and the presence of the fuel pump access panel remain consistent across these years, so the diagnosis and repair for P0461 are largely the same.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge fluctuates erratically or reads incorrectly (e.g., stuck on full or empty).
• Low fuel warning light may be on constantly or flash.
• Distance-to-empty display is inaccurate.

Most Likely Causes

1. Faulty Fuel Level Sending Unit 🔴 High Probability The sending unit is a mechanical component with a float and a variable resistor that wears out over time. Contaminants in the fuel can also accelerate wear on the resistor contacts, leading to signal dropouts or incorrect readings. A ProMaster specialist notes that while the sending unit can fail, the fuel pumps themselves are generally robust.
   How to confirm: Access the fuel pump module and test the sending unit's resistance with a multimeter while manually moving the float arm. The resistance should change smoothly without any jumps or dead spots. A scan tool can also monitor the sensor's voltage in real-time while rocking the vehicle to see if the signal is erratic.
   Typical fix: Replace the entire fuel pump module assembly, which includes the fuel pump, fuel level sending unit, and float. It is also critical to replace the fuel pump seal/gasket to prevent leaks.
   Est. part cost: $640-$940
2. Wiring or Connector Issue ⚪ Low Probability The wiring harness connector on top of the fuel tank is exposed to potential moisture and corrosion, which can disrupt the signal. A poor ground connection for the fuel tank can also cause erratic readings.
   How to confirm: Visually inspect the wiring and connector at the fuel pump module for corrosion, damage, or loose pins. Perform a continuity test on the signal and ground wires between the module connector and the PCM.
   Typical fix: Clean the corroded terminals or repair the damaged section of the wiring harness. In some cases, the connector pigtail may need to be replaced.
   Est. part cost: $20-$100

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. Before condemning the PCM, all other possibilities, including the sending unit and wiring, must be exhaustively tested and ruled out. Sometimes a PCM software update from a dealer can resolve logic-related false codes.
• Damaged Instrument Cluster: An internal fault in the instrument cluster could theoretically cause incorrect gauge readings, but it is much less likely to be the root cause of a P0461 code, which is generated by the PCM based on the sensor's input voltage.

Diagnosis Steps

1. Verify the P0461 code is present using an OBD-II scanner.
2. Use the scanner's live data function to monitor the 'Fuel Level Sensor Voltage' or 'Fuel Level Percentage'.
3. Gently rock the vehicle side-to-side to slosh fuel in the tank. Observe if the voltage/percentage reading changes. No change or erratic jumps suggest a faulty sending unit.
4. Locate and open the fuel pump access panel on the floor of the van, near the driver's right hip.
5. Visually inspect the fuel pump module connector and nearby wiring for any signs of corrosion, moisture, or physical damage.
6. If the wiring looks good, disconnect the connector. Use a multimeter to test the resistance of the sending unit across its two pins. Manually move the float arm (if possible after removing the module) and watch for a smooth change in resistance. An open circuit (infinite resistance) or erratic jumps confirm a bad sending unit.
7. If the sending unit tests good, the problem lies in the wiring between the module and the PCM, or, rarely, the PCM itself.

Parts You'll Likely Need

• Fuel Pump Module Assembly (OEM #68210305AF (supersedes 68210305AA, 68210305AB, 68210305AC, 68210305AD, 68210305AE)) — This is the most common failure. The fuel level sending unit is integrated into this assembly, and it is typically replaced as a complete unit to ensure reliability.
  Trusted brands: Mopar, Delphi
  OEM price range: $640-$940
  Aftermarket price range: $350-$600
• Fuel Pump Module Gasket/Seal — This seal is critical for preventing fuel vapor leaks and should always be replaced whenever the fuel pump module is removed from the tank.
  Trusted brands: Mopar
  OEM price range: $20-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0462 — This code indicates 'Fuel Level Sensor 'A' Circuit Low Input,' meaning the signal voltage is below the expected range. It often appears with P0461 if the sensor's resistor has failed in a way that causes a short or very low resistance.
• P0463 — This code indicates 'Fuel Level Sensor 'A' Circuit High Input,' meaning the signal voltage is above the expected range. It can be set alongside P0461 if the sensor circuit has an open or a high-resistance fault.

Technical Service Bulletins (TSBs) & Recalls

• TSB Bulletin #1800824 — This manufacturer bulletin notes that P0461 (Fuel Level Sensor 1 Performance) may be present alongside other performance codes such as P0191 (Fuel Rail Pressure Sensor Circuit Performance) and P24A5 (EGR Cooler Bypass Bank 1 Control Stuck).
• TSB Bulletin #1800724 — A manufacturer service bulletin describing instances where P0461 (Fuel Level Sensor 1 Performance) is triggered in conjunction with various emissions and fuel system codes, including P0401 (EGR System Performance) and P20EE (SCR NOx Catalyst Efficiency).

Platform-Specific Known Issues

• Related Symptom: Long Crank / Hard Start: Many ProMaster owners experience a long crank time, especially after the van has been sitting for several hours. This is typically caused by a failing check valve inside the fuel pump module, which allows fuel pressure to bleed back into the tank. While this doesn't usually trigger a P0461 code, it is a common failure of the same fuel pump assembly and is often resolved when the module is replaced.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Voltage (Live Data) — expected: ~0.5V (Empty) to ~4.5V (Full). Failure: Voltage is stuck, jumps erratically, or is outside the expected range.
• Fuel Level Sensor Resistance (Multimeter) — expected: Approximately 20 Ohms (Full) to 220-250 Ohms (Empty). The key is a smooth, consistent change when moving the float arm, not the exact numbers.. Failure: Resistance reading is infinite (open circuit), zero (short), or jumps erratically as the float arm is moved.

Scan Tool Commands That Help

• AlfaOBD: Clearing fault codes from the PCM. — AlfaOBD is a popular and powerful aftermarket diagnostic tool for FCA vehicles like the ProMaster. It can be used to read and clear codes after a repair. For 2018+ models, a security gateway bypass cable is required.
• Professional Scan Tool (e.g., Autel, Launch, wiTECH): Instrument Cluster Actuator Test / Gauge Sweep — This command forces the instrument cluster gauges, including the fuel gauge, to sweep through their full range of motion. This can quickly verify if the gauge itself is physically capable of moving correctly, helping to isolate the problem to the sensor or wiring if the gauge functions during the test.

Wiring & Ground Locations

• Primary Engine/Transmission Ground Strap — A braided ground strap connecting the transmission case to a bolt on the transmission mount, located below the driver's side headlight.. While not a direct cause of P0461, a corroded or loose main ground strap can cause a variety of bizarre electrical issues and data corruption due to inconsistent voltage references for sensors throughout the vehicle. If multiple, seemingly unrelated electrical faults are present, this ground should be inspected.
• Fuel Pump Module Connector — On top of the fuel pump module, accessible through the floor panel near the driver's seat.. This 4-pin gray connector is the primary connection point for the fuel level sensor. The signal and ground wires for the sensor pass through here. Corrosion or damage at this connector is a potential cause of the code.

Real Owner Repair Stories

• YouTube user 'ipartout studio' (2020 Ram ProMaster 1500 3.6L) — Check Engine Light with code P0463 (Fuel Level Sensor Circuit High), even though the fuel gauge was working correctly.
  ❌ Tried (didn't work) Initial diagnosis was confusing because the fuel gauge appeared to be functioning normally, which might lead some to suspect a wiring or PCM issue.
  ✅ What actually fixed it The fuel level sensor was tested with a multimeter and found to have erratic resistance readings despite appearing to work. Replacing the sensor (which is part of the fuel pump module) and clearing the code with AlfaOBD resolved the issue.

OEM Part Supersession History

• 68210305AA, 68210305AB, 68210305AC, 68210305AD, 68210305AE → 68210305AF — Standard part evolution for minor improvements in manufacturing or materials.
  Heads up: All previous versions are replaced by the latest 'AF' version, which is backward compatible with all 2014-2024 ProMaster gas models.

Model Year Variations Within This Range

• 2018-2024: Vehicles from 2018 and newer are equipped with a Security Gateway Module (SGW). To perform advanced diagnostics like clearing codes or running bidirectional tests with aftermarket tools like AlfaOBD, a security gateway bypass cable must be installed.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 62TE Transmission Failure / Rollaway Risk 🔴 High — Common issue, particularly on 2019-2021 models. Problems can range from hesitation and slipping to complete failure. (Ref: Recall 44A (NHTSA 23V-313) for 2019-2021 models where debris from a failing lower clutch retainer can prevent the park pawl from engaging, increasing rollaway risk. The fix is a PCM software update and potential transmission replacement.)
• 3.6L Pentastar Oil Cooler Housing Leak 🔴 High — Extremely common failure across all model years. The plastic oil cooler/filter housing, located in the 'V' of the engine, develops cracks or has seal failures, leading to significant oil leaks. (Ref: TSB 09-022-24 exists for related cooling system issues that can be linked to the oil cooler. Many owners opt for an aftermarket aluminum housing (e.g., from Dorman) to prevent recurrence.)
• Sliding Door Mechanism Failure 🟠 Medium — Very common problem. Failures include broken exterior handle cables, faulty lock actuators, worn rollers, and failed electrical contact pins that power the lock.
• Hard Start / Long Crank After Sitting 🟡 Low — A widely reported issue where the engine cranks for an extended time before starting, typically after sitting for several hours. This is caused by a faulty drainback valve within the fuel pump module that allows fuel pressure to bleed off.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used fuel pump module can be a cost-effective option, especially if sourced from a low-mileage wreck. Since the primary failure mode for P0461 is the sending unit, and the pump motor itself is generally reliable, a used assembly often has significant life left. The ease of access via the floor panel makes the labor investment low if the used part fails prematurely.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the OEM part number on the used unit matches a compatible number for your vehicle.
• Inspect the electrical connector on top of the module. Look for any signs of melting, charring, or heavy corrosion on the pins. A pristine connector is a good sign.
• If possible, ask the seller for the mileage of the donor vehicle.
• Avoid units that have been sitting exposed to the elements for a long time.

OEM-only on this vehicle (don't cheap out):

• Fuel Pump Module Gasket/Seal

Aftermarket brands forum-validated for this vehicle:

• Delphi
• Denso

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost units from online marketplaces are often cited as having premature failures or inaccurate gauge readings.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0460 — A more general fault code for the same fuel level sensor circuit. P0461 specifies a range/performance issue, but both point directly to a failure in the sending unit or its wiring.
• P0462 — Indicates the fuel level sensor signal voltage is below the normal range. This can be caused by the same faulty sending unit resistor or a short in the signal wire that would trigger P0461.
• P0463 — Indicates the fuel level sensor signal voltage is above the normal range. This is often caused by an open circuit in the wiring or a complete failure of the sending unit's variable resistor, both of which are primary causes for P0461.
• P0464 — Directly related, as it specifically points to an erratic or intermittent signal. This is a classic symptom of a worn-out variable resistor in the fuel level sending unit or a corroded connector, which are the main causes of P0461 on the ProMaster.
• P0627 — Fuel Pump 'A' Control Circuit / Open. Since the fuel level sending unit is housed within the same fuel pump module, a wiring or connector issue at the top of the fuel tank could affect both the sending unit and the pump control circuit, causing both codes to appear.
