P0446 on 2008-2009 Saturn Astra 1.8L: EVAP Vent Restriction Causes and Fixes

What's Unique About the 2008-2009 Saturn Astra

Unlike many other GM vehicles where a P0446 might point to a faulty vent solenoid or a dust-clogged remote filter, the 2008-2009 Saturn Astra (a rebadged Opel Astra H) has a known issue with the charcoal inside the EVAP canister breaking down and clumping together. This creates a physical blockage that prevents the system from venting properly, leading directly to this code. Owners and even mechanics often mistakenly replace the vent solenoid first, only to find the problem persists because the root cause is the internally restricted canister.

Symptoms You May Notice

• Check Engine Light is on.
• Difficulty refueling (fuel nozzle clicks off prematurely), though this is not always present.
• No noticeable impact on drivability or fuel economy.
• Audible pressure release or hissing when removing the gas cap.

Most Likely Causes

1. Clogged Charcoal Canister 🔴 High Probability There is documented video evidence of the activated charcoal pellets inside the canister breaking down and clumping into a solid, restrictive mass, sometimes described as a 'moldy white substance'. This is the most common root cause for P0446 on this specific vehicle.
   How to confirm: After verifying the vent solenoid and hoses are clear, remove the charcoal canister, located near the fuel tank. Try to blow low-pressure compressed air or your own breath through the ports; if air cannot pass through easily, the canister is clogged internally. A definitive but destructive method is to cut the canister open to visually inspect the charcoal media.
   Typical fix: Replace the charcoal canister. However, the OEM part (GM 93357974) is discontinued and no direct aftermarket replacement exists. Options are limited to finding a used part from a salvage yard (which may have the same issue) or attempting a non-standard repair like cutting open, cleaning, and repacking the original canister with new activated charcoal 🎬 Watch: This video shows the internal canister failure and repair., as documented in one successful repair video.
   Est. part cost: $250-$400 (if a new old stock or used part can be found)
2. Faulty or Stuck EVAP Vent Solenoid 🟡 Medium Probability Vent solenoids are a common failure point on many vehicles as they are exposed to the elements. However, on the Astra, this is more often a misdiagnosis for P0446, with many owners replacing it without fixing the code.
   How to confirm: Locate the vent solenoid on or near the charcoal canister. Check for 12V power at the connector with the key on. Apply 12V and ground directly to the solenoid's pins using jumper wires and listen for a distinct click. If it doesn't click, it has failed. A scan tool can also be used to command the valve on and off. The coil resistance should be between 48 and 65 ohms.

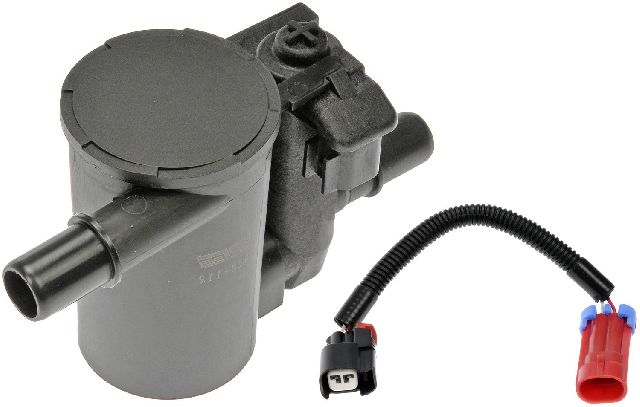

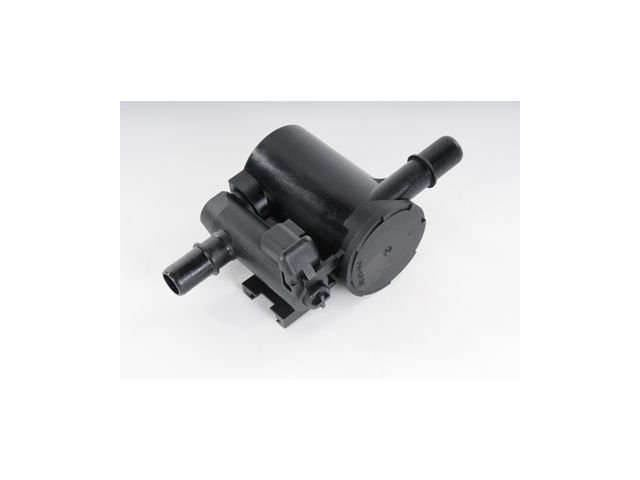

   Typical fix: Replace the EVAP vent solenoid. Common aftermarket parts are Dorman 911-058 or ACDelco 214-2311.
   Est. part cost: $25-$60
3. Blocked Vent Hoses or Filter ⚪ Low Probability While possible, this is less common than the canister failure on this model. A GM TSB for other vehicles, #02-06-04-037H, notes that dust and debris (or insect nests) can clog the remote vent filter or lines, causing P0446.
   How to confirm: Visually inspect all hoses connected to the charcoal canister and vent solenoid for kinks, damage, or blockages from dirt or debris. Remove the hoses and attempt to blow air through them.
   Typical fix: Clean or replace the blocked hose or filter box.
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Fuel Tank Pressure Sensor: While rare, a faulty sensor could theoretically provide an incorrect vacuum reading, causing the ECM to set the code. This would typically be accompanied by other pressure-related EVAP codes.
• Wiring Issue to Vent Solenoid: A break or short in the wiring between the ECM and the vent solenoid could cause this code, but on GM vehicles, a mechanical restriction is a more common cause for P0446.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0446 is the only code present.
2. Visually inspect the EVAP vent hoses near the charcoal canister for any obvious blockages, kinks, or dirt packed into the vent filter outlet.
3. Locate the EVAP vent solenoid, which is mounted on or near the charcoal canister by the fuel tank.
4. Test the vent solenoid. Disconnect the electrical connector and check for 12V power with the ignition on. If power is present, use a power probe or jumper wires to apply 12V and ground to the solenoid terminals. A healthy solenoid will make an audible click. You can also test the solenoid's coil resistance with a multimeter; a reading between 48-65 ohms is expected. If it fails any test, replace it with a part like 🎬 See this guide on how to test and replace canisters. Dorman 911-058 or ACDelco 214-2311.
5. If the solenoid tests good and the hoses are clear, the charcoal canister is the most likely suspect.
6. Remove the charcoal canister. Attempt to blow compressed air (at low pressure) or your own breath through the canister from one port to another. If there is significant resistance or no airflow, the canister is clogged internally and must be replaced or repaired.
7. As a final, destructive confirmation, the canister can be carefully cut open to reveal the state of the charcoal inside. If it is clumped and solidified, this was the cause.

Parts You'll Likely Need

• Vapor Canister (OEM #93357974) — This is the most common failure point for code P0446 on the Saturn Astra, due to the charcoal inside breaking down and becoming a solid blockage. NOTE: This part is discontinued by GM and not available in the aftermarket, making it very difficult to find.
  Trusted brands: GM Genuine Parts (Discontinued), Salvage Yard (Used)
  OEM price range: $250-$400 (New Old Stock, if found)
  Aftermarket price range: N/A
• EVAP Vent Solenoid (OEM #13575701 (Solenoid only), ACDelco 214-2311 (Valve assembly)) — This is the most commonly replaced part in a misdiagnosis. It should only be replaced after being tested and confirmed faulty. It is readily available and inexpensive.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $40-$70
  Aftermarket price range: $25-$60 (e.g., Dorman 911-058, ACDelco 214-2311)

Technical Service Bulletins (TSBs) & Recalls

• GM #02-06-04-037H: While not specific to the Astra's internal canister failure, this TSB addresses P0446 on other GM trucks and SUVs caused by dirt/dust intrusion into the vent hose/filter assembly. It provides context for how GM diagnoses vent path restrictions and involves relocating the vent filter box to a less exposed area.

Platform-Specific Known Issues

• The activated charcoal inside the vapor canister has been observed to break down and clump together, forming a solid, 'moldy white substance' that severely restricts airflow and triggers the P0446 code.
• Due to the OEM vapor canister being discontinued, owners face a significant challenge in sourcing a replacement part, often resorting to used parts or attempting to repack the original canister.

Documented NHTSA Reports

• NHTSA ODI #10303292 describes a situation where the check engine light came on with fault code P0446, accompanied by a gas tank that hisses loudly when the gas cap is undone and a loud popping sound similar to pressure releasing from a plastic bottle.
• NHTSA ODI #10263762 reports that an owner noticed the fuel nozzle shut off intermittently or prematurely while filling the vehicle, alongside a P0446 code. A dealer estimate for the repair reached approximately $1,000.

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Solenoid Coil Resistance — expected: 48 - 65 Ohms. Failure: A reading outside this range (e.g., open circuit or shorted) indicates a failed solenoid coil.
• EVAP Canister Vent Solenoid Connector Voltage — expected: 12V (Battery Voltage). Failure: No voltage indicates a wiring or fuse issue upstream of the solenoid.

Scan Tool Commands That Help

• GM Tech2 / GDS2 (or equivalent): EVAP Service Bay Test — Use this function to force the vehicle's onboard EVAP test to run in the service bay. This can help confirm if the restriction is present without needing a full drive cycle, and is used to verify a repair has been successful.
• Professional Scan Tool: EVAP Vent Solenoid Command (On/Off) — To functionally test the vent solenoid. Command the valve to cycle while listening for an audible click. This confirms the ECM can control the solenoid and that the solenoid is mechanically actuating.

Real Owner Repair Stories

• YouTube video from a professional mechanic (2008 Saturn Astra 1.8L) — Check Engine Light with code P0446 only.
  ❌ Tried (didn't work) Replacing the EVAP vent solenoid, Performing a smoke test (showed no leaks), Testing the EVAP purge solenoid (functioned correctly)
  ✅ What actually fixed it The mechanic cut open the original charcoal canister and discovered the activated charcoal pellets had clumped together into a solid, restrictive mass described as a 'moldy white substance'. Since a new part was discontinued, the mechanic cleaned out the old material, repacked the canister with new charcoal, and glued the housing back together to fix the car.

"I Checked Everything" — The Actual Cause

• A well-documented repair shows a 2008 Saturn Astra with P0446 passing a smoke test, indicating no leaks in the system. The root cause was not a leak, but an internal blockage of the charcoal canister where the charcoal media had solidified. This type of restriction failure will not be found by a standard smoke test.

OEM Part Supersession History

• 93357974 → None (Discontinued) — End of life for the vehicle platform.
  Heads up: No aftermarket equivalent is manufactured. Sourcing a used part or repairing the original are the only known options.
• ACDelco 214-2311 (Valve Assembly) → 13575701 (Solenoid only) — Component-level part number availability.
  Heads up: These numbers refer to the EVAP vent solenoid, which is often misdiagnosed as the cause of P0446 on this vehicle. Verify the canister is not clogged before replacing this part.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is the primary option for the vapor canister (PN 93357974), as new OEM parts are discontinued and no aftermarket versions are available. For all other related parts like the vent solenoid, new aftermarket parts are readily available and recommended.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Ask the salvage yard to attempt to blow low-pressure air through the canister; if it flows freely, the part is likely good.
• Prioritize parts from vehicles wrecked due to collision rather than those junked for engine or emissions failures.
• Visually inspect the canister housing for any cracks, damage, or signs of previous repair (e.g., glue seams).
• If possible, source the part from a dry climate region to reduce the chance of moisture contamination that may contribute to charcoal breakdown.

OEM-only on this vehicle (don't cheap out):

• Vapor Canister (by necessity, as no aftermarket exists)

Aftermarket brands forum-validated for this vehicle:

• For the EVAP Vent Solenoid (if confirmed faulty): ACDelco (OE), Dorman, Standard Motor Products

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0443 — EVAP Purge Control Valve Circuit. The purge solenoid is part of the same EVAP system and is mentioned in the context as a component that was tested during diagnosis for P0446. A fault in the purge circuit could present alongside other EVAP issues.
• P0452 — EVAP Pressure Sensor/Switch Low Input. The fuel tank pressure sensor is the component that detects the vacuum condition that triggers P0446. A fault with the sensor itself could be a related diagnostic path.
• P0453 — EVAP Pressure Sensor/Switch High Input. Similar to P0452, this code indicates a problem with the fuel tank pressure sensor, which is critical for the computer's diagnosis of the P0446 vent restriction fault.
• P0420 — Catalyst System Efficiency Below Threshold. This code was reported by an owner appearing at the same time as P0446, though it is not directly related to the EVAP system's function.
• P2096 — Post Catalyst Fuel Trim System Too Lean. This code was reported by an owner appearing at the same time as P0446 and P0420. It is related to the exhaust and fuel trim system, not the EVAP system.
