P0206 on 2011-2019 Dodge Journey 3.6L: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2011-2019 Dodge Journey

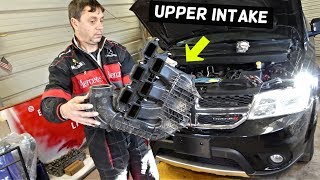

On the Pentastar 3.6L V6, the fuel injectors for the front cylinder bank (2, 4, and 6) are located underneath the upper intake manifold. This makes accessing them for diagnosis or replacement a more involved job than on engines with more accessible fuel rails. While the injector itself is a common failure point, the complex wiring harness routed around the hot engine can also be a source of the problem. Wires can chafe or become brittle, causing an open or short, making a thorough electrical diagnosis important before committing to the labor-intensive injector replacement.

Symptoms You May Notice

• Check Engine Light is on (may be flashing)
• Rough idle and engine shaking or vibrating
• Engine misfiring, often felt as a stumble or hesitation
• Reduced engine power and poor acceleration
• Decreased fuel economy
• Hesitation when pressing the gas pedal
• Strong smell of gasoline from the engine bay if the injector is stuck open

Most Likely Causes

1. Failed Fuel Injector (Cylinder 6) 🔴 High Probability Injectors can fail electrically when the internal coil winding opens or shorts due to age and heat cycles. They can also become clogged, but P0206 is specifically an electrical fault code.
   How to confirm: The most definitive test is to swap the cylinder 6 injector with an injector from another cylinder (e.g., cylinder 4). Clear the codes and run the engine. If the code changes to P0204, the injector is bad. Alternatively, test the resistance of the injector with a multimeter; it should be between 11-18 ohms. 🎬 Watch: How to test Pentastar fuel injectors with a multimeter. An infinite reading (OL) means an open circuit, and a near-zero reading indicates a short, both confirming a bad injector.

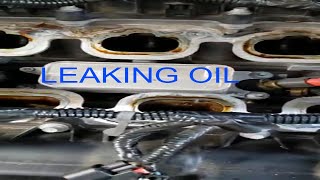

   Typical fix: Replace the failed fuel injector. 🎬 Watch: Full walkthrough for replacing fuel injectors on the 3.6L V6. It is highly recommended to replace all six injectors at the same time, as the others are of the same age and accessing them requires significant labor to remove the intake manifold. 🎬 See this step-by-step guide for removing the upper intake manifold.
   Est. part cost: $50-$120 per injector
2. Wiring Harness or Connector Issue 🟡 Medium Probability The engine wiring harness is complex and routed through hot areas. Wires can become brittle and break, or chafe against brackets or other components, causing an open or short in the injector circuit.
   How to confirm: Visually inspect the wiring and connector going to the cylinder 6 injector for any signs of damage, corrosion, or loose pins. A user on 2CarPros.com with P0201 and P0206 on a platform-mate Caravan reported finding 'wires to injector #6 were bare and shorted out'. Use a noid light to confirm if the PCM is sending a pulse signal to the injector connector. If the noid light doesn't flash when the engine is cranked, there is a problem in the circuit between the PCM and the injector.
   Typical fix: Repair the damaged section of wire or replace the injector connector pigtail. Ensure the connection is secure and protected from heat and vibration.
   Est. part cost: $15-$50 for a connector pigtail

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is a rare cause. The internal driver circuit in the PCM for the cylinder 6 injector can fail. This should only be considered after thoroughly ruling out the injector and wiring as the cause.

Diagnosis Steps

1. Scan the vehicle for all stored trouble codes. Note if P0306 is also present, which is highly likely.
2. Locate cylinder 6. On the 3.6L Pentastar, the cylinders are numbered 1-3-5 on the rear bank (near the firewall) and 2-4-6 on the front bank (near the radiator). Cylinder 6 is on the front bank, driver's side.
3. Visually inspect the wiring harness and connector for the cylinder 6 fuel injector. Look for any obvious signs of damage, chafing, corrosion, or loose connections. Pay close attention to where the harness may rub against engine components.
4. Use a noid light to test for a signal at the injector connector. Disconnect the injector and plug in the noid light. Crank the engine. The light should flash rapidly, indicating the PCM is sending a signal. If it doesn't flash, or stays on continuously, there is a wiring or PCM issue.
5. If the noid light flashes correctly, the problem is likely the injector itself. Disconnect the battery. Test the injector's resistance with a multimeter set to ohms. A reading between 11-18 ohms is typical. A reading of infinity (OL) or near zero ohms confirms a bad injector.
6. For a definitive test before tearing down the engine, you can attempt to access the injector connector and the connector of an adjacent injector (like cylinder 4) and swap them if there is enough slack. If the code changes to P0204, the injector is confirmed faulty.
7. If the injector tests good but the noid light test failed, perform a continuity test on both wires between the injector connector and the PCM connector to find any hidden breaks or shorts to ground/power.
8. If all wiring and the injector test good, the issue may be a rare failure of the PCM's injector driver.

Parts You'll Likely Need

• Fuel Injector (OEM #05184085AD) — This is the most common cause of a P0206 code. The internal coil of the injector fails, creating an open or short circuit.
  Trusted brands: Mopar, Bosch, Standard Motor Products
  OEM price range: $150-$225
  Aftermarket price range: $40-$90
• Upper and Lower Intake Manifold Gaskets (OEM #Upper: 5184562AC, Lower: 05184331AC, Kit: 68535427AA) — To access the fuel injectors on the 3.6L Pentastar engine, the upper intake manifold must be removed. The gaskets are considered one-time use and must be replaced to prevent vacuum leaks.
  Trusted brands: Mopar, Fel-Pro, Mahle
  OEM price range: $40-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0306 — P0306 means 'Cylinder 6 Misfire Detected'. Since P0206 indicates an electrical fault preventing fuel delivery to cylinder 6, the cylinder cannot fire correctly, which directly causes a misfire. These two codes almost always appear together.
• P0300 — This indicates a 'Random/Multiple Cylinder Misfire'. Sometimes, the instability caused by a single failed injector can be misinterpreted by the PCM as a more widespread misfire issue, especially at idle.

Platform-Specific Known Issues

• While P0206 is an electrical code, owners of early model year (2011-2013) Journeys should be aware of the extended warranty (X56) for a separate mechanical issue with the left cylinder head (TSB 09-002-14 Rev. B). This TSB addresses misfires from valve seat issues on cylinders 2, 4, and 6. However, it will not cause a P0206 code on its own, as P0206 is strictly electrical. The presence of P0206 strongly points to an injector or wiring fault, not the head defect covered by the TSB.

Mechanic-Grade Diagnostic Values

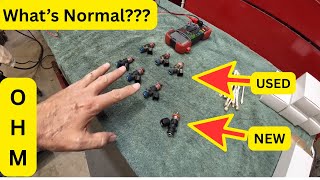

• Fuel Injector Coil Resistance — expected: 12.0 to 12.5 Ohms. Failure: A reading of infinity (OL) indicates an open circuit. A reading near zero indicates a short. Some failures present as high resistance, such as double the normal value (~24 Ohms).
• Injector Connector Voltage (Power Feed) — expected: ~12 Volts (Battery Voltage). Failure: Low or no voltage indicates a problem with the power supply wire from the ASD relay/fuse, not the PCM driver.
• Injector Control Circuit at PCM — expected: The (K58) Injector 6 Control circuit (low side) and (K658) Fuel Injector 6 High Side Driver circuit are located at the PCM C1 harness connector. A continuity test from the injector connector to these pins should show less than 1 Ohm resistance.. Failure: High resistance or an open circuit (OL) on either wire indicates a break in the harness between the PCM and the injector.

Scan Tool Commands That Help

• wiTECH (Dealer Scan Tool) or equivalent professional scanner: Active Commands / Actuator Tests — While no specific command name was found in searches, a capable scan tool should have an actuator test function to command the #6 injector to fire. This can be used with a noid light or current clamp to verify the PCM driver and wiring are capable of controlling the injector, helping to isolate the fault without starting the engine.

Wiring & Ground Locations

• Main Engine/Chassis Ground — The primary ground connection is a stud on the driver's side strut tower where the negative battery cable connects.. The Dodge Journey is noted by owners for having a weak grounding system. Poor grounds can cause a wide range of erratic electrical issues, including phantom codes. Cleaning this main stud and ensuring a solid connection is a critical first step in any electrical diagnosis.
• G924 — Lower right rear corner of the engine compartment.. This is a key ground point for components in the engine bay. Corrosion or a loose connection here can affect various engine control circuits.
• G304 — Under the driver's seat.. This ground serves interior and body modules. While less likely to cause a specific injector code, checking it is wise if multiple, seemingly unrelated electrical issues are present.
• Injector #6 PCM Circuits — PCM Connector C1.. The control circuit is (K58) and the high side driver circuit is (K658). Knowing these specific circuits and their location allows for a direct continuity and short-to-ground test between the PCM and the injector connector, which is the definitive way to rule out a wiring problem.

Real Owner Repair Stories

• YouTube video by 'speedkar' (Vehicle with 3.6L Pentastar V6 (diagnosis shown on a P0204, but directly applicable to P0206)) — Check engine light with codes for injector circuit open (P0204), cylinder misfire (P0304), and random misfire (P0300).
  ❌ Tried (didn't work) The video focuses on direct diagnosis rather than parts swapping.
  ✅ What actually fixed it The technician tested the resistance of the fuel injectors. A known-good injector measured 12.1 Ohms. The faulty injector for cylinder 4 measured 24.1 Ohms, roughly double the correct resistance. This confirmed the injector's internal coil was failing, and replacing the injector resolved the codes.

OEM Part Supersession History

• 5184085AC / RL184085AC → 05184085AD — Standard part revision and update by the manufacturer.
  Heads up: The parts are interchangeable; the newest part number (05184085AD) should always be used.
• Mopar 05184085AD → Bosch 0280158233 — Bosch is the original equipment manufacturer. This is the equivalent non-Mopar branded part.
  Heads up: This is a direct cross-reference and is fully compatible. It uses the same USCAR (EV6) connector.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Rocker Arm / Lifter Failure ('Pentastar Tick') 🔴 High — Common across all 3.6L Pentastar applications, often appearing after 60,000 miles. It presents as a distinct ticking noise from the upper engine. (Ref: No recall, but it is a widely known design issue. A class-action lawsuit was filed regarding this problem. Failure to address it can lead to camshaft damage.)
• Cracked Oil Filter Housing / Cooler Assembly 🔴 High — Very common. The plastic housing, located in the engine valley, becomes brittle from heat cycles and cracks, causing significant oil and/or coolant leaks. (Ref: Chrysler Service Bulletin #09-008-15 was issued for 2014 models, but the problem affects a wider range of years.)
• Left Cylinder Head Failure (Early Models) 🔴 High — Primarily affects 2011-2013 model year Pentastar engines. It was caused by improperly hardened valve seats, leading to misfires on the left bank (cylinders 2, 4, 6). (Ref: Chrysler issued TSB 09-002-14 Rev. B and an extended warranty (X56) for 10 years/150,000 miles to cover this specific mechanical failure.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness or a connector pigtail from a salvage yard is a cost-effective and reliable option, provided it is in good physical condition with no signs of brittleness, cracking, or corrosion on the pins.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For wiring: Check for flexibility (not stiff or brittle), intact connector locking tabs, and clean, uncorroded pins.
• For injectors: Visually inspect for cracks in the plastic body and ensure the nozzle and O-rings are in good shape. However, internal electrical condition cannot be verified visually, making used injectors a gamble.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - While a used PCM can be sourced, it must be professionally reprogrammed with the vehicle's VIN and configuration. A refurbished, pre-programmed unit from a reputable supplier is a safer and often more reliable choice than a raw junkyard part.

Aftermarket brands forum-validated for this vehicle:

• Bosch (OEM supplier)
• Standard Motor Products (SMP)
• Fel-Pro (for gaskets)
• Mahle (for gaskets)

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0306 — This is the code for 'Cylinder 6 Misfire Detected'. It is almost always present with P0206 because an electrical fault in the injector circuit prevents proper fueling, directly causing a misfire in that cylinder.
• P0204 — This is the injector circuit code for cylinder 4. It can appear during diagnosis if a technician swaps the suspected bad injector from cylinder 6 with the one from cylinder 4. If the code moves to P0204, it confirms the injector is the faulty component.
• P0300 — This code means 'Random/Multiple Cylinder Misfire Detected'. It can appear alongside P0206 and P0306 if the engine is running very poorly, causing the Powertrain Control Module (PCM) to detect misfires on other cylinders as well.
• P0201 — This is the injector circuit code for cylinder 1. It can appear with P0206 if the root cause is a damaged wiring harness that has affected the circuits for multiple injectors, as seen in a real-world example on a platform-mate vehicle.
• P0302 — This is the misfire code for cylinder 2. While P0206 is electrical, early model Journeys had a known mechanical issue with the left cylinder head (affecting cylinders 2, 4, and 6) that also causes misfires. A vehicle could potentially have both issues.
• P0304 — This is the misfire code for cylinder 4. Similar to P0302, it can be associated with the known left cylinder head defect (TSB 09-002-14 Rev. B) that affects the same bank of cylinders as the one flagged by P0206.
