P0202 on 2011-2020 Dodge Grand Caravan 3.6L: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2011-2020 Dodge Grand Caravan

On the 3.6L Pentastar engine, this code is very commonly caused by a simple internal failure of the fuel injector itself. However, the repair is more complex than on many other engines because the injectors are buried under the upper and lower intake manifolds. A critical point for this platform is the engine's sensitivity to fuel injector flow rates; using aftermarket injectors is strongly discouraged as they frequently cause new problems, such as rich running conditions (codes P0172/P0175) or are dead on arrival. This is a well-documented issue across many forums for Pentastar-equipped vehicles.

Symptoms You May Notice

• Check Engine Light is on
• Rough or shaky idle
• Noticeable engine misfire (may feel like a stumble or hesitation)
• Poor acceleration and loss of power
• Reduced fuel economy
• Smell of raw fuel from the exhaust

Most Likely Causes

1. Failed Cylinder 2 Fuel Injector 🔴 High Probability The internal coil winding of the injector can fail, creating an open circuit. This is the most common failure mode for this code on the Pentastar engine, sometimes failing due to heat soak after the engine is turned off.
   How to confirm: Swap the cylinder 2 injector with another easily accessible one (e.g., cylinder 4). If the code changes to P0204, the injector is faulty. Alternatively, use a multimeter to check the resistance across the injector's two pins; a good injector reads around 12-14 ohms at room temperature, while a bad one will often read as an open circuit (OL) or have significantly higher resistance.
   Typical fix: Replace the fuel injector. It is highly recommended to replace all three injectors on the front bank (or all six) at the same time due to the significant labor required to access them. Always use new O-rings lubricated with a silicone-based grease during installation.
   Est. part cost: $140-$225 for one OEM injector
2. Wiring Harness or Connector Fault 🟡 Medium Probability Engine vibration and heat can cause wires to break or chafe over time, especially in the harness section routed under the intake manifold. On some Pentastar platforms, the harness has been known to rub on a head bolt stud. The plastic locking tab on the injector connector can also become brittle and break, leading to a poor connection. Manufacturer TSB Bulletin #9002688 notes that before replacing injectors for P0202, technicians should ensure the wiring loom or connector in the valve cover gasket is not the root cause.
   How to confirm: Visually inspect the wiring harness leading to the cylinder 2 injector for any signs of damage, melting, or corrosion. Use a 'noid light' in the injector connector; it should flash rhythmically while the engine is cranked, indicating the PCM is sending a signal. If there is no flash, test the wiring for continuity between the PCM and the connector.
   Typical fix: Repair the damaged section of wire or replace the injector connector pigtail.
   Est. part cost: $15-$40 for a pigtail connector
3. Faulty Powertrain Control Module (PCM) ⚪ Low Probability While rare, the internal driver circuit for the #2 injector within the PCM can fail, sometimes due to a short in the injector or wiring harness.
   How to confirm: This is diagnosed by exclusion. If the fuel injector and the wiring harness have both been tested and confirmed to be good, the PCM is the likely culprit. This was the confirmed fix in a detailed diagnostic video for a P0202 on a Dodge Journey with the same 3.6L engine.
   Typical fix: The PCM must be replaced and programmed for the vehicle.
   Est. part cost: $400-$800+

Diagnosis Steps

1. Read the codes with an OBD-II scanner to confirm P0202 and check for any other codes, like P0302.
2. Locate cylinder 2. On the 3.6L Grand Caravan, it is the front-most cylinder on the driver's side.
3. Test the circuit with a 'Noid Light'. Disconnect the injector harness and plug in the noid light. Crank the engine. A rhythmic flash confirms the PCM and wiring are sending the pulse signal, making the injector itself the prime suspect. No flash points to a wiring or PCM issue.
4. Visually inspect the wiring and connector for the cylinder 2 fuel injector. Look for any obvious signs of damage, melting, or corrosion. Check for broken plastic locking tabs on the connector.
5. The most definitive test: Swap the cylinder 2 fuel injector with the injector from cylinder 4 (the middle cylinder on the front bank). This requires removing the upper intake manifold. Clear the codes and run the engine. If the code returns as P0204, the fuel injector is confirmed to be bad. If P0202 returns, the problem is in the wiring or PCM.
6. (Alternate Test) Disconnect the injector and use a multimeter to measure the resistance between its two terminals. A good injector should measure approximately 12-14 ohms. An infinite resistance (OL) reading indicates a failed, open injector.
7. If the injector is good but there is no signal at the connector, test the wiring harness for continuity and shorts. Check for an open or short to ground in the (K12) Injector Control No. 2 circuit between the injector connector and the C2 PCM harness connector.
8. If all tests pass, the Powertrain Control Module (PCM) is the likely point of failure, though this is rare.

Parts You'll Likely Need

• Fuel Injector (OEM #5184085AD) — This is the most common cause of code P0202 on this engine. The original part (5184085AC) has been superseded by this number.
  Trusted brands: Mopar
  OEM price range: $145-$225
  Aftermarket price range: $40-$90

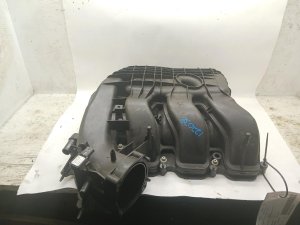

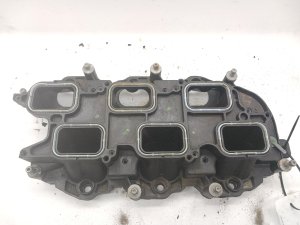

• Upper and Lower Intake Manifold Gaskets (OEM #Mopar 5184562AC (Upper), Mopar 5184331AC (Lower)) — These must be replaced whenever the intake manifolds are removed to access the fuel injectors to prevent vacuum leaks.
  Trusted brands: Mopar, Fel-Pro, Mahle
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0302 — P0302 means 'Cylinder 2 Misfire Detected.' Since P0202 indicates a fault in the fuel delivery circuit for cylinder 2, a misfire is a direct and expected consequence.
• P0172 / P0175 — These codes mean 'System Too Rich.' They can appear AFTER a repair for P0202 if non-OEM (aftermarket) fuel injectors are installed, as the Pentastar engine is very sensitive to their flow characteristics.

Technical Service Bulletins (TSBs) & Recalls

• While no TSB is specific to P0202 on the Grand Caravan, TSB 18-034-13 was issued for some 2014 3.6L models to update PCM software for other codes, showing a history of software refinement. This TSB addresses an EVAP leak code (P0456) and is not a direct fix for P0202.
• Manufacturer TSB Bulletin #9002688 advises that for codes P0201 through P0206, the wiring loom and connector should be verified as the root cause before replacing fuel injectors.

Platform-Specific Known Issues

• The 3.6L Pentastar engine is known to be sensitive to aftermarket fuel injectors. Using non-OEM injectors can lead to incorrect fuel trims and set 'System Too Rich' codes (P0172, P0175) even after the P0202 fault is resolved.
🎬 Watch this warning about using aftermarket injectors on the Pentastar.
• When removing the intake manifold, it is crucial to cover the lower intake ports to prevent dirt, debris, or dropped tools from falling into the engine.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance — expected: 12.0 - 14.0 Ohms at room temperature.. Failure: An open circuit ('OL'), near-zero resistance (short), or a reading significantly outside the expected range.
🎬 See how to test Pentastar fuel injectors with a multimeter.
• Injector Pulse Width (Live Scan Tool Data) — expected: 1.0 - 5.0 milliseconds (ms) at hot idle.. Failure: A value of 0 ms for cylinder 2 while other cylinders show normal readings indicates the PCM has disabled the circuit.
• Injector Circuit Inductive Kick (Oscilloscope) — expected: A sharp voltage spike to approximately 50V - 80V when the PCM releases the ground.. Failure: A missing, low, or rounded-off voltage spike is what the PCM detects to set the code and points to a faulty injector coil or driver circuit.
• Wiring Harness Continuity (PCM to Injector Connector) — expected: Near 0 Ω.. Failure: Any reading above 5 Ω suggests excessive resistance from a corroded pin or damaged wire.

Scan Tool Commands That Help

• wiTECH (dealer tool) or advanced aftermarket scanner (Autel, Launch): Injector Actuator Test / Injector Kill — This bidirectional test allows a technician to individually command each injector off while the engine is running. Disabling the cylinder 2 injector should cause no change in engine RPM if it's already dead, confirming the fault is isolated to that cylinder.

Wiring & Ground Locations

• G300 — Located in the right side of the engine bay.. This is a primary ground point for the PCM, fuel injectors, and ignition coils. Corrosion or a loose connection at G300 can cause intermittent and difficult-to-diagnose electrical faults for the entire engine management system, including injector circuit codes.
• (K12) Injector Control No. 2 Circuit — Wire running from the PCM harness connector to the cylinder 2 fuel injector connector.. This is the specific ground-side control wire that the PCM pulses to fire the injector. An open, short to ground, or short to voltage on this wire is a direct cause of P0202. Service information is required to identify the exact pin number on the PCM connector for the specific model year.
• Engine Mount Ground Strap — A braided strap connecting the upper engine mount (driver's side) to the chassis.. While not a direct cause of an isolated P0202, this ground strap is known to break on these vans. A poor engine ground can create electrical noise and unstable sensor readings, potentially contributing to various electrical issues. It's an easy and important check while working in the engine bay.

Real Owner Repair Stories

• YouTube Channel '3T's Mobile Automotive Repair inc.' (Dodge Journey with 3.6L Pentastar V6 (engine shared with Grand Caravan)) — Rough running, flashing check engine light, P0202 code stored.
  ❌ Tried (didn't work) Initial tests with a noid light were inconclusive or misleading because the fault was intermittent.
  ✅ What actually fixed it After extensive testing showed the injector and wiring were good, the technician diagnosed a failed injector driver inside the Powertrain Control Module (PCM). Replacing and reprogramming the PCM resolved the P0202 code and misfire.
• 2CarPros Forum User (2001 Chrysler Town and Country (demonstrates a common PCM failure pattern)) — P0202 code appeared immediately after installing a rebuilt ECM to fix a different code (P0601).
  ❌ Tried (didn't work) Checking spark plugs.
  ✅ What actually fixed it The conclusion was that the 'new' rebuilt ECM was faulty out of the box, with a bad driver for the #2 injector. The fix required getting a replacement for the faulty rebuilt ECM.

OEM Part Supersession History

• 5184085AC (and earlier AA, AB revisions) → 5184085AD — Standard part revision by Mopar to improve reliability and potentially address heat-related failures.
  Heads up: All revisions are physically and electrically interchangeable. 5184085AD is the current recommended service part.
• 5184085AD (4-hole nozzle injector) → 05281427AA (8-hole nozzle injector) — This is a popular, community-validated 'OEM+' upgrade, not a direct supersession. The 8-hole injector is from the updated 3.6L Pentastar 'PUG' engine (not used in the Grand Caravan) and provides better fuel atomization, which can lead to a smoother idle and better throttle response.
  Heads up: This is a direct-fit upgrade. It is physically and electrically compatible with the original harness and fuel rail without modification.

Model Year Variations Within This Range

• 2011-2020: The Dodge Grand Caravan used the original 3.6L Pentastar V6 design for its entire 2011-2020 run. Other Chrysler/Dodge/Jeep vehicles received a significant engine update (Pentastar Upgrade - PUG) around 2016, which included different injectors. While the Grand Caravan did not get this engine, the injectors (P/N 05281427AA) from the newer engine can be used as a direct-fit upgrade.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Oil Filter / Cooler Housing 🔴 High — Very common, especially on 2011-2013 models, but affects all years. The plastic housing becomes brittle from heat cycles and cracks, causing significant oil and/or coolant leaks into the engine valley, often misdiagnosed as a rear main seal leak. (Ref: No recall, but well-documented. Aftermarket aluminum housings are a popular, more durable replacement.)
• Rocker Arm / Lifter Failure ('Pentastar Tick') 🔴 High — Common across all model years. Worn rocker arm bearings or failing lifters cause a distinct ticking or tapping noise, especially on startup. This can lead to misfires (e.g., P0300) and camshaft damage if ignored. (Ref: TSB 09-009-23 Rev. A addresses sticking intake lifters on some 2022-2023 models, but the general rocker arm issue is widely known for earlier years. A class-action lawsuit was filed regarding this issue.)
• Left Cylinder Head Failure (Early Models) 🔴 High — Primarily affects 2011-2013 models. Overheating valve seats on the left cylinder head (cylinders 2, 4, 6) would lead to misfires and require cylinder head replacement. (Ref: Chrysler extended the warranty on the left cylinder head for certain vehicles to 10 years/150,000 miles.)
• Water Pump Failure 🟠 Medium — A frequent failure point leading to coolant leaks and potential overheating (P0217). The bearings can fail, causing noise or a leak from the weep hole.
• Thermostat Sticking 🟠 Medium — The thermostat, integrated into a plastic housing, can fail and stick closed, blocking coolant flow and causing rapid overheating.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part is almost never a smart choice for the fuel injector itself due to the high labor cost involved. However, a used wiring harness from a low-mileage, accident-free donor vehicle can be a cost-effective solution if the original harness is damaged beyond a simple pigtail repair.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring harness, inspect for any signs of brittleness, melting near exhaust components, or previous repairs (e.g., splices wrapped in electrical tape).
• Ensure all connector locking tabs are intact and not broken.
• Verify the donor vehicle was not in a front-end collision that could have stressed the harness.

OEM-only on this vehicle (don't cheap out):

• Fuel Injector: Due to the 3.6L Pentastar's sensitivity to fuel flow rates, using OEM Mopar injectors is critical to avoid setting new fuel trim codes (P0172/P0175) or having premature failures.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the OEM supplier, P/N: 0280158233)
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost injector sets from online marketplaces like Amazon or eBay are frequently reported on forums to be poorly flow-matched or fail quickly.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0302 — Cylinder 2 Misfire Detected; this frequently occurs alongside P0202 because the injector circuit fault prevents fuel delivery, causing a misfire.
• P0204 — Injector Circuit - Cylinder 4; used during diagnosis to confirm a faulty injector by swapping the cylinder 2 injector to this position.
• P0172 — System Too Rich (Bank 1); a code that may appear if non-OEM aftermarket injectors are used to repair the P0202 fault.
• P0175 — System Too Rich (Bank 2); similar to P0172, this can be triggered by the Pentastar engine's sensitivity to aftermarket fuel injectors.
• P0456 — EVAP System Small Leak; mentioned in TSB 18-034-13 as a reason for PCM software updates on 2014 3.6L models.
