P0107 on 2008-2012 Chevrolet Malibu 2.4L: MAP Sensor Circuit Low Causes and Fixes

What's Unique About the 2008-2012 Chevrolet Malibu

While the P0107 code is generic, the 2.4L Ecotec engine in this generation of Malibu has a documented weakness in the wiring harness leading to the MAP sensor. The harness, particularly the 5-volt reference wire (often gray), can become brittle and break internally, often right near the connector 🎬 Watch: How to find a hidden broken wire in the harness, while the exterior sheathing looks fine. This can lead to a frustrating diagnosis where replacing the sensor doesn't fix the problem, because the root cause is the intermittent loss of the 5-volt reference signal from the PCM.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle
• Hesitation or sluggish acceleration
• Reduced fuel economy
• Engine stalling, especially when cold or at stops
• Black smoke from the exhaust in some cases
• A 'rotten egg' smell from the exhaust (due to unburnt fuel damaging the catalytic converter)
• Lack of engine power

Most Likely Causes

1. Faulty Manifold Absolute Pressure (MAP) Sensor 🔴 High Probability The sensor is exposed to constant heat, vibration, and pressure changes in the engine bay, which can cause its internal electronics to fail over time.
   How to confirm: With a scan tool, observe the MAP sensor voltage at Key On, Engine Off (KOEO). It should read around 4.5-4.7V, corresponding to atmospheric pressure. At idle, it should drop to 1.0-1.5V. If the voltage is stuck low (e.g., under 0.5V) or doesn't change, the sensor is likely bad.

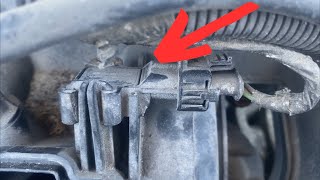

   Typical fix: Replace the MAP sensor. It is located on the top front of the intake manifold and held by a single bolt. 🎬 See this quick walkthrough for locating and replacing the sensor
   Est. part cost: $25-$60
2. Damaged Wiring or Connector 🟡 Medium Probability There are many documented cases of the wiring harness between the MAP sensor and the PCM failing on this platform. An internal break in the 5-volt reference (gray wire) or signal wire is a known issue, often right at the connector pigtail due to engine vibration and heat.
   How to confirm: Visually inspect the connector and harness for obvious damage. With the key on, back-probe the connector to verify you have a 5-volt reference (Gray wire) and a good ground (Orange/Black wire). While monitoring voltage with a multimeter, gently wiggle the harness between the sensor and the PCM; if the voltage cuts out, you have a broken wire.
   Typical fix: Repair the broken wire(s) in the harness or replace the pigtail connector if the terminals are corroded or loose. A forum user on AliExpress reviews noted that replacing the pigtail fixed a recurring P0107 after two failed sensor replacements.
   Est. part cost: $10-$30 for a pigtail connector (e.g., GM Part #13580108 or aftermarket equivalent like Dorman 645-203).
3. Vacuum Leak ⚪ Low Probability Vacuum hoses can become brittle and crack over time, and intake manifold gaskets can fail, creating an unmetered air leak. While less common for P0107 (more common for P0106), a significant leak can cause erratic readings.
   How to confirm: Listen for a hissing sound around the intake manifold at idle. A more definitive method is to use a smoke machine to introduce smoke into the intake system and watch for where it escapes. A forum user with a similar 2.4L engine found a pinhole leak in a vacuum line caused this code.
   Typical fix: Replace the cracked vacuum hose or faulty intake manifold gasket.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very uncommon. The PCM should only be considered after the sensor, wiring, and vacuum systems have been thoroughly tested and proven to be good. A failed driver circuit inside the PCM can prevent it from reading the MAP sensor signal correctly. The ECM is located on the right side of the engine bay.
• Clogged MAP Sensor Port: Carbon or oil buildup can clog the small port on the intake manifold where the sensor reads pressure. When removing the old sensor, inspect the port and clean it carefully with a small pick or brush if it's obstructed.
• Clogged Catalytic Converter: A severely clogged catalytic converter can increase backpressure and affect manifold pressure readings, sometimes contributing to MAP sensor codes. One owner of a 2.4L Malibu reported that P0106 (a related code) was ultimately fixed by cleaning a clogged catalytic converter.

Diagnosis Steps

1. Read the Codes: Use an OBD-II scanner to confirm P0107 is the primary code. Note any other codes that are present, like P0106 or P0108.
2. Visual Inspection: Inspect the MAP sensor, which is located on the front of the intake manifold. Check its electrical connector for a secure fit, corrosion, or damaged pins. Inspect all visible vacuum hoses connected to the intake manifold for cracks or disconnection.
3. Scan Tool Live Data: With the Key On, Engine Off (KOEO), check the live data for the MAP sensor. The reading should be close to your local barometric pressure (around 4.7V at sea level for this vehicle). If it reads below 0.5V, the circuit has a fault.
4. Check Voltage at Idle: Start the engine. The MAP sensor voltage should drop to between 1.0V and 1.5V at idle. If the voltage stays very low (under 0.5V) at KOEO or doesn't change when the engine starts, proceed to circuit testing.
🎬 Watch: Step-by-step guide to testing MAP sensor voltage and circuits
5. Test the Circuit: Disconnect the sensor. With the key on, use a multimeter to test the connector terminals. You should find a 5-volt reference wire (Gray), a ground wire (Orange/Black), and a signal wire (Light Green).
6. Perform a 'Wiggle Test': If the 5-volt reference is missing or intermittent, this is the most critical test for this vehicle. Gently wiggle the wiring harness between the sensor and the engine computer while watching your multimeter. If the 5V signal appears or flickers, there is a break inside the harness (likely the gray wire) that needs to be located and repaired.
7. Check for Vacuum Leaks: If the sensor and wiring test good, use a smoke machine to check the intake system for vacuum leaks, which could cause an abnormally low pressure reading.
8. Test/Replace the Sensor: If the circuit provides a stable 5V reference and good ground, but the signal remains incorrect, the sensor itself is the most likely failure. Replacing it is the final step.

Parts You'll Likely Need

• Manifold Absolute Pressure (MAP) Sensor (OEM #12644228 (superseded by 12711681)) — This is the most common component to fail, causing the P0107 code. Its internal electronics wear out over time.
  Trusted brands: ACDelco (GM OE #213-4681), Bosch, Delphi (PS10247), Standard Motor Products (AS394)
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• MAP Sensor Connector Pigtail (OEM #13580108) — The connector and wires near the sensor often become brittle and fail, causing an open circuit. Replacing the pigtail is often necessary if a wire is broken at the connector.
  Trusted brands: ACDelco, Dorman (645-203), Standard Motor Products (S2031)
  OEM price range: $20-$35
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0106 — This code indicates a MAP sensor performance/range issue. It can appear alongside P0107 if the sensor's signal is erratic or if there's a vacuum leak causing implausible readings.
• P0108 — This is the opposite of P0107, indicating a high voltage signal. Seeing them together intermittently could point to a severe wiring short or an erratic sensor.
• P0068 — Indicates a correlation error between the MAP sensor, MAF sensor, and throttle position. A faulty MAP signal from P0107 can trigger this code.

Platform-Specific Known Issues

• A known issue on the 2.4L Ecotec platform is a broken wire within the MAP sensor wiring harness, often near the connector. This can cause an intermittent loss of the 5V reference signal (gray wire), leading to a P0107 code even with a good sensor.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #PIP5344: A manufacturer service bulletin notes that vehicles may have a Service Engine Soon lamp or reduced power message with DTCs including P0106 and P0107.
• Bulletin #PIT5713A: This bulletin describes cases where P0107 may appear in combination with various communication and sensor codes (such as U0100 or P0117), resulting in IPC warning messages.
• Bulletin #PIT5677E: A manufacturer record indicates that P0107 can be found in combination with a wide array of other codes, including P1101 and P0521, during diagnostic checks.

Mechanic-Grade Diagnostic Values

• MAP Sensor Signal Voltage (KOEO) — expected: 4.7 Volts DC. Failure: A reading below 0.5V indicates a circuit low fault.
• MAP Sensor Signal Voltage at Idle — expected: 1.0V - 1.5V. Failure: Voltage does not drop from the KOEO reading, or remains below 0.5V.
• MAP Sensor 5V Reference Wire at Connector — expected: ~5.0 Volts. Failure: Voltage is 0V or is intermittent when wiggling the harness, indicating a broken wire.
• MAP Sensor Ground Wire at Connector — expected: Less than 0.1V (or <100mV). Failure: Higher voltage indicates a poor ground provided by the PCM.
• MAP Sensor Voltage vs. Applied Vacuum (Bench Test) — expected: Starts at ~4.7V (0 in.Hg), drops to ~2.1V (15 in.Hg), then ~1.2V (20 in.Hg).. Failure: Voltage does not decrease as vacuum is applied.

Scan Tool Commands That Help

• GDS2 / Tech2 / Professional Scan Tool: Live Data Monitoring (MAP Sensor Voltage/Pressure) — This is the primary function used for diagnosis. It allows the technician to observe the sensor's output in real-time during KOEO, idle, and while revving the engine to see if the readings are rational and responsive.

Wiring & Ground Locations

• MAP Sensor Connector Pin 1 (GM) — Light Green wire at the MAP sensor connector.. This is the signal wire. A P0107 is set when the voltage on this wire is below the expected threshold (~0.5V). Testing this wire is key to diagnosis.
• MAP Sensor Connector Pin 2 (GM) — Orange wire with a Black stripe at the MAP sensor connector.. This is the 'low reference' or ground circuit provided by the PCM. A bad ground here can cause incorrect sensor readings.
• MAP Sensor Connector Pin 3 (GM) — Gray wire at the MAP sensor connector.. This is the 5-volt reference wire from the PCM. On this specific vehicle, this wire is known to break internally within the harness near the connector, causing a loss of power to the sensor and triggering P0107.

Real Owner Repair Stories

• AliExpress User Review (2010 Chevrolet Malibu LTZ 2.4L Ecotec) — Persistent P0107 code ('Low Input from MAP Sensor')
  ❌ Tried (didn't work) Replaced the MAP sensor with an OEM AC Delco part, code returned., Replaced the MAP sensor a second time, code returned again within two weeks.
  ✅ What actually fixed it Replaced the MAP sensor connector pigtail (harness) with an aftermarket part (GM B3902 00). The original pigtail's plastic housing had become brittle, causing an internal wire failure.

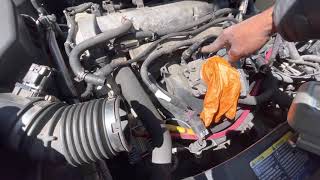

• YouTube video by 'Bigvell02 / Just a tech' (2009 Chevrolet Malibu 2.4L) — P0107 code, hesitation, reduced power, traction control light.
  ❌ Tried (didn't work) Replaced the MAP sensor, but the check engine light remained.
  ✅ What actually fixed it Diagnosed a broken 5-volt reference wire inside the wiring harness near the sensor. The video shows the user repairing the broken wire, which resolved all codes and symptoms.
• NHTSA ODI #10787380 — An owner reported a hard buck at 10 MPH followed by a lighter buck at 20 MPH during acceleration, with P0107 (MAP Barometric Pressure Circuit - Low Input) and P0452 codes present.
• NHTSA ODI #11427385 — A driver experienced code P0107 along with StabiliTrak lights, loss of engine power, and traction control issues.

When the Usual Fixes Don't Work

• In multiple documented cases for the 2008-2012 Malibu, the common fix of replacing the MAP sensor did not resolve the P0107 code. The issue returned shortly after replacement. The actual root cause was found to be a broken wire (most often the 5V reference) inside the wiring harness pigtail, which becomes brittle from heat and vibration. The final, successful repair involved either splicing the broken wire or replacing the entire connector pigtail.

OEM Part Supersession History

• 12644228 → 12711681 — Standard part revision by manufacturer.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Timing Chain and Tensioner Failure 🔴 High — Common around 70,000-120,000 miles. Neglected oil changes accelerate wear significantly. (Ref: While no specific recall exists for the 2.4L, it's a widely documented failure. The 3.6L V6 in the same chassis had extended warranty coverage for this issue.)
• Electric Power Steering (EPS) Failure 🔴 High — Common issue leading to sudden loss of power assist, making steering very difficult. Often triggers a 'Service ESC' light. (Ref: NHTSA Action Number: EA14002. GM issued Special Coverage Adjustment (SCA) 14115 to address the loss of power steering assist.)
• Cracked Exhaust Manifold 🟠 Medium — The stock cast iron manifold is prone to cracking, causing a loud exhaust leak that sounds like a tractor.
• Excessive Oil Consumption 🟠 Medium — Some 2.4L Ecotec engines are known to consume oil due to piston ring issues. Owners should monitor oil levels closely between changes. (Ref: GM TSB #10-06-01-008G addresses this issue for various Ecotec engines.)
• 4T45-E / 6T40 Transmission Problems 🟠 Medium — Issues include harsh shifting, loss of reverse gear, or complete failure. A broken 3-5-R wave plate is a common failure point in the 6-speed 6T40/6T45. (Ref: TSB #08-07-30-034 was issued for the 4T45-E regarding a 'No Reverse' condition due to a failed direct coast clutch.)
• Coolant Leaks 🟡 Low — Leaks are common from the water pump weep hole, intake manifold gaskets, and radiator cap/coolant reservoir.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part is not recommended. The MAP sensor is an inexpensive electronic component, and a used sensor from a junkyard has been subjected to the same heat and vibration that causes failure, offering no guarantee of longevity. The cost savings are minimal compared to the risk and labor of having to do the job again.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', it is highly recommended to use either the OEM ACDelco sensor or a pigtail from a reputable brand. Low-quality electronic sensors and connectors are a common source of repeat failures.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM)
• Bosch
• Delphi
• Standard Motor Products (SMP)
• Dorman (for connector pigtails)

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand sensors from online marketplaces should be avoided, as their quality and calibration are unverified and have been reported to fail quickly.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0106 — Often appears alongside P0107; relates to MAP sensor performance issues and can be triggered by vacuum leaks or sensor degradation.
• P0108 — The opposite of P0107, indicating high voltage in the MAP circuit; both codes involve the same sensor and wiring harness.
• P0011 — Though not a MAP code, it relates to the timing system which, like the MAP sensor, is a known high-failure area on the 2.4L Ecotec platform.
• P0171 — A lean condition code that may occur if a vacuum leak is severe enough to affect the MAP sensor readings and trigger a P0107.
