P0101 on 2007-2016 Land Rover Defender 2.2L Diesel: Causes and Fixes for MAF Sensor Issues

What's Unique About the 2007-2016 Land Rover Defender

Unlike many cars where P0101 points directly to a faulty MAF sensor, on the Defender with the 2.2L or 2.4L 'Puma' diesel engine, the code is most frequently a symptom of a physical air leak in the pressurized intake system. The plastic and rubber components of the turbo hoses and the intercooler itself are well-documented weak points that crack or split under pressure and heat cycles. Oil vapor from the crankcase ventilation system can also degrade the rubber hoses from the inside out. The MAF sensor is often working perfectly, simply reporting the discrepancy between the air it measured at the intake and the lower volume of air actually reaching the engine due to the leak.

Generation note: The 2007-2016 period covers the 'Puma' engine era for the Defender. The engine was updated from a 2.4L to a 2.2L in 2012 to meet new emissions standards. However, the fundamental intake design and the common failure points that cause a P0101 code (split hoses, intercooler failure) are consistent across both the 2.4L and 2.2L Puma-engined Defenders. The 2.2L model has specific hose part numbers that differ from the 2.4L.

Symptoms You May Notice

• Severe loss of engine power, often called 'limp mode'.
• Check Engine Light or 'Malfunction Indication Light' (MIL) is on.
• "Restricted Performance" message displayed on the dashboard.
• Audible hissing or whooshing sound from the engine bay, especially under load (when the turbo is boosting). This may not be audible at idle.
• Excessive black smoke from the exhaust under acceleration.
• Noticeable decrease in fuel economy.
• Hesitation or stumbling during acceleration.

Most Likely Causes

1. Split or Cracked Intercooler/Turbo Hoses 🔴 High Probability The rubber and plastic hoses in the high-pressure intake system are exposed to heat, oil from the crankcase ventilation system, and constant pressure changes, causing them to become brittle and split over time. The elbow hose from the turbo and the short 90-degree hose to the throttle body are known failure points. Land Rover has released modified versions of some hoses to improve durability.
   How to confirm: Visually inspect all hoses between the turbo, intercooler, and intake manifold. Look for cracks, splits, or oily residue indicating a leak. A hissing sound under load is a strong indicator. Splits can be hard to see, often occurring on the underside or in tight bends. A smoke test is the most definitive way to find a leak.

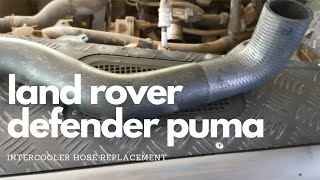

   Typical fix: Replace the damaged hose. 🎬 See this walkthrough on replacing a 2.4 Puma intercooler pipe. Upgraded silicone hoses are available from aftermarket suppliers (like BAS, Terrafirma, Britpart) and are more durable than the OEM rubber.
   Est. part cost: $50-$200
2. Failed/Cracked Intercooler 🟡 Medium Probability The factory intercooler has plastic end tanks crimped onto an aluminum core. Over time, the crimps can weaken, causing the intercooler to bulge and split at the seams, creating a large air leak. This is a well-documented failure on Defender forums.
   How to confirm: After removing the front grille for access, visually inspect the intercooler for signs of bulging, separation at the end tanks, or physical damage. Leaks often occur at the bottom where moisture and debris collect. A smoke test will easily reveal a leak here.
   Typical fix: Replace the intercooler. Many owners opt for a more robust, fully welded aftermarket intercooler from brands like AlliSport or BAS to prevent future failures.
   Est. part cost: $250-$700
3. Dirty or Contaminated MAF Sensor ⚪ Low Probability Oil vapor from the crankcase ventilation system or fine dust passing a poorly sealed air filter can contaminate the sensor element over time.
   How to confirm: If no air leaks are found, remove the MAF sensor and inspect the sensing element. If it appears dirty, cleaning it is a valid diagnostic step.
   Typical fix: Carefully clean the sensor's internal wires and elements using a dedicated MAF sensor cleaner spray. Do not touch the wires. Let it air dry completely before reinstalling.
   Est. part cost: $10-$15 for cleaner
4. Failed MAF Sensor ⚪ Low Probability
   How to confirm: After ruling out all air leaks and cleaning the sensor, the sensor itself may be faulty. This is the least likely cause. Confirmation requires testing its voltage output with a multimeter or advanced diagnostic tool to check for a live data stream (g/s reading should increase with RPM). Swapping with a known-good sensor is also a valid test.
   Typical fix: Replace the MAF sensor. It is recommended to use an OEM or high-quality branded part like Denso or Britpart. The OEM part number is LR019830, which cross-references to Ford part 8V2112B579AA.
   Est. part cost: $70-$200

Rare But Worth Checking

• Leaking Intake Manifold Gasket: An air leak can also occur at the intake manifold gasket, though this is much less common than a hose or intercooler failure.
• Damaged MAF Sensor Wiring or Connector: Frayed wires or a loose/corroded connector can interrupt the signal from the MAF sensor to the ECM, causing the code. Check for a stable 5V reference, ground, and signal continuity back to the ECM.
• Clogged Air Filter: A severely clogged air filter can restrict airflow enough to cause the MAF sensor's readings to be out of the expected range, triggering a P0101 code.

Diagnosis Steps

1. Read the fault code with an OBD-II scanner. Note if it is P0101-16 or P0101-17 for more specific clues.
2. Listen for an audible hissing or 'whooshing' noise from the engine bay when revving the engine or driving under load. This is a tell-tale sign of a boost leak, which may not be present when revving in neutral.
3. With the engine off, perform a detailed visual inspection of all air intake hoses, from the airbox to the turbo, from the turbo to the intercooler, and from the intercooler to the engine's intake manifold.
4. Pay close attention to the rubber elbow hoses and any S-shaped hoses, as these are common failure points. Squeeze the hoses to check for hidden splits, especially on the underside and in bends.
5. Remove the front grille to get a clear view of the intercooler. Check for signs of bulging, cracks, or separation where the plastic end tanks meet the metal core. Oily residue is a key sign of a leak.
6. For hard-to-find leaks, perform a smoke test by introducing smoke into the intake system and looking for where it escapes.
7. If no leaks are found, locate the MAF sensor on the air intake pipe after the air filter.
8. Inspect the MAF sensor's electrical connector for a secure fit and check the wiring for any visible damage.
9. Remove the MAF sensor (usually held by two Torx screws) and spray the internal elements with a dedicated MAF sensor cleaner. Let it dry completely before reinstalling.
10. If the code returns after cleaning and confirming there are no leaks, test the MAF sensor's output using a diagnostic tool to view live data. The g/s reading should increase smoothly as the engine is revved.
11. After replacing a part, clear the fault codes and perform a road test to confirm the fix.

Parts You'll Likely Need

• Turbo Intercooler Hose (OEM #LR066344 (Modified Top Hose)) 🎬 Watch: Installing the LR066344 modified hose to fix P0101. — This is the most frequent cause of P0101 on this vehicle. The hoses are known to split, causing a boost leak that the MAF sensor correctly identifies as a performance range issue.
  Trusted brands: Land Rover (OEM), Britpart, Allmakes 4x4, BAS (Silicone upgrade), Terrafirma (Silicone upgrade)
  OEM price range: $80-$150
  Aftermarket price range: $40-$100
• Charge Air Cooler (Intercooler) — The factory intercooler can fail at the seams where the plastic end tanks are crimped to the aluminum core, causing a significant boost leak and triggering the P0101 code.
  Trusted brands: Land Rover (OEM), AlliSport (Upgraded, fully welded), BAS (Upgraded, fully welded), Nissens
  OEM price range: $250
  Aftermarket price range: $300-$700

Related Codes That Often Appear With This One

• P0403 — A P0403 (EGR Control Circuit) code can sometimes appear alongside P0101 because the massive air leak from a split hose can affect the entire engine management system, including EGR operation calculations.
• P0299 — A P0299 (Turbo/Supercharger Underboost) code is very likely to accompany P0101 if the cause is a significant boost leak, as the turbo is unable to build the target pressure.

Technical Service Bulletins (TSBs) & Recalls

• While no specific TSB for P0101 was found, Land Rover has issued modified parts like the top intercooler hose (LR066344) to address the common failure point, which is functionally equivalent to acknowledging the issue in a TSB.

Platform-Specific Known Issues

• The short right-angle intake pipe connecting to the intake manifold is a common failure point that is very difficult to see without disassembly.
• The elbow hose coming directly off the turbocharger is a known weak point that was subject to a recall/service action according to some owner reports.

Mechanic-Grade Diagnostic Values

• MAF Sensor Live Data (g/s) at Idle — expected: Approximately 2 to 7 g/s. For a 2.2L diesel, a reading around 4-5 g/s is a healthy baseline.. Failure: A reading that is excessively low or does not increase with RPM suggests a sensor or wiring issue. A reading that is normal at idle but doesn't correlate with other sensors under load points to a leak.
• MAF Sensor Live Data (g/s) at 2500 RPM (no load) — expected: Should rise to between 15 to 25 g/s.. Failure: A slow or non-linear rise can indicate a dirty sensor, a leak downstream, or a failing sensor.
• MAF Sensor Signal Wire Voltage at Idle — expected: Approximately 1.9V to 2.0V (based on similar Land Rover diesel engines).. Failure: Voltage near zero or a fixed value indicates a wiring or sensor fault. Voltage should increase smoothly as the engine is revved.

Hidden / Shadow Codes Worth Checking

• P0101-17: Mass Air Flow Circuit Voltage Above Threshold. This specifically indicates the ECM is seeing an airflow reading that is unexpectedly high compared to what other sensors (like MAP) report. On a turbo-diesel, this is the classic signature of a boost leak; air measured by the MAF is escaping before it can be pressurized and measured by the MAP sensor, creating a logical discrepancy. (see via Land Rover-specific diagnostic tools like SDD, Pathfinder, or high-end aftermarket scanners (e.g., iCarsoft JLR models, Autel, Snap-on).)

Scan Tool Commands That Help

• iCarsoft CR Ultra, Land Rover SDD/Pathfinder, or equivalent: Reset Air Flow Learned Values / Reset MAF Adaptations — This is a critical step AFTER replacing a MAF sensor or fixing a major air leak. The ECU stores long-term fuel trims and airflow correction factors based on the old, faulty readings. Failing to reset these adaptations can cause the engine to run poorly even with new parts, as it will continue to apply incorrect adjustments.
• Any OBD-II Scanner: Clear Fault Codes — After any repair, the fault codes must be cleared. On the Defender, this is often required to exit 'limp mode' and restore full engine power for a test drive. If not cleared, the vehicle may need several key-on/off drive cycles to self-clear the limp mode status.

Wiring & Ground Locations

• MAF Sensor Connector (T317) — On the air intake pipe, immediately following the air filter box.. The wiring entering the back of this 6-pin connector is a known chafe point. Engine vibration can cause the insulation on the wires to wear through, leading to intermittent shorts and an erratic signal to the ECM. A visual inspection should include checking for cracked or exposed wires right at the connector boot.
• MAF Connector Pins — Inside the MAF sensor's electrical connector.. In at least one documented case, water ingress led to corrosion on the pins themselves, causing a poor connection and triggering P0101. This can be missed if only the external wiring is checked. Unplugging the sensor and inspecting the pins for green or white corrosion is a necessary step if no other leaks or faults are found.

Real Owner Repair Stories

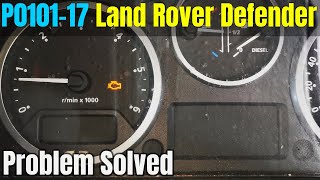

• YouTube channel 'Gerard Burke' (2013 Land Rover Defender 2.2L Diesel) — Engine management light on, limp mode, audible hissing/blowing noise from the front right of the vehicle under load between 2,000-3,200 RPM. Fault code P0101-17 was present.
  ❌ Tried (didn't work) The technician immediately suspected a boost leak due to the hissing sound and the P0101-17 code, bypassing other diagnostics.
  ✅ What actually fixed it A visual inspection after removing the front grille revealed the OEM intercooler had bulged and split open at the seam. Replacing the intercooler resolved all symptoms and cleared the code.
• Australian Land Rover Owners forum user 'Ninety' (2012 Defender 2.2 Puma 110) — Check engine light with code P0101-17, occurring when accelerating to highway speeds.
  ❌ Tried (didn't work) Checked all hoses, Cleaned the MAF sensor, Replaced the MAF sensor
  ✅ What actually fixed it After all other steps failed, a huge split was discovered in the intercooler, which was visible when looking from underneath the vehicle. The intercooler was replaced with an upgraded BAS unit, which fixed the problem.
• Australian Land Rover Owners forum user 'justinc' (Defender Puma (model not specified)) — P0101 fault code.
  ❌ Tried (didn't work) Visual inspection of easily accessible top hoses.
  ✅ What actually fixed it The user points out that the short, right-angle intake pipe that connects to the underside of the intake manifold is a very common failure point that is 'impossible to see' during a typical top-down inspection. This hidden hose split was the cause.

When the Usual Fixes Don't Work

• In a significant number of documented cases, owners replaced the MAF sensor one or more times, assuming it was the cause of P0101, only to find the code returned immediately. The final repair was almost always the replacement of a split intercooler or a hard-to-find boost hose that was leaking under load. This strongly contradicts the initial diagnosis of a faulty sensor and reinforces that on this platform, P0101 should be treated as a 'boost leak code' until proven otherwise.

OEM Part Supersession History

• Unknown → LR066344 — The original top intercooler hose was prone to splitting. Land Rover released this modified, more durable version to address the common failures.

Model Year Variations Within This Range

• 2007-2016: While the fundamental cause of P0101 (boost leaks) is the same for 2.4L and 2.2L Puma engines, the specific part numbers for the intercooler hoses are different. The MAF sensor connector, however, is the same 6-pin design for both engine variants.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is generally not recommended for the common failure items related to code P0101 on this vehicle. Hoses are wear items and buying used is risky. A used OEM intercooler is also a risk, as it has the same design flaw (plastic end tanks) that led to the original's failure. A used part only makes sense for a bracket or a connector pigtail.

Donor-vehicle mileage cap: roughly under 30000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For an intercooler, inspect for any signs of bulging on the plastic end tanks.
• Check for oily residue near the seams, which indicates a past or current leak.
• Ensure there is no physical damage to the cooling fins from a front-end collision.
• If possible, have the part pressure tested by a radiator shop before purchase.

OEM-only on this vehicle (don't cheap out):

• Mass Air Flow (MAF) Sensor: It is strongly recommended to use only genuine OEM (Land Rover) or the original supplier's part (e.g., Denso). Aftermarket MAF sensors are widely reported to be poorly calibrated and often cause P0101 range/performance codes right out of the box.

Aftermarket brands forum-validated for this vehicle:

• Intercooler Hoses: Silicone hose kits from brands like BAS (Bell Auto Services), Terrafirma, and Britpart are considered durable upgrades over the OEM rubber.
• Intercoolers: Fully welded, aluminum intercoolers from brands like AlliSport and BAS are highly recommended as a permanent fix to the OEM's failing plastic end tanks.

Brands owners have reported issues with on this vehicle:

• Any unbranded or 'white-box' Mass Air Flow sensors. Stick to OEM for this specific part.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0299 — Turbocharger/Supercharger Underboost. This code is often set alongside P0101 because the root cause, a major air leak from a split hose or intercooler, prevents the turbo from building the required boost pressure.
• P0172 — System Too Rich. The MAF sensor measures a certain amount of air, and the ECU injects a corresponding amount of fuel. When a boost leak lets metered air escape, there is not enough air in the cylinders for the amount of fuel injected, leading to a rich condition and excessive black smoke, a key symptom.
• P0100 — Mass or Volume Air Flow Sensor 'A' Circuit Malfunction. This code can appear if the MAF sensor itself has an electrical failure or wiring issue, which is a less common but possible cause of the P0101 fault.
• P0102 — Mass or Volume Air Flow Sensor 'A' Circuit Low. If the MAF sensor fails and sends an abnormally low voltage signal to the ECU, this code may be triggered instead of or in addition to the P0101 performance code.
