U0101 on 2011-2021 Jeep Grand Cherokee: Lost Communication With TCM Causes and Fixes

What's Unique About the 2011-2021 Jeep Grand Cherokee

The 2011-2021 Grand Cherokee (WK2 generation) is sensitive to electrical system health. A weak battery or poor ground connection is a very common trigger for communication codes like U0101. Additionally, like many Chrysler products of this era, the Totally Integrated Power Module (TIPM), which is the main fuse and relay box, can be a source of bizarre electrical issues, including cutting power to the TCM and causing this code. A key difference within this generation is the transmission type. Early models (approx. 2011-2013) often used a Mercedes-derived 5-speed (W5A580/NAG1) where the TCM functions are integrated into a conductor plate on the valve body, inside the transmission. Later models (approx. 2014+) use a ZF 8-speed transmission with an external TCM, which is located in the passenger cabin at the front of the center console. Failure patterns differ between these two designs.

Symptoms You May Notice

• Check Engine Light and/or transmission warning light illuminated
• Vehicle enters 'limp mode' (stuck in a single gear, usually 2nd or 3rd)
• Harsh, erratic, or delayed shifting
• Inability to shift out of Park
• The gear indicator (PRNDL) on the dashboard may be blank or incorrect
• Vehicle may stall or fail to start
• Scan tool cannot communicate with the TCM

Most Likely Causes

1. Weak Battery or Poor Electrical Grounds 🔴 High Probability Modern Jeeps have complex electrical systems that are highly sensitive to voltage drops. A battery even slightly below optimal voltage can cause modules to drop off the network. Ground straps from the engine to the chassis can also corrode or break, causing a poor ground for the TCM.
   How to confirm: Test the battery voltage with a multimeter. It should be ~12.6V with the engine off and ~13.7-14.7V while running. Inspect battery terminals for corrosion. Locate and inspect the main ground straps from the battery to the chassis and from the engine block to the frame for tightness and corrosion. A common ground point (G100) is located on the passenger side frame rail and is a known point for corrosion issues. Check ground resistance between the TCM ground pin and chassis; it should be less than 0.5 Ω. 🎬 See this walkthrough on diagnosing a U0101 no communication code.
   Typical fix: Charge or replace the battery. Clean or replace battery terminals and ground straps.
   Est. part cost: $150-$300 for a new battery
2. Damaged Wiring or Corroded Connectors 🟡 Medium Probability The wiring harness to the transmission is exposed to heat, vibration, and road debris, which can cause chafing or damage over time. Connectors can also suffer from moisture intrusion. The main TCM connector itself can loosen over time, causing intermittent connection.
   How to confirm: Visually inspect the wiring harness leading to the TCM and the transmission itself. Look for any signs of chafing, melting, or broken wires. Disconnect the main TCM connector and check for corrosion, bent pins, or fluid intrusion. For 5-speed models, the round 13-pin connector on the transmission case is a common point of failure due to fluid leaks. Testing for voltage drop on the power and ground wires at the TCM connector under load can reveal a bad wire that looks visually okay.
   Typical fix: Repair the damaged section of the wiring harness. Clean the connectors with electrical contact cleaner or replace the connector if severely damaged.
   Est. part cost: $20-$100 for repair supplies
3. Blown Fuse or Faulty Relay in TIPM 🟡 Medium Probability The Totally Integrated Power Module (TIPM) is a known weak point. Internal faults or simple fuse/relay failures can cut power to the TCM.
   How to confirm: Consult the owner's manual or the diagram on the fuse box lid. For 2011-2013 models, check fuses M28 (15A) and M33 (10A). For 2014-2022 models, check fuses F60, F32, F72, and F94. Swap the TCM relay with a known good one of the same type to test it.
   Typical fix: Replace the blown fuse or faulty relay.
   Est. part cost: $5-$30
4. Faulty Transmission Control Module (TCM) / Conductor Plate ⚪ Low Probability For 2014+ models with the 8-speed, the external TCM can fail from heat and vibration, though it's less common than wiring issues. For 2011-2013 models with the 5-speed, the conductor plate inside the transmission is a very common failure point, as it contains the speed sensors and electronics which fail from constant heat and fluid exposure.
   How to confirm: This is typically a process of elimination. If all power, ground, and network wiring tests come back good, the module itself is the likely culprit. A professional scan tool will be unable to communicate with the module at all. For 5-speed models, this diagnosis often points directly to the conductor plate.
   Typical fix: For 2014+ models, replace the external TCM located at the front of the center console. For 2011-2013 models, replace the conductor plate inside the transmission oil pan. The new module/plate will require programming to the vehicle's VIN.
   Est. part cost: $400-$900 for an external TCM, $200-$400 for a conductor plate

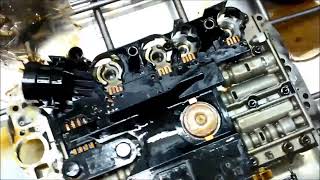

🎬 Watch: DIY guide for replacing the 5-speed transmission conductor plate.

Rare But Worth Checking

• Faulty Totally Integrated Power Module (TIPM): The TIPM is the main computer-controlled fuse box. On many Jeep/Chrysler/Dodge vehicles, a failing TIPM can cause a wide array of electrical problems, including intermittently cutting power to the TCM. If you have other strange electrical gremlins (wipers, fuel pump, etc.), the TIPM itself should be investigated as the root cause, beyond just a simple fuse or relay.
• PCM/TCM Software Update Required: Sometimes, communication logic errors can be resolved with a software update from the dealer. TSB 21-035-15 was issued for some 2013 Grand Cherokees to address shift quality, and TSB 21-003-15 was issued for 2014 models for shift enhancements. Always check with a dealer for applicable TSBs for your specific VIN.

Diagnosis Steps

1. Check for other codes: Use a capable OBD-II scanner to see if any other codes are present. Multiple 'U' codes can indicate a wider network problem.
2. Check the Battery: Start with the simplest and most common cause. Test the battery and charging system. Ensure terminals are clean and tight.
3. Inspect Fuses and Relays: Check all fuses related to the TCM in the TIPM (fuse box under the hood). Refer to the 'Common Causes' section for specific fuse numbers by year.
4. Visual Inspection: Inspect the wiring harness that runs to the transmission and TCM. Look for any obvious signs of damage, such as chafing, burns, or corrosion. Check that connectors are fully seated.
5. Test Power and Ground at the TCM: Using a wiring diagram, use a multimeter to verify that the TCM is receiving 12V power and has a solid ground connection at its connector. For 5-speed models, this involves testing the round connector on the transmission case. For 8-speed models, this is done at the module in the center console. A voltage drop test is more effective than a simple voltage check.
6. Test CAN Bus Lines: This is an advanced step. With the battery disconnected, check the resistance between the two CAN bus wires (pins 6 and 14 at the OBD-II port). It should be around 60 ohms. With the key on, you should see fluctuating voltage on the CAN lines (CAN High ~2.5-3.5V, CAN Low ~1.5-2.5V).
7. Check for TSBs: A dealer or professional shop can check if there are any open Technical Service Bulletins (TSBs) or software updates for the PCM or TCM for your VIN, such as TSB 21-003-15 or 21-035-15.
8. Isolate the Module: If all other steps have been completed and no fault is found, the TCM (or conductor plate) itself may have failed. This is a diagnosis by elimination.

Parts You'll Likely Need

• Vehicle Battery — A weak or failing battery is a primary cause of communication codes on this platform.
  Trusted brands: Mopar, Interstate, DieHard
  OEM price range: $200-$300

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that means the TCM has requested the check engine light to be turned on. It's an informational code that is almost always present when there is a specific transmission fault code, including a communication error like U0101.
• U0002 — This code indicates a CAN C Bus Performance issue. If seen with U0101, it suggests a broader network problem (like a wiring short or faulty terminating resistor) rather than just an isolated TCM failure.

Technical Service Bulletins (TSBs) & Recalls

• TSB 21-008-14 REV. A: Affects some 2014 Jeep Grand Cherokee models with the 3.6L engine and 845RE transmission. The symptom is the Malfunction Indicator Lamp (MIL) on with DTC U0101 stored. The fix is to reprogram the TCM with updated software.

Platform-Specific Known Issues

• The Totally Integrated Power Module (TIPM) on this generation of Grand Cherokee is a known point of failure and can cause this code by interrupting power to the TCM.
• A critical distinction exists between 2011-2013 models with the 5-speed W5A580 transmission (internal conductor plate/TCM) and 2014+ models with the ZF 8-speed (external TCM). The diagnostic and repair process is different for each.

Mechanic-Grade Diagnostic Values

• CAN Bus Network Resistance — expected: Approximately 60 Ω (Ohms) when measured between Pin 6 (CAN-H) and Pin 14 (CAN-L) at the OBD-II port with the battery disconnected.. Failure: A reading of ~120 Ω indicates an open circuit or a missing terminating resistor. A reading near 0 Ω indicates a short between the CAN high and low wires.
• CAN Bus Voltage (Key On, Engine Off) — expected: CAN High (Pin 6 to ground): Fluctuating between 2.5V and 3.5V. CAN Low (Pin 14 to ground): Fluctuating between 2.5V and 1.5V. A multimeter will show an average of about 2.6V and 2.4V respectively.. Failure: Voltages stuck high, low, or at zero indicate a short to power or ground on the network.
• TCM Ground Circuit Resistance — expected: Below 0.5 Ω between the TCM ground pin at the connector and a clean chassis ground point.. Failure: Higher resistance indicates a corroded or loose ground connection, which is a common cause of module communication failure.
• TCM Power Supply Voltage (Key On) — expected: 11V to 14V at the TCM power supply pin(s) in the main connector.. Failure: Low or no voltage points to a blown fuse, faulty relay (in the TIPM), or a break in the power wire.

Scan Tool Commands That Help

• wiTECH (Chrysler/Jeep Dealer Tool): Proxy Configuration Alignment — This procedure is mandatory after replacing any major control module on the CAN bus, including the TCM. It synchronizes the vehicle's configuration list across all modules. Failure to perform a proxy alignment will result in a flashing odometer and persistent communication codes.
• wiTECH (Chrysler/Jeep Dealer Tool): Restore BCM Proxi Configuration — This function is used before a Proxy Alignment if the Body Control Module (BCM) configuration is suspect or has been corrupted.
• wiTECH (Chrysler/Jeep Dealer Tool): VIN Verification — After installing a new or used TCM, this routine in the TCM's "Misc Functions" menu is used to write the vehicle's VIN to the module, which is a required step before it will function correctly.

Wiring & Ground Locations

• G100 — On the passenger side frame rail, near the front.. This is a primary chassis ground point. In one documented case, an internal failure of a splice connector near G100 caused a loss of ground to the TCM, resulting in a U0101 code.
• G101 — On the passenger side inner fender, near the front, connected to the negative battery cable.. This is the main battery ground to the chassis. Corrosion or looseness here can cause widespread electrical issues, including module communication failures.
• G108 (WJ model, similar principle on WK2) — On the passenger side inner fender, towards the back of the power distribution block (TIPM).. On older models, this ground serves the BCM and TCM. A poor connection at this point can directly impact TCM communication.
• TCM Main Connector (2011-2013 NAG1) — A round, 13-pin connector on the passenger side of the transmission case.. This is the single point of connection for power, ground, and CAN bus to the internal conductor plate/TCM. It is notoriously prone to leaking transmission fluid, which wicks up into the connector and harness, causing shorts and communication failures.
• TCM Main Connectors (2014+ ZF 8-Speed) — Two large multi-pin connectors at the external TCM, located under the center console, accessible from the passenger footwell.. These connectors provide all power, ground, and network connections to the TCM. A loose connection or pushed-back pin can cause a U0101 code.

Real Owner Repair Stories

• OmarGautomotive on YouTube (Ford F-150 with 6R80 (similar diagnostic principles)) — No communication with TCM, code U0101.
  ❌ Tried (didn't work) Checked fuses F53 and F26, both were good., Confirmed power was present at the TCM connector pins 9 and 14.
  ✅ What actually fixed it The ground signal was missing at TCM connector pins 13 and 16. The technician traced the ground wires back to a junction connector near ground point G100 on the passenger frame rail. The ground was good before the connector but open after it. Applying a temporary ground to the wire after the faulty connector restored communication, confirming the internal failure of the splice connector.
• GoTech on YouTube (Unnamed vehicle with CAN network failure (similar diagnostic principles)) — U0101 Lost Communication with TCM, transmission in limp mode, AT light on, PRNDL display blank.
  ❌ Tried (didn't work) Initial diagnosis focused on a wiring harness issue after bypassing the harness with a jumper lead seemed to fix the problem.
  ✅ What actually fixed it The problem was a poor pin connection inside the TCM connector itself. When the technician inserted a back-probe to create the jumper wire, the probe itself re-established the faulty connection, leading to a misdiagnosis of a harness problem. The actual fix was repairing the loose pin fitment in the TCM connector.
• Reddit user in r/AskMechanics (2012 Jeep Grand Cherokee) — Permanent U0101 code, won't shift, no gear selected on dash after installing a remanufactured transmission.
  ❌ Tried (didn't work) Cleaning the electrical connector with contact cleaner., Erasing codes with a scan tool., Disconnecting the battery.
  ✅ What actually fixed it The user temporarily plugged the electrical connector back into the OLD, original transmission that was sitting on the garage floor. The vehicle started, the code cleared, and it ran correctly. This confirmed the remanufactured transmission had a faulty internal component (likely the conductor plate/TCM).

OEM Part Supersession History

• 52108308AB, 68021352AA → 52108308AC — Revision to improve reliability of the internal electronics and speed sensors.
  Heads up: These parts are for the 5-speed NAG1 (W5A580) transmission only. The original Mercedes-Benz part number is 1402701261.

Model Year Variations Within This Range

• 2011-2013: These models use the Mercedes-derived W5A580 (NAG1) 5-speed transmission. The TCM is integrated into the conductor plate, which is located inside the transmission on the valve body. Failures are almost always related to the conductor plate itself or the 13-pin connector leaking fluid.
• 2014-2021: These models use the ZF 8-speed transmission (8HP70, etc.). The TCM is a separate, external module located inside the cabin at the front of the center console. Failures are more likely to be related to external wiring, grounds, or the module itself, rather than an internal, fluid-exposed part.
• 2014: TSB 21-003-15 was released to reprogram the TCM for shift enhancements on models with the 5.7L engine. While not directly for U0101, it shows a specific software focus for this year.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used external TCM (for 2014+ models) from a reputable salvage yard can be a cost-effective option, but it absolutely requires dealer programming (Proxy Alignment) to function. A used TIPM (fuse box) is also a viable used part, as they are expensive new. For simple wiring connectors or pigtails, used is a perfectly acceptable choice.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For any electronic module (TCM, TIPM), check for zero corrosion on the connector pins.
• Ensure the plastic housing of the module is not cracked or damaged.
• Ask the salvage yard if the donor vehicle had any flood or fire damage; avoid these parts.
• For a wiring harness section, inspect for any previous splices, brittleness, or chafing.

OEM-only on this vehicle (don't cheap out):

• Conductor Plate (for 2011-2013 models): This is a very high-failure-rate part. While cheaper aftermarket options exist, many forums report premature failure. It is strongly recommended to use an OEM Mopar part or a high-quality remanufactured unit from a transmission specialist brand like Sonnax to avoid doing the job twice.

Aftermarket brands forum-validated for this vehicle:

• Sonnax (For conductor plate repair kits and other internal transmission components)

Brands owners have reported issues with on this vehicle:

• Unbranded/white-box conductor plates from online marketplaces are a significant gamble and frequently fail shortly after installation.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — Transmission Control System Malfunction. This is a generic code requested by the TCM to illuminate the check engine light. It often appears with U0101 because the communication loss prevents the TCM from operating correctly, causing it to flag a general fault.
• P0562 — System Voltage Low. A weak battery or poor grounds are a high-probability cause for U0101 on this vehicle. This code directly indicates the low voltage condition that may be causing the TCM to drop off the communication network.
• U0100 — Lost Communication With ECM/PCM. If this code is present with U0101, it suggests a more severe network-wide issue, such as a problem with the TIPM or a fault on the main CAN bus wiring, rather than an issue isolated to the TCM.
• U0001 — High Speed CAN Communication Bus. This code indicates a general fault with the main communication network itself. It can be set alongside U0101 if the root cause is a short or open in the CAN bus wiring that affects all modules, not just the TCM.
