P0707 on 2007-2015 Audi Q7: Transmission Range Sensor Circuit Low Causes and Fixes

What's Unique About the 2007-2015 Audi Q7

The first-generation Audi Q7 (Typ 4L) used two main automatic transmissions: the earlier models often featured the Aisin TR-60SN 6-speed, while later models used a ZF 8-speed automatic. For the 6-speed Aisin (also coded as 09D), the Transmission Range Sensor (TRS) is a known failure point and is typically an external switch on the transmission body. However, a very common and platform-specific cause for this code is water intrusion into the cabin and onto the wiring harnesses. Clogged sunroof drains or plenum drains under the windshield cowl can cause water to pool in the passenger footwell, corroding connectors and causing a short circuit that mimics a sensor failure. On models with the 8-speed ZF, the range sensor function is often integrated into the mechatronics unit inside the transmission, making replacement a much more involved and expensive procedure.

Symptoms You May Notice

• Check Engine Light is on.
• PRNDS (gear indicator) on the dashboard is flashing, incorrect, or not illuminated.
• Vehicle will not start, as the computer cannot confirm it is in Park or Neutral.
• Transmission is stuck in 'limp mode' (usually 3rd gear).
• Harsh or delayed shifting between gears.
• Inability to shift out of Park.
• Vehicle won't go into gear when selected.
• Reversing lights do not illuminate.

Most Likely Causes

1. Damaged Wiring or Corroded Connector 🔴 High Probability This is a very common issue on the Q7 platform, often as a secondary result of water leaks. Clogged sunroof drains or cowl drains allow water to enter the cabin, where it wicks down wiring harnesses to critical connectors, including those for the transmission and TCM. The main transmission harness connector can also suffer from corrosion due to its location. A factory splice for the TCM power wires located under the passenger-side carpet is a known failure point due to corrosion from water ingress.
   How to confirm: Visually inspect the wiring harness from the TCM to the transmission case. Unplug the main 14-pin or 16-pin connector at the transmission and check for green or white corrosion, bent pins, or moisture. Pull up the carpets in the front passenger footwell to check for dampness and look for corrosion on any connectors or splices found there, particularly the TCM power splice.
   Typical fix: Clean the connector pins with electrical contact cleaner and a small brush. If corrosion is severe, the connector or a section of the harness may need to be replaced. Repairing the corroded TCM power splice under the carpet is a common fix. Fixing the source of the water leak (e.g., clearing drains) is critical to prevent recurrence.
   Est. part cost: $10-$250
2. Faulty Transmission Range Sensor (TRS) 🔴 High Probability The sensor, also called a gear position switch or neutral safety switch, is a common failure point due to internal wear or contamination from old fluid. On the Aisin 6-speed transmission, it is an external component that is exposed to the elements.
   How to confirm: Use a diagnostic scan tool (like VCDS for Audi) to monitor the sensor's voltage output while moving the gear selector. If the voltage is consistently below specification (typically <0.5V) or doesn't change, the sensor is likely bad.
   Typical fix: Replace the Transmission Range Sensor. For the 6-speed 09D transmission, this involves removing the transmission cooler lines to access the switch on the side of the transmission. An alignment tool (T10173) is required for proper adjustment during installation.
   Est. part cost: $70-$280
3. Low or Contaminated Transmission Fluid ⚪ Low Probability While not a direct electrical cause, low or dirty fluid can cause erratic hydraulic operation and shifting problems that may indirectly trigger sensor codes. Audi's 'lifetime fill' recommendation is often disputed by independent specialists who recommend changes every 40-60k miles.
   How to confirm: Check the transmission fluid level and condition according to the manufacturer's procedure. This typically requires the vehicle to be level and the transmission fluid to be at a specific temperature, checked via a scan tool.
   Typical fix: Perform a transmission fluid and filter change. If the level is low, top it off and inspect for leaks from the pan gasket, cooler lines, or electrical connector sleeve.
   Est. part cost: $150-$400

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) / Mechatronics Unit: While less common than sensor or wiring failure, the TCM (which may be part of the mechatronics unit inside the transmission) can fail internally, causing it to misinterpret the sensor's signal. Water intrusion in the cabin can also damage an internally-mounted TCM. This is an expensive repair and should only be considered after all other possibilities have been exhausted.
• Misadjusted or Damaged Shift Linkage: If the mechanical linkage from the shifter to the transmission is loose, damaged, or misadjusted, the sensor may not accurately report the gear position, even if the sensor itself is working correctly.
• Faulty Brake Light Switch: A failing brake light switch can send implausible signals to the vehicle's network, which can indirectly cause transmission-related faults and limp mode. The car may think the brake is applied when it isn't, leading to confusion in the control modules.

Diagnosis Steps

1. Scan for all stored diagnostic trouble codes to see if other codes are present. Note any codes related to water intrusion or communication errors.
2. CRITICAL: Check for water intrusion. Inspect sunroof drains and plenum drains. Pull back the passenger side carpet and check for dampness, standing water, or corrosion on electrical connectors and wire splices.
3. Check the level and condition of the automatic transmission fluid per the manufacturer's procedure, which requires a scan tool to monitor temperature.
4. Perform a thorough visual inspection of the transmission's external wiring harness and connectors, especially the main 14-pin or 16-pin plug, for any signs of damage, corrosion, or loose connections.
5. Use an advanced scan tool (like VCDS for Audi) to view the live data stream for the Transmission Range Sensor. Observe the voltage or position reading as you slowly move the gear selector through each position (P, R, N, D).
6. If the reading is stuck, erratic, or consistently below the manufacturer's specification (e.g., under 0.5 volts), the issue is likely with the sensor or its circuit.
7. If the live data appears normal, the issue could be intermittent. Wiggle the wiring harness at the transmission and inside the cabin (if water damage is suspected) while observing the live data to see if you can trigger the fault.
8. If wiring is suspected, perform a continuity and resistance test on the wires between the sensor connector and the TCM connector.
9. If the wiring and sensor test good, the final possibility is a fault within the Transmission Control Module (TCM) itself.

Parts You'll Likely Need

• Transmission Range Sensor / Gear Position Switch (OEM #09D919823A) — This is the most common component to fail and directly cause the P0707 code, specifically on the Aisin 6-speed (09D) transmission.
  Trusted brands: Genuine VW/Audi, Bosch
  OEM price range: $150-$250
  Aftermarket price range: $70-$150

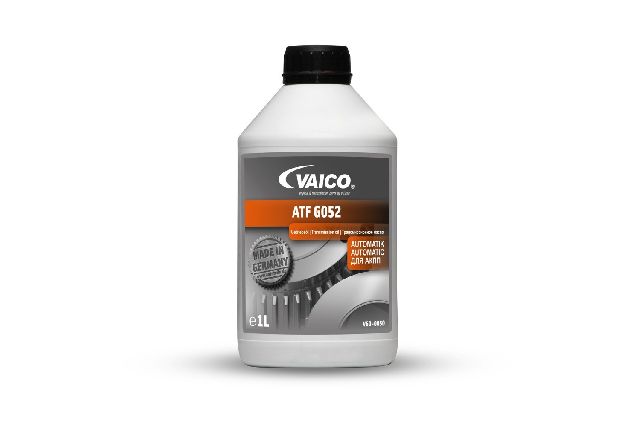

• Transmission Fluid and Filter Kit — Required for any repair that involves opening the transmission pan, such as replacing an internal sensor. Also a good first step if the fluid is old or low.
  Trusted brands: Genuine VW/Audi, Liqui Moly, Vaico
  OEM price range: $200-$300
  Aftermarket price range: $100-$180
• Wiring Harness Connector Repair Kit — Frequently needed to repair corrosion damage at the transmission or inside the cabin due to water leaks.
  Trusted brands: Genuine VW/Audi, Deutsche
  OEM price range: $50-$150
  Aftermarket price range: $20-$70

Related Codes That Often Appear With This One

• P0706 — This code indicates a 'Range/Performance' issue with the same sensor, suggesting an intermittent or erratic signal rather than a consistently low one. Seeing both could point to a loose connection or failing sensor.
• P0708 — This is the opposite of P0707, indicating the sensor circuit voltage is too high. Seeing them together could point to severe wiring issues or a failing TCM.

Platform-Specific Known Issues

• Water damage from clogged sunroof drains is a notorious issue on the 4L Q7. The rear drains have a poor design where tubes drain *onto* a fitting instead of *into* it, eventually leaking into the rear cargo area and frying the BOSE amplifier and other electronics. The front drains can also clog and leak into the front footwells, directly damaging wiring harnesses related to the transmission.

Mechanic-Grade Diagnostic Values

• Transmission Range Sensor 'A' Circuit Voltage — expected: Varies by gear position, but should not be consistently low.. Failure: A constant reading below 0.5 Volts confirms a low circuit condition.
• TRS Reference Voltage at Sensor Connector (Key On, Engine Off) — expected: Typically 5V or 12V, depending on the specific system design.. Failure: Missing or significantly low reference voltage points to a wiring or TCM/PCM power supply issue, not necessarily a bad sensor.
• Continuity from TRS sensor connector to TCM pin — expected: Low resistance, typically between 0 and 2 kΩ, depending on the specific circuit.. Failure: An open circuit (infinite resistance) or very high resistance indicates a broken wire in the harness.

Scan Tool Commands That Help

• VCDS (VAG-COM): Read Measuring Value Blocks (MVB) in [02 - Auto Trans] — To monitor the live data from the Transmission Range Sensor (F125). This allows you to see the position the TCM is reading as you move the shifter, which is the primary method to confirm if the sensor signal is stuck low.
• VCDS or ODIS: Basic Setting / Adaptation — After replacing the external Transmission Range Sensor (F125) on the Aisin 6-speed, an adjustment or basic setting procedure may be required to ensure the new sensor is perfectly aligned with the mechanical gear positions. An alignment tool (T10173) is often used in conjunction with this.

Wiring & Ground Locations

• TCM Power Wire Splice — Under the passenger side carpet, in the wiring channel near the front of the seat.. This factory splice, which splits power to two pins on the TCM connector, is highly susceptible to corrosion from water that pools in the passenger footwell due to clogged drains. A corroded splice will cut power to the TCM, causing communication loss and multiple codes, including P0707.
• Ground Connection (35) — Below the front passenger's seat.. This is a major ground point for components in the passenger compartment. Water ingress in this area can corrode this ground, leading to intermittent and strange electrical issues for nearby modules like the TCM.
• Ground Connection (602) — In the left front footwell.. A potential ground point for the transmission control circuits. Verifying its integrity is important when diagnosing any electrical fault.
• Engine Earth Strap — Under the air filter housing, connecting the engine block to the chassis.. A poor engine-to-chassis ground can cause a voltage potential difference between the transmission (grounded to the engine) and the TCM (grounded to the chassis), leading to incorrect sensor readings and communication errors.

Real Owner Repair Stories

• YouTube channel 'Diamondstar Werks' (Audi Q7 (year not specified, but Typ 4L)) — Car won't shift out of Park, no communication with the TCM.
  ❌ Tried (didn't work) Checking fuses (they were good)., Inspecting the TCM and its connector for corrosion (none was found).
  ✅ What actually fixed it The factory power wire splice for the TCM, located under the passenger carpet, had completely corroded and broken due to water damage from a leaking AC drain. The technician repaired the corroded splice, restoring power to the TCM and resolving the issue.

OEM Part Supersession History

• 09D919823 → 09D919823A — Likely an internal revision for improved durability or reliability.
  Heads up: The parts are interchangeable, but 09D919823A is the current recommended replacement for the Aisin 6-speed transmission.

Model Year Variations Within This Range

• 2007-2010 (approx.): Models equipped with the Aisin TR-60SN (09D) 6-speed automatic have an external Transmission Range Sensor (F125) mounted on the side of the transmission case. This part is serviceable separately and requires a special tool (T10173) for alignment upon replacement.
• 2011-2015 (approx.): Models equipped with the ZF 8-speed (8HP) automatic transmission have the transmission range sensor function integrated into the conductor plate/mechatronics unit inside the transmission oil pan. A P0707 code on these models is much more serious, as it often requires replacement of the entire expensive mechatronics unit, not just a simple external sensor.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Timing Chain Tensioner Failure 🔴 High — Common across multiple engines (3.0T, 3.6, 4.2). Often presents as a brief metallic rattle on cold starts, typically after 70k miles. Failure to address can lead to catastrophic engine damage. (Ref: A service campaign was reportedly issued for 3.0T TFSI engines for faulty tensioners.)
• Clogged Sunroof and Plenum Drains 🔴 High — Extremely common. The drain tube design is flawed, leading to water leaking inside the vehicle. This floods footwells and the rear cargo area, destroying sensitive electronics like the MMI controller, BOSE amplifier, and various control modules.
• Air Suspension Failure 🟠 Medium — Frequent on models equipped with air suspension. Compressors burn out (often due to a stuck relay or leaks), and rubber air springs develop leaks, causing the vehicle to sag.
• Carbon Buildup on Intake Valves (FSI/TFSI Engines) 🟠 Medium — Inherent to direct-injection engines. Causes misfires, rough idle, and loss of performance, typically noticeable after 60k-80k miles. Requires periodic manual cleaning (walnut blasting).
• Water Pump Failure 🟠 Medium — The water pump, often with plastic components, is a known weak point that can fail prematurely, leading to coolant leaks and potential overheating.
• Oil Leaks (Oil Cooler, Valve Covers) 🟡 Low — Common as the vehicle ages. Seals for the oil cooler, valve covers, and timing covers can degrade, leading to oil leaks.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness can be a cost-effective option if the original is damaged by corrosion, provided the donor part is from a vehicle with no signs of water ingress and the connectors are clean and intact. A complete shifter assembly could also be sourced used if the linkage is the point of failure.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For wiring harnesses, inspect all connectors for green/white corrosion, bent pins, or brittle plastic.
• Check the insulation for cracking, chafing, or previous repair attempts (e.g., electrical tape).
• For a shifter assembly, ensure mechanical movement is smooth without excessive play.
• Ask for the donor vehicle's history to avoid parts from flood-damaged cars.

OEM-only on this vehicle (don't cheap out):

• Transmission Range Sensor (TRS): While aftermarket options exist, the OEM/Bosch part is recommended for reliability and correct signaling.

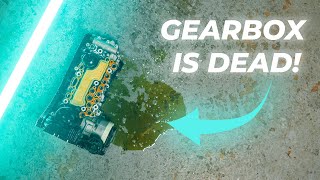

• Mechatronics Unit (for 8-speed ZF): This is a complex, programmed component. Using a used one is risky and may have compatibility issues. A new or professionally remanufactured, VIN-matched unit is the only reliable fix.

Aftermarket brands forum-validated for this vehicle:

• Bosch (for the external TRS on 6-speed models)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name electronic sensors from online marketplaces are a significant gamble and often fail prematurely or are dead-on-arrival.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0705 — Transmission Range Sensor Circuit malfunction; shares the same root causes as P0707, such as a faulty sensor or corroded wiring at the TCM splice.
• P0706 — Transmission Range Sensor Range/Performance; often triggered alongside P0707 when the TCM receives implausible signals from the gear position switch.
• U0101 — Lost Communication with TCM; frequently occurs on the Q7 when water intrusion corrodes the TCM power splice or main transmission harness connector.
• P0811 — Excessive Transmission Clutch Slippage; can be related to low or contaminated transmission fluid, which is a secondary cause for shifting issues on this platform.
