P0700 on 2003-2007 Saturn Ion: Transmission Control System Malfunction Causes and Fixes

What's Unique About the 2003-2007 Saturn Ion

The 2003-2007 Saturn Ion is a story of two very different transmissions. Early models (2003-2004) were infamous for their unreliable VTi Continuously Variable Transmission (CVT), which was prone to complete failure and was the subject of a class-action lawsuit. If you have a P0700 on one of these, the prognosis is often poor, with many owners reporting failures around 100,000 miles. Later models (2005-2007) used the much more conventional and durable GM 4T45-E 4-speed automatic, which typically has issues with serviceable components like shift solenoids or the valve body. A small number of 2003-2004 models were also equipped with a 5-speed Aisin automatic (AF33), which has its own unique service requirements. Identifying which transmission your Ion has is the critical first step in any diagnosis.

Generation note: The 2003-2007 year range covers significant automatic transmission changes. 2003-2004 models could have the highly problematic VTi CVT (M75/VT25-E) or a 5-speed Aisin automatic (AF33). 2005-2007 models used the GM 4T45-E 4-speed automatic. The cause and fix for P0700 are highly dependent on which transmission in the vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Harsh or erratic shifting
• Transmission won't shift into higher gears (like overdrive)
• Vehicle gets stuck in one gear (limp mode)
• Delayed or harsh engagement when shifting from Park to Drive or Reverse
• Slipping out of gear or failure to move
• Reduced fuel economy
• Engine may stall

Most Likely Causes

1. Failed Shift Solenoid(s) (2005-2007 with 4T45-E) 🔴 High Probability Shift solenoids in the 4T45-E are a known failure point, often due to wear or contamination in the fluid. A specific solenoid failure (e.g., P0974 for Shift Solenoid 'A') is a common underlying cause for P0700.
   How to confirm: Scan the TCM for specific solenoid-related codes (e.g., P0752, P0757, P0974, P0977). A mechanic can test the solenoid's resistance and wiring. A common symptom is starting out in 2nd gear instead of 1st.
   Typical fix: Replace the faulty shift solenoid(s). This is done by dropping the side pan of the transmission. It is recommended to replace both A and B solenoids at the same time.
   Est. part cost: $40-$100 per solenoid
2. Complete CVT Failure (2003-2004 with VTi CVT) 🔴 High Probability The VTi transmission used in early Ions was notoriously unreliable, with high failure rates for its internal steel belt. Many failed around 100,000 miles, and GM eventually settled a class-action lawsuit over the issue.
   How to confirm: Confirm the vehicle has the CVT. Symptoms often include slipping, loss of acceleration, or total failure to move. A P0700 code on a CVT model is a very strong indicator of a terminal transmission issue, and repair parts are generally unavailable.
   Typical fix: Transmission replacement is almost always required. Rebuilding is not feasible as parts are unavailable. Some owners have swapped in a conventional automatic from a later model Ion, but this is a complex and expensive conversion.
   Est. part cost: $2000-$5000 for a used or remanufactured transmission
3. Low or Dirty Transmission Fluid 🟡 Medium Probability The 4T45-E transmission has no dipstick, making fluid level checks less straightforward. Low fluid can cause overheating and pressure issues, while dirty fluid can clog solenoids and valve body passages. Owners on forums have noted fluid as black as coffee, indicating a severe lack of maintenance.
   How to confirm: Check the transmission fluid level via the fill plug on the side of the transmission case. The fluid should be bright red and clear. Dark, brown, or black fluid indicates a problem. For the Aisin 5-speed, there is a yellow dipstick/fill port.
   Typical fix: Perform a transmission fluid and filter change. Use DEXRON-VI for the 4T45-E and Toyota T-IV compatible fluid for the Aisin 5-speed. If the fluid is very low, inspect for leaks, especially around the pan gasket and axle seals.
   Est. part cost: $50-$150 for fluid and a filter kit
4. Faulty Valve Body (Aisin 5-Speed or 4T45-E) ⚪ Low Probability The valve body contains the solenoids and hydraulic passages that control shifting. Worn bores or sticking valves can cause pressure losses and erratic shifting. This was a known issue on the Aisin transmission used in some early models and can also occur on the 4T45-E.
   How to confirm: This is difficult to confirm without professional diagnosis. It's often suspected after solenoids have been replaced without fixing the issue. A pressure test can help identify internal hydraulic leaks.
   Typical fix: Replace the valve body. This is a major repair that involves opening the transmission.
   Est. part cost: $300-$800

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): While possible, the TCM itself is not a common failure point. It's more likely that a sensor, solenoid, or wiring is the culprit. However, NHTSA ODI #11361220 describes a case where a control module was replaced, yet the P0700 code returned only three months later. Always rule out all other possibilities before condemning the TCM. Communication codes like U2100 or U2106 alongside P0700 may point towards a module or network issue.
• Damaged Wiring Harness: Check the wiring harness leading to the transmission for any signs of chafing, corrosion, or damage. On the related Chevy Cobalt, a known issue is the harness rubbing against the oil filter housing, causing wires to short out and trigger multiple transmission codes.

Diagnosis Steps

1. Connect a scan tool capable of reading transmission codes to the OBD-II port.
2. Read the codes from the Transmission Control Module (TCM). Do not rely on a basic code reader that only shows the P0700 from the ECM.
3. Record all specific transmission codes (e.g., P0974). These codes will direct your diagnosis. In a cross-manufacturer example, NHTSA ODI #11443694 shows P0700 appearing alongside P2723.

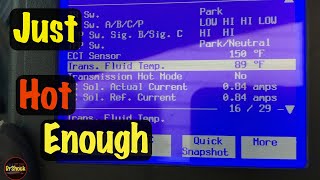

4. Check the transmission fluid level and condition. For the 4T45-E, this requires safely raising the vehicle and removing the check/fill plug on the side of the transmission. 🎬 See this walkthrough on checking fluid levels for the 4T45-E transmission. For the Aisin 5-speed, locate the yellow dipstick.
5. Inspect the transmission wiring harness for any visible damage, corrosion, or loose connections. Pay close attention to the area where the harness passes near the engine block and oil filter housing for signs of rubbing or melting.
6. Based on the specific codes found, test the corresponding components. For a P0974, this would involve testing the resistance of the 'A' shift solenoid and checking for voltage at the connector.
7. If no specific codes are present besides P0700 (which is rare), suspect a communication issue between the ECM and TCM or a failing TCM.
🎬 Watch: Troubleshooting no communication issues between the TCM and ECM.

Parts You'll Likely Need

• Transmission Shift Solenoid (For 4T45-E) (OEM #ACDelco 24229853 (Formerly 24207236)) — This is the most common failure point on the 2005-2007 models, leading to specific shifting problems and the P0700 code. Both the 'A' (1-2) and 'B' (2-3) solenoids are the same part.
  Trusted brands: ACDelco, Delphi, Rostra
  OEM price range: $60-$120
  Aftermarket price range: $40-$80
• Transmission Fluid (OEM #ACDelco 10-9395 (DEXRON-VI for 4T45-E), Toyota Type T-IV (for Aisin 5-speed)) — Low or dirty fluid is a common cause of transmission problems and should be the first maintenance step. Using the correct fluid type is critical.
  Trusted brands: ACDelco, Valvoline MaxLife, Idemitsu
  OEM price range: $10-$20 per quart
  Aftermarket price range: $7-$15 per quart
• Transmission (For 2003-2004 CVT models) — The VTi CVT transmission is generally not repairable, and a P0700 code on these models almost always means a full replacement is necessary.
  Trusted brands: Jasper (Remanufactured), Used/Salvage Yard
  OEM price range: N/A
  Aftermarket price range: $2000-$5

Related Codes That Often Appear With This One

• P0974 — This code for 'Shift Solenoid A Control Circuit High' is very commonly found with P0700 on 2005-2007 Ions and points directly to a failed shift solenoid or an open circuit in its wiring.
• P07xx, P08xx, P09xx — P0700 is a general code. The actual problem will be identified by one or more of these specific transmission codes stored in the TCM. Examples include P0757 (Shift Solenoid B Stuck On) or P0977 (Shift Solenoid B Control Circuit Low). Other related codes found in Saturn records include P1811 and P0606 (NHTSA ODI #10439123), as well as P1882 and P0701 (NHTSA ODI #10211216).

Technical Service Bulletins (TSBs) & Recalls

• GM Special Coverage 10187 / TSB 070232007 - Details the extended warranty and repair procedure for electric power steering motor failure.
• NHTSA Recall 14V171 / GM 14063 - Pertains to the defective ignition switch that can move out of the 'run' position while driving.
• NHTSA Recall 12V459000 - Addresses the fuel pump module cracking and causing fuel leaks.

Platform-Specific Known Issues

• VTi CVT Unreliability (2003-2004): These transmissions were known to fail prematurely, often before 100,000 miles. A class-action lawsuit was filed against GM for this issue. Repair is often not cost-effective compared to the vehicle's value.
• No Transmission Dipstick (2005-2007): The 4T45-E transmission lacks a dipstick, requiring the vehicle to be lifted and level to check the fluid via a fill plug, complicating routine checks for owners.

Documented NHTSA Reports

• NHTSA ODI #10626035: An owner reported pulling engine codes P2723 and P0700, noting that hundreds of online forums suggest this transmission is a significant issue due to a defect.
• NHTSA ODI #10439123: A report describes a vehicle exhibiting recurring problems where codes revealed P0606, P0700, and P1811, requiring multiple trips to a repair shop.
• NHTSA ODI #10211216: An owner experienced sudden issues while accelerating without warning, with the vehicle storing codes P1882 (Ratio Control Performance), P0701 (Transmission Control System Range/Performance), and P0700.

Mechanic-Grade Diagnostic Values

• 4T45-E Shift Solenoid 'A' (1-2) and 'B' (2-3) Resistance — expected: 20-30 Ohms at 68°F (20°C). Failure: A reading outside this range, especially an open circuit (infinite resistance) or a short (near zero ohms), indicates a failed solenoid. This is a primary test for codes like P0974.
• TCM Ignition Voltage (at TCM connector) — expected: Approximately 12V with Key On, Engine Off.. Failure: Low or no voltage indicates a problem with the power supply from the fuse block or ignition switch. A reading of ~6V has been observed when the TCM internally shorts or has a bad ground, back-feeding voltage.

Hidden / Shadow Codes Worth Checking

• P1682: Ignition 1 Switch Circuit 2. This code can appear alongside a U0101 (Lost Communication with TCM) and P0700. It suggests a problem with the ignition switch or the power supply circuit to the control modules, which can be the root cause of the transmission issue. (see via A professional scan tool like a GM Tech2 or equivalent that can read codes from modules beyond the ECM.)

Scan Tool Commands That Help

• GM Tech2 / GDS2 or equivalent: Solenoid Activation Test — When a specific solenoid code (e.g., P0974) is present, this bidirectional command allows a technician to manually command the solenoid on and off to check its mechanical and electrical response without removing it from the transmission.
• GM Tech2 / GDS2 or equivalent: TCM Relearn/Programming — This is required after replacing the Transmission Control Module (TCM). The new module must be programmed with the vehicle's specific VIN and software configuration to communicate with other modules and control the transmission correctly.

Wiring & Ground Locations

• G105 — On the lower left rear of the engine, above or near the starter. For 2.4L models, it may be on the front of the transmission case near the starter.. This is a primary engine and transmission ground. A poor connection here can cause a loss of ground to the TCM, leading to communication codes (U-codes), P0700, and erratic transmission behavior. In some cases, the TCM case itself loses its ground path through this point.
• G107 — Located at the left rear corner of the cylinder head.. This is another critical ground point for the engine control system. While G105 is more directly tied to the transmission, a faulty G107 can introduce electrical noise and voltage issues that may affect TCM operation.
• Transmission Harness Connector — Where the main vehicle harness connects to the transmission, typically on the top or side of the transmission case.. This is the central point for all signals to and from the TCM and solenoids. It's the ideal location to test for power, ground, and signal integrity for specific circuits identified by trouble codes (e.g., testing the Shift Solenoid 'A' circuit wires for P0974).

Real Owner Repair Stories

• YouTube video by a professional technician (Saturn Ion (year not specified, but with 4T45-E)) — No communication with TCM, power steering warning message on dash, transmission not shifting, codes U0101 (Lost Comm with TCM) and P1682 (Ignition 1 Switch Circuit 2).
  ❌ Tried (didn't work) Previous shops had replaced multiple parts totaling over $1500 without success., Testing the TCM's main ground wire with a load (headlight) showed the wire itself was good.
  ✅ What actually fixed it The TCM case itself had lost its ground. The technician confirmed the TCM had power but no ground at the case. Running a temporary jumper wire from the TCM case to a known good ground immediately restored communication and proper function. The permanent fix was to add a dedicated ground wire to the TCM housing.
• SaturnFans.com forum member (2006 Saturn Ion) — Check Engine Light with codes P0700 and P0974. Transmission would not shift properly, starting in a higher gear.
  ❌ Tried (didn't work) Clearing the codes (they returned immediately).
  ✅ What actually fixed it The owner replaced both the 1-2 (A) and 2-3 (B) shift solenoids inside the transmission side pan. After the replacement and refilling the fluid, the car shifted normally and the codes were resolved.
• NHTSA ODI #11443694 — An owner reported that after purchasing a vehicle, an OBD scanner revealed transmission codes P0700 and P2723.

When the Usual Fixes Don't Work

• In one documented case, a Saturn Ion presented with a P0700 and a U0101 (Lost Communication with TCM), leading a technician to suspect a failed TCM. Standard checks of the power and ground wires to the module showed they were intact. However, the actual cause was not a faulty module but a loss of the module's case ground. The fix was not to replace the expensive TCM, but to simply add a new ground wire from the TCM's metal housing to the chassis. This highlights that even when communication is lost, the module itself may be functional if its grounding path is compromised in an unusual way.

OEM Part Supersession History

• 24207236 → 24229853 — Part update/revision by ACDelco/GM for the 1-2 and 2-3 shift solenoids in the 4T45-E.
  Heads up: The new part number (24229853) is a direct replacement for the old one and is fully compatible. Both the 'A' and 'B' shift solenoids are the same part.

Model Year Variations Within This Range

• 2005-2007: The physical location of the main transmission ground (G105) can vary slightly. On 2.2L engines, it is typically on the lower left rear of the engine block, while on 2.4L engines, it is often found on the front of the transmission case near the starter.
• 2003-2004 vs 2005-2007: The entire diagnosis path changes. 2003-2004 models with the VTi CVT transmission and a P0700 code almost always indicate catastrophic internal failure requiring replacement. 2005-2007 models with the 4T45-E automatic are most often suffering from a serviceable component failure like a shift solenoid.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Defective Ignition Switch 🔴 High — Extremely widespread, subject to a massive GM recall (14V171). Can cause the car to shut off while driving, disabling power steering, brakes, and airbags. (Ref: NHTSA Recall 14V171, 14V047, 14113D)
• Electric Power Steering (EPS) Failure 🔴 High — Very common. Results in a sudden loss of power steering assist, making the vehicle difficult to steer at low speeds. (Ref: GM Special Coverage Adjustment 10187 / TSB 070232007)
• Fuel Pump Module / Fuel Leaks 🟠 Medium — Common enough to warrant a recall, especially in hot weather states. A plastic component on the fuel pump module can crack, causing a fuel leak and odor. (Ref: NHTSA Recall 12V459000)
• Blower Motor Resistor/Harness Failure 🟡 Low — A frequent complaint where the fan only works on certain speeds or not at all. Often caused by a failed resistor or a melted wiring harness connector.
• Timing Chain Wear (Ecotec Engines) 🟠 Medium — The Ecotec engines (L61, LE5) can experience timing chain and tensioner wear, typically after 100,000 miles, leading to rattling noises on startup and potential engine damage if ignored.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For 2005-2007 models with the 4T45-E, a complete used transmission from a low-mileage donor can be a cost-effective alternative to a rebuild if the internal hard parts (clutches, gears) have failed. For 2003-2004 CVT models, a used transmission is the *only* viable option besides scrapping the car, as new/reman units are scarce and prohibitively expensive.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the fluid condition on the donor vehicle if possible. It should be reddish, not dark brown or black.
• Ask for any available service history of the donor car.
• Look for external damage to the transmission case, connectors, and sensors.
• Get a warranty from the salvage yard, even if it's only 30-90 days, to protect against an immediate failure.

OEM-only on this vehicle (don't cheap out):

• Transmission Control Module (TCM) - While aftermarket remanufactured units are available, they MUST be properly VIN-programmed. A used TCM from a salvage yard will not work without being reprogrammed by a specialist, as it is coded to the original vehicle's options and VIN.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM for solenoids)
• Rostra (Solenoids)
• Delphi (Solenoids)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name shift solenoid kits from online marketplaces are a gamble; they have high rates of premature failure.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0974 — A specific TCM code for Shift Solenoid 'A' Control Circuit High that often triggers the P0700 request in 2005-2007 models.
• P0752 — A specific solenoid-related code that may be found in the TCM when P0700 is present.
• P0757 — A TCM-resident code indicating a shift solenoid issue, frequently seen alongside P0700 in the 4T45-E transmission.
• P0977 — A specific code for Shift Solenoid 'B' Control Circuit High, which is a common underlying cause for the P0700 light.

Frequently Asked Questions
