P0604 on 2007-2010 Saturn Sky: Transmission Control Module RAM Error Causes and Fixes

What's Unique About the 2007-2010 Saturn Sky

Unlike many other GM vehicles from this period that have the TCM located inside the transmission oil pan (as a TEHCM), the Saturn Sky and its Pontiac Solstice twin use an externally mounted T42 TCM. This module is located in the engine compartment, making it significantly easier and cheaper to access for diagnosis and replacement. However, like other GM vehicles, the primary suspects for this code are either a simple low voltage issue or a failed TCM.

Symptoms You May Notice

• Harsh or erratic automatic shifting
• Transmission getting stuck in one gear (limp mode)
• Check Engine Light is on
• Vehicle may not start or may stall intermittently
• Delayed engagement when shifting into Drive or Reverse
• PRNDL display may go blank 🎬 Watch: A breakdown of common symptoms for a bad TCM or show incorrect information.

Most Likely Causes

1. Low Battery Voltage or Poor Connections 🔴 High Probability All modern control modules are sensitive to voltage. A weak battery, corroded terminals, or poor ground straps can cause temporary memory corruption, triggering a false P0604. This is especially common on sports cars like the Sky which may sit for extended periods, leading to battery drain. This should always be the first check. 🎬 See this guide on identifying the symptoms of a failing battery
   How to confirm: Perform a full battery and charging system test. A healthy battery should read ~12.6V engine off and 13.7-14.7V engine on. Load test the battery and check for voltage drop during cranking (should not fall below 9.6V). Inspect and clean all battery terminals and main chassis/engine ground straps.
   Typical fix: Clean battery terminals and ground connection points. Replace the battery if it is old or fails a load test.
   Est. part cost: $100-$250
2. Faulty Transmission Control Module (TCM) 🔴 High Probability GM Technical Service Bulletins from this era acknowledge that the TCM is the primary module that sets this code, indicating a known weakness in the component's internal electronics. The external mounting in the engine bay exposes it to heat and vibration, which can lead to internal failure over time.
   How to confirm: If the battery and charging system are confirmed to be in perfect working order, and the code returns immediately after being cleared, the TCM itself is the likely culprit. Diagnosis with a professional scan tool can confirm the fault is isolated to the TCM and that it is not a software glitch.
   Typical fix: Replace the Transmission Control Module. The new module must be programmed to the vehicle's VIN, either at a shop or by purchasing a pre-programmed unit.
   Est. part cost: $150-$400

Rare But Worth Checking

• Corrupted TCM Software: Less commonly, a software glitch can cause this error. Before replacing the module, a dealership or specialized shop can check if a software reflash is available. This is rare but cheaper than a full replacement if it works.
• Wiring Harness Issues: Though uncommon, damage to the wiring harness leading to the TCM can cause voltage drops or data corruption, mimicking an internal module failure. A visual inspection of the harness and checking for continuity and voltage at the TCM connector pins should be performed before condemning the module.

Diagnosis Steps

1. Read all diagnostic trouble codes with an OBD-II scanner. Note if P0700 is also present.
2. Perform a thorough test of the battery and charging system. Voltage should be stable and within spec (~12.6V+ engine off, 13.7-14.7V running). During cranking, voltage should not drop below 9.6V.
3. Inspect and clean the battery terminals and all major power and ground connections, including the main engine-to-chassis ground strap.
4. If power and grounds are good, clear the codes and see if P0604 returns. If it returns immediately, the TCM is highly suspect.

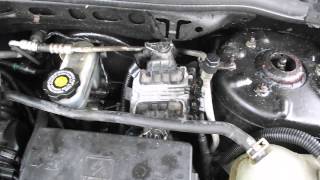

5. Locate the TCM in the engine compartment. On the Kappa platform, it is an externally mounted module, often near the ECM. Inspect the connector and wiring for any visible damage or corrosion.
6. Using a multimeter, verify that the TCM is receiving proper battery voltage and has a solid ground connection at its connector pins, according to the service manual wiring diagram.
7. If no external issues are found, the TCM is presumed to be faulty and requires replacement and programming.

Parts You'll Likely Need

• Transmission Control Module (TCM) (OEM #24239785, 24252114) — This is the component that stores the code and is the most common point of failure after ruling out voltage issues. Part number 24239785 is a common replacement that supersedes older numbers like 24235224. Part number 24252114 is also listed for this application.
  Trusted brands: ACDelco (Genuine GM)
  OEM price range: $250-$400
  Aftermarket price range: $150-$300
• Vehicle Battery — A weak or failing battery is a very common trigger for this code due to unstable voltage supplied to the control modules, especially if the vehicle sits unused for periods of time.
  Trusted brands: ACDelco, Interstate, DieHard
  OEM price range: $180-$250
  Aftermarket price range: $100-$200

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that means the TCM has stored a fault and requested the Check Engine Light to be turned on. It will almost always be present with a specific TCM code like P0604.

Technical Service Bulletins (TSBs) & Recalls

• PIP4653E - References P0604 as a code that can be set in the TCM, directing technicians to focus diagnostics on the transmission module.
• 05-06-04-060A - A general GM informational bulletin that groups P0604 with other internal control module fault codes (P0601, P0602, P0603, etc.), acknowledging them as known potential DTCs across many modules and platforms.

Platform-Specific Known Issues

• Code Appears After Long-Term Storage: Owners on forums like skyroadster.com have reported that the P0604 code, along with harsh shifting, can appear after the vehicle has been stored for the winter or has not been driven for several weeks. In these cases, the issue was traced back to a weak battery that failed a load test. A new battery resolved the problem without needing to replace the TCM.

Mechanic-Grade Diagnostic Values

• Battery Voltage (Engine Off) — expected: ~12.6 Volts. Failure: Below 12.4V indicates a discharged or weak battery.
• Charging System Voltage (Engine Running) — expected: 13.7 - 14.7 Volts. Failure: Voltage outside this range indicates a faulty alternator or voltage regulator.
• Voltage Drop During Cranking — expected: Should not drop below 9.6 Volts. Failure: A drop below 9.6V indicates a weak battery unable to handle the starter load, a known trigger for false P0604 codes.
• TCM Ground Circuit Resistance — expected: Below 0.1 Ω. Failure: Resistance higher than 0.1 Ω indicates a poor ground connection, which can cause module instability and trigger memory faults.

Hidden / Shadow Codes Worth Checking

• Symptom Byte (e.g., 0x71): GM uses a 2-digit hexadecimal symptom byte to provide more detail for DTCs. For P0604, a byte like '71' can mean 'Invalid Serial Data Received,' which suggests a software or communication network problem rather than a fatal hardware error in the TCM itself. (see via A dealer-level scan tool like a GM Tech 2 or a GM MDI interface with GDS2 software is required to view these specific symptom bytes.)

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Service Programming System (SPS) — This function is mandatory after installing a new TCM. It downloads the correct VIN-specific software and calibrations from GM's servers into the new module. The vehicle will not operate correctly without this step.
• GM Tech 2 / GDS2: Transmission Adaptive Pressure Reset — After a new TCM has been programmed and installed, this function should be executed. It clears all the learned shift pressure data from the old module, forcing the new TCM to begin a fresh adaptive learning process for smooth shifts.

Wiring & Ground Locations

• TCM (T42) — In the engine compartment, located near the brake master cylinder and the ECM.. This is the module setting the code. Its external location makes it vulnerable to engine bay heat and vibration but also makes it easy to access for testing its connector pins for power, ground, and data signals.
• G103 / G104 — These are primary engine electrical ground points located in the engine compartment. Service manual diagrams show them on the engine itself.. A loose or corroded engine ground can create an unstable voltage supply for all engine bay modules, including the TCM. Verifying these grounds are clean and tight is a critical step before condemning the TCM.
• G102 — At the right front corner of the engine compartment, mounted on the frame rail.. This is a major chassis ground point. While not exclusively for the TCM, a poor connection here can introduce electrical noise and instability across the vehicle's systems, potentially leading to module communication errors.

Real Owner Repair Stories

• Multiple threads on skyroadster.com and solsticeforum.com (2007-2010 Saturn Sky / Pontiac Solstice) — Check Engine Light with code P0604 and P0700, transmission stuck in one gear (limp mode), harsh shifting.
  ❌ Tried (didn't work) Clearing the code, only for it to return immediately.
  ✅ What actually fixed it In cases where the car had been stored or sat for a while, the fix was replacing a weak battery that failed a load test. In cases where the battery and charging system were confirmed good, the fix was replacing the T42 TCM with a new or pre-programmed unit and performing the adaptive learn procedure.

OEM Part Supersession History

• 24234503, 24239224 → 24252114 — Standard part evolution for manufacturing updates and improved reliability.
  Heads up: Part number 24252114 is a widely used service replacement for the T42 TCM across many GM models from this era. Always confirm the part number with a dealer using the VIN, but this is the most likely correct replacement.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used TCM from a donor vehicle is a very cost-effective option for this repair, but ONLY if it is reprogrammed with your car's specific VIN and software calibration. Simply swapping a used module without programming will not work.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Inspect the connector pins for any signs of corrosion, moisture, or being bent.
• Check the module's case for physical damage or signs of being opened.
• If possible, source from a vehicle that was not involved in a front-end collision or flood.

OEM-only on this vehicle (don't cheap out):

• While you can buy a used part, it should be an original ACDelco/GM module. Avoid no-name aftermarket 'rebuilt' TCMs where the quality of internal repairs is unknown.

Aftermarket brands forum-validated for this vehicle:

• The key is the programming service, not the brand of the used part. Reputable vendors that sell pre-programmed T42 TCMs include FS1inc (Flagship One), Vertex Auto, GMFLASH, and Highway 71 Auto Parts.

Brands owners have reported issues with on this vehicle:

• Be cautious of private sellers on platforms like eBay or Amazon who do not offer a warranty and cannot provide VIN programming service. A non-programmed module is useless for this repair.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — Companion code. The ECM sets P0700 to turn on the Check Engine Light when the TCM (Transmission Control Module) has stored a transmission-specific fault, such as P0604. Its presence confirms the fault originates in the transmission control system.
• P0601 — Internal Control Module Memory Check Sum Error. TSB 05-06-04-060A groups this code with P0604 as a related internal control module fault, indicating a similar type of processor or memory failure.
• P0602 — Control Module Programming Error. TSB 05-06-04-060A groups this code with P0604, suggesting it is part of a family of codes related to internal module integrity and software issues.
• P0603 — Internal Control Module Keep Alive Memory (KAM) Error. TSB 05-06-04-060A lists this as a related internal module fault. A KAM error can be caused by low battery voltage, which is also a primary trigger for P0604 on the Saturn Sky.
