P0463 on 2001-2006 GMC Sierra 3500: Fuel Gauge Problems and Fixes

What's Unique About the 2001-2006 GMC Sierra 3500

On the GMT800 platform, which includes the 2001-2006 Sierra 3500, failure of the fuel level sending unit is a very common and well-documented issue. The sensor operates by measuring resistance, which should be around 40 ohms when the tank is empty and 250 ohms when full. The P0463 code is set when the circuit opens, causing resistance to go to infinity and voltage to spike. This failure is often due to the small electrical contacts on the sensor's variable resistor wearing out or breaking off entirely. Additionally, corrosion from sulfur in fuel can degrade the sensor contacts over time. While the sensor is available separately, it is integrated into the fuel pump module inside the tank. Given the high-labor job of dropping the tank or lifting the bed for access, most owners and mechanics opt to replace the entire fuel pump assembly to prevent a repeat repair when the pump eventually fails.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is stuck on full or empty.
• Fuel gauge behaves erratically, jumping between levels.
• Low fuel light is always on or flashing.
• "Fuel Level Low" message on the driver information center.

Most Likely Causes

1. Failed Fuel Level Sensor (Sending Unit) 🔴 High Probability The original equipment sensors on this generation of GM trucks are known for the contacts on the variable resistor wearing out or breaking, creating an open circuit which the PCM interprets as a high voltage signal. Sulfur content in gasoline can also accelerate the corrosion and failure of these contacts. NHTSA ODI #10371391 notes that this failure occurs when the variable resistor shows a high input instead of a typical small value, indicating a fault in how voltage is sent to the gauge.
   How to confirm: Use a scan tool to observe the fuel level sensor voltage. A reading that is stuck high (typically near 5 volts) regardless of the actual fuel level points to a failed sensor. 🎬 See a professional diagnostic walkthrough for the P0463 code. You can also test the sensor's resistance at the module connector between the purple and black/white wires. It should read between 40-250 ohms; an infinite reading (OL) confirms an open circuit in the sensor.
   Typical fix: Replace the fuel level sensor. It is highly recommended to replace the entire fuel pump module assembly (e.g., ACDelco MU1613 or Delphi FG0053) while the tank is accessible.
   Est. part cost: $250-$450 for a complete fuel pump module assembly.
2. Damaged Wiring or Connector 🟡 Medium Probability The main wiring harness connector on top of the fuel pump module is exposed to the elements and can suffer from corrosion or physical damage, especially on work trucks. The plastic can become brittle and break during removal.
   How to confirm: Visually inspect the wiring harness and the 4-pin connector on top of the fuel tank for green/white corrosion, broken wires, or melted plastic. The signal wire is typically purple. Wiggle the connector while monitoring the fuel level sensor data on a scan tool to see if the reading changes.
   Typical fix: Clean the connector terminals or replace the connector pigtail if it is damaged. Many replacement fuel pump modules come with an updated, flat 4-pin connector (e.g., ACDelco PT2887) that must be spliced in, replacing the old square-style factory connector.
   Est. part cost: $20-$50 for a new connector pigtail like ACDelco PT2887 or Duralast 1627.
3. Poor Ground Connection ⚪ Low Probability The fuel system's ground wire, often attached to the frame rail near the tank, can rust or break over time, leading to various electrical issues with the fuel system.
   How to confirm: Locate the ground strap for the fuel tank/pump module on the vehicle's frame. Check for rust, corrosion, or a loose connection. Test for high resistance between the ground wire at the pump connector and a clean chassis ground point. A video shows this ground located on the driver's side frame rail, just forward of the rear wheel well.
   Typical fix: Clean the ground connection point on the frame and the wire terminal with a wire brush and re-secure it. If the wire is broken, it will need to be repaired or replaced.
   Est. part cost: $1-$10 for cleaning supplies or a new terminal.

Rare But Worth Checking

• Faulty Instrument Panel Cluster (IPC): While rare, the gauge cluster itself can fail. This is usually accompanied by other gauge-related issues (speedometer, tachometer, etc.) and not just the fuel gauge. GMT800 trucks are known for stepper motor failures in the cluster, but this typically doesn't set a P0463 code.
• Faulty Powertrain Control Module (PCM): This is extremely unlikely and should only be considered after all other possibilities, including all wiring and the sensor itself, have been thoroughly tested and ruled out.
• Stuck Sender Float Arm: If the vehicle has been sitting for a very long time, the float arm can get stuck due to rust or fuel varnish, causing a fixed reading. This is less common than outright electrical failure.

Diagnosis Steps

1. Confirm the P0463 code is present using an OBD-II scanner.
2. Observe the fuel gauge behavior. Note if it is stuck, erratic, or completely dead. NHTSA ODI #10551564 describes a scenario where the gauge would jump from full to empty every few minutes before triggering the code.
3. Use a scan tool to monitor the live data for "Fuel Level Sensor Voltage." A reading stuck near 5 volts is a strong indicator of an open circuit or failed sensor.

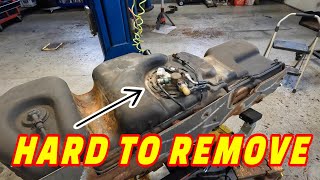

4. Gain access to the top of the fuel tank. This can be done by either lowering the fuel tank or lifting the truck bed. 🎬 Watch: How to replace the fuel pump by lifting the bed. Lifting the bed is often preferred by owners as it avoids dealing with a heavy fuel tank and potentially rusted straps.
5. Visually inspect the fuel pump module connector and wiring harness for any signs of corrosion, melting, or physical damage. Pay close attention to the purple signal wire and the ground wire.
6. With the key on, use a multimeter to test the signal and ground wires at the connector. You should have a reference voltage on the signal wire and a good ground (near 0 ohms to chassis) on the ground wire.
7. If wiring appears intact, test the resistance of the sensor through the connector pins (typically purple and black/white). A reading between 40-250 Ohms indicates a good sensor. An infinite resistance reading (OL) confirms the sensor has failed and the fuel pump module needs replacement.
8. If all wiring and the sensor test good, the problem may lie with the Instrument Panel Cluster or PCM, but this is very rare.

Parts You'll Likely Need

• Fuel Pump Module Assembly (OEM #ACDelco MU1613 (GM Genuine 19331263)) — This is the most common fix. The fuel level sensor is integrated into the assembly, and replacing the entire unit is recommended due to the high labor cost of accessing the part. This part often includes an updated wiring harness.
  Trusted brands: ACDelco, Delphi
  OEM price range: $350-$450
  Aftermarket price range: $250-$350 (e.g., Delphi FG0053)
• Fuel Pump Module Connector (OEM #ACDelco PT2887) — The original connector is often corroded or becomes brittle and breaks upon removal. Many replacement pumps require this updated pigtail to be spliced into the vehicle's harness.
  Trusted brands: ACDelco, Duralast, Echlin
  OEM price range: $30-$50
  Aftermarket price range: $20-$40 (e.g., Duralast 1627, ECH EC1629)

Technical Service Bulletins (TSBs) & Recalls

• GM TSB 04-06-04-051H: While not a direct fix for a failed sensor, this bulletin discusses using GM Fuel System Treatment Plus (or Techron) to clean deposits from fuel system components. This is sometimes suggested as a first step if the gauge is erratic, but it will not fix a broken sensor contact that causes P0463.

Platform-Specific Known Issues

• The fuel level sending unit is a known high-failure item on this generation of GMC Sierra trucks.
• Lifting the truck bed is a very popular method for replacement, as it avoids dropping the heavy fuel tank and dealing with rusted tank straps. One owner noted that this provided easy access but also revealed other issues like rusted brake lines that needed attention.
• Some early replacement pumps from GM had issues with fuel additives containing sulfur, which could corrode the contacts. Newer replacement modules from reputable brands like Delphi feature gold-filled sensors to improve resistance to this type of corrosion.
• NHTSA ODI #10362931 highlights that these fuel system issues are widely discussed online, noting that sudden loss of power in traffic due to related engine trouble codes can be a safety concern.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: 40 ohms (empty) to 250 ohms (full). Failure: An infinite (OL) reading indicates an open circuit in the sensor, which is the direct cause of P0463.
• Fuel Level Sensor Signal Voltage (at PCM) — expected: ~0.5V (empty) to ~4.5V (full). Failure: A reading stuck at or near 5.0V indicates an open in the circuit, triggering the P0463 code.
• Fuel Pump Ground Circuit Voltage Drop — expected: Less than 0.1V (100mV). Failure: A reading significantly higher than 0.1V (e.g., 0.5V or more) indicates a poor ground connection that could cause a variety of fuel system electrical issues.

Scan Tool Commands That Help

• GM Tech 2: Fuel System - Cylinder Balance Test / Injector Balance Test — While not directly for P0463, if the truck has drivability issues along with the fuel gauge problem, a Tech 2 can perform an injector balance test to rule out fuel delivery issues separate from the sending unit failure.
• GM Tech 2: Data Display - Fuel Tank Level Sensor (Volts) — This is the primary diagnostic screen for P0463. It allows a technician to see the raw voltage the PCM is receiving from the sensor, which is more precise than just looking at the gauge. A value stuck at 5.0V confirms the fault condition.

Wiring & Ground Locations

• Fuel Pump Ground — On the driver's side frame rail, just forward of the rear wheel well. There are typically two grounds in this area; the fuel pump ground is the top one.. A corroded or broken ground at this specific point can interrupt the entire fuel pump module's electrical circuit, potentially causing a P0463 code or other fuel-related issues. It is exposed to road salt and moisture, making it a common failure point.
• Fuel Pump Module Connector — On top of the fuel pump module, accessible by lifting the bed or dropping the tank. It is a square 4-pin connector on original models.. This is the main interface. The purple wire is the fuel level signal, and the black wire is the sensor ground. Corrosion or damage here is a very common cause for P0463.
• G110 — Located under the driver's door area, where a large bundle of black wires bolts to the body mount.. While the primary fuel pump ground is on the frame, G110 is a major chassis ground point for many circuits. A user on a forum noted that cleaning this ground was part of their troubleshooting process for gauge issues.

OEM Part Supersession History

• 25345026 → 19121626 -> 19153711 -> 19331263 -> 19369915 — Ongoing revisions to improve reliability, particularly related to the fuel level sensor contacts' resistance to sulfur in fuel and updates to the internal pump design.
  Heads up: The current GM Genuine part is 19369915, which is marketed as fitting vehicles with EVAP emissions and replaces the popular ACDelco MU1613.

Model Year Variations Within This Range

• 1999-2003: There is a critical distinction between fuel pump modules based on the presence of an EVAP pressure sensor. Part MU1613 (RPO code TCF) is for vehicles with the EVAP system, while MU1614 (RPO code TCU) is for those without. A visual inspection is the best way to confirm, as the EVAP-equipped pump will have two electrical connectors on top.
• 2003-2005: During this period, some trucks retained a return-style fuel system while others moved to returnless. Additionally, Canadian-built trucks sometimes used a different wiring pigtail. This makes it essential to verify the exact system on the truck before ordering a replacement pump.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Never. The primary failure mode for P0463 is the fuel level sending unit, which is a wear item. A used part from a junkyard is highly likely to have significant wear and could fail soon after installation, forcing you to repeat the high-labor replacement job.

What to inspect on the donor part:

• Not applicable as a used part is not recommended.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, using a high-quality, reputable brand for the Fuel Pump Module Assembly is critical. The labor involved is too significant to risk on a cheap, unproven part that might fail prematurely.

Aftermarket brands forum-validated for this vehicle:

• Delphi: Often cited as the original OEM supplier for GM. The Delphi FG0053 is the direct equivalent to the ACDelco MU1613 and is highly recommended on forums.
• ACDelco: The official GM parts brand, considered the safest bet for fitment and reliability.

Brands owners have reported issues with on this vehicle:

• Unbranded/"White Box" parts: Forum users frequently warn against using the cheapest available parts from online marketplaces, citing high failure rates, incorrect fuel level readings out of the box, and short lifespans.
• Airtex / Spectra Premium: While some users report success, others have noted issues, making them a riskier choice compared to Delphi or ACDelco.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0462 — Companion code for 'Fuel Level Sensor 'A' Circuit Low'. While P0463 indicates an open circuit or high voltage, P0462 indicates a short to ground in the same sensor circuit.
• P0461 — Indicates 'Fuel Level Sensor 'A' Circuit Range/Performance'. This code can be set if the sensor signal is erratic or irrational, which is a listed symptom of a failing sending unit on this vehicle.
• P0464 — Indicates 'Fuel Level Sensor 'A' Circuit Intermittent'. This code is closely related to the symptom of the fuel gauge behaving erratically or jumping between levels, which points to a failing sensor or loose connection.
• P0460 — A generic 'Fuel Level Sensor 'A' Circuit' malfunction code. It may be stored alongside the more specific P0463 if the PCM detects a general fault in the circuit's operation.
• U1000 — Indicates a 'Class 2 Data Link Malfunction'. In the rare event that the fuel level sensor and its wiring are good, a problem with the Instrument Panel Cluster (IPC) communicating fuel level data could be the cause, potentially setting this communication code.
