P0455 on 2009-2014 Ford F-150: EVAP Large Leak Causes and Fixes

What's Unique About the 2009-2014 Ford F-150

The 2009-2014 F-150 generation uses a capless fuel filler system, which is a frequent source for this specific code. Unlike traditional gas caps that can be easily replaced, the capless system has a spring-loaded flap and an internal seal that can get stuck with dirt or debris, preventing a proper seal. Many owners incorrectly assume a major component has failed when the issue is simply debris in the fuel filler neck, which can often be fixed with a simple cleaning using the emergency funnel provided with the truck.

Symptoms You May Notice

• Check Engine Light is on
• "Check Fuel Fill Inlet" message on the dashboard
• Slight fuel odor, especially around the rear of the truck or near the engine bay
• Rough idle or hard starting immediately after refueling (points to a stuck purge valve)
• Difficulty filling the fuel tank, with the pump clicking off repeatedly (can be a symptom of a bad vent valve)

Most Likely Causes

1. Dirty or Faulty Capless Fuel Filler Neck 🔴 High Probability The capless design is susceptible to dirt, dust, and road grime lodging in the sealing flap, preventing it from closing completely. The internal seal can also dry out or get damaged over time.
   How to confirm: Visually inspect the fuel filler opening for any debris. Use the white plastic funnel that comes with the truck to insert and remove it several times to dislodge any stuck particles and test the spring action. A whoosh of air (vacuum) when inserting the funnel can be a sign of a problem elsewhere, but the primary check is for a good seal.
   Typical fix: Clean the sealing surface inside the filler neck with a clean cloth and a plastic-safe solvent like silicone spray or WD-40. Insert and work the emergency funnel in and out 10-15 times to lubricate the seal. If cleaning doesn't work or the spring mechanism is broken, the entire fuel filler neck assembly must be replaced.
   Est. part cost: $90-$250
2. Faulty EVAP Purge Valve/Solenoid 🔴 High Probability This solenoid, also called a vapor management valve, cycles frequently and can wear out, commonly getting stuck open. This allows un-metered vacuum into the intake and a constant flow of fuel vapors, which can affect idle and trigger a large leak code.
   How to confirm: The purge valve is located on top of the engine's intake manifold. Disconnect the vapor line from the valve with the engine running at idle (the electrical connector can be left on or off for this test). There should be NO vacuum felt at the valve's port. If you feel suction with your finger or a vacuum gauge shows any vacuum, the valve is stuck open and is bad.

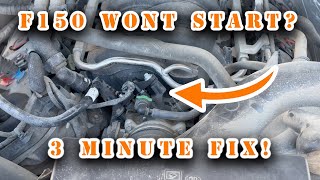

   Typical fix: Replacement of the purge valve assembly. It is typically held on by one or two bolts and is easily accessible on top of the engine. 🎬 See this walkthrough for replacing the purge valve assembly.
   Est. part cost: $30-$70
3. Faulty EVAP Canister Vent Valve/Solenoid 🟡 Medium Probability Located near the charcoal canister by the spare tire, this valve is exposed to road debris. Dust and dirt (especially from gravel roads) can cause the valve to stick open, preventing the system from sealing during its self-test.
   How to confirm: The valve is normally open and should close when 12V is applied. A scan tool can command it closed to check operation. A smoke test is the most effective way to confirm; if smoke exits the vent valve when it's commanded shut, it has failed. It can be difficult to access above the spare tire.
   Typical fix: Replace the canister vent solenoid. It is often mounted on or next to the charcoal canister. The hoses connected to it can be difficult to remove if they are old.
   Est. part cost: $25-$80
4. Cracked or Disconnected EVAP Hoses ⚪ Low Probability The plastic and rubber hoses that make up the EVAP system can become brittle with age and heat cycles, leading to cracks. Lines can also be disconnected during other unrelated repairs.
   How to confirm: A thorough visual inspection of all vapor lines from the engine bay to the fuel tank may reveal obvious damage. A smoke test is the definitive method, as it will force smoke out of any small cracks or loose connections.
   Typical fix: Replace the specific section of cracked hose. Sometimes this requires replacing a pre-formed assembly from the manufacturer.
   Est. part cost: $20-$100

Rare But Worth Checking

• Cracked Charcoal Canister: The plastic body of the canister itself can crack from road debris impact or age, creating a large leak. This is usually found during a smoke test.
• Failed Fuel Vapor Line Inside Tank: Manufacturer TSB #TSB 25-2431 notes that a P0455 may be stored due to a disconnected fuel vapor line inside the fuel tank, which can also cause the vehicle to stall upon restart after refueling.
• Failed Fuel Tank Pressure (FTP) Sensor: It's uncommon for the sensor itself to cause a P0455, but if it provides incorrect readings to the computer, it could falsely trigger the code. This is usually a last resort after all other components have been verified.
• Damaged Fuel Tank or Seal: In rare cases, the fuel tank itself or the fuel pump module seal can be damaged, causing a leak. This is more common on trucks used in harsh off-road or work environments. A visible fuel leak may or may not be present.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0455 is present. Note any other codes, like P0457 or P0446.
2. Inspect the capless fuel filler neck for debris. Clean the outer area with compressed air or a vacuum if possible.
3. Apply a silicone lubricant (like WD-40 Silicone or similar) to the internal seal. Insert the vehicle's emergency funnel 10-15 times to work the lubricant in and ensure the flap moves freely.
4. Clear the code and drive the vehicle for a few days. The EVAP monitor runs under specific conditions, so it may take time for the light to either stay off or return.
5. If the code returns, locate the EVAP purge valve on the engine intake. With the engine running at idle, disconnect the hose running to the EVAP system. Place your finger over the port on the valve; if you feel any vacuum, the valve is faulty and must be replaced. Note that manufacturer bulletin #SSM 50306 advises that some returned purge valves were found fully functional, so thorough testing is required before replacement.
6. If the purge valve is good, visually inspect all accessible EVAP hoses in the engine bay and under the truck for obvious cracks, damage, or disconnections. Pay close attention to connections near the purge valve and charcoal canister.
7. If no visual faults are found, the next step is a professional smoke test. This involves feeding low-pressure smoke into the EVAP system (usually via a service port or by adapting to a a hose) and watching for where it escapes. This is the most reliable way to find leaks in hoses, the canister vent valve, the charcoal canister, or the filler neck itself.
🎬 Watch: How to perform a professional EVAP smoke test.
8. Based on the smoke test results, replace the leaking component (e.g., canister vent valve, cracked hose, or fuel filler neck).

Parts You'll Likely Need

• EVAP Canister Purge Valve (OEM #AU5Z-9C915-B (Motorcraft CX2369) - Varies by engine, confirm with VIN.) — This is a very common failure point that gets stuck open, causing a constant leak. It's relatively inexpensive and easy to replace.
  Trusted brands: Motorcraft, Dorman, Standard Motor Products
  OEM price range: $40-$70
  Aftermarket price range: $25-$50
• Fuel Filler Neck (Capless) (OEM #9L3Z-9034-C (superseded by 9L3Z-9034-G). Note: Part number is highly specific to cab/bed configuration and fuel tank size. Always verify with VIN.) — The internal seal of the capless system fails or gets damaged, preventing the system from sealing. Cleaning should be attempted first.
  Trusted brands: Ford (Genuine), Spectra Premium, Dorman
  OEM price range: $150-$250
  Aftermarket price range: $90-$150
• EVAP Canister Vent Valve/Solenoid (OEM #9U5Z-9C915-H) — This valve gets stuck open due to dirt and debris, preventing the system from sealing for its self-test. It's located near the charcoal canister.
  Trusted brands: Motorcraft, Dorman, Standard Motor Products
  OEM price range: $40-$80
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• P0457 — P0457 indicates a leak detected right after a refueling event, often interpreted as 'Fuel Cap Off'. On a capless system, it points strongly to an issue with the fuel filler neck seal not closing properly after fueling. Manufacturer bulletin #SSM 51719 notes this can be due to outside contamination on the fuel cap or filler area.
• P0456 — P0456 indicates a 'Small EVAP Leak'. Sometimes a deteriorating component, like a purge valve or hose, can initially cause a small leak before it worsens and triggers the 'Large Leak' P0455 code.
• P0446 — P0446 points to a fault in the EVAP vent control circuit. If you see this code alongside P0455, it's a strong indicator that the canister vent valve or its wiring is the root cause.

Technical Service Bulletins (TSBs) & Recalls

• TSB #25-2431: Notes that a P0455 code may be stored due to a disconnected fuel vapor line inside the fuel tank, which can also cause the vehicle to be hard to start or stall after refueling.
• SSM #50306: Mentions that while P0455 is often associated with the canister purge valve, technicians should verify functionality before replacement, as some returned valves were found to be fully functional.
• SSM #51719: Indicates that P0455 and P0457 can be caused by improper fuel filler cap installation or outside contamination on the fuel cap/filler neck area.
• While no specific TSB for P0455 on this platform was found, TSBs for the 'Check Fuel Fill Inlet' message exist for other Ford models and generally recommend cleaning or replacing the fuel filler neck assembly, which is a primary cause of P0455.

Platform-Specific Known Issues

• Gravel/Dusty Road Impact on Vent Solenoid: Owners who frequently drive on gravel or dusty roads report a higher incidence of vent solenoid failure. The solenoid's location near the spare tire makes it vulnerable to ingesting dust, causing it to stick open and trigger a P0455.
• 'Check Fuel Fill Inlet' Message Confusion: This specific dashboard message is a hallmark of the Ford capless system leak. Many owners are initially confused by this message, but it almost always corresponds to an EVAP leak code like P0455 or P0457 and points directly to the filler neck as the first place to inspect.

Mechanic-Grade Diagnostic Values

• EVAP Canister Purge Valve resistance — expected: 30 to 38 ohms. Failure: A reading outside this range indicates a faulty coil in the solenoid.
• EVAP Canister Vent Solenoid resistance — expected: 48 to 65 ohms. Failure: Readings outside of this range suggest the solenoid coil is bad.
• Fuel Tank Pressure (FTP) Sensor Voltage (KOEO, atmospheric pressure) — expected: ~2.6 Volts. Failure: A significantly different voltage with the system open to the atmosphere can indicate a faulty sensor.
• Fuel Tank Pressure (FTP) Sensor Voltage (EVAP system under engine vacuum) — expected: ~0.5 Volts or less. Failure: If the voltage does not drop to this level when the purge valve is open and the vent is closed, it points to a leak or a faulty sensor.

Hidden / Shadow Codes Worth Checking

• Mode 6, Test ID $81: This monitor checks for EVAP system gross leaks (0.090" or greater). A failing value here is the direct trigger for code P0455. (see via A scan tool capable of reading Mode $06 data, such as FORScan or higher-end professional scanners.)

Scan Tool Commands That Help

• Ford IDS, FORScan, or equivalent professional scanner: EVAP System Test — This is a comprehensive, automated test that commands the purge and vent valves to seal the system, pulls a vacuum, and monitors for decay. It's the factory-prescribed way to verify a leak exists and confirm a repair.
• Ford IDS, FORScan, or equivalent professional scanner: Output State Control (OSC) for EVAP Canister Vent Solenoid — This bidirectional command allows a technician to manually command the vent valve closed. It is essential during a smoke test to seal the system and force smoke out of any leaks. If smoke exits the vent valve while it's commanded closed, the valve is faulty.
• Ford IDS, FORScan, or equivalent professional scanner: Output State Control (OSC) for EVAP Purge Valve — Allows manual control of the purge valve percentage. It can be used to verify the valve is not stuck open (by commanding it to 0% and checking for vacuum) or to check if it opens correctly.

Wiring & Ground Locations

• Main Engine Ground Lug — Located on each side of the truck, behind the vertical frame rail near the front.. While not specific to one EVAP component, a poor main engine or chassis ground can cause erratic behavior in various sensors and solenoids, including the EVAP valves and FTP sensor. Ensuring this primary ground is clean and tight is a good practice when diagnosing any electronic fault.
• G203 (Interior Ground) — Located on the left side of the dash.. This ground is associated with various interior modules and controls. While less likely to be a direct cause, it's part of the overall vehicle grounding scheme that can affect module communication.

Real Owner Repair Stories

• Ford F150 Forum (2011 Ford F-150) — Rough idle, random misfires, and eventually a P0455 code after towing. Mode 6 data showed a failure for the EVAP gross leak test.
  ❌ Tried (didn't work) Visual inspection of the capless fuel filler, which appeared to be sealing correctly., Visual inspection of hoses.
  ✅ What actually fixed it The user suspected the purge valve assembly under the engine cover was the culprit, as the rough idle and misfires are classic symptoms of it being stuck open. The final fix was replacing the purge valve.
• NHTSA ODI #11246459 — An owner reported a check engine light that stays on constantly, accompanied by a "Check Fuel Fill Inlet" message when pumping gas. The diagnostic code was P0455, indicating the computer recognized a large leak in the EVAP system.
• NHTSA ODI #11320104 — An owner inquired about the commonality of a P0455 code reading as a large EVAP leak on their vehicle, highlighting the frequency of this issue in Ford's fuel/propulsion systems.

OEM Part Supersession History

• AU5Z-9C915-A, AU5Z-9C915-B → AU5Z-9C915-E — Standard part revision and improvement by the manufacturer.
  Heads up: The listed part numbers, including AU5Z-9C915-B and its replacements like AU5Z-9C915-E, are widely used across many Ford engines (5.0L, 3.5L, etc.) in this generation, but it is always critical to confirm the exact part number with the vehicle's VIN before purchasing.

Model Year Variations Within This Range

• 2011-2014: The introduction of new engines in 2011 (3.7L V6, 5.0L V8, 3.5L EcoBoost V6) changed the specific location and part numbers for some components compared to the 2009-2010 models (which used the 4.6L and 5.4L V8s). For example, the purge valve part number AU5Z-9C915-B is commonly associated with the 5.0L engine, while the 5.4L may use a different part. Always verify by VIN.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0457 — Often appears alongside P0455 due to the capless fuel filler neck failing to seal properly, triggering the 'Check Fuel Fill Inlet' message.
• P0456 — A very small EVAP leak code that shares the exact same failure points as P0455, such as a dirty capless filler neck or degrading EVAP hoses.
• P0446 — An EVAP vent control circuit code that should be checked for during diagnosis, as it points directly to a malfunction with the canister vent valve solenoid near the spare tire.
• P0442 — A small EVAP leak code that can precede or accompany P0455, caused by the same cracked vapor hoses, a partially stuck vent valve, or a dirty capless filler neck.
