P0345 on 2005-2009 Land Rover LR3 4.4L V8: Cam Sensor Causes and Fixes

What's Unique About the 2005-2009 Land Rover LR3

On many vehicles, P0345 points directly to a bad sensor. However, on the 2005-2009 LR3, the electrical system is notoriously sensitive to battery voltage. A weak or dying battery is a very common cause of random electronic faults, including P0345, often during startup. Owners frequently report that clearing the code and ensuring the battery is healthy resolves the issue without replacing any parts. For example, a leaking air suspension strut can cause the compressor to run excessively, draining the battery overnight and triggering P0345 on the next startup. Therefore, a comprehensive check of the battery and charging system is the most critical first step.

Symptoms You May Notice

• Check Engine Light is on
• Engine is difficult to start, cranks for a long time, or won't start at all
• Engine only makes a clicking sound when trying to start (indicative of a dead battery, a root cause)
• Rough idle or stalling
• Engine hesitation or bucking while driving
• Reduced engine power and acceleration
• Misfires, particularly on Bank 2 (cylinders 2, 4, 6, 8)

Most Likely Causes

1. Weak or Failing Battery / Low Voltage 🔴 High Probability The LR3's complex electronic systems are highly sensitive to voltage drops. A weak battery can cause the ECM to receive erroneous data from various sensors during engine cranking. Parasitic drains, such as a leaking air suspension system causing the compressor to run frequently, can exacerbate this issue. Some owners on Reddit note that these vehicles are particularly sensitive to non-OEM batteries.
   How to confirm: Check the battery voltage before starting the engine; it should be above 12.2V. With the engine running, a multimeter should show the alternator charging between 13.8V and 14.5V. If the battery is more than 4-5 years old or not a high-quality AGM type, consider it suspect. Have the battery load-tested.
   Typical fix: Charge the battery fully and re-test. If the issue returns, replace the battery with a high-quality AGM unit. Investigate and fix any potential parasitic drains.
   Est. part cost: $200-$350
2. Failed Bank 2 Camshaft Position Sensor 🔴 High Probability Like any electronic sensor, the camshaft position sensor can fail over time due to heat cycles and vibration. It is a common replacement part after the battery has been ruled out.
   How to confirm: After confirming battery voltage is good, this is the next logical step. The sensor can be tested with an oscilloscope for a proper square wave signal. A simple DIY method is to swap the Bank 1 (driver's side) and Bank 2 (passenger's side) sensors, as they are identical. If the code changes to P0340 (Bank 1), the sensor is confirmed bad.
   Typical fix: Replace the Bank 2 (passenger side) camshaft position sensor. The OEM part number is 4362957.
   Est. part cost: $45-$290
3. Wiring or Connector Issue 🟡 Medium Probability Engine oil leaks from the valve cover gaskets can seep into the sensor connector, causing contamination. Engine heat can also make the wiring harness brittle and prone to cracking over time.
   How to confirm: Visually inspect the sensor's wiring harness and connector for signs of oil contamination, corrosion, or physical damage. Gently wiggle the connector and harness with the engine running to see if it causes a change in idle or triggers the fault.
   Typical fix: Clean the connector with electrical contact cleaner. If wiring is damaged, repair or replace the connector pigtail.
   Est. part cost: $10-$40

Rare But Worth Checking

• Stretched Timing Chains or Failed Guides/Tensioners: While less common than a sensor, the AJ41 engine can suffer from timing chain guide wear. If the chain develops slack, it can alter the cam/crankshaft timing correlation enough to trigger this code. This is often accompanied by a startup rattle or correlation codes like P0016 or P0022. One owner on landroverforums.com reported P0345 and P0022 together with an engine knock, which pointed to a mechanical timing failure. This is a major, labor-intensive repair.
• Faulty Powertrain Control Module (ECM): This is extremely rare. The ECM should only be considered after all other possibilities, including wiring and mechanical timing, have been exhaustively ruled out.

Diagnosis Steps

1. Read all codes with an OBD-II scanner. Note any other codes present, especially P0340 or timing correlation codes.
2. Check Battery Health: This is the most critical first step for an LR3. Fully charge and load test the battery. Ensure it holds a charge above 12.2V. Check alternator output while running (should be 13.8V+). Consider replacing any battery older than 4 years or if it's not a quality AGM type.
3. Clear Codes & Re-Test: After ensuring the battery is healthy, clear the codes and start the vehicle. If the code does not return, the battery was the likely culprit.

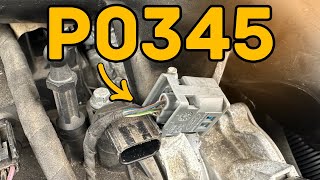

4. Inspect Sensor and Connector: If the code returns, locate the Bank 2 (passenger side) camshaft position sensor on the front of the valve cover. Visually inspect the sensor and its electrical connector for oil contamination from the valve cover, corrosion, or damage.
5. Swap Sensors: A simple and effective DIY test is to swap the Bank 2 sensor with the Bank 1 (driver's side) sensor. They are identical (Part No. 4362957). Clear the codes and run the engine. If the fault code changes to P0340 (Bank 1), the sensor you moved is faulty and needs replacement.
6. Check Wiring: If the code remains P0345 after the swap, the problem lies in the wiring to the Bank 2 sensor. Check the harness for continuity, shorts to ground, and proper reference voltage (typically 5V) from the ECM.
7. Investigate Mechanical Timing: If all electrical tests pass, the issue may be mechanical. Listen for a rattling noise from the front of the engine on startup, which could indicate worn timing chain guides. This step likely requires professional diagnosis.

Parts You'll Likely Need

• Camshaft Position Sensor (OEM #4362957) — This is the sensor that the code directly implicates. It is the most common part to fail, after ruling out battery issues. Both banks use the same part.
  Trusted brands: Land Rover (Genuine), Bremi, Hella, Standard Motor Products, Britpart
  OEM price range: $240-$290
  Aftermarket price range: $45-$100
• Automotive Battery (AGM Recommended) — The LR3's sensitivity to low voltage makes a weak battery a primary cause of this and other electrical fault codes.
  Trusted brands: Interstate, DieHard, Duralast Platinum AGM, Odyssey
  Aftermarket price range: $200-$350

Related Codes That Often Appear With This One

• P0340 — This is the equivalent code for Bank 1 (driver's side). If both P0340 and P0345 appear together, it strongly suggests a common systemic issue like low battery voltage during cranking, rather than two simultaneously failed sensors.
• P0016 / P0017 / P0022 — These are Crankshaft/Camshaft Position Correlation codes. Seeing them with P0345 strongly suggests a mechanical timing issue, such as a stretched timing chain or failing VVT components, rather than just a sensor fault.
• P0302, P0304, P0306, P0308 — These are misfire codes for the cylinders on Bank 2. An incorrect cam sensor signal can cause the ECM to time spark and fuel injection incorrectly for that bank, leading to misfires.

Platform-Specific Known Issues

• Voltage Sensitivity: The most significant vehicle-specific issue is the tendency for a weak battery or failing alternator to cause a cascade of seemingly unrelated fault codes, including P0345. Owners often chase sensor issues when the root cause is simply insufficient voltage during startup.
• Parasitic Drains: A common source of battery drain is a leaking air suspension system, which causes the compressor to run after the vehicle is shut off. This can lead to a low battery state and trigger P0345 on the next start.

Mechanic-Grade Diagnostic Values

• Camshaft Position Sensor Reference Voltage — expected: Approximately 5V DC. Failure: A significant drop below 4.5V suggests a power supply issue from the ECM or a short in the harness.
• Camshaft Position Sensor Signal Waveform (using oscilloscope) — expected: A clean, repeating square-wave pattern that switches between approximately 0.5V and 4.5V as the engine is running.. Failure: A missing, distorted, or erratic waveform indicates a faulty sensor, wiring issue, or problem with the camshaft reluctor ring.

Wiring & Ground Locations

• Engine Control Module (ECM) — Located in the electronics box (E-Box) in the plenum area on the right side (passenger side, NA) of the engine compartment, behind the battery.. The ECM provides the 5V reference voltage to the sensor and receives its signal. Water ingress into the E-box is a known issue that can corrode ECM connectors and cause various faults, including P0345.
• Main Battery Ground — The main negative battery cable grounds to the body within inches of the negative battery terminal, located inboard and slightly down from the terminal itself.. A corroded or loose main ground is a primary cause of low voltage conditions and widespread electrical faults on the LR3. Cleaning this point is a critical step when diagnosing any electrical code.
• Engine to Chassis Ground — A large ground wire connects to the engine block near the starter motor, behind the right front fender well.. This ensures the engine block has a solid ground path to the chassis and battery. A poor connection here can cause starting and charging system problems that may trigger low-voltage codes.

Real Owner Repair Stories

• landroverforums.com user 'abran' (2006 Land Rover LR3) — Failure for engine to 'catch' on starting, throwing codes P0340 and P0345.
  ❌ Tried (didn't work) The user initially suspected the sensor itself, but another user chimed in before it was replaced.
  ✅ What actually fixed it The root cause was identified as low battery voltage. In this specific case, a leaking front air suspension strut was causing the compressor to run excessively, draining the battery and triggering the camshaft sensor codes on startup.
• landroverforums.com user 'The Deputy' (Range Rover Sport (platform mate with same engine)) — Engine hiccups/bucks on the freeway, slow to start (cranks but won't fire), and code P0345.
  ❌ Tried (didn't work) Suspected bad gas and fuel pump issues, which were ruled out.
  ✅ What actually fixed it The user noted their charging system voltage was low, reading only 13.0-13.4V via a scan tool, while a healthy LR3 should be 14V+. The low voltage from a charging system fault was the direct cause of the P0345 and drivability issues.

Model Year Variations Within This Range

• 2005-2009: While the 4.4L AJ41 V8 engine remained the same throughout the production run, Land Rover continuously updated individual parts. Early model year (2005-2006) vehicles may have had more initial issues that were resolved through component supersessions and warranty work. There are no major design changes to the camshaft sensing system itself within this generation.
• 2008-2009: The 4.0L V6 engine option was dropped for the 2008 model year, making the 4.4L V8 the standard and only engine in the US market.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Air Suspension Compressor Failure 🔴 High — Very common, especially on vehicles over 80,000 miles. The original Hitachi compressor is prone to failure. An updated AMK-style compressor is the recommended replacement. (Ref: LTB00420 / LTB00450NAS1)
• Front Lower Control Arm Bushing Wear 🔴 High — Extremely common wear item, often requiring replacement every 60,000-80,000 miles. Symptoms include clunking from the front suspension over bumps or during braking, and uneven tire wear. (Ref: LTB00158)
• Electronic Parking Brake (EPB) Failure 🟠 Medium — Commonly presents as a loud screeching or grinding noise when applying or releasing the park brake. Often caused by lack of adjustment or a failing actuator module. Can be costly to replace the module.
• Sunroof Drain Leaks Causing Water Ingress 🔴 High — The front sunroof drain tubes have rubber ends that perish, allowing water to leak into the A-pillars and saturate the passenger or driver footwells. This can damage sensitive electronics and wiring harnesses located in the floor.
• Cracked Plastic Thermostat Housing / Coolant Manifold 🟠 Medium — The plastic components of the cooling system, particularly the thermostat housing and front coolant manifold, can become brittle with age and crack, leading to coolant leaks.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used camshaft position sensor from a junkyard is generally not recommended as a permanent fix due to its electronic nature and exposure to heat cycles. However, it can be a very cheap diagnostic tool. If swapping in a used sensor resolves the code, you have confirmed the fault and can then purchase a new part with confidence.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Look for a donor vehicle that appears well-maintained and is from a non-salt-belt region to minimize corrosion.
• Inspect the sensor's plastic housing for any cracks or signs of extreme heat stress.
• Ensure the connector pins are clean, straight, and free of corrosion or oil contamination.

OEM-only on this vehicle (don't cheap out):

• Battery: The LR3's electronics are highly sensitive to voltage and cranking amps. An OEM-spec Absorbent Glass Mat (AGM) battery is strongly recommended. Forum users frequently report that cheaper, non-AGM batteries fail to resolve electrical gremlins like P0345.
• Powertrain Control Module (ECM): If the ECM is ever suspected, replacement must be with a new or professionally refurbished unit specifically programmed to the vehicle's VIN. A used ECM from another vehicle will not work without specialized tools.

Aftermarket brands forum-validated for this vehicle:

• Bremi
• Hella
• Standard Motor Products (SMP)
• Denso (A known OEM supplier for other electronics on the vehicle)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' sensors from online marketplaces. While tempting due to low cost, their signal quality and longevity are often poor and can cause persistent issues or fail prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0340 — The Bank 1 version of the camshaft position sensor circuit fault; often appears with P0345 when the vehicle has low system voltage.
• P0022 — A timing correlation code that can appear alongside P0345 if the issue is mechanical (such as worn timing chain guides) rather than electrical.

Frequently Asked Questions
