P0305 on 2009-2013 Mazda 6 3.7L V6: Cylinder 5 Misfire Causes and Fixes

What's Unique About the 2009-2013 Mazda 6

The 2009-2013 Mazda 6 uses a 3.7L V6 engine from Ford's 'Cyclone' family, also known as the MZI 3.7. For a P0305 code, this is good news. The engine is mounted transversely, with cylinders 1-2-3 on the rear bank (against the firewall) and 4-5-6 on the front bank (near the radiator). This means cylinder 5 is the middle cylinder on the front bank, making the most common culprits—the ignition coil and spark plug—very easy to access and replace without removing the intake manifold.

Symptoms You May Notice

• Rough or vibrating idle
• Engine hesitation or stumbling during acceleration
• Noticeable loss of power
• Solid or flashing Check Engine Light
🎬 Watch: A simple explanation of the P0305 code and fix.
• Reduced fuel economy
• Fuel smell from the exhaust

Most Likely Causes

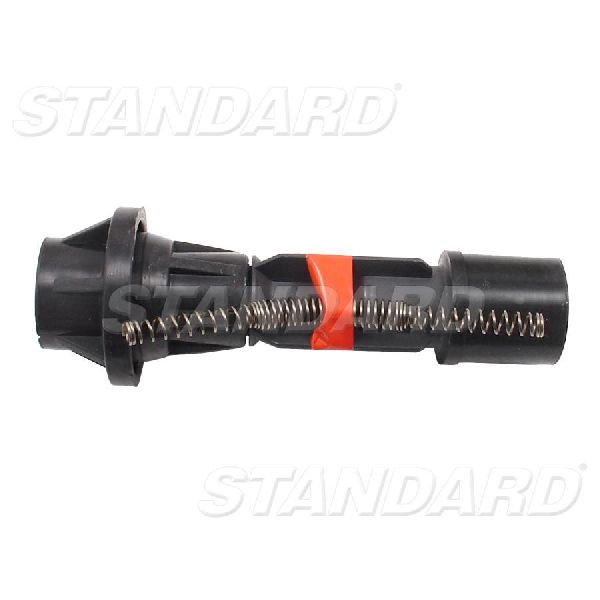

1. Faulty Ignition Coil 🔴 High Probability Ignition coils are a common wear item on most modern engines, and they are the most frequent cause of a single-cylinder misfire. The coil-on-plug boots can also degrade from heat and moisture, causing the spark to arc to the cylinder head instead of the spark plug.
   How to confirm: Swap the ignition coil from cylinder 5 with the coil from an adjacent cylinder (e.g., cylinder 4 or 6). Clear the codes and drive the car. If the code changes to P0304 or P0306, the ignition coil is faulty.
   Typical fix: Replace the faulty ignition coil. It is often recommended to replace the corresponding spark plug at the same time. Use of genuine Motorcraft coils is highly recommended to avoid premature failure or damage to the PCM.
   Est. part cost: $30-$75
2. Worn or Fouled Spark Plug 🟡 Medium Probability Spark plugs have a finite service life. The OEM Motorcraft iridium plugs used in this engine typically last up to 100,000 miles, but can fail sooner or become fouled by carbon or oil.
   How to confirm: After ruling out the ignition coil, remove the spark plug from cylinder 5. Inspect it for wear, carbon buildup, oil fouling, or damage to the electrode or ceramic insulator. The spark plug gap should be approximately 0.051 inches.
   Typical fix: Replace the spark plug. While you can replace just one, it is best practice to replace all six spark plugs 🎬 See this step-by-step guide for replacing Mazda 6 spark plugs. if they are near the end of their service interval. Note that replacing the three rear plugs requires removing the upper intake manifold. 🎬 Watch: How to access the rear bank on the 3.7L engine.
   Est. part cost: $10-$20 per plug
3. Faulty Fuel Injector ⚪ Low Probability Fuel injector failure is a documented issue on the 3.7L V6, but it is less common than ignition system faults. The injector can fail electrically (open circuit) or become clogged. This is a more common cause on this engine than on many other vehicles.
   How to confirm: A DIY method involves listening to the injector with a long screwdriver or mechanic's stethoscope to hear if it's clicking; a silent injector is likely dead. A multimeter can be used to check resistance; a good injector should read around 11.3-12.7 ohms, while a bad one may read very high or show an open circuit, especially when hot. This issue is often accompanied by code P0205 (Injector Circuit/Open - Cylinder 5).
   Typical fix: Replace the faulty fuel injector. This also requires removing the fuel rail for access.
   Est. part cost: $50-$150

Rare But Worth Checking

• Damaged PCM Driver: A failing ignition coil can sometimes send a voltage spike back to the Powertrain Control Module (PCM), damaging the internal driver circuit for that specific cylinder. If a P0305 code returns instantly even with a new coil and plug, the PCM may be the issue. This is often accompanied by code P0355 (Ignition Coil 'E' Primary/Secondary Circuit). Ford issued a TSB (13-4-17) for a similar issue on related engines, advising replacement of the PCM along with all coils and plugs. Companies like Circuit Board Medics offer a repair service for the PCM, which is cheaper than a full replacement.
• Low Engine Compression: If ignition and fuel systems are confirmed to be working, the misfire could be caused by an internal mechanical engine problem like a worn piston ring, a bad valve, or a leaking head gasket. A compression test is needed to diagnose this.
• Vacuum Leak: A leak in a vacuum hose or intake manifold gasket near cylinder 5 can introduce unmetered air, leaning out the air/fuel mixture and causing a misfire. This would typically be accompanied by a lean code like P0174 (System Too Lean Bank 2).

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0305 and check for any other related codes (e.g., P0205, P0355, P0174).
2. Identify Cylinder 5: It is the middle cylinder on the front bank, closest to the radiator. The front bank is 4-5-6, from passenger to driver side.
3. Test the Ignition Coil: Swap the ignition coil from cylinder 5 with the one from cylinder 4 (to the right) or cylinder 6 (to the left). Clear the codes and run the engine. If the code changes to P0304 or P0306, the ignition coil is bad and must be replaced.
4. Inspect the Spark Plug: If the misfire remains on cylinder 5 after the coil swap, remove the spark plug. Check for wear, fouling, or incorrect gap. If it looks bad, replace it.
5. Check the Fuel Injector: If a new coil and plug do not solve the problem, listen to the cylinder 5 fuel injector with the engine running using a mechanic's stethoscope or a long screwdriver. You should hear a steady clicking. If it's silent or the clicking is erratic, the injector is likely faulty.
6. Check for PCM Damage: If the P0305 code returns immediately with new parts and especially if a P0355 code is present, suspect a damaged PCM driver. This requires professional diagnosis or sending the PCM for testing and repair.
7. Mechanical Check: If all else fails, perform a compression test to check for internal engine mechanical problems.

Parts You'll Likely Need

• Ignition Coil (OEM #7T4Z-12029-E) — This is the most common failure part for a P0305 code on this engine.
  Trusted brands: Motorcraft, NGK, Denso, Delphi
  OEM price range: $60-$90
  Aftermarket price range: $30-$75
• Iridium Spark Plug (OEM #Motorcraft SP-520) — Worn spark plugs are the second most common cause and should be replaced if they are old or show signs of wear.
  Trusted brands: Motorcraft, NGK, Denso
  OEM price range: $15-$25
  Aftermarket price range: $10-$20
• Fuel Injector — A less common but documented failure point on the 3.7L V6 that can cause a persistent P0305, often with a P0205 code.
  Trusted brands: Bosch, Motorcraft
  OEM price range: $100-$180
  Aftermarket price range: $50-$150

Related Codes That Often Appear With This One

• P0300 — If the misfire is intermittent or affects other cylinders, a P0300 (Random Misfire Detected) code may appear alongside P0305.
• P0304, P0306 — These codes for adjacent cylinders on the same bank (Bank 2) could indicate a shared problem like a vacuum leak from the intake manifold gasket near that bank.
• P0174 — This code for 'System Too Lean (Bank 2)' can be caused by an unmetered air leak (vacuum leak) or a malfunctioning fuel injector on Bank 2, which includes cylinder 5.
• P0205 — This code for 'Injector Circuit/Open - Cylinder 5' points directly to a failed fuel injector and often appears with P0305 on this engine.
• P0355 — This code for 'Ignition Coil 'E' Primary/Secondary Circuit' indicates a fault with the coil circuit for cylinder 5. It can mean a bad coil or, more seriously, a damaged PCM driver.

Technical Service Bulletins (TSBs) & Recalls

• Ford TSB 13-4-17: While for a related Ford 3.5L engine, this TSB addresses PCM driver failure caused by a shorted ignition coil, a known possibility on the Mazda 3.7L as well.

Platform-Specific Known Issues

• Fuel Injector Failure on Cylinder 5: An owner of a 2014 Mazda CX-9 (same engine) on Reddit reported a persistent P0305 code after replacing the spark plug and ignition coil. The final fix was a faulty fuel injector, which they diagnosed by listening for the injector's 'clicking' sound with a screwdriver. The bad injector was silent.
• PCM Driver Failure: Forum discussions for the Ford Edge with the related 3.5L engine detail a known issue where a bad ignition coil shorts and damages the PCM driver, causing a persistent misfire on one cylinder. The fix, per Ford TSB 13-04-17, is to replace the PCM, all six ignition coils, and all six spark plugs to prevent a repeat failure. This is a known, though rare, possibility for the Mazda 3.7L as well.

Mechanic-Grade Diagnostic Values

• Fuel Injector Resistance — expected: 11.3 - 12.7 Ohms at 68°F (20°C). Failure: Very high resistance (kOhms/MOhms) or an open circuit (OL), especially when the engine is hot. A failed injector has been reported to read over 2000 Ohms when hot but test normally when cold.
• Fuel System Pressure — expected: 58 psi. Failure: Significantly lower pressure indicates a weak fuel pump or clogged filter, which would typically cause random misfires (P0300) rather than a single-cylinder misfire.
• Cylinder 5 Fuel Injector Control Circuit — expected: Pulsing ground signal from PCM terminal 2BL when tested with a noid light or oscilloscope while cranking/running.. Failure: No pulse (open/short in harness or bad PCM) or a constant ground (shorted PCM driver).
• Ignition Coil Secondary Resistance (General) — expected: 6,000 - 10,000 Ohms (6kΩ - 10kΩ). Failure: A reading outside this range suggests a faulty coil. However, a coil swap is the most definitive test, as coils can fail under heat and load in ways a static resistance test won't show.

Hidden / Shadow Codes Worth Checking

• Mode $06 Data: Advanced scan tools can access Mode $06 data, which shows raw misfire counts for each cylinder from the last drive cycle (Test ID $A2-$AB, Component ID $01-$0C for Ford/Mazda). Cylinder 5 is typically Component ID $05. This allows a technician to see if misfires are occurring even if they aren't frequent enough to set a P0305 code. (see via Professional scan tool with Mode $06 capability (e.g., Mazda IDS, high-end Autel/Launch scanners).)

Scan Tool Commands That Help

• Mazda IDS (or equivalent professional scanner): Power Balance Test — This function allows a technician to disable one cylinder at a time (by cutting fuel or spark) and observe the corresponding drop in engine RPM. If disabling cylinder 5 causes little or no change in RPM, it confirms that cylinder was not contributing power, pinpointing the misfire without swapping parts.

Wiring & Ground Locations

• Cylinder 5 Fuel Injector Connector — On the fuel rail, middle injector on the front bank (near radiator).. Terminal A is the control wire from PCM pin 2BL. Terminal B is the 12V+ power supply from the fuel pump relay. Testing here verifies if the injector is receiving power and a trigger signal.
• PCM Connector Pin 2BL — On the main Powertrain Control Module connector. The PCM is located in the left rear of the engine compartment.. This is the specific pin that sends the ground pulse to fire the cylinder 5 fuel injector. A continuity test from here to the injector connector can identify a break in the wiring harness.
• G22 — An engine ground point specifically noted for the 3.7L engine.. A poor engine ground can cause erratic behavior in sensors and actuators, including ignition coils and injectors, potentially leading to misfires.
• G2 — Located at the left front of the engine compartment.. This is a primary chassis/engine ground point. Corrosion or a loose connection here can cause widespread electrical issues, including misfires.

Real Owner Repair Stories

• Reddit user on r/AskAMechanic (2014 Mazda CX-9 (3.7L V6)) — Persistent P0305 code.
  ❌ Tried (didn't work) Replaced all spark plugs, Replaced ignition coil on cylinder 5
  ✅ What actually fixed it The fuel injector for cylinder 5 was faulty and was replaced. The owner confirmed the diagnosis by using a long screwdriver to listen for the injector's clicking sound; the bad injector was silent.
• Mazdas247 Forum user 'BLS' (2009 Mazda CX-9 Grand Touring FWD (3.7L V6)) — P0305 (Cylinder 5 Misfire), P0205 (Injector Circuit Open), and P0174 (System Too Lean Bank 2).
  ❌ Tried (didn't work) Initially suspected ignition coils, which had been replaced 1.5 years prior.
  ✅ What actually fixed it Replaced the fuel injectors. The owner measured the resistance of the injectors and found a discrepancy, confirming the electrical fault suggested by the P0205 code.
• Go-Parts article citing forum data (2009 Mazda CX-9 3.7L V6 with 71,000 miles) — P0305, P0205, P0174
  ❌ Tried (didn't work) Not specified, but injector was diagnosed after other checks.
  ✅ What actually fixed it Replaced the cylinder 5 fuel injector. The old injector's resistance measured 2000 ohms when hot, but a normal 20 ohms when cold, confirming a heat-related internal failure.

When the Usual Fixes Don't Work

• While ignition coils and spark plugs are the most common culprits for P0305, multiple owner reports for the 3.7L V6 confirm that if a coil and plug swap does not fix the misfire, the fuel injector is a very likely cause. In several documented cases, the injector failed electrically, testing with high resistance only when hot, making it a common misdiagnosis if not tested under operating conditions.

OEM Part Supersession History

• 7t4z12029da → 7T4Z-12029-E — Standard part revision and improvement by the manufacturer.

Model Year Variations Within This Range

• 2009-2013: A change was made to the engine's timing chain design. Models built before December 14, 2010, use a 'Roller type' timing chain (PN CY01-12-201A). Models built after that date use a 'Silent type' chain (PN CA51-12-201). According to Mazda, the chains, sprockets, guides, tensioners, VVT actuators, and water pumps are NOT interchangeable between the two designs.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Internal Water Pump Failure 🔴 High — Common at mileages over 80,000-120,000 miles. Failure is catastrophic as the pump is driven by the timing chain. When it fails, it can leak coolant directly into the engine oil, destroying the engine.
• Faulty Throttle Body 🟠 Medium — Can occur at various mileages, leading to stalling, rough idle, or the vehicle entering 'limp mode'. Often requires replacement of the entire electronic throttle body assembly.
• Front Subframe Crossmember Corrosion 🔴 High — Particularly prevalent in regions that use road salt. Severe rust can cause the lower control arm to detach. Mazda issued a recall (9516E) for this issue. (Ref: Recall 9516E)
• Takata Airbag Inflator Recall 🔴 High — Affects a massive number of vehicles from this era, including the Mazda 6. The inflators can rupture during deployment, causing serious injury or death. (Ref: Multiple NHTSA Recalls (e.g., 19V032000))

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used ignition coil from a junkyard can be a cost-effective tool for diagnosis (to confirm a bad coil by swapping it), but it is not recommended as a permanent replacement due to unknown remaining lifespan. Other simple mechanical parts like brackets or covers are fine to source used.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For an ignition coil, check for cracks in the plastic housing, corrosion on the electrical connector, and damage to the rubber boot.
• Check the donor vehicle's VIN to ensure it falls within the correct model year range and engine type.
• Look for vehicles with evidence of regular maintenance and no signs of sitting for excessively long periods (which can degrade rubber and plastic parts).

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM): Due to the need for VIN programming and the risk of inheriting another vehicle's problems, a used PCM is not recommended. A repair service for your original unit or a new OEM unit is the proper fix.
• Fuel Injectors: Given the documented heat-related failure mode, installing a used injector with unknown history is a significant risk. New OEM (Motorcraft) or high-quality aftermarket (e.g., Bosch) injectors are strongly recommended.

Aftermarket brands forum-validated for this vehicle:

• Ignition Coils: NGK, Denso, Delphi
• Spark Plugs: NGK, Denso
• Fuel Injectors: Bosch

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand ignition coils and injectors from online marketplaces are frequently reported to have high premature failure rates.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0205 — Injector Circuit/Open - Cylinder 5; often accompanies P0305 when the misfire is caused by an electrical failure of the fuel injector.
• P0355 — Ignition Coil E Primary/Secondary Circuit; indicates an electrical issue with the cylinder 5 coil circuit and can be a sign of a damaged PCM driver.
• P0304 — Cylinder 4 Misfire; used during diagnosis when swapping coils to see if the misfire moves to an adjacent cylinder.
• P0306 — Cylinder 6 Misfire; used during diagnosis when swapping coils to see if the misfire moves to an adjacent cylinder.
• P0174 — System Too Lean (Bank 2); may appear alongside misfire codes if the engine is experiencing fuel delivery issues or vacuum leaks.
