P0203 on 2017-2025 Chrysler Pacifica 3.6L: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2017-2025 Chrysler Pacifica

On the Chrysler Pacifica, the 3.6L Pentastar V6 is mounted transversely (sideways). Cylinder 3 is on the rear cylinder bank, close to the firewall. This location means that accessing the fuel injector or its wiring requires removing the entire upper intake manifold, making the repair more labor-intensive than for cylinders on the front bank. This code is very frequently accompanied by a P0303 (Cylinder 3 Misfire) code, as the injector circuit problem prevents proper fueling, causing the misfire.

Symptoms You May Notice

• Check Engine Light is on
• Rough or shaky idle
• Engine misfire, which can feel like a hesitation or stumble during acceleration
• Noticeable loss of engine power
• Reduced fuel economy
• A "popping" or "jerking" sensation during acceleration

Most Likely Causes

1. Failed Fuel Injector 🔴 High Probability Fuel injectors are a common failure point on the 3.6L Pentastar engine across many Chrysler, Dodge, and Jeep vehicles. Internal electronic coils can fail over time, causing an open or short in the circuit, preventing the injector from firing.
   How to confirm: Swap the fuel injector from cylinder 3 with an injector from another cylinder (e.g., cylinder 1). Clear the codes and run the engine. If the code changes to P0201, the injector is faulty. Alternatively, a multimeter can be used to check the injector's resistance; a good one should read around 12-14 ohms. A reading of OL (Open Loop) indicates a failed injector.
   Typical fix: Replace the faulty fuel injector. 🎬 Watch: Step-by-step fuel injector replacement on a Pacifica. Since the intake manifold must be removed, many mechanics and owners recommend replacing all three rear bank injectors (1, 3, 5) and the associated upper intake gaskets 🎬 See how to properly remove the upper intake manifold. at the same time to save on future labor.
   Est. part cost: $40-$120
2. Wiring Harness or Connector Issue 🟡 Medium Probability The engine wiring harness is exposed to constant high heat and vibration, which can cause wires to become brittle, chafe, or break over time. On some Chrysler/Dodge platforms, the harness for the rear bank of injectors is known to melt or get damaged where it is routed under the intake manifold.
   How to confirm: Visually inspect the wiring going to the cylinder 3 injector for any signs of damage, melting, or corrosion. Use a noid light in the injector's electrical connector; it should flash when the engine is cranked, indicating a signal from the PCM. If there is no flash, test for continuity between the PCM and the injector connector to rule out a broken wire.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. If damage is extensive, a new harness section may be needed.
   Est. part cost: $15-$40

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is the least likely cause. The internal driver circuit (a transistor or MOSFET) in the PCM that controls the injector can fail. This should only be considered after the injector and wiring have been definitively ruled out as the problem. Sometimes multiple injector codes (e.g., P0201, P0202, P0203) appearing at once can point to a failing PCM.

Diagnosis Steps

1. Confirm the presence of P0203 with an OBD-II scanner. Note any other codes, especially P0303.
2. Locate cylinder 3. On the Pacifica's 3.6L V6, it is the middle cylinder on the bank closest to the firewall.
3. Visually inspect the wiring harness and electrical connector for the cylinder 3 fuel injector. Look for any obvious signs of damage, corrosion, or loose connections.
4. Disconnect the injector and plug a 'noid light' into the connector. Crank the engine and check if the light flashes. A flashing light indicates the PCM and wiring are sending the signal to fire.
5. If the noid light flashes, the issue is likely the injector itself. To confirm, swap the cylinder 3 injector with another cylinder's injector (e.g., cylinder 1 on the same difficult-to-access rear bank).
6. Clear the codes, start the vehicle, and see if the fault code moves with the injector (e.g., a new P0201 code appears). If it does, the injector is bad. If P0203 returns, the problem is intermittent and likely in the wiring.
7. If the noid light does not flash, use a multimeter to check for continuity on the two wires running from the PCM to the injector connector to rule out a broken wire. Be sure to load-test the circuit if possible, as a wire can show continuity but fail under load.
8. As a final check, measure the resistance of the fuel injector using a multimeter set to ohms. A good injector should measure around 12-14 ohms. An open circuit (OL) or very low resistance indicates a failed injector.
9. If wiring and the injector are confirmed to be good, the issue may be a faulty PCM driver, which is rare.

Parts You'll Likely Need

• Fuel Injector (OEM #5184085AD) — This is the most common failure point for a P0203 code. The internal electronics of the injector fail, causing an open or short circuit.
  Trusted brands: Mopar, Bosch, Delphi
  OEM price range: $90-$140
  Aftermarket price range: $40-$90
• Upper Intake Manifold Gaskets (OEM #Mopar 5184562AC (Upper), Mopar 5184331AC (Lower)) — These must be replaced anytime the upper intake manifold is removed to access the rear fuel injectors to prevent vacuum leaks. Aftermarket kits like Fel-Pro MS97204 often bundle both upper and lower sets.
  Trusted brands: Fel-Pro, Mahle, Mopar
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0303 — P0303 means 'Cylinder 3 Misfire'. The electrical fault reported by P0203 prevents the injector from delivering fuel, which directly causes the cylinder to misfire.

Platform-Specific Known Issues

• Head Gasket Failures: While not a direct cause of P0203, the Pacifica platform with the 3.6L engine has a higher-than-average rate of head gasket failures, particularly on the rear bank. A YouTube teardown of a 2018 Pacifica engine specifically noted this trend. 🎬 Watch this teardown of a Pacifica engine with coolant loss. If a misfire persists after fixing the P0203 code, further diagnosis for mechanical issues is warranted.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance — expected: 12.0 - 14.0 Ohms. Failure: A reading of 'O.L.' (Open Line), zero, or a value significantly higher (e.g., 22 Ohms) indicates a failed injector.
• Injector Pulse Width (Scan Tool, hot idle) — expected: 1-5 milliseconds (ms). Failure: A value of 0 ms for the affected cylinder, or a value that is significantly different from the other cylinders.
• Injector Control Circuit Voltage (at connector, Key On Engine Off) — expected: Battery Voltage (~12.6V) on the power supply pin.. Failure: 0V indicates a problem with the power supply from the ASD (Auto Shutdown) relay or the wire itself.
• Fuel Pressure (at fuel rail) — expected: Approximately 58 psi (400 kPa). The Pentastar uses a returnless system with the regulator in the tank.. Failure: Low fuel pressure would typically set other codes (like P0087) before P0203, but it's a related system value.

Scan Tool Commands That Help

• Professional Scan Tool (e.g., Autel, Snap-on, Witech): Fuel Injector Balance Test / Actuator Test — This bidirectional command allows the technician to individually fire each injector with the engine off. By listening for the audible 'click' of each injector, you can quickly identify if an injector is not responding to the PCM's command, helping to isolate the fault between the PCM, wiring, and the injector itself.
• Professional Scan Tool (e.g., Xtool D8, Witech): Cam/Crank Relearn — While not a direct fix for P0203, if other work has been done (like replacing timing components or sensors) and misfires persist, performing a Cam/Crank relearn can resolve synchronization issues that might be contributing to rough running conditions alongside the injector fault.

Wiring & Ground Locations

• Injector #3 PCM Pin — The control (driver) wire for the Cylinder 3 fuel injector is typically located at Pin 29 of the C2 connector at the Powertrain Control Module (PCM). The shared power supply wire for the injectors is on Pin 48 of the C2 connector.. When a noid light test fails, this allows a technician to test for continuity directly from the PCM connector to the injector connector, definitively ruling out a broken wire in the harness.
• Engine Block Ground Strap — There are multiple ground straps. A key one connects the engine block to the chassis, often near the engine mounts or transmission.. A poor engine ground can cause a variety of electrical issues, including erratic sensor readings and injector problems. While not a direct cause of a single-cylinder code like P0203, it's a foundational check for any electrical diagnosis.

Real Owner Repair Stories

• Reddit user in r/Wrangler (2016 Jeep JKU (Wrangler), 3.6L Pentastar, ~70k miles) — Flashing CEL, P0203 and P0303 codes, palpable misfire at idle.
  ❌ Tried (didn't work) Replaced coil pack on cylinder 3 (no change)., Swapped coil packs between cylinder 3 and 1 (misfire stayed on cylinder 3)., Checked spark plug gap (was still in spec).
  ✅ What actually fixed it Replaced the fuel injector for cylinder 3. The old injector tested at 11 ohms (out of spec) and had a split O-ring.
• NHTSA ODI #11539650 — An owner reported that the vehicle was shaking and displayed a check engine light. A scan revealed three codes: P0420, P0303, and P0203.

OEM Part Supersession History

• 5184085AC → 5184085AD — Standard part revision and update by Mopar.
  Heads up: 5184085AD is a direct replacement for 5184085AC and is backward compatible.
• 5184085AD (4-hole injector) → 05281427AA (8-hole injector) — The newer Pentastar Upgrade (PUG) engine introduced in 2016+ models uses an 8-hole injector for better fuel atomization.
  Heads up: This is considered an upgrade, not a direct replacement. The 8-hole injectors are physically compatible and will drop in, but may provide minor fuel economy and smoothness benefits. They are also reportedly cheaper. No ECU tuning is required for this swap.

Model Year Variations Within This Range

• 2016+: Starting in 2016, Chrysler introduced the Pentastar Upgrade (PUG) engine. While the basic architecture is the same, it features changes like two-stage valve lift and cooled EGR. For this code, the most relevant change is the move to 8-hole fuel injectors (P/N 05281427AA) from the previous 4-hole design (P/N 5184085AD) for improved fuel atomization.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Oil Filter/Cooler Housing 🔴 High — Extremely common, often failing between 60,000-120,000 miles. The plastic housing warps from heat cycles, causing a major oil leak into the engine valley. (Ref: TSB #09-008-15 was issued for 2014 models, and TSB 09-009-25 for 2022-2025 models, acknowledging high replacement rates and advising proper diagnosis before replacement.)
• Rocker Arm / Lifter Failure ('Pentastar Tick') 🔴 High — Widespread issue, particularly in earlier Pentastar years but still present. Needle bearings in the rocker arms fail, causing a distinct ticking noise, misfires, and potential camshaft damage. Can occur as early as 10,000-60,000 miles. (Ref: Subject of class-action lawsuits covering 2016-2020 Pacificas. TSB #09-011-25 also addresses this issue as a cause for misfires.)
• Harsh Shifting / Transmission Failure (9-Speed Auto) 🔴 High — Very common, especially in 2017-2018 models. Owners report harsh/jerky shifting, hesitation, and sometimes complete transmission failure requiring replacement. Often, the issue is related to software logic and can be improved with a TCM flash. (Ref: Multiple software update TSBs exist. A recall (NHTSA 23V-010) was issued for Pacifica Hybrids for a wiring short that could cause stalling.)

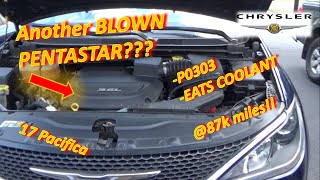

• Premature Head Gasket / Cylinder Head Failure 🔴 High — Frequently reported on the Pacifica platform, often between 50,000-80,000 miles. This can cause coolant to leak into cylinders, leading to misfires and potential engine damage.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For a single injector failure, a used OEM Mopar injector from a low-mileage donor vehicle can be a cost-effective choice, as they are generally reliable. However, given the labor involved in removing the intake manifold, many owners opt for new parts to avoid doing the job twice.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number (5184085AD or 05281427AA).
• Test the resistance with a multimeter before leaving the junkyard; it should be 12-14 ohms.
• Inspect the plastic connector for cracks or damage.
• Ensure the O-rings are present, though they should always be replaced with new ones during installation.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - Remanufactured or used PCMs often have programming and security (immobilizer) issues. This part should only be replaced with a new or professionally programmed unit as a last resort.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the OEM supplier, P/N 0280158233 is equivalent to Mopar 5184085AD)
• Standard Motor Products (SMP)
• Delphi

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand injectors from online marketplaces are a gamble. Failure rates are higher, and flow rates may not match OEM specs, causing performance issues even if they don't set a code.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0303 — Cylinder 3 Misfire Detected; frequently appears alongside P0203 because the injector circuit failure prevents fuel delivery, causing the cylinder to misfire.
• P0201 — Injector Circuit Open - Cylinder 1; often used during diagnosis when swapping injectors to see if the fault moves from cylinder 3 to cylinder 1.
• P0205 — Injector Circuit Open - Cylinder 5; located on the same rear bank as cylinder 3, often serviced at the same time due to shared labor for intake manifold removal.
• NHTSA 23V-010 — A recall code for Pacifica Hybrids involving a wiring short that could cause stalling, reflecting general wiring harness vulnerabilities in the platform.
