P0017 on 2015-2021 Ford Mustang 5.0L: Crank-Cam Correlation Causes and Fixes

What's Unique About the 2015-2021 Ford Mustang

For the S550 generation Mustang with the 5.0L Coyote V8, the Twin Independent Variable Camshaft Timing (Ti-VCT) system is known to be very sensitive to oil condition and cleanliness. Ford has released several Technical Service Bulletins (TSBs), including SSM 48423, which state that small debris in the oil can cause the VCT solenoids to stick and trigger this code. This makes oil-related issues and faulty VCT solenoids a much higher probability cause on these engines compared to major mechanical failures.

Generation note: The 2015-2021 model years cover the S550 generation of the Ford Mustang. This includes the Gen 2 Coyote V8 (2015-2017) and the updated Gen 3 Coyote V8 (2018-2021), which added a dual-fuel (port and direct injection) system and a revised VCT system. While the fundamental causes for P0017 are the same, some part numbers for sensors or solenoids may differ between these engine revisions.

Symptoms You May Notice

• Check Engine Light is on
• Rough or uneven idle, car may rock back and forth
• Reduced engine power and acceleration
• Engine may be difficult to start
• Stalling at low speeds or when coming to a stop
• Decreased fuel economy
• Rattling or ticking noise from the engine

Most Likely Causes

1. Low or Dirty Engine Oil 🔴 High Probability The Coyote V8's VCT system is hydraulic and highly dependent on clean oil at the correct pressure and viscosity. Multiple Ford TSBs confirm that debris can cause VCT system faults. One forum user reported the code appeared after a shop underfilled the oil by 2 quarts.
   How to confirm: Check the oil level on the dipstick and inspect its condition. If the oil is low, dark, gritty, or past its service interval, this is the likely cause. This should always be the first check.
   Typical fix: Perform an engine oil and filter change using the correct OEM-specified oil (e.g., Motorcraft 5W-20 or 5W-30 depending on the year/application). Some owners recommend an engine flush to clear debris.
   Est. part cost: $50-$100
2. Failing Variable Camshaft Timing (VCT) Solenoid 🔴 High Probability Ford TSBs SSM 48423 and others specifically note that the VCT solenoid can stick due to small debris in the oil, causing this code. It is the most common component failure for P0017 on this platform. The internal screens can also tear, allowing debris to lodge in the solenoid.
   How to confirm: Use a scan tool to command the Bank 1 exhaust VCT solenoid on and off; listen for a click and watch for a change in cam angle data. A more straightforward method is to swap the Bank 1 exhaust solenoid with the Bank 1 intake solenoid. If the code changes to P0016 (Bank 1 Intake), the solenoid is faulty.

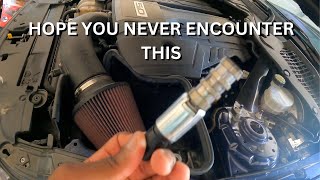

   Typical fix: Replace the Bank 1 (passenger side) exhaust VCT solenoid. It is recommended by many technicians to replace all four VCT solenoids at the same time as a preventative measure. 🎬 Watch: Step-by-step guide to replacing your VCT solenoids.
   Est. part cost: $30-$60 for one, $100-$150 for a set of four.
3. Faulty Camshaft Position Sensor (CMP) ⚪ Low Probability
   How to confirm: After confirming the VCT solenoid is good, swap the Bank 1 exhaust camshaft position sensor with the Bank 2 exhaust sensor. If the code changes to P0019 (Camshaft Position Correlation Bank 2 Sensor B), the sensor is bad. You can also test the sensor's output with a multimeter. 🎬 See how to test and fix the P0017 sensor code.
   Typical fix: Replace the Bank 1 exhaust camshaft position sensor.
   Est. part cost: $25-$70

Rare But Worth Checking

• Stretched Timing Chain or Worn Timing Components: While less common on the Mustang 5.0L than on other engines like the 3.5L EcoBoost, a stretched primary timing chain, failed tensioner, or worn guides can cause a persistent P0017 code that isn't resolved by oil changes or new solenoids. This is a more serious mechanical issue requiring significant labor.
• Incorrect Timing After Previous Repair: This code is frequently reported on forums like Mustang6G.com after owners install aftermarket oil pump gears (OPGs) or perform other timing-related work and misalign the timing during reassembly. In some cases, aftermarket crank sprockets have been found with incorrect timing marks.
• Clogged Oil Passages: In engines with a history of poor maintenance, sludge can build up and clog the small oil passages that feed the VCT phasers and solenoids, preventing them from operating correctly.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0017 is the primary code present. Note any other codes.
2. Check the engine oil level and condition. If low, dirty, or past its change interval, perform an oil and filter change with the correct viscosity oil (e.g., Motorcraft 5W-20). Clear the code and drive to see if it returns.
3. If the code returns, use a capable scan tool to monitor commanded vs. actual camshaft position for Bank 1 Exhaust. Command the VCT solenoid on and off 10 times to try and dislodge debris, as suggested by Ford TSB SSM 48423.
4. If the issue persists, swap the Bank 1 exhaust VCT solenoid with the Bank 1 intake VCT solenoid. They are identical parts located under the passenger side valve cover. Clear the codes and drive. If the code changes to P0016, the solenoid you moved is faulty.
5. If the code remains P0017, inspect the wiring and connector for the Bank 1 exhaust VCT solenoid and camshaft position sensor for damage or corrosion.
6. If wiring is okay, swap the Bank 1 exhaust camshaft position sensor with the Bank 2 exhaust sensor. If the code moves to P0019, the sensor is faulty.
7. If none of the above steps resolve the issue, the problem is likely mechanical. This points towards a faulty cam phaser, stretched timing chain, or worn guides/tensioners, which requires professional diagnosis and removal of the front timing cover to inspect.

Parts You'll Likely Need

• Variable Camshaft Timing (VCT) Solenoid (OEM #BR3Z-6M280-E (Gen 2, 2015-2017), FR3Z-6M280-A (Gen 3, 2018+)) — This is the most common failure point for P0017 on the 5.0L Coyote, as identified in multiple Ford TSBs. It controls oil flow to the cam phaser and is prone to sticking. 🎬 Watch this walkthrough for changing the 2018+ VCT solenoid.
  Trusted brands: Motorcraft, Ford Performance
  OEM price range: $30-$60
  Aftermarket price range: $20-$40
• Valve Cover Gasket Kit (OEM #ER3Z-6584-B (Left), FR3Z-6584-A (Right)) — The VCT solenoids are located under the valve covers, so the gaskets must be replaced during the job to prevent oil leaks. TSB 19-2309 notes that 2015-2017 valve covers can warp, making a good seal critical.
  Trusted brands: Motorcraft, Fel-Pro
  OEM price range: $50-$80
  Aftermarket price range: $30-$60
• Camshaft Position Sensor (OEM #BR3Z-6B288-A) — If diagnostic swaps prove the sensor is faulty, it will need to be replaced. This is a less common cause than the VCT solenoid.
  Trusted brands: Motorcraft, Bosch, NTK
  OEM price range: $40-$70
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• P0016 — Crankshaft/Camshaft Correlation for Bank 1 Intake. If both P0016 and P0017 appear, it could point to a more significant timing issue on Bank 1, like a jumped timing chain or incorrect timing after a repair.
• P0018 / P0019 — These are the equivalent correlation codes for Bank 2 (driver's side). Seeing codes for both banks simultaneously (e.g., P0017 and P0019) could suggest a systemic issue like very low/dirty oil or a problem with the primary timing chain.
• P0015 — Indicates 'B' Camshaft Position - Timing Over-Retarded (Bank 1). It often appears with P0017 as it points to a similar problem with the exhaust cam on the same bank, just describing the nature of the timing error differently.

Technical Service Bulletins (TSBs) & Recalls

• number: SSM 48423 | title: Illuminated Malfunction Indicator Lamp (MIL) With Variable Cam Ti

Platform-Specific Known Issues

• The 5.0L Coyote VCT system's sensitivity to oil quality is the most significant platform-specific issue related to this code.
• TSB 19-2309 notes that 2015-2017 models can suffer from warped plastic valve covers due to heat, which can cause oil leaks. The TSB provides a procedure for drilling and adding extra fasteners. This is relevant as the valve covers must be removed to service the VCT solenoids.
• Owners on forums like Mustang6G.com frequently report P0017 appearing after installing aftermarket oil pump gears, which strongly suggests the mechanical timing was set incorrectly during reassembly.

Mechanic-Grade Diagnostic Values

• VCT Solenoid Internal Resistance — expected: 5 to 15 Ohms. Failure: A reading outside this range, or an open/short (OL/0 Ohms), indicates a bad solenoid coil.
• Camshaft Position Sensor (CMP) Internal Resistance (Variable Reluctance Type) — expected: 250 to 1,000 Ohms (changes with temperature). Failure: A reading outside this range suggests a faulty sensor. This is a general Ford spec and can be used as a guideline.
• Scan Tool PID: VCT Advanced Error (VCT_ADV_ERR) — expected: Should hover around 0° at idle in closed loop.. Failure: A consistent difference greater than +/- 5° for an extended period indicates a correlation problem.
• VCT Solenoid Connector Voltage — expected: Battery voltage (~12V) on the power supply wire with key on, engine off.. Failure: No voltage indicates a problem with the fuse or wiring harness leading to the solenoid.

Hidden / Shadow Codes Worth Checking

• Mode $06, Monitor ID: VVT Monitor Bank 1, Component ID: $31: This is a non-continuous monitor that checks the VCT system's response. A failure in this monitor can be an early warning of a developing issue with the VCT solenoid, phaser, or oil flow before a hard code like P0017 is set. (see via A capable OBD-II scanner that can display Mode $06 test results. A failure is reported when the test value exceeds the manufacturer's maximum limit.)
• VCT_EXH_ERR_B1 (PID): This is not a DTC, but a specific Parameter ID (PID) viewable with Ford's IDS software or advanced scan tools like FORScan. It shows the exact degree of error between the commanded and actual position of the Bank 1 exhaust camshaft, providing more precise data than the generic P0017 code. (see via Ford Integrated Diagnostic System (IDS) or FORScan software.)

Scan Tool Commands That Help

• Ford IDS (or capable bidirectional scanner): VCT Solenoid On/Off Command — As per TSB SSM 48423, cycling the solenoid on and off multiple times can dislodge small debris causing it to stick. This can be a quick diagnostic step or even a temporary fix.
• Ford IDS (or capable bidirectional scanner): Crankshaft Position Profile Correction Reset (Crank Relearn) — This procedure should be performed after any timing component replacement or if the crankshaft sensor has been disturbed. While it often won't fix a mechanical timing error that causes P0017, it's a necessary step to rule out software adaptation issues.

Wiring & Ground Locations

• G104 / G102 — On the driver's side inner fender, next to the battery.. G104 provides the ground for the Data Link Connector (DLC). While not a direct cause, a poor ground here can interfere with scanner communication during diagnosis.
• G105 — Located on the lower part of the engine, near the starter motor.. This is a primary engine ground. A corroded or loose connection here can cause a variety of electrical issues and erratic sensor readings for components grounded to the engine block.
• Engine-to-Chassis Ground Strap — A braided strap connecting the engine block to the vehicle's frame/chassis, typically on the driver's side.. This is a critical ground path for the entire engine management system. A broken or corroded strap can lead to unstable sensor grounds, potentially causing correlation codes.
• VCT Solenoid Connector — On the front of each valve cover for Gen 2 (2015-2017). For Gen 3 (2018+), the intake solenoids are on the front, while the exhaust solenoids are relocated to the top rear of the valve cover.. This is the direct electrical connection for the VCT solenoid. The connector and its wiring are subject to heat and vibration and should be inspected for damage, corrosion, or oil contamination from a leaking solenoid seal.

Real Owner Repair Stories

• Mustang6G.com forum user (2017 Mustang GT) — P0017 code appeared immediately after installing aftermarket oil pump gears (OPG) and crank sprocket.
  ❌ Tried (didn't work) Clearing the code (it returned after a few starts)., Performing a crank relearn procedure multiple times.
  ✅ What actually fixed it The user had to disassemble the front of the engine and re-time it according to the Ford service manual. The mechanical timing was confirmed to be off by one tooth due to a poor viewing angle of the crank gear timing mark during the initial assembly.
• Mustang6G.com forum user 'Wheysted' (Mustang GT with a newly built engine.) — P0017, misfires on cylinders 2 and 6, rough running, bogging.
  ❌ Tried (didn't work) Performing a crank relearn 8 times., Swapping cam sensors (code did not move banks)., Topping off engine oil (was underfilled by 2 quarts).
  ✅ What actually fixed it The owner confirmed the issue was incorrect mechanical timing. Re-timing the engine properly resolved all codes and symptoms.

OEM Part Supersession History

• BR3Z-6M280-D → BR3Z-6M280-E, then BR3Z-6M280-F — The updated -E and -F versions feature a more robust design with stronger mounting provisions and improved internal construction to better withstand racing applications and high-heat conditions.
  Heads up: The Gen 2 (2015-17) solenoid (BR3Z-6M280-E/F) is physically different from the Gen 3 (2018+) solenoids (FR3Z-6M280-A/B). They are not interchangeable. Furthermore, on some very early models (e.g. 2011), replacing original solenoids with the updated design required replacing the wiring harness connector pigtail as well.

Model Year Variations Within This Range

• 2018-2021 (Gen 3 Coyote): The location of the exhaust VCT solenoid is different. On 2015-2017 models, all four solenoids are on the front of the valve covers. On 2018+ models, the exhaust VCT solenoids were moved to the top rear of the valve covers, while the intake solenoids remain at the front. This changes the labor procedure for replacement.
• 2018-2021 (Gen 3 Coyote): The part numbers for the VCT solenoids are different. Gen 3 engines use FR3Z-6M280-A (Intake) and FR3Z-6M280-B (Exhaust), which are not compatible with the Gen 2 engine's BR3Z-6M280-E/F solenoids.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Engine 'BBQ Tick' / 'Typewriter Tick' 🟡 Low — Very common across all 5.0L Coyote engines, especially Gen 3 (2018+). Often appears after the first oil change. The noise is intermittent and its cause is debated, with theories including piston slap and normal direct injection sounds. (Ref: No official TSB, Ford has generally considered it a normal characteristic of the engine.)
• Leaking A/C Evaporator Core 🟠 Medium — Very common on 2015-2017 models, often failing at low mileage. Symptoms include warm A/C and a temperature difference across vents. It is a labor-intensive repair requiring dashboard removal. (Ref: TSB 18-2166 (later superseded by 19-2256) was issued for this problem, allowing the evaporator to be replaced separately from the entire climate control housing.)
• MT-82 Manual Transmission Problems 🟠 Medium — Common complaint since the transmission was introduced in 2011. Issues include high-RPM gear lockout (especially 2nd to 3rd), notchy shifting, and premature failure of shift forks or synchronizers. A class-action lawsuit was filed regarding these issues. (Ref: Multiple TSBs have been issued over the years, and the transmission received revisions in later model years, but complaints persist.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using used parts is generally not recommended. The primary failure items (VCT solenoids, sensors) are relatively inexpensive new, and their failure is often linked to oil contamination or internal wear that is impossible to assess visually.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If considering a used sensor, ensure the donor vehicle was not in a front-end collision.
• For VCT solenoids, there are no reliable visual cues. It is a high-risk used part due to the potential for internal sticking from oil debris in the donor car.

OEM-only on this vehicle (don't cheap out):

• Variable Camshaft Timing (VCT) Solenoid: Given the sensitivity of the Coyote Ti-VCT system and the numerous TSBs from Ford, using OEM Motorcraft or Ford Performance solenoids is strongly advised. Aftermarket solenoids have a mixed reputation on forums.
• Timing Chain Components: If the issue is mechanical, only use high-quality OEM or reputable performance brands (like Ford Performance) for chains, phasers, and tensioners. This is not a job you want to do twice.

Aftermarket brands forum-validated for this vehicle:

• Ford Performance (for VCT solenoids and timing components)

Brands owners have reported issues with on this vehicle:

• Generic/unbranded VCT solenoids from online marketplaces are frequently cited on forums as being unreliable or failing shortly after installation. While brands like Dorman are available, owner feedback heavily favors sticking with Motorcraft for this specific part on this engine.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0016 — Bank 1 Intake correlation code; often appears if a faulty VCT solenoid is swapped from the exhaust to the intake position during diagnosis.
• P0019 — Bank 2 Exhaust correlation code; shares the same root causes (oil quality/solenoids) as P0017 but on the opposite engine bank.
• P0025 — Camshaft position timing over-retarded; frequently appears alongside P0017 when the VCT system fails to reach commanded positions due to debris or low oil pressure.

Frequently Asked Questions
