2012-2017 Toyota Camry 2.5L U760E Transmission: Problems, Identification, and Used Replacement

Part Identification & Fitment

The 2012–2017 Toyota Camry with the 2.5L 4-cylinder engine uses a 6-speed automatic front-wheel-drive transaxle from the Aisin U760E family. A transaxle is a single unit that combines the transmission and the differential for a front-wheel-drive vehicle. This specific version is generally reliable but has well-documented issues that can lead to replacement.

To ensure you are purchasing the correct transmission, verify the following on your vehicle:

Common Failure Symptoms

A failing U760E transmission can present several distinct symptoms. The most widely reported issue is a shuddering or vibration, but other problems can also point to a worn-out unit.

• Torque Converter Shudder: The most common complaint is a shudder, vibration, or feeling like you are driving over rumble strips, especially under light acceleration between 25 and 50 mph. This is often a problem with the torque converter's lock-up clutch.
• Harsh or Delayed Shifting: You may experience harsh downshifts when coasting to a stop, flares (engine RPMs jump between gears), or a noticeable delay when shifting from Park into Drive or Reverse. A flare on the 4th gear upshift or a 6-4/5-4 downshift often points to hardened C1/C2 molded rubber pistons.
• Slipping or Loss of Gears: The transmission may feel like it's slipping, where the engine revs but the car doesn't accelerate properly. In severe cases, you may completely lose a gear, such as Reverse, due to a failed reverse clutch pack or solenoids.
• Check Engine Light: Transmission problems can trigger a Check Engine Light. Specific trouble codes related to gear ratio errors or solenoid performance can point directly to an internal transmission fault.

Diagnostic Flowchart

Known Issues, TSBs, and Recalls

Several Technical Service Bulletins (TSBs) have been issued for this transmission, primarily addressing the torque converter shudder. There have been no major safety recalls for the transmission itself, but service campaigns have been launched to address known problems.

Torque Converter Shudder (2012–2014 Models)

Toyota acknowledged a severe shudder issue in 2012–2014 Camry models. The problem was addressed by multiple TSBs, including T-SB-0045-15 and the later, superseding T-SB-0312-17. The issue was also covered by a Warranty Enhancement Program (ZE5) which extended coverage to 8 years or 150,000 miles, and a Limited Service Campaign (E03). The shudder occurs under light throttle between 25-50 mph and is caused by the torque converter's lock-up clutch.

The official fix involves replacing the torque converter with an updated part, reprogramming the Powertrain Control Module (PCM) with new software, and adding two additional magnets to the transmission oil pan to catch more debris. Some early attempts only involved a fluid change or a software update, but the complete procedure requires replacing the torque converter.

Valve Body and Solenoid Issues

On high-mileage units, wear inside the valve body (the hydraulic control center of the transmission) can cause a variety of shifting problems. Worn bores for the primary pressure regulator and lock-up control valves can lead to inconsistent fluid pressure, causing harsh coasting downshifts or delayed gear engagement. The main line pressure control solenoid (SLT) can also fail, leading to specific gear loss.

Transmission Fluid Pan Gasket Leaks

A minor but common issue is a leak from the transmission fluid pan gasket. Toyota issued a technical tip, T-TT-0354-15, regarding this for 2013-2015 models. The fix is a straightforward replacement of the oil pan gasket.

Replacement Cost Estimates

The cost to replace a U760E transmission can vary significantly based on the type of replacement unit and local labor rates. When a major internal failure occurs, replacement is often more economical than a rebuild. Shop labor to remove and replace the transmission assembly typically takes 6.0 to 9.0 hours.

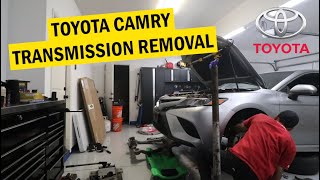

Installation & Programming: Critical Steps

Proper installation and programming are essential for the long-term health of a replacement U760E transmission. Skipping these steps is a common cause of premature failure of the new unit. This is an Advanced/Expert level DIY job.

Required Special Tools

• Engine support bar or hoist
• Subframe/transmission jack
• Toyota Techstream scan tool (or equivalent professional J2534 tool)
• Transmission fluid fill adapter (SST 10002-00101-3 or equivalent)

Required Programming

Installation Gotchas

• Torque Converter Seating: Always use the new torque converter that comes with the replacement transmission. Ensure it is fully seated into the transmission's front pump before installation. You must feel three distinct clicks/drops as it engages the splines. Failure to do so will crack the internal oil pump gear and front pump housing upon tightening the bellhousing bolts.
• Fluid Cooler Flush: You must thoroughly flush the external transmission fluid cooler and lines with professional transmission flush solvent to remove metal shavings and old fluid from the previous failure. Contaminated fluid will ruin the replacement transmission.
• Fluid Level Check Procedure: This transmission has no dipstick. The fluid level must be checked via the overflow plug on a level lift with the engine idling. The fluid temperature must be precisely between 95-113°F (35-45°C) using a scan tool to monitor temperature.
• Dowel Pins: Ensure alignment dowel pins are present on the engine block and clean before mating the transmission to the engine.

Required Parts & Fluids

• Transmission Fluid: Only use Toyota Genuine ATF WS (World Standard) fluid. Using a generic or multi-vehicle synthetic ATF can cause shifting problems and damage.
• Seals and Gaskets: Always replace the torque converter input shaft seal (front pump seal), both left and right CV axle output shaft seals, and the 19-bolt pan gasket (OEM Part # 35168-73010) during installation to prevent leaks.
• Filter: A new internal transmission filter (OEM Part # 35330-0R010) should be installed before the pan is re-attached.

What Fails at Every Mileage Band

Under 60,000 Miles

Units in this range are generally solid, but 2012-2014 models are highly susceptible to the infamous torque converter shudder. This presents as a brief shudder or vibration under light acceleration between 25 and 50 mph. Toyota addressed this with TSB T-SB-0312-17 and warranty enhancement ZE5 (covered for 8 years or 150,000 miles).

• ✓Do during install (required): Verify TSB Compliance. For any 2012-2014 donor unit, verify if the torque converter was replaced under TSB T-SB-0312-17 or warranty campaign ZE5. If not, assume the original, fault-prone torque converter is still installed.
• ✓Do during install (required): Always Replace Torque Converter. Regardless of mileage, install a new or remanufactured torque converter. The original unit is a known failure point and will be contaminated from the previous transmission's failure.
• ✓Cheap insurance while the engine is out: Fluid and Filter Service. Perform a full fluid drain and fill with Toyota Genuine ATF WS and replace the internal filter and pan gasket.

60,000 - 100,000 Miles

If the torque converter shudder was not addressed earlier, it often becomes more pronounced in this mileage range. Early signs of valve body wear can also appear, such as harsh coasting downshifts pointing to wear in the pressure regulator bores. The main line pressure control solenoid (SLT) works hard and can begin to have performance issues.

• ✓Do during install (required): Mandatory Torque Converter Replacement. It is critical to replace the torque converter on any used unit in this mileage band.
• ✓Do during install (recommended): Service with New Filter. Drop the pan, clean the magnets (or replace them if the TSB wasn't performed), install a new filter, and a new pan gasket.
• ✓Cheap insurance while the engine is out: Replace All Seals. Install a new front pump seal (torque converter seal) and new CV axle output shaft seals.

100,000 - 150,000 Miles

Wear in critical valve bores (Primary Pressure Regulator, Lock-up Control) becomes more common, leading to pressure loss, shift flares, and harsh downshifts. Solenoids can become lazy or fail, causing delayed shifts or forcing the transmission into limp mode. Molded rubber pistons, particularly for the C1/C2 clutch, can harden and fail, causing a flare on the 4th gear upshift or on a 6-4/5-4 downshift.

• ✓Do during install (required): Thoroughly Flush Cooler and Lines. It is absolutely critical to flush the transmission cooler and lines to remove any debris from the previous unit's failure.
• ✓Do during install (recommended): Consider Remanufactured Valve Body/Solenoids. Proactively replacing solenoids or installing a remanufactured valve body with oversized valves can prevent common shift flare and pressure loss issues.
• ✓Cheap insurance while the engine is out: Replace All External Seals and Gaskets. This includes the front pump seal, axle seals, and pan gasket. It is cheap insurance while the transmission is out of the vehicle.

Over 150,000 Miles

Beyond 150,000 miles, the risk of wear on all internal components increases significantly, including clutch packs, seals, bushings, and the valve body. A noticeable pause or bump when shifting into reverse can occur, pointing to pressure leakage related to valve body or seal wear. Suspension and drivetrain components (struts, bushings, CV axles) are also often worn out at this stage and can be misdiagnosed as transmission issues.

• ✓Do during install (required): Strongly Consider a Remanufactured Unit. Installing a used transmission with over 150,000 miles carries a high risk of near-term failure. A quality remanufactured unit with updated parts and a warranty is a more reliable long-term solution.
• ✓Do during install (recommended): If Using a High-Mileage Used Unit: At a minimum, replace the torque converter, all external seals, the internal filter, and consider replacing all solenoids as a preventative measure.

Real Owner Experiences

Repair or Replace?

Deciding whether to repair your existing U760E or replace it entirely depends on the extent of the damage.

• When Repair Makes Sense: If the issue is caught early and is limited to the torque converter itself (early stages of shudder) without contaminating the rest of the transmission. A standalone torque converter replacement can cost between $600 and $1000 for the part and labor, though dealer quotes can reach $2310.25. Repair also makes sense for specific valve body issues ($1000 - $2500) when diagnostic trouble codes point to a solenoid failure and there is no evidence of widespread mechanical damage or metal debris in the fluid.
• When Replacement is Smarter: Replacement with a quality used or remanufactured unit is often the smarter choice when there is evidence of significant internal mechanical failure, such as metal shavings in the transmission pan, multiple gear failures, or loss of drive. Given the high cost of labor to remove and reinstall the transmission, it is often more cost-effective to replace the entire unit rather than attempting a costly and potentially unreliable internal repair. Putting a used transmission from a known problematic model year (2012-2014) is a gamble unless it's from a later, corrected model year (2015+).

Questions to Ask Your Installer

• Have you confirmed this is the correct U760E variant for a 2.5L FWD Camry and not a U660E (V6), U760F (AWD), or a U760E from another model like a RAV4?
• What is the mileage and warranty on the used or remanufactured transmission?
• Does the quoted price include a complete flush of the transmission cooler and lines?
• Will you be using Toyota Genuine ATF WS fluid?
• Does your shop have the Toyota Techstream or an equivalent scan tool to perform the required Transaxle Compensation Code Registration and reset the adaptive memory?
• Is the cost of a new torque converter included with the replacement, or are you planning to reuse the old one?
• What is your experience with the torque converter seating procedure for this specific transmission to avoid damaging the front pump?
• How will you verify the correct fluid level without a dipstick, and will you monitor the fluid temperature during the process?

Freight & Delivery Reality

If you are purchasing a used U760E transmission online, it will not arrive in a standard cardboard box. This assembly weighs approximately 185 lbs and measures roughly 32" x 28" x 24" before crating. It ships as LTL (Less Than Truckload) freight strapped to a wooden pallet.

• Delivery Requirements: Because it ships via freight, residential deliveries will require a truck equipped with a liftgate to lower the pallet to the ground. Commercial addresses with a loading dock or forklift are preferred and often cheaper.
• Inspect Before Signing: When the freight carrier arrives, inspect the transmission thoroughly before signing the delivery receipt. Check the aluminum transmission case, the bellhousing, and the oil pan for any cracks or damage that may have occurred during transit. Once you sign, you are accepting the unit in its current condition.
• Pre-Purchase Verification: Before ordering, have a verification interview with the seller. Confirm your vehicle has the 2.5L 2AR-FE engine, is FWD, has a VIN with "F" as the 5th digit, and that the replacement unit matches the 30510-06070 or 30510-06071 part numbers.

Frequently Asked Questions
