2010-2013 Mazda 3 Mazdaspeed 2.3L Turbo A26M-R Transmission: Problems, Identification, and Used Replacement

Part Identification & Verification

This article covers the Aisin 6-speed manual transaxle, family name BG6 / A26M-R, found exclusively in the second-generation (Gen 2) 2010-2013 Mazdaspeed3 with the 2.3L turbocharged engine. This transmission includes an integrated torque-sensing conical limited-slip differential (LSD), which helps improve traction during acceleration.

Before purchasing a used unit, confirm it is the correct part for your vehicle by checking the following:

Common Failure Symptoms

A failing A26M-R transmission can present several distinct symptoms. Diagnosing the issue early can help prevent more extensive damage. Look for:

• Grinding or Notchiness During Shifts: Difficulty or grinding noises, especially when shifting into 2nd or 3rd gear when the transmission is cold, often points to worn synchronizers.
• Popping Out of Gear: The shifter jumping out of gear, particularly 3rd gear, when you let off the accelerator is a classic sign of worn shift fork pads.
• Whirring or Rattling Noises: A whirring or rattling sound when the car is idling in neutral that goes away when you press the clutch pedal often indicates a failing input shaft bearing.
🎬 Hear what a failing input shaft bearing sounds like
• Difficulty Engaging Gears: If the transmission refuses to go into gear, it could be caused by a range of issues from a clogged filter or faulty clutch linkage to internal mechanical failure.

Diagnostic Flowchart

Known Issues, Bulletins, and Recalls

The A26M-R transmission is generally robust, but it has several well-documented weak points that owners and buyers should be aware of.

Worn 2nd and 3rd Gear Synchronizers

A common severe complaint is grinding or difficult shifting into 2nd and 3rd gears. The synchronizers, which are brass rings that match the speed of the gears before they engage, can wear out prematurely. This issue is often worse when the transmission fluid is cold. Using a high-quality GL-4 rated gear oil is critical to prolonging synchro life.

Shift Fork Pad Wear and Gear Pop-Out

The factory shift forks use plastic pads that can wear down over time. When these pads wear, they create excess clearance, which can cause the transmission to pop out of gear under deceleration. This is most common with 3rd gear and is considered a severe issue. The most permanent solution is to have the transmission rebuilt with aftermarket bronze or brass shift fork pads.

Input Shaft Bearing Noise

A moderate-severity issue is noise from the input shaft bearing. This presents as a whirring or chattering sound at idle when the clutch is released (pedal up) and disappears when the clutch is depressed (pedal down). While not an immediate failure, it requires transmission removal to replace the bearing.

Official Service Bulletins (TSBs)

Mazda has issued technical service bulletins (TSBs) to address specific transmission-related issues. These are not recalls but are official repair procedures for dealerships.

• TSB 0500814 (also listed as 05-008/14): This bulletin applies to some 2012-2013 Mazda3 models and addresses complaints of difficulty shifting into 3rd, 4th, 5th, or 6th gear, and the shifter jumping out of 3rd gear. The cause is identified as a failure of the related clutch hubs. The fix requires disassembling the transmission to replace the faulty clutch hub assemblies and, if necessary, the bad 3rd gear itself.
• NHTSA ID 10055747: This bulletin notes that if the dual-mass flywheel or clutch assembly is replaced, the Powertrain Control Module (PCM) may need a software update. This recalibration prevents potential issues like engine surging or calibration faults after the repair.

What Fails at Every Mileage Band

Under 60,000 Miles

Even at low mileage, some owners report early clutch failure before 50,000 miles, potentially due to defective release levers or bearings. Synchro issues, particularly grinding when shifting into 2nd or 4th gear, can appear even on very low-mileage cars. TSB 0500814 for difficulty shifting and jumping out of 3rd gear often occurs in this range. Input shaft bearing noise can also begin to manifest.

• ✓Do during install (required): Full clutch kit (disc, pressure plate, pilot bearing, release/throwout bearing), new single-use flywheel bolts, and left/right axle seals.
• ✓Do during install (recommended): Upgrade the rear motor mount (RMM) to an aftermarket unit to reduce engine movement and improve shift feel. Change the gear oil with the correct viscosity: SAE 75W-90 for 2010 models or SAE 75W-80 for 2011-2013 models. Use GL-4 fluid only.
• ✓Cheap insurance while the engine is out: Check the clutch slave cylinder for any leaks and consider replacing it as a preventative measure.

60,000 - 100,000 Miles

This is the most common window for synchro wear to become a significant problem, causing grinding (especially in 2nd, 3rd, and 5th gears) and difficult shifting, particularly when the fluid is not fully warmed up. Input shaft bearing noise becomes more prevalent. Clutch and dual-mass flywheel (DMF) replacement is common. Shift fork pads (originally plastic) can wear down, leading to sloppy shifting or gears popping out. Leaking pivot shaft seals or axle seals can occur.

• ✓Do during install (required): Full clutch kit, flywheel bolts, rear main seal, and axle seals.

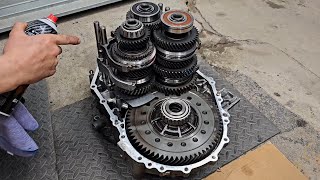

• ✓Do during install (recommended): Upgrade to brass shifter fork pads if the transmission is being opened for any reason. Upgrade all three motor mounts (rear, passenger, transmission) for significantly improved shifting. A gear oil change with high-quality GL-4 fluid is critical.

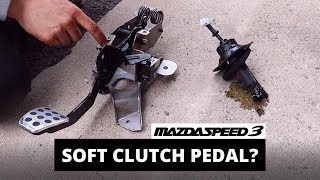

• ✓Cheap insurance while the engine is out: Replace the clutch slave and master cylinders.

100,000 - 150,000 Miles

Failures from the previous bands, like synchro wear and bearing noises, become more pronounced if not already addressed. Total clutch failure is highly likely if the original is still in use. Complete transmission failure can occur, often secondary to another issue like a clutch explosion or running low on fluid from a leak. Input shaft bearings and other internal bearings are at higher risk of failure, potentially requiring a full rebuild.

• ✓Do during install (required): At this mileage, a full clutch and flywheel replacement is non-negotiable. Do not reuse the old dual-mass flywheel. Replace the rear main seal, axle seals, and pivot shaft seal.
• ✓Do during install (recommended): Assume all previous recommendations apply.
• ✓Cheap insurance while the engine is out: If the transmission is out and has known issues (grinding, noise), this is the ideal time for a rebuild with new bearings, synchros, and brass fork pads.

150,000+ Miles

At this stage, failures are typically related to the accumulated wear and tear on all internal components. Survival to this mileage often implies diligent maintenance or previous repairs. Bearing failure (input shaft, countershaft, differential) is a significant risk. Catastrophic failure is possible, sometimes taking the engine or clutch with it.

• ✓Do during install (required): Any transmission removal at this mileage should include replacement of all clutch hydraulic components (master and slave cylinder), all seals, and all motor mounts as a baseline.
• ✓Do during install (recommended): Assume all previous recommendations apply.
• ✓Cheap insurance while the engine is out: A used transmission purchased in this mileage band should be considered a candidate for an immediate inspection and probable rebuild before installation.

Real Owner Experiences

The service life of the Aisin A26M-R transmission is highly dependent on maintenance and driving style. With regular fluid changes using the correct GL-4 oil, many units can last well over 150,000 miles. However, due to common issues like synchro and bearing wear, it is also common for these transmissions to require a rebuild or replacement between 80,000 and 120,000 miles.

Repair or Replace?

When facing a major transmission failure, you must decide whether to repair your existing unit or replace it entirely. It is often cheaper and faster to replace the entire transmission with a known-good, low-mileage used unit (typically ranging from $500 to $1,800) than to pay for the labor-intensive process of a full rebuild, which can easily cost $2,000 or more. A dealer replacement for a broken synchro hub can be as high as $3,500.

Replacement is especially recommended when there are multiple internal issues, catastrophic failure (like a cracked case or broken gears), or when the vehicle is needed back on the road quickly.

Questions to Ask Your Installer

• Have you worked on a Mazdaspeed3 transmission before? They have specific needs.
• Will you be using GL-4 or a yellow-metal safe GL-5 gear oil? (Confirming correct fluid to prevent synchro damage).
• What is the warranty on the used transmission and your labor?
• Do you recommend replacing the rear main seal, axle seals, and clutch kit at the same time? (The answer should be yes).
• Can you inspect the shift cables and recommend if they need replacement?
• Will you be using new, single-use torque-to-yield flywheel bolts?
• Do you recommend upgrading the rear motor mount while the subframe is out?

Replacement Cost Estimates

The cost to replace a Mazdaspeed3 transmission varies based on the type of part and local labor rates. The job is labor-intensive, typically requiring 6-12 hours of shop time.

Installation & Required Parts

Proper installation is critical for the longevity of a replacement transmission. This is considered an Advanced / Expert DIY job, and professional installation is recommended. Required special tools include an Engine support bar, Transmission jack or subframe support, Clutch alignment tool, Axle popper tool or slide hammer, and a Torque wrench.

What's Included in a Used Assembly

A used transmission assembly from a recycler typically includes the transmission case, all internally lubricated parts (gears, shafts, synchros, shift forks), the integrated torque-sensing conical limited-slip differential (LSD), and the extension/tail housing.

What's NOT Included

The following parts are generally not included and must be transferred from your old transmission or replaced new:

• Shifter assembly, shifter linkage, and shift cables
• External sensors (neutral safety, reverse light, speed sensors)
• Wiring harness
• Clutch kit (clutch disc, pressure plate, throwout/release bearing, pilot bearing)
• Flywheel and flywheel bolts
• Transmission mounts
• Slave cylinder
• Axle shafts

Because this is a manual transmission, it does not use a torque converter or a transmission pan. Transfer original sensors, brackets, and shift cable linkages during installation.

Required Consumables for Installation

Always replace these items during a transmission swap:

• Manual Gear Oil: Fill capacity is 2.5 Liters / 2.6 Quarts. Use SAE 75W-80 GL-4 for 2011-2013 models and GL-4 75W-90 for 2010 models.
• Clutch Kit: Includes the clutch disc, pressure plate, throwout/release bearing, and pilot bearing.
• New Flywheel Bolts: These are torque-to-yield (single-use) and must be replaced.
• Seals: Replace the Rear Main Seal and both Left and Right Axle Seals.

Installation Gotchas and Buyer Mistakes

• Using the wrong gear oil: 2011-2013 models require 75W-80 GL-4. Using 75W-90 can cause cold-shifting grinding. Do not use GL-5 unless yellow-metal safe.
• Subframe alignment: The front subframe must be lowered for clearance. Ensure perfect alignment to chassis dowels upon reassembly.
• CV Axle Seating: Ensure axles click fully into the differential to prevent rapid gear oil leaks.
• Intermediate Shaft Bracket: Ensure the passenger-side intermediate shaft support bracket is properly torqued and aligned.
• Shift Cable Linkage Adjustment: Must be properly adjusted to prevent vague engagement and accelerated synchro wear.
• Common Buyer Mistakes: Ordering for a non-turbo 2.0L or 2.5L Mazda 3, mixing Gen 1 and Gen 2 transmissions, using standard GL-5 gear oil, reusing worn shift cables or single-use torque-to-yield flywheel bolts, and not replacing the clutch kit and axle seals during the swap.

Freight & Delivery Reality

When ordering a used A26M-R transmission online, it will not arrive in a standard cardboard box via regular mail. A verified used assembly weighs approximately 150 lbs and measures roughly 24" x 18" x 20" before crating. Because of this size and weight, it must ship as LTL (Less Than Truckload) freight on a wooden pallet.

Freight delivery requires a delivery truck equipped with a liftgate to lower the pallet to the ground. When the driver arrives, you must inspect the transmission for any physical damage (like a cracked bellhousing or broken sensor plugs) before signing the delivery receipt. Signing without inspecting means you accept the unit in its current condition, which can complicate damage claims later.
