2017-2019 Honda CR-V 1.5L Turbo AWD CVT: Problems, Identification, and Used Replacement

Part Identification & Fitment

The continuously variable transmission (CVT) in the 2017-2019 Honda CR-V with the 1.5L turbocharged engine and All-Wheel Drive (AWD) is a specific unit from the EarthDreams family. This transaxle is designed exclusively for this powertrain combination.

Confirming Your Vehicle's Transmission

Before purchasing a replacement, you must verify that your vehicle requires this exact assembly. Here’s how to confirm fitment:

What This Assembly Does and Does Not Interchange With

Fitment for this transmission is very specific. Understanding what does not work is critical to avoiding a costly mistake.

Common Failure Symptoms

If your CR-V's transmission is failing, you might experience one or more of these symptoms:

• Shuddering or Juddering: A vibration or shaking feeling during light acceleration, which can occur at low speeds (15-35 mph) or highway speeds (2,500-3,500 RPM).
• Delayed Engagement: A noticeable pause after shifting into Drive or Reverse before the vehicle starts to move.
• Slipping: The engine RPMs surge, but the vehicle doesn't accelerate proportionally, as if the gears are not fully engaged.
• High-Temperature Limp Mode: The vehicle may lose power during long drives or in hot weather, a self-protection measure to prevent overheating damage.
• Stalling during deceleration: The engine may stall when you are slowing to a stop, often pointing to a failing torque converter.
• Whining or Grinding Noises: These sounds change with engine RPM and indicate internal bearing or belt wear.
🎬 See: Video guide on identifying CVT failure signs

Diagnostic Flowchart

Known Issues, Bulletins, and Recalls

This transmission has several well-documented issues addressed by Honda through Technical Service Bulletins (TSBs). There are no major recalls on the 2017-2019 BRGA transmission itself, but related engine and software issues are common.

CVT Juddering and Shuddering

• Issue: A shudder or vibration is felt during light acceleration. This is the most common complaint.
• Affected Years: 2017–2019.
• Cause & Remedy: The cause can be one of several things. Honda has issued multiple bulletins to address it. The first step is often a software update. If that doesn't work, a procedure of draining and filling the transmission fluid three times is recommended. If the judder persists, the torque converter may need to be replaced.
  • TSB 19-070: Addresses a highway-speed shudder by updating the CVT control software in the TCM/PCM to prevent belt slippage.
  • TSB 17-040: Outlines the procedure for replacing the torque converter if juddering continues after a software update (TSB 15-086) and fluid changes.
  • NHTSA Investigation PE17023: Investigated juddering issues in 2015-2018 models, leading to warranty extensions and updated repair procedures from Honda.

Engine Oil Dilution and Drivability (Related Issue)

• Issue: In some 2017-2018 models, gasoline can mix with the engine oil, causing issues like a fuel smell in the cabin, engine misfires, and stalling. While not a transmission problem directly, the engine's poor performance can be mistaken for a transmission fault.
• Affected Years: 2017-2018.
• Remedy: Honda issued warranty extensions and software updates (TSB 19-032) to fix this issue, which involves updating engine and transmission software and replacing the A/C control unit.

What's Included in a Used Assembly?

A used transmission assembly, when sold by a professional recycler, typically includes:

• The transmission case and all internally lubricated parts
• The oil pan
• The torque converter
• The extension/tail housing

It will NOT include external parts like sensors, the wiring harness, the Transmission Control Module (TCM), shifter assembly/linkage/cables, flexplate/flywheel, cooler lines, or the separate AWD transfer assembly. These must be transferred from your original vehicle.

Freight & Delivery Reality

A replacement BRGA transmission is a heavy, bulky piece of equipment. It does not ship in a cardboard box via standard parcel services.

• Size and Weight: The bare transmission assembly weighs approximately 163 lbs and measures roughly 30" x 29" x 25" before being crated or palletized.
• Shipping Method: It will ship as Less-Than-Truckload (LTL) freight strapped to a wooden pallet.
• Receiving the Freight: You will need a forklift, a loading dock, or a truck equipped with a liftgate to unload it. Always inspect the transmission for physical damage (like cracked housings or broken sensor plugs) before signing the driver's delivery receipt.

Replacement Cost

Costs can vary significantly based on your location and the supplier. The following is an estimated range for parts and labor.

What Fails at Every Mileage Band

Under 60,000 Miles

Units in this range are generally in excellent condition, provided they received their first fluid service. Failures at this mileage are rare but usually involve torque converter shudder at low speeds (20-40 mph) or highway speeds (2,500-3,500 RPM).

• ✓Do during install (required): Verify TSB 19-070 (highway shudder) software update has been performed on the vehicle's ECU/TCM.
• ✓Do during install (required): Perform the mandatory CVT Start Clutch Calibration and adaptive relearn procedure.
• ✓Do during install (required): Flush cooler and lines, use only HCF-2 fluid.
• ✓Do during install (recommended): Replace both internal and external filters.
• ✓Cheap insurance while the engine is out: Replace axle seals and torque converter seal as preventative measures.

60,000 to 100,000 Miles

This is where neglected maintenance starts to show. If the previous owner skipped the 30,000-mile fluid changes, you will see an increased prevalence of torque converter shudder, start clutch failure, and hesitation or slipping.

• ✓Do during install (required): All required items from the under 60K band.
• ✓Do during install (recommended): Strongly recommend replacing the external cartridge filter and internal strainer, as the original unit likely has accumulated wear material.
• ✓Cheap insurance while the engine is out: Inspect and consider replacing the transmission mounts while the unit is out. Inspect rear main seal on the engine for leaks and replace if necessary.

100,000 to 150,000 Miles

At this stage, there is a higher likelihood of complete failure if maintenance was inconsistent. Bearing wear (indicated by whining noises), belt/pulley wear, and seal leaks become much more common.

• ✓Do during install (required): Mandatory replacement of all external seals, gaskets, and filters.
• ✓Do during install (required): Thoroughly flush the transmission cooler and lines.
• ✓Do during install (recommended): Replace the AWD transfer assembly O-ring and fluid.
• ✓Cheap insurance while the engine is out: Consider replacing the radiator if the old transmission had a catastrophic failure to prevent contamination.

Over 150,000 Miles

Units over 150k miles are at the end of their expected service life if they have not been meticulously maintained. There is an increased risk of failure of all major internal components.

• ✓Do during install (required): Assume the purchased unit has significant wear. All items from previous bands are critical. Ensure the replacement unit comes with a comprehensive warranty covering parts and labor if possible.
• ✓Do during install (recommended): Budget for potential issues post-install, even with a tested unit.
• ✓Cheap insurance while the engine is out: Replace all accessible seals, gaskets, and mounts to give the high-mileage unit the best chance of survival.

Real Owner Experiences

Here is a look at what real owners have experienced with the CVT in these vehicles, highlighting the importance of maintenance and the reality of repair costs.

Repair or Replace?

When faced with a failing CVT, you must decide whether to attempt a repair or replace the entire unit. Because modern CVTs are highly complex, most independent shops will not rebuild them.

When Repair Makes Sense

Repair is viable when Torque Converter Judder/Shudder is the primary or only symptom and has been caught relatively early. If the transmission fluid is free of excessive metallic debris, replacing the torque converter, performing a full fluid flush with HCF-2, and updating the software (TSB 19-070) can resolve the issue. This repair typically costs between $800 and $2,500.

When Replacement is the Smarter Choice

Replacement is the necessary choice when there is evidence of significant internal mechanical failure. Signs that mandate a full replacement include:

• The presence of significant metal shavings or debris in the transmission fluid (indicating belt or pulley damage).
• Persistent slipping even with the correct fluid level.
• Whining noises that change with engine RPM.
• A complete failure to engage a gear.

Driving with a faulty torque converter for too long can also create debris that damages the main transmission unit, making replacement the only option.

Questions to Ask Your Installer

Before handing over your keys, ask your mechanic these questions to ensure a successful installation:

• Are you using Genuine Honda HCF-2 CVT fluid for the fill?
• Will you be performing a full flush of the transmission cooler and lines before installing the new unit?
• Do you have a Honda-compatible scan tool (like Honda i-HDS) to perform the mandatory CVT Start Clutch Calibration and TCM relearn procedure after installation?
• Does your quote include replacing all required seals, including axle seals, the torque converter seal, and the AWD transfer case O-ring?
• Will you be replacing the external cartridge filter and the internal pan filter (strainer)?
• How will you verify the torque converter is fully seated before mating the transmission to the engine?
• How do you confirm the correct fluid level within the specific temperature window (95°F-113°F)?

Installation & Programming Essentials

Proper installation is crucial for the longevity of a replacement transmission. Failure to follow these steps can cause immediate damage. The job is rated for expert DIYers or professionals, requiring 6-10 hours of labor and special tools like an engine support bar, subframe adapter/jack, transmission jack, and a torque wrench.

Required Parts & Fluids

When replacing the transmission, you must also replace several related items:

• CVT Fluid: Use only Genuine Honda HCF-2 fluid. Using any other type will cause damage. You will need 6 to 7 quarts for a standard swap, or 8.5 to 8.9 quarts for a dry/total fill.
• Filters: Replace both the internal pan filter (strainer) and the external cartridge filter.
• Seals & Gaskets: Always install a new torque converter seal, axle seals, oil pan gasket, and the O-ring for the AWD transfer assembly.

Key Installation Steps & 'Gotchas'

• Torque Converter Seating: Make sure the torque converter is fully seated into the transmission's internal pump. You should feel it drop into place three separate times. If it is not fully seated, it will be damaged when you bolt the transmission to the engine.
• Flush the Cooler: You must flush the transmission cooler and lines to remove any metal debris from the previous failure. Reusing a contaminated cooler will destroy the replacement transmission.
• Replace the Hidden Filter: There is a secondary cartridge-style filter located on the front of the transmission case behind the fluid warmer. Many people forget to replace it.
• Fluid Level Temperature Window: Check the fluid level via the overflow plug while idling in Park on a level surface specifically when the fluid temperature is between 95°F and 113°F (35°C and 45°C).
• Dowel Pins: Ensure the alignment dowel pins between the engine and transmission are clean and in place.

Post-Installation Calibration

A CVT Start Clutch Calibration must be performed using a Honda-specific diagnostic scan tool (like Honda i-HDS) or a high-end professional bidirectional scanner. This procedure allows the vehicle’s computer to learn the engagement characteristics of the replacement unit's clutches and solenoids. Skipping this step will result in harsh engagement, takeoff shudder, and erratic RPM surges.

Arrival Inspection for Your Used CVT

When your used transmission arrives, inspect it closely before you spend time installing it. Catching a problem now saves you hours of labor.

Fluid Color, Smell, and Magnet Check

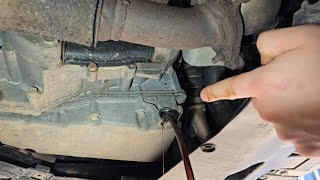

Honda continuously variable transmissions (CVTs) use a specific fluid called HCF-2. Remove the transmission drain plug to check the fluid and the magnet attached to the plug.

• Magnet Check: A small amount of fine, gray paste on the magnet is normal. Large metal flakes, chunks, or sharp splinters mean the internal steel push-belt or pulleys are destroyed.
• Fluid Color and Smell: Good HCF-2 fluid is clear or light amber. If the fluid is pitch black, smells like burnt toast, or sparkles with silver metal dust, the transmission has internal damage.

Lower Pan Inspection

If your parts warranty allows you to remove the lower transmission oil pan, take it off and look inside. The bottom of the pan should be mostly clean. Heavy metal shavings or broken metal bands in the pan mean the unit is bad and should be returned.

Torque Converter Hub and Input Splines

The torque converter is the large, heavy metal bowl at the front of the transmission that connects to the engine. You must check the parts where it connects to the transmission.

• Converter Hub: Pull the torque converter straight out. Look at the smooth metal tube (the hub) on the back of the converter. This hub spins inside the transmission fluid pump. It must be perfectly smooth. Deep scratches or grooves will cause massive fluid leaks.
• Input Splines: Look at the geared teeth (splines) on the shaft sticking out of the transmission. The teeth must be straight and sharp. Twisted, rusted, or flattened teeth will cause the vehicle to slip or not move at all.

Frequently Asked Questions (FAQ)
