2010-2011 Audi A5 & S5 ZF 6HP28AF Transmission: Problems, Identification, and Used Replacement

Part Identification: Confirming You Have the LML Transmission

The automatic transmission in the 2010 Audi A5 (2.0T) and 2010-2011 Audi S5 (4.2L) Quattro models is the ZF 6HP28AF, a 6-speed longitudinal all-wheel-drive unit. The key to ensuring you are ordering the correct part is to verify your vehicle's specific transmission code.

You can find this three-letter code in two primary locations:

• Vehicle Data Sticker: Look in the spare tire well in the trunk or inside your original maintenance booklet for a paper sticker. This sticker lists all of your vehicle's option codes, including the transmission code.
• Transmission Case: There is an identification plate on the underside of the transmission housing itself, which will have the "LML" code stamped on it.

Common Failure Symptoms 🎬 Watch: ZF 6-speed common problems and troubleshooting guide

If your transmission is failing, you may notice one or more of the following symptoms:

• Shuddering or Vibration: A noticeable shudder or vibration, especially under light acceleration between 30-50 mph, often points to a worn torque converter lock-up clutch.

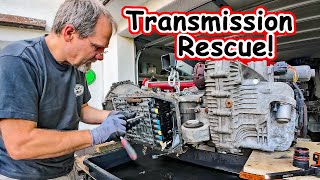

🎬 See this DIY fix for ZF transmission shudder
• Harsh Downshifts: A rough or jerky shift when the transmission downshifts from 2nd to 1st gear as you come to a stop.
• Shifter Stuck in Park: The gear selector refuses to move out of Park, which is often caused by a faulty microswitch in the shifter assembly, not an internal transmission problem.
• Delayed or Slipping Gears: The transmission may hesitate before engaging a gear, or the engine RPMs may flare up between shifts, indicating internal hydraulic pressure loss or worn clutches.
• "Gearbox Malfunction" Warning Light: An error message on your dashboard may indicate an internal fault (such as code P060B00), which can sometimes be resolved with a software update.
• Limp Mode: The transmission may lock itself into a single gear (usually 3rd or 4th) to prevent further damage.
• Driveline Noises: Droning or scraping noises from the front of the vehicle on acceleration, related to a bearing in the gearbox housing.

Diagnostic Flowchart

Known Issues, Bulletins, and Recalls

This transmission family has several well-documented issues that owners and technicians should be aware of.

Torque Converter Lock-up Clutch Wear ('ZF Shudder')

This is the most common and well-known issue for the entire ZF 6HP transmission family. The clutch inside the torque converter, which locks the engine and transmission together at cruising speeds, can wear out prematurely. This causes a noticeable shudder or vibration. If not addressed, metal debris from the worn clutch can contaminate the transmission fluid and damage the entire unit. The only permanent fix is to replace the torque converter and thoroughly flush the fluid and transmission cooler.

Mechatronic Sleeve and Seal Leaks

The "mechatronic" is the complex electro-hydraulic control unit inside the transmission. The plastic electrical connector sleeve and several rubber seals that connect it to the transmission case are known to leak fluid over time. This fluid loss can lead to low fluid levels, poor shifting, and eventually, severe internal damage. It is a mandatory replacement item during any transmission service or replacement.

What Fails at Every Mileage Band

Under 60,000 Miles

Transmissions in this range are generally healthy but can suffer from age-related seal degradation or early software glitches. Known failures include the harsh 2-1 downshift, early mechatronic unit faults, and leaking mechatronic connector sleeves.

• ✓Do during install (required): Replace the mechatronic connector sleeve, bridge seal, and the four small tube seals. This is a cheap preventative measure against future leaks.
• ✓Do during install (recommended): Perform a full fluid and filter service with the correct ZF Lifeguard fluid. Ensure the TCU has the latest software version to correct known shifting issues.
• ✓Cheap insurance while the engine is out: Inspect and replace the transmission cooler thermostat (heat exchanger) if there is any sign of contamination or overheating.

60,000 - 100,000 Miles

This is the critical window where the "lifetime fluid" myth causes problems. Torque converter lock-up clutch wear (ZF Shudder) becomes prominent. Mechatronic valve body and solenoid issues lead to erratic shifting, and fluid leaks from the pan gasket and sleeves are common.

• ✓Do during install (required): Replace the torque converter. Assume the original torque converter is near the end of its life. Perform a complete fluid service with a new filter/pan, and replace all mechatronic seals.
• ✓Do during install (recommended): Consider having the valve body inspected and serviced by a specialist. Worn valve body circuits are a root cause of many shifting problems.
• ✓Cheap insurance while the engine is out: Thoroughly flush the transmission cooler and lines to remove any debris from the previous unit's potential torque converter failure.

100,000 - 150,000+ Miles

Units in this range have a high likelihood of significant torque converter failure, valve body wear, and internal hard part wear (bushings and clutch packs). Complete failure requiring a rebuild is common if fluid services were neglected.

• ✓Do during install (required): A used transmission in this mileage range should be considered a core for rebuilding. At a minimum, it requires a new torque converter, a rebuilt or new mechatronic/valve body unit, a complete seal and gasket kit, and a new filter.
• ✓Do during install (recommended): Replace all friction plates and steel plates, as well as internal bushings. A master rebuild kit is the most appropriate choice.
• ✓Cheap insurance while the engine is out: Replace all torque-to-yield bolts for the subframe and mounts as per factory procedure. Flush the cooler and lines multiple times.

Real Owner Experiences

The following table highlights real-world failures, symptoms, and costs reported by Audi owners with this transmission family.

Repair or Replace?

Deciding whether to repair your existing transmission or replace it with a used unit depends heavily on the specific failure mode.

• Torque Converter Wear (ZF Shudder): If shuddering is the only symptom, replacing the torque converter ($400 - $600 for a remanufactured unit plus 8-12 hours of labor) makes sense.
• Mechatronic Sleeve Leaks: A simple seal kit costs $150 - $300, plus 3-5 hours of labor. This is a highly recommended preventative repair.
• Harsh 2-1 Downshift: Often a software issue. A dealership reflash typically costs $75 - $250 and should be the first step.
• Mechatronic Unit Failure: A repaired or remanufactured mechatronic unit costs $1,500 - $4,000+. This makes sense if the internal hard parts are still healthy.

When Replacement is Smarter: Replacement with a quality used or remanufactured unit is the smarter choice when there are signs of catastrophic internal mechanical failure. Symptoms like loud whining or grinding noises, slipping in multiple gears, a complete loss of drive, or significant metal debris in the fluid indicate that a simple repair will not suffice. Used units typically run $425 - $1,600, while remanufactured units range from $3,500 - $5,500+.

• Are you prepared to handle the Audi Component Protection (CP) system using the ODIS factory tool?
• Will you be replacing the mechatronic connector sleeve, bridge seal, and other common leak-prone seals during the installation?
• What specific brand and specification of fluid (e.g., ZF Lifeguard 6/8, Audi G 060 162 A2) will you be using?
• Does your quote include flushing the transmission cooler and lines to prevent contamination?
• Are you using new, torque-to-yield subframe and transmission mount bolts?

Replacement Cost Estimates

Replacing the transmission is a major repair. Costs can vary significantly based on the type of replacement unit you choose and local labor rates.

Installation and Programming Essentials

Installing this transmission is a complex job best left to professional technicians with European vehicle experience. The DIY difficulty is considered expert. Several critical steps must be followed to ensure success.

Component Protection and Programming

The Transmission Control Module (TCM) is located inside the transmission on the mechatronic unit. This module is electronically locked to the original car's security system, a feature Audi calls "Component Protection."

Required Parts, Fluids, and Tools

Always replace the following items during installation to prevent leaks and future failures:

• Transmission Fluid: There is some confusion about the correct fluid. Some sources specify ZF Lifeguard 6 (Audi P/N G 055 005 A2), while others call for the later ZF Lifeguard 8 (Audi P/N G 060 162 A2). Confirm the correct fluid for your specific vehicle before installation. Do not use generic multi-vehicle ATF.
• Filter and Pan Gasket: Replace the transmission filter (Audi part 0B6 325 429) and metal-elastomer pan gasket (Audi part 09E 321 371 A).
• Mechatronic Seals: It is critical to replace the electrical connector sleeve, the bridge seal, and the four small tube seals.
• Torque Converter Seal: Replace the front pump seal (ZF part 0501 320 478).
• Axle Oil: Use Audi axle oil (G 055 145 A2) for the front/center differential.
• Torque-to-Yield Bolts: The aluminum subframe X-brace and transmission mount bolts are single-use "stretch" bolts and must be replaced.

Special tools required for this job include a heavy-duty transmission jack, an engine support bar/bridge, Triple-square (XZN) and Torx socket sets (T27, T40), a fluid transfer pump with a dedicated Audi/ZF filler adapter (VAS 6262/2 or equivalent), and a diagnostic scan tool (VCDS, OBD11, or ODIS).

Freight and Delivery Reality

When ordering a used transmission assembly, understand that it will not arrive via standard parcel service. Verified shipping data shows this assembly weighs approximately 210 lbs and measures roughly 41" x 26" x 25" before crating. It ships as LTL (Less Than Truckload) freight on a wooden pallet. You must have a commercial address with a forklift or request a liftgate service for delivery. Always inspect the pallet and transmission for physical damage before signing the delivery receipt.
