P2709 on 2011-2015 Kia Optima: Shift Solenoid 'F' Failure Causes and Fixes

What's Unique About the 2011-2015 Kia OPTIMA

The 2011-2015 Kia Optima, which uses the A6MF series 6-speed automatic transmission, has a documented history of solenoid failures. This issue is not unique to the Optima; it is widespread across many Hyundai and Kia models that use this same transmission. Kia acknowledged this by issuing Technical Service Bulletin #TSBTRA051R1, which specifically lists P2709. The bulletin's key advice is to replace the faulty solenoids rather than the entire transaxle, which can save owners a significant amount of money on repairs.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Harsh, jerky, or delayed shifts, especially a noticeable 'kick' on the 2-3 upshift
• Transmission slipping between gears
• Transmission gets stuck in one gear (limp mode, often 3rd or 5th gear)
• Failure to shift into or out of certain gears
• Increased fuel consumption

Most Likely Causes

1. Failed Shift Solenoid 'F' (or Solenoid Harness Assembly) 🔴 High Probability A known, widespread issue for this platform's 6-speed automatic transmission, as documented in Kia TSB #TSBTRA051R1. The internal windings of the solenoid fail over time due to heat and vibration.

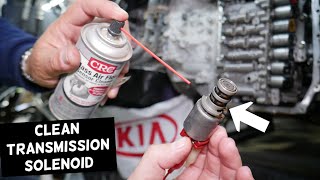

   How to confirm: Use a professional scan tool to monitor solenoid command data. The most definitive test is to access the solenoid on the valve body and measure its electrical resistance with a multimeter. 🎬 See how to test transmission solenoids using a multimeter. An open circuit (infinite resistance) or a reading outside the manufacturer's specification (typically 10-11 Ohms for on/off solenoids) confirms failure.
   Typical fix: Replace the faulty solenoid or, more commonly, the entire solenoid wire harness assembly which contains all the solenoids. The transmission pan and valve body must be removed to access them.
   Est. part cost: $150-$350 for a complete solenoid harness assembly.
2. Low or Contaminated Transmission Fluid 🟡 Medium Probability These transmissions are 'sealed' and do not have a dipstick, making it easy for fluid levels to go unchecked. Leaks can go unnoticed, and low fluid levels can cause overheating and erratic solenoid operation.
   How to confirm: The vehicle must be safely lifted and level. With the engine running and the transmission fluid at a specific temperature (122-140°F or 50-60°C), the level check plug on the side of the transmission case is removed. A thin, steady stream of fluid should come out. No fluid or a drip indicates it's low. The fluid should be red, not dark brown/black, and not smell burnt.
   Typical fix: With the vehicle level and at the correct temperature, add the specified fluid (SP-IV) through the fill port until it streams from the check plug. If fluid is very dirty, a full drain and fill is required.
   Est. part cost: $60-$120 for 4-6 quarts of Kia-specific SP-IV automatic transmission fluid.
3. Wiring or Connector Issues ⚪ Low Probability
   How to confirm: Visually inspect the transmission wiring harness and connectors for any signs of damage, corrosion, or loose pins, particularly at the main connector on the transmission case. A continuity test with a multimeter can check for breaks in the wire between the TCM and the solenoid connector.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector.
   Est. part cost: $10-$50 for wiring repair supplies.

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): This is very uncommon and should only be considered after all other possibilities, especially the solenoid and wiring, have been thoroughly tested and ruled out. The TSB advises checking wiring before condemning the control module.

Diagnosis Steps

1. Scan for Codes: Use an OBD-II scanner to confirm P2709 and check for any other related transmission codes listed in TSB TSBTRA051R1.
2. Check Transmission Fluid: This is critical and complex. The vehicle must be level, running, and the transmission fluid temperature must be between 122-140°F (50-60°C), verified with a scan tool. Remove the side check plug. 🎬 Watch: How to correctly check and add transmission fluid. If fluid pours out heavily, it's overfilled. If it drips or nothing comes out, it's low. A thin, steady stream is correct. Top off or change the fluid (Kia SP-IV) if necessary.
3. Inspect Wiring: Visually inspect the external transmission wiring harness and connectors for any obvious damage, corrosion, or loose connections.
4. Access Valve Body: Safely raise the vehicle, drain the transmission fluid, and remove the transmission oil pan to access the valve body where the solenoid harness is located.
5. Test the Solenoid: Disconnect the solenoid harness. Identify the two pins for Shift Solenoid 'F'. Use a multimeter set to Ohms to measure the resistance. Compare the reading to the manufacturer's specification (10-11 Ohms). An infinite reading (open) or zero reading (short) indicates a bad solenoid.
6. Replace Parts: If the solenoid is out of spec, replace the entire solenoid wire harness assembly. This is the recommended repair to prevent future failures of other solenoids. Also, replace the transmission pan gasket or use RTV sealant as required.
7. Reassemble and Refill: Reinstall the valve body and oil pan, torquing bolts to spec. Refill the transmission with the correct amount of new SP-IV fluid, following the level check procedure in Step 2.
8. Clear Codes and Test Drive: Clear the trouble codes with the scanner and perform a test drive to ensure the shifting issues are resolved and the code does not return. An adaptive value reset may be required.

Parts You'll Likely Need

• Transmission Solenoid Wire Harness Assembly (OEM #46313-3B030, 46313-3B075, 46313-3B065 (Verify with VIN)) — This is the most common failure point for code P2709 on this vehicle, as confirmed by a TSB. The assembly replaces all eight shift solenoids to prevent future failures.
  Trusted brands: Hyundai/Kia (OEM)
  OEM price range: $200-$350
  Aftermarket price range: $150-$250
• Automatic Transmission Fluid (SP-IV) (OEM #UM090-CH042 (for SP-IV)) — The fluid must be drained to access the solenoids and should be replaced with new fluid meeting Kia's SP-IV specification. A typical drain and fill requires 4-5 quarts.
  Trusted brands: Kia/Hyundai Genuine SP-IV, Idemitsu H-Plus, Valvoline MaxLife Multi-Vehicle
  OEM price range: $18-$25 per quart
  Aftermarket price range: $9-$16 per quart
• Transmission Oil Pan Gasket (OEM #45285-3B010) — The gasket should be replaced whenever the oil pan is removed to prevent leaks. Some pans use RTV sealant instead of a pre-formed gasket.
  Trusted brands: Kia/Hyundai Genuine, Fel-Pro
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0741 — Torque Converter Clutch Circuit Performance or Stuck Off
• P0753 — Shift Solenoid 'A' Electrical
• P0758 — Shift Solenoid 'B' Electrical
• P0763 — Shift Solenoid 'C' Electrical
• P0768 — Shift Solenoid 'D' Electrical

Technical Service Bulletins (TSBs) & Recalls

• TSBTRA051R1: Advises on replacing various shift solenoids for a list of DTCs including P0741, P0743, P0748, P0753, P0758, P0763, P0768, P0773, P1778 and P2709 on 6-speed automatic transaxles. It explicitly states not to replace the entire transaxle for these codes.

Platform-Specific Known Issues

• Kia issued Technical Service Bulletin #TSBTRA051R1 for the 6-speed automatic transaxle, which directly addresses DTC P2709, among others. It identifies faulty shift solenoids as the cause and recommends their replacement instead of a full transaxle replacement.
• Owner experiences consistently point to the solenoid pack replacement as the definitive fix. One owner on OptimaForums noted, 'Dealer diagnosed P2709, replaced the solenoid pack under warranty, and the harsh shifting was gone immediately.' Another on Kia-Forums stated, 'Did the job myself with a new harness assembly for $200, fixed my P2709 and jerky 2-3 shift.'

Mechanic-Grade Diagnostic Values

• On/Off Shift Solenoid Resistance (Solenoid 'F' is this type) — expected: 10-11 Ohms. Failure: An open circuit (infinite/O.L. reading) or a short circuit (near 0 Ohms) indicates a failed solenoid coil.
• Variable Force (PWM) Solenoid Resistance — expected: ~5.1 Ohms. Failure: A reading significantly different from 5.1 Ohms suggests a failure. These are also part of the main harness but have a different function and resistance from the on/off solenoids.

Scan Tool Commands That Help

• Kia GDS (OEM Scan Tool): Actuation Test — As recommended by TSB TSBTRA051R1, this command attempts to activate the solenoids. A technician can then use a stethoscope to listen for an audible 'click' from the transmission pan, which helps confirm if the solenoid is receiving the command and is mechanically responding.
• Kia GDS or capable aftermarket scanner (e.g., Autel): Resetting Auto Trans Adapted Values / Init Of TCU Learning — This function must be performed after replacing the solenoid harness or valve body. It erases the transmission's learned shift compensation data, allowing it to relearn shift points with the new components for optimal shift quality.
• N/A - Driving Procedure: Driving Relearn Procedure — Immediately after performing an adaptive value reset. The TCM needs to learn the behavior of the new parts under real-world conditions. The procedure involves accelerating gently from a stop through all gears (at 15-20% throttle), coming to a stop, and repeating the cycle at least four times.

Wiring & Ground Locations

• Main Transmission Harness Connector - Pin 12 — On the transmission case, where the main vehicle harness connects to the internal transmission wiring harness.. Pin 12 corresponds to the circuit for Shift Solenoid 'B' (SSB), which has been linked to the generic P2709 'F' designation on this platform. This pin is the specific point to test for continuity back to the TCM when diagnosing an open or shorted wire.

OEM Part Supersession History

• 46313-3B072 → 46313-3B075 — Part revision or manufacturer change.
  Heads up: This part number appears to be for an individual solenoid, not the complete harness assembly which is the more common repair. Ensure compatibility with VIN.

Model Year Variations Within This Range

• 2011-2015: The transmission oil pan can be either steel or plastic. This dictates the sealing method. Steel pans require the application of Kia RTV Silicone Gasket Maker (P/N UM010 CH046), whereas plastic pans use a specific, pre-formed replaceable gasket (P/N 45285-3B010). It is critical to identify the pan type before starting the repair to have the correct sealing materials.
