P0733 on 2006-2010 Volkswagen Passat: Gear 3 Incorrect Ratio Causes and Fixes

What's Unique About the 2006-2010 Volkswagen Passat

The 2006-2010 (B6 generation) Passat primarily uses a 6-speed automatic transmission known as the 09G, which was co-developed with Aisin and is also called the TF-60SN. This transmission is notorious 🎬 Watch why 09G transmissions fail and common fixes for issues with its valve body. Over time and with heat, the bores within the valve body can wear, and the solenoids can fail, leading to incorrect hydraulic pressure regulation. This causes gear ratio errors like P0733, harsh shifting, and slipping. A classic symptom of 09G valve body failure is that the transmission works fine when cold but starts slipping and shifting harshly once it reaches operating temperature. While other causes are possible, valve body failure is the most common and well-documented weak point for this specific transmission across many VW, Audi, and Mini models.

Symptoms You May Notice

• Check Engine Light is on
• Flashing PRNDS indicator on the dashboard
• Transmission goes into limp mode (stuck in a safe gear)
• Harsh or jerky shifting, especially when the transmission is hot
• Delayed engagement or significant slipping when shifting to 3rd gear
• Engine RPMs flare up without a corresponding increase in vehicle speed
• Failure to shift into 3rd gear at all, sometimes skipping from 2nd to 4th.
• A noticeable 'clunk' noise from the transmission when it attempts to shift.

Most Likely Causes

1. Faulty Transmission Valve Body 🔴 High Probability The Aisin 09G transmission used in this Passat is widely known for premature valve body and solenoid failure due to wear in the solenoid bores, causing hydraulic pressure loss, especially when hot.
   How to confirm: This is often diagnosed after ruling out fluid issues. A key indicator is if symptoms are worse or only appear when the transmission is hot. A professional will use a scan tool to monitor solenoid commands and pressures. The presence of multiple gear ratio codes (e.g., P0732, P0733, P0734) strongly points to the valve body.
   Typical fix: Replace the entire valve body with an updated new or remanufactured unit. Some specialists rebuild the existing one with oversized valves and sleeves from brands like Sonnax to provide a more durable repair than the original.
   Est. part cost: $200-$1500
2. Low or Degraded Transmission Fluid 🔴 High Probability VW marketed this as having 'lifetime' fluid, leading many owners to neglect service. The fluid (spec G 055 025 A2 or JWS 3309) degrades with heat and mileage, and leaks can develop, causing low levels and pressure issues.
   How to confirm: This is a sealed transmission with no dipstick. The level must be checked via a standpipe in the pan while the vehicle is level and the transmission fluid is at a specific temperature 🎬 Watch this step-by-step guide to check and fill 09G fluid (typically 35-45°C), monitored with a scan tool like VCDS. Fluid should be reddish and not smell burnt.
   Typical fix: Perform a transmission fluid and filter change using the correct VW-specified fluid. This is often called a 'drain and fill'.
   Est. part cost: $100-$200
3. Failed Shift Solenoid(s) 🟡 Medium Probability The solenoids are part of the valve body assembly and are a primary failure point within it. Solenoids like N90 (clutch pressure), N92 (K3 clutch), and N93 (main pressure/EPC) are common culprits. They can fail individually from electrical faults or get stuck from debris.
   How to confirm: A diagnostic scan tool can sometimes identify faults with specific solenoids. Resistance can be checked with a multimeter once the transmission pan is removed. However, mechanical sticking won't show up as an electrical fault.
   Typical fix: Replace the specific faulty solenoid(s). However, due to the high labor cost and the likelihood of wear in the valve body bores, replacing the entire valve body assembly is often the more reliable, long-term repair.
   Est. part cost: $50-$150 per solenoid
4. Worn Internal Clutch Packs ⚪ Low Probability Can occur at very high mileage or as a result of prolonged driving with low fluid or valve body pressure issues, which burns the clutch friction material.
   How to confirm: Diagnosed by inspecting the transmission fluid for excessive clutch material (dark, metallic sludge) and a strong burnt smell. This is usually the diagnosis after a new valve body fails to fix the issue.
   Typical fix: Complete transmission rebuild or replacement.
   Est. part cost: $2000-$4500

Rare But Worth Checking

• Faulty Transmission Speed Sensor: If the input (G182) or output (G195) speed sensor sends incorrect signals, the TCM can miscalculate the gear ratio. This is less common than hydraulic issues but worth checking, especially if sensor-specific codes are present.
• Faulty Transmission Control Module (TCM): A failure of the TCM itself is rare but possible. On the B6 Passat, the TCM (J217) is located inside the valve body assembly within the transmission. A failure would typically be accompanied by other communication-related trouble codes or a complete loss of communication with the transmission.
• Wiring Harness Issues: Damage to the wiring between the TCM and the transmission solenoids or sensors can cause this code. This is uncommon but possible, especially if the vehicle has been in an accident or had other repairs nearby.

Diagnosis Steps

1. Scan for all codes in the Transmission Control Module (TCM) using an advanced scanner like VCDS. Note any other gear ratio or solenoid codes.
2. Check the transmission fluid level and condition. This MUST be done with the engine running, vehicle level, and fluid temperature between 35-45°C as read by a scan tool.
3. If fluid is low, top it off, clear codes, and re-test. If fluid is dark or burnt, a fluid/filter change is a good next step, but may not solve an underlying mechanical or valve body issue.
4. Monitor live data: Watch the input (G182) and output (G195) speed sensors to ensure they are reading correctly. Log the commanded vs. actual gear and watch for slippage (RPM flares) when the 2-3 shift occurs.
5. Drop the transmission pan to inspect for excessive metal debris or burnt clutch material. A small amount of fine grey material is normal, but large flakes or black sludge indicate severe internal failure.

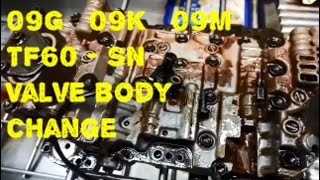

6. If the fluid/filter is clean and the problem persists (especially when hot), the valve body is the primary suspect.
7. After replacing parts like the valve body, it is critical to clear the TCM's memory and perform a basic settings reset/adaptation drive cycle with a tool like VCDS to allow the transmission to relearn shift points.

Parts You'll Likely Need

• Automatic Transmission Valve Body (OEM #09G325039A (or 09G325039AX for remanufactured)) — This is the most common point of failure on the 09G/TF-60SN transmission in this Passat, directly causing incorrect gear ratio codes.
  Trusted brands: Genuine VW/Audi, Aisin (OEM manufacturer), RevMax, Sonnax (offers repair kits and complete valve bodies)
  OEM price range: $1200-$1800
  Aftermarket price range: $200-$900
• Automatic Transmission Fluid (ATF) (OEM #G055025A2) — Fluid must be at the correct level and in good condition. A drain/fill requires about 4-5 liters. The fluid must meet the Aisin-Warner JWS 3309 specification.
  Trusted brands: Genuine VW/Audi, Pentosin ATF1, Liqui Moly Top Tec 1200, Idemitsu TLS, Fuchs Titan ATF 4400
  OEM price range: $20-$30 per liter
  Aftermarket price range: $12-$22 per liter
• Transmission Filter and Pan Gasket Kit (OEM #Filter: 09G325429E, Gasket: 09G321370) — Required for any service that involves dropping the transmission pan, such as a fluid change or valve body replacement.
  Trusted brands: Vaico, Meyle, Genuine VW, Mahle
  OEM price range: $50-$90
  Aftermarket price range: $30-$60

Related Codes That Often Appear With This One

• P0734 — Stands for 'Gear 4 Incorrect Ratio'. Seeing multiple incorrect ratio codes together, as mentioned in NHTSA ODI #11353892, strongly points towards a systemic issue like a failing valve body or low fluid level affecting multiple gear circuits.
• P0732 — 'Gear 2 Incorrect Ratio'. Similar to P0734, its presence with P0733 suggests a widespread hydraulic pressure problem. A user on the Ross-Tech forums reported P0732 and P0733 together, which ultimately pointed to an internal issue.

Technical Service Bulletins (TSBs) & Recalls

• While no specific TSB for P0733 is widely cited, VW has released numerous software updates for the TCM over the years to address shift quality. It's always a valid diagnostic step to check if a software update is available before replacing hardware.

Platform-Specific Known Issues

• A real-world owner complaint filed with the NHTSA (ODI #11535913) for a Volkswagen Jetta with the same powertrain family reported code P0733 with the definition 'Gear 3 Incorrect Ration' [sic].
• Another NHTSA complaint (ODI #11353892) for a VW Routan reported codes P0733 and P0734 together, causing the vehicle to not drive over 35 MPH. The owner noted it is a 'common problem' on VW forums, which aligns with widespread valve body issues.

Mechanic-Grade Diagnostic Values

• Resistance of N88 & N89 Solenoids — expected: 10 - 16 Ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• Resistance of N90, N91, N92, N93, N282, N283 Solenoids — expected: 4 - 8 Ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• Transmission Fluid Temperature for Level Check — expected: 35°C to 45°C (95°F to 113°F). Failure: Checking the level outside this temperature range will result in an incorrect fluid level, which can cause shifting problems.
• Transmission Fluid Temperature for Adaptation Relearn — expected: 66°C to 110°C (151°F to 230°F). Failure: The TCM will not properly relearn shift adapts if the fluid is not at full operating temperature.

Scan Tool Commands That Help

• VCDS (VAG-COM): Basic Settings - Group 001 (Kick-Down Adjustment) — After replacing the valve body or TCM, or if throttle-related faults were present. This ensures the TCM understands the full range of the accelerator pedal for proper shift commands.
• VCDS (VAG-COM) or equivalent: Adaptation - Channel 00 (Reset to Factory Defaults) — This is a critical step after replacing the valve body or entire transmission. It erases all learned shift values, forcing the TCM to start a fresh learning process (adaptation drive cycle) with the new components.
• VCDS (VAG-COM): Measuring Value Blocks (MVB) - Group 006 — During the fluid level check procedure, this block is used to monitor the live transmission fluid temperature (G93 sensor) to ensure it is within the required 35-45°C range.

Wiring & Ground Locations

• 652 - Transmission/Engine Ground Connection — A ground strap located on the left side of the engine compartment, connecting the transmission housing to the vehicle's chassis on the left front longitudinal member.. A poor ground connection can cause erratic behavior from the transmission solenoids and sensors, leading to incorrect ratio codes. While not a common cause, it's a fundamental check for any electrical issue.
• 14-pin Connector (T14a) — This is the main electrical connector for the transmission, connecting the vehicle's wiring harness to the internal transmission harness that goes to the solenoids and sensors on the valve body.. Corrosion or damage to the pins in this connector can interrupt signals to and from the TCM, potentially causing P0733 and other transmission faults.

Real Owner Repair Stories

• VW Vortex Forums (2006 VW Passat 2.0T) — Hard shifting from 2nd to 3rd gear, especially when hot. Flashing PRNDS lights. Fault code P0733.
  ❌ Tried (didn't work) The user first performed a transmission fluid and filter change, which did not resolve the issue.
  ✅ What actually fixed it The owner replaced the transmission valve body with a remanufactured unit from RevMax. After the replacement and performing the adaptation drive cycle, the shifting issues and fault code were resolved.

OEM Part Supersession History

• 09G325039A → 09G325039AX — The 'X' suffix on Volkswagen parts typically denotes a factory remanufactured part. The core part is the same, but the remanufactured unit is often rebuilt with updated components to address known failure points.
  Heads up: There are multiple design versions of the 09G valve body based on year and features (e.g., with or without pressure sensors, large vs. small can solenoids). It is critical to match the replacement valve body to the vehicle's specific year and transmission configuration.

Model Year Variations Within This Range

• 2005-2007 vs 2008-2013 (applies to Passat range): The solenoids used in the valve body changed around 2008. Earlier models use "Large Can" solenoids, while later models use "Small Can" solenoids. A replacement valve body must have the correct solenoid type for the vehicle's model year.
• 2006-Up: Some Passat models may have a version of the 09G valve body where the transmission cooler is not mounted directly to the transmission case. This requires a specific valve body plate configuration.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 2.0T FSI Cam Follower Failure 🔴 High — Very common on the BPY engine (2006-2008.5). Failure can occur as early as 50,000 miles. Recommended inspection every 20-30k miles. (Ref: VW TSB 15 14 01 (Supersedes previous versions) addresses diagnosis and replacement of the worn camshaft and follower.)
• Intake Manifold Runner Flap Failure (P2015) 🟠 Medium — Common on both FSI and TSI engines. The plastic linkage or motor fails, causing a Check Engine Light. Performance is slightly affected. (Ref: VW extended the warranty on this component for many vehicles. Aftermarket metal repair brackets are a popular, inexpensive fix.)
• PCV Valve Failure 🟠 Medium — Common failure item. Leads to a loud whistling/honking noise from the engine bay, rough idle, and increased oil consumption.
• 2.0T TSI Timing Chain Tensioner Failure 🔴 High — Affects later B6 models with the TSI engine (CCTA/CBFA, approx. 2008.5-2010). The original tensioner can fail without warning, causing the chain to jump and leading to catastrophic engine damage. (Ref: A class-action lawsuit led to a warranty extension for this part on many affected vehicles. An updated tensioner design resolves the issue.)
• High-Pressure Fuel Pump (HPFP) Failure 🔴 High — Often a direct result of cam follower failure on the FSI engine. When the follower wears through, the pump's plunger is damaged by the camshaft lobe.
• Ignition Coil & Spark Plug Failure 🟡 Low — Very common cause of engine misfires. Coils can fail intermittently. Considered a regular maintenance item by many owners.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Buying a used valve body from a junkyard is highly discouraged for this specific repair. The failure is so common that a used part is very likely to have the same wear issues as the part being replaced, or will fail soon after installation.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If considering used, verify the donor vehicle had low mileage and no reported transmission issues.
• Ask for a return policy or warranty, as the risk of receiving a faulty part is high.
• Visually inspect for any signs of heavy contamination or debris on the solenoids and in the passages, though internal wear is not visible.

Aftermarket brands forum-validated for this vehicle:

• Sonnax: Sells comprehensive valve body repair kits with oversized valves and reaming tools, as well as fully remanufactured valve bodies. Considered a top-tier solution.
• RevMax: A well-regarded rebuilder offering updated valve bodies, often mentioned in forums as a successful fix.
• Aisin: As the original manufacturer of the transmission, their replacement valve bodies are a reliable OEM-equivalent choice.

Brands owners have reported issues with on this vehicle:

• Be cautious of unbranded, unusually cheap "remanufactured" valve bodies on sites like eBay or Amazon. Many sellers may be selling cleaned-up used parts that have not been properly rebuilt or tested with updated components.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0732 — Often appears alongside P0733; multiple gear ratio codes strongly point to a faulty transmission valve body.
• P0734 — Commonly triggered with P0733 when the valve body or solenoids fail, potentially limiting vehicle speed to under 35 MPH.
• N90 — A specific clutch pressure solenoid within the valve body that can cause gear ratio errors if it fails electrically or mechanically.
• N92 — The K3 clutch solenoid; failure of this component is a common cause for 3rd gear engagement issues in the 09G transmission.
• N93 — The main pressure/EPC solenoid; part of the valve body assembly that regulates hydraulic pressure required for proper shifting.

Frequently Asked Questions
