P0730 on 2012 Jeep Wrangler: Incorrect Gear Ratio Causes and Fixes

What's Unique About the 2012-2012 Jeep WRANGLER

The 2012 Wrangler (JK generation) was the first to pair the 3.6L Pentastar V6 with the W5A580 5-speed automatic transmission, also known as the NAG1. This transmission is a Chrysler-built version of the Mercedes-Benz 722.6. Early in its production, this combination had known software-related shifting issues. Chrysler issued multiple Technical Service Bulletins (TSBs), specifically TSB #21-033-14, to address the P0730 code by reprogramming the Transmission Control Module (TCM), making a software update a highly probable first step in the diagnosis. Unlike earlier Wranglers, the 2012+ models with the W5A580 transmission use the rear wheel speed (ABS) sensors to calculate the transmission's output speed, directly linking ABS system faults to this transmission code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission slipping between gears
• Harsh or jerky shifting
• Vehicle entering "limp mode" (stuck in a single gear, usually 2nd or 3rd)
• Delayed engagement when shifting into Drive or Reverse
• Reduced fuel economy
• ABS and Traction Control lights may be on simultaneously

Most Likely Causes

1. Transmission Control Module (TCM) Software Update Needed 🔴 High Probability Manufacturer TSB #21-033-14 was issued specifically for the 2012 Wrangler to correct a condition where P0730 sets erroneously. The update also includes other shift enhancements.
   How to confirm: A Jeep dealership or a well-equipped independent shop using wiTECH software can check the current software calibration number on the TCM and see if it's eligible for the update mentioned in the TSBs.
   Typical fix: Selectively erasing and reprogramming the Transmission Control Module (TCM) with the latest software version. This is often called a "flash".
   Est. part cost: $0-$200
2. Low or Dirty Transmission Fluid 🟡 Medium Probability Low fluid prevents proper hydraulic pressure needed for gear engagement. The W5A580 transmission can be sensitive to fluid level and condition.
   How to confirm: Check the transmission fluid level and condition using a special dipstick tool (e.g., Dorman 917-327, Mopar 8863B, or 9336). The check must be performed with the engine running and the transmission at operating temperature, which should be verified with a scan tool. The fluid should be at the correct level per the temperature chart, be pinkish-red, and not smell burnt.
   Typical fix: Top off the fluid if low. If the fluid is dirty or burnt, perform a transmission fluid and filter change. Use only the specified Mopar ATF+4 fluid. 🎬 See this DIY guide for a transmission fluid and filter change.
   Est. part cost: $50-$150
3. Faulty Rear Wheel Speed Sensors 🟡 Medium Probability On 2012+ JK Wranglers, the TCM uses the rear axle (wheel) speed sensors to calculate the transmission's output speed. A faulty sensor provides incorrect data to the TCM, leading to a gear ratio error code.
   How to confirm: Scan the ABS module for any wheel speed sensor codes (e.g., C1221, C102A). A failing sensor often triggers ABS and Traction Control lights along with the P0730. Live data on a scan tool can show erratic or missing readings from one of the rear sensors while driving.
   Typical fix: Replace the faulty rear wheel speed sensor. They are located at the wheel hubs. 🎬 Watch: How to replace a faulty rear wheel speed sensor. The Mopar part number is 52125003AD (which supersedes 52125003AB).
   Est. part cost: $45-$85
4. Faulty Conductor Plate ⚪ Low Probability The W5A580/NAG1 transmission's conductor plate is a known failure item. It is located inside the transmission on the valve body and houses the input and output speed sensors. Failure of these internal sensors can cause P0730 and other related codes.
   How to confirm: This is often diagnosed after ruling out external sensors and software. It may be accompanied by speed sensor-specific codes like P0717 or P0720. Diagnosis requires dropping the transmission pan and valve body.

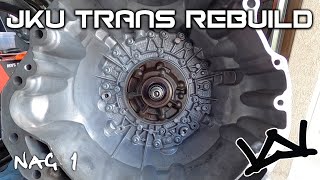

   Typical fix: Replace the conductor plate, transmission filter, pan gasket, and the electrical connector sleeve O-ring at the same time. 🎬 Watch: Step-by-step walkthrough for swapping the NAG1 conductor plate. This is an internal transmission repair.
   Est. part cost: $200-$800

Rare But Worth Checking

• Internal Transmission Mechanical Failure: This is the worst-case scenario, involving worn clutches, a failing torque converter, or other internal damage. It is usually accompanied by burnt-smelling fluid, metal debris in the pan, and significant shifting problems.
• Faulty Valve Body or Shift Solenoids: The valve body directs hydraulic fluid to engage the correct gears. A stuck solenoid or blocked passage within the valve body can prevent proper shifting and trigger a P0730 code. This is often replaced as an assembly with the conductor plate.

Diagnosis Steps

1. Check for Technical Service Bulletins (TSBs). For the 2012 Wrangler, TSB #21-033-14 is highly relevant and suggests a TCM reflash as a primary solution.
2. Scan all modules for codes, paying close attention to the TCM and ABS module. Any wheel speed sensor codes are a strong clue.
3. Check the transmission fluid level and condition. This requires a special dipstick tool (e.g., Mopar 9336) and must be done with the engine running and fluid at operating temperature.
4. If no other codes are present and the fluid is good, have a dealer or qualified shop check the TCM software version and perform the update per TSB 21-033-14 if necessary.
5. If the software is up to date, test the rear wheel speed sensors. Monitor live data from both rear sensors on a scan tool while driving to check for dropouts or erratic readings.
6. If external sensors and software check out, the next step is to inspect internal components. This involves dropping the transmission pan to inspect for debris and testing the conductor plate, solenoids, and valve body. This is best performed by a professional.

Parts You'll Likely Need

• Transmission Control Module (TCM) Reprogramming — TSB #21-033-14 specifically calls for a software update to fix false P0730 codes and improve overall shift performance on this model year.
  Trusted brands: Mopar Service
  OEM price range: $100-$250
  Aftermarket price range: N/A
• Rear Wheel Speed Sensor (OEM #52125003AD) — The TCM uses these sensors for output speed data. A faulty sensor provides bad information, triggering the code.
  Trusted brands: Mopar, Standard Motor Products (SMP), Dorman
  OEM price range: $50-$100
  Aftermarket price range: $25-$75
• Transmission Filter and Fluid Kit (OEM #52108325AA) — Low or dirty fluid is a common cause of transmission problems. A fluid and filter service is a basic and essential maintenance step.
  Trusted brands: Mopar, ATP, Wix
  OEM price range: $80-$150
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• P0731-P0735 — These are gear-specific ratio error codes (e.g., P0731 for 1st gear, P0733 for 3rd). P0730 is a general code, and it may appear alongside one of these more specific codes, which can help pinpoint when the slip is occurring.
• C1221, C102A, etc. — These are ABS/wheel speed sensor codes. Since the 2012 Wrangler's TCM relies on rear wheel speed sensors for its output speed calculations, a fault in the ABS system can directly cause the P0730 code.
• P0717, P0720, P2767 — These codes point to faults with the transmission's internal input or output speed sensors, which are part of the conductor plate on the W5A580 transmission. Their presence strongly suggests a failing conductor plate.

Technical Service Bulletins (TSBs) & Recalls

• 21-033-14: FLASH: MIL Illumination For P0730 And Transmission Shift Enhancements. This TSB supersedes 21-005-13 and applies to 2012 Wranglers (among others) with the W5A580 transmission. It corrects an erroneous P0730 code and improves

Platform-Specific Known Issues

• The 2012 model year is specifically cited in TSB #21-033-14 for requiring a TCM software update to address P0730 and improve shift performance, including delayed downshifts and hanging in gear in hot weather.
• Unlike earlier models, the 2012 Wrangler's W5A580 transmission relies on external rear ABS sensors for output speed, making them a common and unique cause for this code compared to other transmissions with internal sensors.

Mechanic-Grade Diagnostic Values

• Shift Solenoid Resistance (from TCM connector) — expected: ~2.5-5.0 Ohms (ballpark). Failure: A reading that is open (infinite resistance) or shorted (zero resistance) indicates a failed solenoid or wiring.
• Line Pressure Solenoid Resistance (from TCM connector) — expected: ~5.5 Ohms. Failure: Significant deviation from this value suggests a faulty line pressure control solenoid.

Scan Tool Commands That Help

• wiTECH or equivalent (Autel, JScan): Quick Learn — This procedure should be performed after the transmission has been replaced or overhauled, or if the TCM has been replaced or flashed. It allows the TCM to re-calibrate shift points and clutch volume indexes.
• wiTECH or equivalent (JScan): Initialize EGS — This function is required to transfer data (like axle ratio and tire size) into a new or updated transmission module. It's recommended after changing tire size or axle ratios to ensure correct shift calculations.
• wiTECH or equivalent (JScan): TCM Reset Learned Additives — This allows the electronic transmission system to re-calibrate itself from a baseline, which can resolve shifting issues after repairs or fluid changes.

Wiring & Ground Locations

• TCM Location — On the 2012 Wrangler, the Transmission Control Module (TCM) is located in the engine compartment, on the left rear side.. Knowing the TCM's location is critical for inspecting its connectors for corrosion or damage and for performing remote diagnostic tests on solenoids and sensors.
• G107 — A primary ground point located on the left side of the engine compartment.. The Transmission Control Module relies on a solid ground connection. A loose or corroded G107 can cause erratic behavior and false codes, including P0730.
• G203 — A ground point located on the right side of the dash, accessible from the passenger footwell.. This ground serves various interior and data line components. While less direct, a poor ground here can interfere with the CAN bus network, potentially affecting communication between the TCM and other modules.
• Transmission 13-Pin Connector — The main electrical connector going into the transmission case. The O-rings on its sleeve are a very common leak point.. A fluid leak from this connector can wick fluid up the harness into the TCM, causing shorts and communication errors. A loose connection here will also cause multiple transmission faults.

Real Owner Repair Stories

• Reddit user in r/GrandCherokee (2007 Jeep Grand Cherokee WK with NAG1/W5A580 transmission (same as 2012 Wrangler)) — P0730 code, transmission pops out of gear randomly, typically at speeds over 55mph.
  ❌ Tried (didn't work) The user was contemplating a full transmission swap before finding the actual cause.
  ✅ What actually fixed it The problem was solved by replacing the speed sensors, which are part of the conductor plate located behind the valve body inside the transmission.

OEM Part Supersession History

• 52108308AB, 140-270-1261 (Mercedes) → 52108308AC — Component revision and improvement for the conductor plate.
  Heads up: These part numbers are for the conductor plate (also called a solenoid connector plate) for the W5A580/NAG1 transmission. Always verify fitment with VIN as there can be variations.
