P0601 on 2007-2013 Suzuki SX4: Internal Memory Error Causes and Fixes

What's Unique About the 2007-2013 Suzuki SX4

For the 2007-2013 Suzuki SX4, the P0601 code is a straightforward but severe diagnosis. While the code points to an internal ECM failure, owner experiences suggest that external electrical faults, like a failing main power relay, can sometimes mimic a dead ECM by starving it of stable voltage. The ECM is located in the engine bay, making it susceptible to heat and vibration, but also relatively easy to access for inspection of its connectors and grounds. A thorough check of the ECM's power supply and ground integrity is a critical first step before condemning the module itself. A significant model-year split exists: 2007-2009 models use the J20A engine, while 2010-2013 models use the non-interchangeable J20B engine, requiring different ECMs.

Symptoms You May Notice

• Check Engine Light is on
• Engine will not start, or has a long crank time before starting
• Intermittent stalling or engine shutting off while driving
• Noticeable loss of power and acceleration (limp mode)
• Rough idling or engine misfires
• Immobilizer or security light may flash on the dashboard
• Potential for hard or erratic transmission shifting
• Unresponsive accelerator pedal

Most Likely Causes

1. Internal Engine Control Module (ECM) Failure 🔴 High Probability This is the direct definition of the code. The internal memory (EEPROM or flash memory) becomes corrupted due to age, heat cycles, or internal component failure like cracked solder joints. The ECM in the SX4 is often a Bosch unit, which can be prone to this fault across various car brands.
   How to confirm: After confirming all power and ground circuits to the ECM are stable (supplying >12.5V and having <0.1 Ω resistance to ground) and the code still returns immediately after being cleared, the ECM is faulty. The fault is internal and not serviceable for most DIYers.
   Typical fix: Replace the Engine Control Module and have the new unit programmed to the vehicle by a dealer or qualified shop.
   Est. part cost: $200-$600 for a remanufactured or used ECM, $800+ for a new OEM unit.
2. Low Battery Voltage or Failing Alternator 🟡 Medium Probability Voltage spikes or drops during engine start-up or operation can corrupt the ECM's memory as it performs read/write operations. A weak battery or a failing alternator voltage regulator are common sources of this unstable voltage.
   How to confirm: Test the battery voltage at rest (should be >12.5V). With the engine running, test alternator output (typically 13.5V-14.5V). A load test on the battery is the most definitive test. Check for alternator ripple voltage with a multimeter; excessive AC voltage indicates a failing diode.
   Typical fix: Replace the weak battery or faulty alternator.
   Est. part cost: $100-$250 for a battery, $200-$450 for an alternator.
3. Faulty ECM Power Relay ⚪ Low Probability The main relay (sometimes labeled FI relay for Fuel Injection) supplies power to the ECM. If it fails or provides intermittent voltage, it can cause the ECM to malfunction and log a P0601 code. This is a known issue that can mimic a failed ECM.
   How to confirm: Locate the ECM/FI relay in the under-hood fuse box. Swap it with a known-good relay of the same type from the fuse box (e.g., the horn relay) and see if the issue resolves. Alternatively, test the relay with a multimeter.
   Typical fix: Replace the ECM power relay.
   Est. part cost: $15-$40
4. Poor Power or Ground Connection at ECM ⚪ Low Probability Corrosion or loose connections on the main power feed or ground straps for the ECM can cause unstable voltage, leading to memory errors. The main engine-to-chassis ground strap is a common point of failure due to corrosion.
   How to confirm: Visually inspect the ECM connectors and main engine/chassis ground straps for corrosion or looseness. Perform a voltage drop test on the power and ground circuits; a drop of more than 0.2-0.5 volts indicates a problem.
   Typical fix: Clean the connectors and grounding points with a wire brush and ensure all connections are tight. Replace corroded ground straps.
   Est. part cost: $5-$20 for cleaning supplies or a new ground strap.

Rare But Worth Checking

• Failed ECM Reprogramming: If the code appeared immediately after a software update or the use of an aftermarket tuning device, the flash may have been corrupted or incomplete.
• Water Intrusion: If there are signs of moisture around the ECM's location (typically in the engine bay near the battery), water may have shorted internal components. The ECM housing itself is sealed, but the connectors can be a point of entry if seals are compromised.

Diagnosis Steps

1. Scan the vehicle for any other fault codes. Note them and clear all codes. P0601 is a primary code; other codes may be symptoms of its failure.
2. Attempt to start the engine. If P0601 returns immediately, it indicates a hard fault, very likely the ECM itself.
3. Check the battery. Ensure it has a static voltage of at least 12.5V and can pass a load test.
4. With the engine running (if possible), check the alternator output to ensure it is within the 13.5V-14.5V range.
5. Locate the ECM power relay (often marked 'FI') in the under-hood fuse box. Swap it with an identical relay for a non-critical system (like the horn) to see if the problem changes.
6. Inspect the ECM's electrical connectors for any signs of corrosion, moisture, or pushed-out pins. The ECM is in the engine bay. Clean as necessary.
7. Inspect the main engine-to-chassis ground straps. There is a key ground strap from the engine block to the body. Ensure they are clean, tight, and free of corrosion. Perform a voltage drop test on the ground circuit.
🎬 Watch: How to diagnose and fix bad ground connections
8. If all external electrical checks are passed and the code persists, the ECM is faulty and requires replacement and programming.

Parts You'll Likely Need

• Engine Control Module (ECM) (OEM #Varies by year/transmission. Examples: 33920-80JA1, 33920-80JB0, 33920-80JB2 (2007-2009 MT); 33910-75KG0 (2007-2009 AT FWD); 33910-51MB0 (2011-2013); 33910-54LD (2010-2014 AT 2WD). Always verify with VIN.) — This is the most common cause of a P0601 code, indicating an irreparable internal memory failure.
  Trusted brands: Bosch (OEM), Denso, Cardone (remanufactured)
  OEM price range: $800+
  Aftermarket price range: $200-$600
• ECM Power Relay — A faulty relay can cause intermittent power loss to the ECM, triggering a P0601 code. It's an inexpensive part to rule out before replacing the ECM.
  Trusted brands: Standard Motor Products, Denso
  OEM price range: $25-$50
  Aftermarket price range: $15-$40

Related Codes That Often Appear With This One

• P0602 — This code means 'Control Module Programming Error' and can appear alongside P0601 if the memory corruption is related to a failed or incomplete software flash.
• P0607 — This code means 'Control Module Performance' and indicates a general internal processing failure within the ECM, which is closely related to the memory checksum error of P0601.
• U-series codes (e.g., U0100) — Communication codes may appear if the failing ECM is unable to communicate properly with other modules on the vehicle's CAN bus network.

Platform-Specific Known Issues

• ECM Location and Access: The ECM on the Suzuki SX4 is located in the engine compartment, typically near the battery. This makes it easy to access for inspecting connectors and ground wires, but also exposes it to engine heat and potential water ingress.
• Ground Strap Corrosion: A Reddit thread concerning a Suzuki SX4 with charging issues highlighted a completely severed engine ground strap. While this didn't cause a P0601 in that case, it demonstrates that these ground straps are a known weak point and can fail, leading to the exact type of electrical instability that triggers a P0601.

Mechanic-Grade Diagnostic Values

• ECM Ground Circuit Voltage Drop — expected: Less than 0.1 Volts. Failure: A reading greater than 0.3 Volts indicates unacceptable resistance from corrosion or a faulty wire.
• ECM Power and Ground Pin Resistance to Chassis — expected: Less than 1.0 Ω (ideally <0.1 Ω). Failure: Resistance higher than 1.0 Ω indicates a poor connection that can cause intermittent issues or trigger a P0601.
• Alternator Output Voltage — expected: 13.5V - 14.5V with engine running. Failure: Voltage below 13.5V or spiking above 15V can indicate a faulty alternator or regulator, which can corrupt ECM memory.

Scan Tool Commands That Help

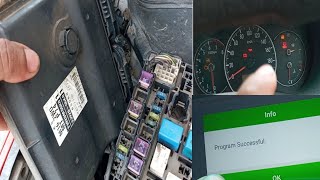

• Suzuki SDT-II or equivalent professional scanner: Immobilizer Key Registration / ECM Replacement — This function is mandatory after installing a new or used 'bare' ECM. It pairs the replacement ECM to the vehicle's existing keys and immobilizer module to allow the engine to start.
• Suzuki SDT-II: Communication Bus Check — Used to verify that the ECM is properly communicating with all other control modules on the CAN bus, such as the BCM, TCM, and ABS control module. A failure here can point to an internal ECM fault.
• Xtool D8 / PS70 Pro or similar: Key Programming — Aftermarket tools with advanced immobilizer functions can be used to program new keys when replacing the ECM and lockset, as demonstrated on an international market SX4.

Wiring & Ground Locations

• ECM Ground Pins — At the main ECM connectors in the engine bay, near the battery.. Multiple pins on the ECM connectors provide ground. A high-resistance ground on any of these can cause unstable operation and trigger a P0601. According to wiring diagrams, these are often Black/Yellow (BLK/YEL) and Black/Orange (BLK/ORN) wires. A voltage drop test should be performed on these specific pins.
• Main Engine-to-Chassis Ground Strap — A braided or thick wire strap connecting the engine block or transmission case directly to the vehicle's chassis/frame.. This is the primary ground path for the entire engine management system. If it's corroded, loose, or broken, the ECM and other components will seek ground through other, smaller wires, causing electrical instability and potential module damage.

Model Year Variations Within This Range

• 2007-2009 vs. 2010-2013: The 2010 model year introduced a major powertrain update. The engine was changed from the J20A to the J20B, and the automatic transmission was changed from a 4-speed to a CVT. Because of this, the ECMs are not interchangeable between these two periods. An ECM from a 2008 model will not work in a 2011 model, and vice-versa. Part numbers must be matched carefully to the vehicle's specific year, engine, and transmission type.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used ECM is a cost-effective option for this repair, but only if the correct programming procedure is followed or bypassed.

What to inspect on the donor part:

• Part number MUST be an exact match to the original ECM.
• Donor vehicle must be the same model year range (2007-2009 or 2010-2013), have the same engine (J20A or J20B), and the same transmission type (MT, AT, or CVT).
• Inspect connectors for corrosion, bent pins, or any signs of water damage.
• Consider buying a 'matched set' which includes the used ECM, the immobilizer module, and the corresponding ignition key(s) from the donor car. This can create a plug-and-play solution that avoids the need for expensive reprogramming.

OEM-only on this vehicle (don't cheap out):

• Engine Control Module (ECM) - While remanufactured units from brands like Cardone exist, a used OEM Denso/Bosch unit or a new OEM unit are the most reliable choices. Avoid no-name clones.

Aftermarket brands forum-validated for this vehicle:

• Cardone (for remanufactured ECMs)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'pre-programmed' ECMs from online marketplaces that do not require a VIN. These often fail or cause other issues.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0562 — System Voltage Low. This code directly points to one of the common causes of P0601: a weak battery or failing alternator providing insufficient voltage, which can corrupt the ECM's memory.
• P0300 — Random/Multiple Cylinder Misfire Detected. This is a common symptom of a failing ECM. The P0601 fault prevents the module from properly controlling ignition timing or fuel injection, leading to misfires.
• U0100 — Lost Communication With ECM/PCM. Other modules on the vehicle's network (like the Transmission Control Module or ABS module) may log this code when the ECM fails internally and stops communicating.
• P1625 — Immobilizer System Malfunction (Manufacturer Specific). The context notes that a flashing immobilizer light is a symptom of P0601. This is because the internal ECM memory error can corrupt the security key data, causing a communication failure with the immobilizer module.
• P0563 — System Voltage High. A failing alternator voltage regulator can cause voltage spikes. These spikes can damage the sensitive internal memory of the ECM, leading to a P0601 checksum error.

Frequently Asked Questions
