P0521 on 2021-2024 Chevrolet Trailblazer: Engine Oil Pressure Sensor Causes and Fixes
P0521 on a 2021-2024 Trailblazer means the engine computer sees an unexpected oil pressure reading. While it's often a faulty oil pressure sensor (ACDelco #12691969, ~$25-$60 part), it can also point to wiring issues, incorrect oil/filter, or more serious problems like a failing oil pump or camshaft cover issue, as noted in multiple GM service bulletins. For 2021-2023 models, a software glitch (TSB #A222379710) can also prevent the code from being cleared after a repair, requiring a dealer updat
Most Likely Cause
Faulty Engine Oil Pressure Sensor
Est. Time
4.5 hrs
DIY Doable?
🔧 Shop
Shop Labor
$150 – $2675
Parts Price
$25 – $300
Do not drive
— It is not recommended to drive the vehicle. You cannot be sure if it's a faulty sensor or a critical lack of oil pressure that could destroy the engine. If the oil pressure warning light is on or the engine is making unusual noises, stop driving immediately.
Key Takeaways
- P0521 on a 2021-2024 Trailblazer is a serious code that requires immediate attention.
- Do not drive the vehicle, as the code could indicate critically low oil pressure.
- The first and most important diagnostic step is to verify actual oil pressure with a mechanical gauge.
- Be aware of multiple TSBs for this vehicle; the fix may involve a software update, wiring check, or inspection of the camshaft cover, not just a sensor replacement.
- Always use the OEM-specified oil viscosity and a high-quality oil filter to prevent pressure issues.
The trouble code P0521 stands for "Engine Oil Pressure Sensor/Switch Range/Performance". This means the Engine Control Module (ECM) has detected that the signal from the oil pressure sensor is not what it expects. The reading might be stuck, irrational (e.g., not zero with the engine off), or it could be higher or lower than the normal range for the current engine speed and temperature. The ECM uses this sensor to ensure the engine is receiving enough oil to keep all its moving parts lubricated. This code indicates a problem with the reported pressure, which may or may not be a problem with the actual oil pressure.
What's Unique About the 2021-2024 Chevrolet TRAILBLAZER
For the 2021-2024 Trailblazer and its platform-mate, the Buick Encore GX, a P0521 code is more complex than on many other vehicles. General Motors has issued several Technical Service Bulletins (TSBs) that point to specific, known issues. A major problem is a software glitch on 2021-2023 models where the ECM may not be able to clear the permanent status of a P0521 code, requiring a dealer update even after the mechanical fix is complete (TSB #A222379710, #A222379711). Additionally, other bulletins link this code to potential wiring harness problems (TSB #PIP5932D, #PIP5826B), oil pump failures due to foreign material on early 2021 models (TSB #A202302140 01), and even issues with the engine camshaft cover on low-mileage 2024 models that can cause smoke and misfires (TSB #PIP5947C).
Diagnostic Flowchart
Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.
Have you tested the actual oil pressure with a mechanical gauge?
Does the code permanently remain after trying to clear it?
→ Visit a Chevrolet dealer for a free ECM software update (Recall #A222379710 or #A222379711) to fix a known permanent code glitch.
→ Replace the Engine Oil Pressure Sensor (OEM ACDelco 12691969, $25-$60). Also inspect the wiring harness for high resistance per TSB #PIP5826B.
What is the model year and are there other symptoms?
→ Perform the oil pump screening test per TSB #A202302140 01. The pump may be stuck due to debris (OEM replacement $85-$200).
→ Inspect the engine camshaft cover assembly per TSB #PIP5947C, which can cause low pressure, misfires, and blue smoke on low-mileage vehicles.
→ Change the oil and filter using dexos1 full synthetic ($50-$90) to fix potential filter bypass issues, then re-test the mechanical pressure.
→ Stop driving immediately to prevent engine damage. Check your oil level, then tow to a shop to measure actual pressure with a mechanical gauge.
Professional service recommended: Driving with a potential low oil pressure condition can cause catastrophic engine damage. A professional needs to use a mechanical gauge to verify actual oil pressure before replacing parts 🎬 Watch: How to perform a Trailblazer oil pressure test, as the issue could be a simple sensor or a major internal engine problem like a failing oil pump or sticking relief valve.
Symptoms You May Notice
- Check Engine Light illuminated
- Oil pressure warning light on the dashboard
- Oil pressure gauge reading abnormally high or low, or stuck
- Engine running rough, misfiring, or surging at idle (as noted in TSB #PIP5947C)
- Blue smoke from the exhaust, especially on low-mileage vehicles (as noted in TSB #PIP5947C)
- Engine oil consumption higher than normal
⚠️ Don't Waste Money on the Wrong Fix
- Replacing the oil pressure sensor without first verifying the engine's actual oil pressure with a mechanical gauge. The sensor might be correctly reporting a real, serious pressure problem.
- Forgetting to clear the code and drive the vehicle through a full cycle. On 2021-2023 models, even after a fix, the code may not clear without a dealer software update.
Most Likely Causes
- Faulty Engine Oil Pressure Sensor 🔴 High Probability Sensors are a common failure point across many vehicles, and often the first part to be suspected for a performance range code. Forum discussions for similar GM engines frequently point to sensor replacement as the primary fix.
How to confirm: After verifying actual oil pressure is correct with a mechanical gauge, test the sensor's voltage output. If the output is erratic, stuck, or doesn't correspond to pressure changes, the sensor is bad. A special socket is often required for removal.
Typical fix: Replace the engine oil pressure sensor. The OEM part is ACDelco 12691969.
Est. part cost: $25-$60 - ECM Software Glitch 🟡 Medium Probability GM issued specific Voluntary Emission Recalls (#A222379710, #A222379711) for 2021-2023 Trailblazer and Encore GX models stating the ECM may not be able to clear a permanent P0521 code after a repair.
How to confirm: If the underlying mechanical issue has been fixed (e.g., new sensor) but the code cannot be cleared with a standard scan tool, this is the likely cause. This may prevent the vehicle from passing an emissions test.
Typical fix: The vehicle's ECM needs to be reprogrammed by a Chevrolet dealer per the service bulletin. This is done at no charge under the recall.
Est. part cost: $0 (if covered by recall) - Incorrect Oil Filter or Oil Viscosity 🟡 Medium Probability Using a non-spec or poor-quality oil filter can cause pressure drops or spikes if the internal bypass valve is incorrect. Modern turbocharged engines are sensitive to correct oil viscosity (dexos1 approved, typically 5W-30 or 0W-20 depending on year/engine). Some owners on forums for other GM vehicles have reported that using specific high-quality filters (e.g., Mobil 1 or ACDelco) resolved recurring P0521 codes.
How to confirm: Check service records or inspect the oil filter to see if it's a quality, OEM-spec part. Verify the oil in the engine is the correct grade.
Typical fix: Perform an oil and filter change using the manufacturer-specified full synthetic oil and a high-quality filter.
Est. part cost: $50-$90 - Wiring Harness or Connector Issue ⚪ Low Probability TSB #PIP5932D and its replacement #24-NA-021 specifically call for inspection of the engine wiring harness related to code P0521. TSB #PIP5826B also points to high resistance in a specific harness splice on 2021 models.
How to confirm: Visually inspect the wiring and connector going to the oil pressure sensor for any signs of damage, corrosion, or looseness. Perform a continuity and resistance test on the circuit. TSB #PIP5826B provides a specific procedure to manipulate the harness while watching live data to confirm an intermittent open/high resistance.
Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail.
Est. part cost: $15-$50
Rare But Worth Checking
- Failing Oil Pump / Sticking Relief Valve: TSB #A202302140 01 was issued for early 2021 Trailblazers and 2020 Encore GXs due to the potential for the oil pump to be stuck from foreign material. Other GM TSBs for different engines also cite a sticking oil pressure relief valve within the pump as a cause for P0521. A mechanical pressure test showing genuinely low pressure would point to this as a cause.
- Engine Camshaft Cover Issue: Extremely rare, but TSB #PIP5947C links P0521 with symptoms like blue smoke, oil consumption, and misfires on low-mileage (under 2,000 miles) 2024 models. The fix is to replace the entire camshaft cover assembly due to a suspected internal failure.
Diagnosis Steps
- Check the engine oil level and condition. Ensure it is full and clean. Top off or change if necessary.
- Connect an OBD-II scanner to confirm P0521 and check for any other related codes.
- Crucially, connect a mechanical oil pressure gauge to the engine to measure the actual oil pressure. Compare this reading to the manufacturer's specifications at idle and higher RPMs (e.g., 2000 RPM).
- If actual oil pressure is within spec, the problem is likely electrical. Inspect the oil pressure sensor's wiring and connector for damage. Test the sensor's signal.
- If the sensor and wiring are good, but the code persists after being cleared (on a 2021-2023 model), investigate the ECM software issue described in TSBs #A222379710 and #A222379711.
- If actual oil pressure is low, the problem is mechanical. For early 2021 models, perform the 'engine oil pump screening test' as described in TSB #A202302140 01. For other years, investigate the oil filter, oil pump, and other internal engine issues as suggested by TSBs #PIP5932D and #PIP5947C.
Parts You'll Likely Need
- Engine Oil Pressure Sensor
(OEM #12691969)— This is the most frequent failure point for a P0521 code when actual oil pressure is confirmed to be good.
Trusted brands: ACDelco (OEM), Standard Motor Products
OEM price range: $40-$70
Aftermarket price range: $25-$50 - Engine Camshaft Cover — A specific TSB (#PIP5947C) points to this as a potential cause on low-mileage 2024 models if P0521 is accompanied by smoke or misfires.
Trusted brands: ACDelco (OEM), Dorman
OEM price range: $200-$300
Aftermarket price range: $100-$180 - Engine Oil Pump
(OEM #55503981 (per TSB A202302140 01 for early models), 12705142 (for 1.3L L3T))— In cases of confirmed low mechanical oil pressure, TSBs #PIP5932D and #A202302140 01 suggest diagnosing the oil pump, which may require replacement.
Trusted brands: ACDelco (OEM), Melling
OEM price range: $85-$200
Aftermarket price range: $150-$250
Related Codes That Often Appear With This One
- P0300 — TSB #PIP5947C notes that a Random Misfire code can appear alongside P0521, potentially related to a camshaft cover issue causing oil-fouled spark plugs.
- P06DE — This code, for Engine Oil Pressure Control Solenoid Valve Stuck On, is mentioned in TSBs #PIP5932D, #PIP5947C, and #A202302140 01 as being related to P0521, pointing towards issues in the oil pressure regulation system or oil pump.
- P06DD — This code, for Engine Oil Pressure Control Solenoid Valve Stuck Off, is also cited in TSBs #PIP5932D and #A202302140 01, indicating a potential problem with the oil pump or its control circuit.
- P04DB, P050D, P1101 — These codes are also listed alongside P0521 in TSB #PIP5947C related to the camshaft cover issue on 2024 models.
Technical Service Bulletins (TSBs) & Recalls
- A222379710 / A222379711: Voluntary Emission Recall for an ECM software issue on 2021-2023 models where permanent DTC P0521 cannot be cleared.
- PIP5947C / PIP5947B: Addresses potential for smoke, misfire (P0300), or idle surge along with P0521 on low-mileage 2024 models, pointing to engine camshaft cover replacement.
- PIP5932D / 24-NA-021: Communicates engine wiring harness inspections and oil pump diagnostic testing related to P0521, P06DD, or P06DE.
- A202302140 01: Service update for early 2021 models where the oil pump may be stuck due to foreign material, causing P0521, P06DE, or P06DD.
- PIP5826B: Details isolating a potential engine wiring harness issue (high resistance in a splice) causing P0521 on 2021 models.
Platform-Specific Known Issues
- A known ECM software issue on 2021-2023 models can prevent the permanent P0521 DTC from being cleared after a repair, requiring a dealer visit for a software update. (TSB #A222379710, #A222379711)
- On low-mileage 2024 models, P0521 accompanied by blue smoke or misfires may indicate a rare failure of the engine camshaft cover assembly, per TSB #PIP5947C.
- Early 2021 models were subject to a service update (TSB #A202302140 01) for oil pumps that could be stuck due to foreign material, causing P0521 and related codes.
- A specific wiring harness issue is documented for 2021 models in TSB #PIP5826B, pointing to high resistance in a three-wire splice that can cause intermittent P0521 codes even when oil pressure is normal.
Mechanic-Grade Diagnostic Values
- Engine Oil Pressure at Idle — expected: 160 - 200 kPa (23.21 - 29.01 psi). Failure: Pressure significantly below this range indicates a mechanical oil system problem.
- Engine Oil Pressure at 4000 RPM — expected: 340 - 380 kPa (49.31 - 55.11 psi). Failure: Pressure significantly below this range indicates a mechanical oil system problem, such as a weak pump or sticking relief valve.
- Oil Pressure Sensor Signal Voltage — expected: Varies with pressure, typically ~0.5V at idle to ~4.5V at high pressure/RPM.. Failure: Voltage is stuck, does not change with RPM, or is outside the general range of 0.1V to 4.9V. A reading outside this range for several seconds can trigger the code.
Hidden / Shadow Codes Worth Checking
- Symptom Byte: GM vehicles often store a 2-digit hexadecimal 'symptom byte' along with the main DTC. This provides more specific information about the failure type (e.g., Signal Performance, Circuit High, Circuit Low). For P0521, this can help differentiate between an irrational signal and a circuit fault. (see via A professional scan tool like the GM GDS2 (Global Diagnostic System 2) is required to view symptom bytes.)
Scan Tool Commands That Help
- GDS2: Module Diagnostics / Engine Control Module / Data Display / Engine Mechanical Data — Per TSB #PIP5826B, a technician should monitor the 'Engine Oil Pressure' parameter on this screen while physically manipulating the engine wiring harness near the underhood fuse block. A change or drop to 0.0 PSI in the reading indicates an intermittent connection at a specific three-wire splice within the harness.
Wiring & Ground Locations
- Special 3-Wire Splice (Circuit 548 BK/GN) — Located within the main engine wiring harness, in the branch that leads to the X50A Underhood Fuse Block.. TSB #PIP5826B identifies this specific splice as a potential point of high resistance on 2021 models, causing intermittent P0521 codes even when actual oil pressure is normal. Wiggling the harness in this area while watching live data can confirm the fault.
- Engine Oil Pressure Sensor Connector — On the 1.2L/1.3L engines, the sensor is typically mounted on the engine block, often near the oil filter housing.. This is the primary connection point for the sensor. It should be inspected for corrosion, damage, or oil contamination, which indicates an internal leak in the sensor.
Real Owner Repair Stories
- Reddit user anecdotes for similar GM vehicles (Various Chevrolet trucks (Silverado/Tahoe)) — Persistent P0521 code after replacing sensor.
❌ Tried (didn't work) Replacing the oil pressure sensor, sometimes multiple times., Using an aftermarket (non-OEM) oil pressure sensor.
✅ What actually fixed it In one case, switching to a high-quality OEM-spec oil filter (Mobil 1 M1-113A) and ensuring the correct oil level resolved the issue. In another, replacing a non-OEM sensor with a genuine OEM part fixed it. This suggests the system can be sensitive to both oil filtration characteristics and sensor electronics.
"I Checked Everything" — The Actual Cause
- The equivalent for P0521 is when a mechanical gauge confirms oil pressure is perfectly normal, yet the code persists. In this scenario for the 2021-2024 Trailblazer, the actual cause is often not the sensor itself but one of two known issues: 1) For 2021 models, a high-resistance splice in the engine wiring harness per TSB #PIP5826B. 2) For 2021-2023 models, an ECM software glitch that prevents a permanent DTC from clearing after a repair, requiring a dealer reflash per TSB #A222379711.
OEM Part Supersession History
55488247→12727099— Unknown, likely a design revision for improved reliability or manufacturing.
Heads up: When replacing, the newest part number should always be used.
Model Year Variations Within This Range
- 2021 (early production): Subject to a service update (TSB #A202302140 01) for oil pumps potentially stuck by foreign material.
- 2021: Specifically called out in TSB #PIP5826B for a potential high-resistance wiring harness splice causing intermittent P0521.
- 2021-2023: May have an ECM software bug that prevents a permanent P0521 code from being cleared after repair, requiring a dealer reflash (TSB #A222379710, #A222379711).
- 2024 (low mileage): May experience a rare camshaft cover failure that presents with P0521, smoke, and misfires (TSB #PIP5947C).
Helpful Videos
▶
How To Test Engine Oil Pressure Like A Professional
▶
How to check your oil pressure
▶

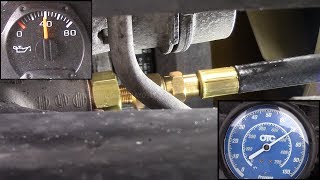

Trailblazer oil pressure test WITHOUT the J-42907 (Oil pressure gauge lies VIDEO 2)
▶
How To Fix a P0521 Code Chevy Silverado Sierra Tahoe
▶
P0521 Oil Pressure Sensor Error Code 07 -13 Chevy Silverado
▶
How to Diagnose P0521 Failed Sender Code
▶
How to Replace Valve Cover 2011-2015 Chevy Cruze
▶
How To Replace Leaking Valve Cover Gasket
