P0502 on 2007-2017 Jeep Patriot: Vehicle Speed Sensor Circuit Low Input Causes and Fixes

This code most often points to a faulty transmission output speed sensor or its wiring. On Patriots with a CVT automatic, the sensor is often accessible externally. However, on models with the 6-speed automatic (6F24), the sensors are inside the transmission, making replacement a much larger and more expensive job.

22 minutes to read 2007-2017 Jeep Patriot

Most Likely Cause

Faulty Transmission Output Speed Sensor

Est. Time

2.8 hrs

Shop Labor

$100 – $850

Parts Price

$25 – $200

⚠️ Drivable, but... — Yes, but driving should be limited. The speedometer may be inoperative, and the automatic transmission may shift harshly or erratically, potentially getting stuck in one gear (limp mode), which can be unsafe and cause further transmission wear.

Key Takeaways

P0502 on a Jeep Patriot means there's a problem with the vehicle speed signal, usually from the transmission output sensor.
Before buying parts, determine if your Patriot has the CVT or the 6-speed automatic, as this drastically changes the repair complexity.
Symptoms include an inoperative speedometer, no cruise control, and poor shifting.
Always inspect the wiring and connector for the speed sensor before replacing the sensor itself, as damage is common.
If you also have ABS/ESC lights on, have the ABS module scanned for codes, as a faulty wheel speed sensor could be part of the problem.

The trouble code P0502 stands for "Vehicle Speed Sensor 'A' Circuit Low Input". This means the Powertrain Control Module (PCM), the vehicle's main computer, is detecting a voltage signal from the primary vehicle speed sensor (VSS) that is below the normal operating range, often near zero volts. The PCM relies on this signal to control the speedometer, cruise control, and automatic transmission shift points. When the signal is too low or absent, these systems may malfunction, the transmission may enter a 'limp mode' with harsh shifting, and the Check Engine Light will illuminate.

What's Unique About the 2007-2017 Jeep Patriot

The key challenge with the Jeep Patriot is identifying which sensor is 'Sensor A' and where it's located, as this changed depending on the transmission. Early models primarily used a Jatco JF011E Continuously Variable Transmission (CVT) where speed sensors are often externally mounted and easier to replace. Later models (approx. 2014+) often used a Hyundai-designed 6-speed automatic (coded 6F24), where the input and output speed sensors are located internally, requiring removal of the transmission pan and valve body for access. This dramatically increases the labor and cost compared to a simple external sensor swap.

Generation note: The 2007-2017 Jeep Patriot is a single generation (MK), but it used different automatic transmissions. Earlier models predominantly featured a Jatco CVT, while many 2014-2017 models were equipped with a 6F24 6-speed automatic. The location and replacement procedure for the speed sensors are significantly different between these two transmissions. This distinction is critical for diagnosis and repair.

🎬 See a real-world speed sensor repair on a Jeep Patriot

Symptoms You May Notice 🎬 Watch this overview on fixing P0502 issues

Check Engine Light is on
Speedometer reads 0 mph or behaves erratically while driving

🎬 Watch: How to troubleshoot an erratic or dead speedometer

Cruise control will not engage
Harsh, erratic, or delayed shifting on automatic transmission models
Transmission may get stuck in a single gear (limp mode)
ABS and/or Traction Control (ESC) warning light may be illuminated
Red lightning bolt symbol (Electronic Throttle Control warning) may appear on the dash

⚠️ Don't Waste Money on the Wrong Fix

Replacing an ABS wheel speed sensor when the fault lies with the transmission output speed sensor.
Replacing the transmission output speed sensor when the actual problem is a simple wiring issue between the sensor and the PCM.
On 6F24 models, replacing only one internal speed sensor when the other is also failing or when the issue is the wiring harness inside the transmission pan.

Most Likely Causes

Faulty Transmission Output Speed Sensor 🔴 High Probability The output speed sensor is the primary source for the vehicle speed signal sent to the PCM. These sensors are a common failure item and can fail electronically over time or become contaminated with metallic debris from normal transmission wear.
How to confirm: Use a scan tool to monitor the Vehicle Speed Sensor output data while driving. If the reading is zero or erratic while the vehicle is moving, the sensor is a likely culprit. For accessible sensors (CVT models), you can test resistance with a multimeter against factory specs. A healthy sensor should produce a pulsing AC voltage that increases with speed.
Typical fix: Replace the faulty speed sensor. The difficulty varies greatly by transmission type (CVT vs. 6-speed automatic). On the 6F24, both input and output sensors are often replaced at the same time as a preventative measure.
Est. part cost: $25-$75
Damaged Wiring or Connector 🟡 Medium Probability The wiring harness to the transmission is exposed to heat, moisture, and vibration, which can lead to corrosion in the connector pins, or wires chafing and shorting to ground. This creates a 'low input' condition.
How to confirm: Visually inspect the wiring harness leading to the transmission speed sensors. Look for any signs of damage, melting, or corrosion on the connector pins. Perform a wiggle test on the harness while monitoring the VSS signal on a scan tool to see if the signal cuts out. Check for continuity and for a short to ground using a multimeter. A resistance of less than 5.0 ohms is expected on a good ground circuit.
Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector. Applying dielectric grease to the connector can help prevent future moisture intrusion.
Est. part cost: $5-$50
Faulty ABS Wheel Speed Sensor ⚪ Low Probability While P0502 specifically points to the transmission VSS circuit, the PCM compares the VSS signal to the wheel speed sensor signals from the ABS module. A fault in the ABS system, which is common on Patriots, can sometimes cause conflicts or related codes. ABS sensors are exposed to the elements and road debris, leading to failure.
How to confirm: Use a scan tool capable of reading ABS codes. If there are codes specific to a wheel speed sensor (e.g., C-codes), that system should be diagnosed first. Monitor the data from all four wheel speed sensors to ensure they are reading correctly and consistently while driving.
Typical fix: Replace the faulty ABS wheel speed sensor and its integrated harness.
Est. part cost: $30-$80

Rare But Worth Checking

Faulty Powertrain Control Module (PCM): This is uncommon, but the internal circuit in the PCM that processes the speed sensor signal can fail. This should only be considered after all sensor and wiring possibilities have been exhaustively ruled out.
Damaged Internal Transmission Tone Ring: The sensor reads a toothed 'tone' or 'reluctor' ring inside the transmission. If this ring is damaged or heavily contaminated with metallic debris, the sensor cannot get a reading. This is a major internal transmission failure and is very rare.
Faulty Instrument Cluster: On some vehicles, the instrument cluster acts as a gateway, processing the speed signal before sending it to other modules. A fault within the cluster can interrupt this signal and trigger a P0502 code.

Diagnosis Steps

Connect a diagnostic scan tool to the OBD-II port.
Check for any other stored codes in the PCM, TCM, and ABS modules. Pay close attention to P0700 or any C-codes.
Use the scan tool's live data feature to monitor 'Vehicle Speed Sensor' data. Drive the vehicle (or safely raise the drive wheels) and observe if the reading is stuck at zero, erratic, or doesn't match the actual speed.
If the signal is faulty, identify your transmission type (Jatco CVT or 6F24 6-speed) to determine the sensor's location.
For CVT models with external sensors, perform a thorough visual inspection of the sensor's connector and wiring harness for any visible damage, corrosion, or loose connections.
If wiring appears intact, test the sensor. With the key on, backprobe the connector to check for reference voltage and ground. Use a multimeter set to AC volts to check for a signal while rotating the wheels; voltage should increase with speed.
For 6F24 models with internal sensors, diagnosis is limited to the external transmission connector and harness. If the external wiring is good, the issue is likely internal (sensor, internal harness, or tone ring), which typically requires professional service to drop the transmission pan and valve body.
If all sensors and wiring test good, the problem may be a rare fault with the instrument cluster or the Powertrain Control Module (PCM).

Parts You'll Likely Need

Transmission Output Speed Sensor (OEM #CVT (Jatco JF011E): 31935-8E007, 31935-1XF00; 6-Speed (6F24): 5078554AA (often sold as a pair/assembly)) — This is the most common part to fail and directly causes the P0502 code. The specific part depends on whether the Patriot has a CVT or 6-speed automatic transmission.
Trusted brands: Mopar, Dorman, NTK/NGK, Jatco
OEM price range: $50-$120
Aftermarket price range: $25-$75
ABS Wheel Speed Sensor — Often replaced to solve ABS/ESC light issues that can accompany a P0502 code. A faulty wheel speed sensor can cause confusing symptoms, though it's not the direct cause of P0502.
Trusted brands: Mopar, TRQ, Standard Motor Products
OEM price range: $60-$120
Aftermarket price range: $30-$80
Transmission Pan Gasket — Required for replacing the internal speed sensors on models with the 6F24 6-speed automatic transmission, as the transmission pan must be removed.
Trusted brands: Mopar, Fel-Pro, Mahle
OEM price range: $20-$40
Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

P0700 — This is a generic Transmission Control System Malfunction code. It often appears with other transmission-related codes like P0502 to indicate the TCM has detected a fault and has requested the check engine light.
C-codes for ABS — If an ABS wheel speed sensor is also faulty, you will likely see codes in the Cxxxx range (e.g., C102A, C1020) stored in the ABS module, which can help pinpoint the issue.

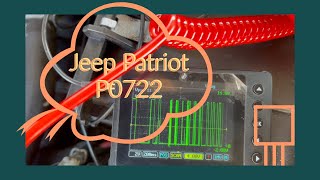

P0722 — This code for 'Output Speed Sensor Circuit No Signal' is very similar to P0502 and can appear alongside it, further pointing to a fault in the output speed sensor or its circuit.

Technical Service Bulletins (TSBs) & Recalls

Recall S89 / NHTSA 16V-907: Affects some 2016 models for intermittent crankshaft/camshaft sensor signals due to improper wiring harness manufacturing. While not directly for the VSS, it highlights potential wiring quality issues from this period.
TSB 21-013-13: While related to later model Jeeps with different transmissions, this TSB addresses harsh shifting conditions that can be resolved with a TCM software flash, highlighting that software updates can sometimes resolve what appear to be hardware issues.

Platform-Specific Known Issues

On models equipped with the 6F24 6-speed automatic transmission, the input and output speed sensors are located inside the transmission case, requiring removal of the valve body to replace them. This makes the repair significantly more labor-intensive and costly than for vehicles with externally-mounted sensors.

Mechanic-Grade Diagnostic Values

CVT Output Speed Sensor Ground Circuit Resistance — expected: Below 5.0 ohms. Failure: A reading above 5.0 ohms indicates an open or high resistance in the ground circuit between the TCM and the sensor.
6F24 Transmission PWM Solenoid Resistance — expected: ~5 ohms. Failure: A significantly higher or lower reading indicates a faulty solenoid. This is a related test, useful when diagnosing general transmission electrical faults alongside P0502.
6F24 Transmission On/Off Solenoid Resistance — expected: ~10 ohms. Failure: A significantly higher or lower reading indicates a faulty solenoid. This is a related test, useful when diagnosing general transmission electrical faults alongside P0502.
VSS Signal Wire to Ground Resistance — expected: Less than 1 kΩ. Failure: Resistance greater than 1 kΩ points to wiring damage or a faulty connection.

Scan Tool Commands That Help

wiTECH or equivalent professional scanner: TIPM Actuator Test - Transmission Control Output — After confirming the sensor is good but the signal is still not reaching the PCM/TCM. This command allows a technician to energize the transmission control output circuit from the TIPM to check for opens or shorts in the wiring harness using a test light, isolating the fault between the TIPM and the transmission.

Wiring & Ground Locations

G102 — Top of the transmission bellhousing.. This is a primary ground point for the engine and transmission components, including the Powertrain Control Module (PCM). A corroded or loose G102 ground can cause erratic sensor readings and phantom electrical issues, including a P0502 code.
G103 — Left rear of the engine.. Serves as another critical engine ground point. Verifying all engine grounds are clean and tight is a crucial step when diagnosing any sensor circuit fault.
G104 — Right front of the engine compartment.. This ground point is part of the main engine harness grounding scheme. A fault here can affect various engine and transmission-related circuits.
TCM (Transmission Control Module) — For many models, the TCM is located inside the vehicle, under the driver's side dashboard, high up behind the lower kick panel.. Knowing the location is critical for testing the VSS circuit continuity from the transmission harness connector all the way to the module, which is necessary to rule out a wiring problem.

Real Owner Repair Stories

YouTube user TheJ20Jeepster (principle applied from a similar vehicle) (2002 Chevy Suburban (demonstrates a universal principle)) — P0502 code, speedometer at zero, transmission would not up-shift.
❌ Tried (didn't work) Was about to replace the vehicle speed sensor.
✅ What actually fixed it A simple visual inspection revealed the speed sensor's electrical connector on the transmission had been unplugged, likely by a stick or road debris. Reconnecting the plug resolved all symptoms and cleared the code. This highlights the importance of a thorough physical inspection of the wiring harness before replacing parts.

Model Year Variations Within This Range

approx. 2014-2017: Many Patriots in this range were equipped with the 6F24 6-speed automatic transmission, a design shared with Hyundai (where it is known as the A6MF1). Unlike the earlier CVT, the input and output speed sensors are internal, requiring removal of the transmission pan and valve body for service. This significantly changes the diagnostic and repair procedure.

Diagnostic Flowchart

Start by identifying your transmission type (CVT vs. 6F24) and checking for concurrent ABS or transmission codes, as the Patriot's speed signal is shared across multiple modules.

Are the codes specific to an ABS Wheel Speed Sensor?

→ Diagnose the ABS system first. On the MK platform, the PCM compares VSS data to wheel speed sensors; a faulty ABS sensor or integrated harness can trigger P0502 conflicts.

Identify your transmission. Is it the Jatco CVT (2007-2017) or the 6F24 6-speed automatic (2014-2017)?

Perform a visual inspection of the external Output Speed Sensor and harness. Any signs of chafing, melting, or corrosion?

→ Repair the wiring harness or clean the connector. Apply dielectric grease to prevent moisture intrusion, a common issue on Patriot/Compass/Caliber MK platforms.

Monitor 'Vehicle Speed Sensor' live data while driving. Does the reading stay at 0 mph or jump erratically?

Test the sensor with a multimeter. Does it show reference voltage and produce an increasing AC voltage signal when the wheels are rotated?

→ Replace the Output Speed Sensor. For CVT models, this is an external bolt-on; for 6F24 models, this requires professional service to drop the pan and valve body.

→ If the sensor and wiring (less than 5.0 ohms ground resistance) are functional, the issue is likely a rare fault within the PCM or the instrument cluster.

→ The fault may be intermittent. Perform a 'wiggle test' on the harness while monitoring data to check for internal wire breaks, similar to the harness quality issues noted in Recall S89.

Inspect the external transmission main connector. Is there corrosion or damage to the pins?

→ Repair the external connector. If the external harness is good, note that 6F24 sensors are internal and require removing the valve body for replacement.
