P0204 on 2009-2012 Ram 1500 5.7L HEMI: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2009-2012 Ram 1500

For this specific generation of Ram 1500, there is a well-documented issue with the injector wiring. Chrysler issued a Technical Service Bulletin (TSB #9002688) advising that the wiring loom and/or connector passing through the valve cover gasket can be the root cause for P0204 and related injector codes. This makes a wiring fault a much higher probability on these trucks compared to others where the injector itself is more likely to be the primary cause of failure.

Symptoms You May Notice

• Check Engine Light is on
• Rough idle or engine shaking
• Engine misfire, which may also trigger a P0304 code
• Poor acceleration and loss of power
• Reduced fuel economy
• Engine hesitation or stalling
• Noticeable fuel smell from the exhaust due to unburnt fuel

Most Likely Causes

1. Faulty Injector Wiring or Connector 🔴 High Probability As noted in TSB #9002688, the wiring loom and connector near the valve cover gasket are a known failure point for P020x codes on this platform. Heat and vibration can cause wires to become brittle, chafe, or break. Rodents chewing wires are also a common cause of this issue.
   How to confirm: Visually inspect the wiring harness for cylinder 4 for any signs of damage, chafing, melting, or corrosion, paying close attention to where it passes by or through the valve cover. Use a noid light on the injector connector; if it doesn't flash with the engine running, the circuit is not getting a proper signal from the PCM. If a noid light isn't available, use a multimeter to check for 12V power at the connector with the key on.
   Typical fix: Repair the damaged section of the wire or replace the injector connector pigtail. In some cases, the wiring is integrated with the valve cover gasket, requiring gasket replacement.
   Est. part cost: $15-$150
2. Failed Fuel Injector #4 🟡 Medium Probability Injectors can fail electrically over time due to internal coil winding shorts or breaks.
   How to confirm: If the wiring and signal are good (noid light flashes), test the injector's internal resistance with a multimeter. A good injector for this engine should read between 12-14 ohms. A reading of 0 ohms indicates a short, while an infinite reading (O.L.) indicates an open circuit. A common diagnostic trick is to swap the cylinder 4 injector with a neighboring one (e.g., cylinder 2). If the code changes to P0202, the injector is confirmed to be faulty.
   Typical fix: Replace the cylinder 4 fuel injector.
   Est. part cost: $50-$120
3. Faulty Powertrain Control Module (PCM) or Totally Integrated Power Module (TIPM) ⚪ Low Probability Chrysler/Ram trucks from this era (2006-2012) are known for having a high rate of TIPM failures, which can cause a wide range of difficult-to-diagnose electrical issues, including fuel system problems.
   How to confirm: This should only be considered after the wiring and fuel injector have been definitively ruled out. This requires advanced diagnostics to confirm the injector driver circuit within the PCM has failed. A technician would use a scope to check the signal pattern directly from the PCM pin for the cylinder 4 injector.
   Typical fix: Repair or replace the PCM/TIPM. Replacement TIPMs often require programming to the vehicle's VIN.
   Est. part cost: $400-$1200

Diagnosis Steps

1. Scan for codes and confirm P0204 is present. Note any other codes, especially P0304.
2. Locate cylinder 4 on the 5.7L HEMI engine (passenger side, second cylinder from the front).
3. Carefully inspect the wiring harness and connector for the cylinder 4 fuel injector. Look for any signs of chafing, melting, corrosion, or rodent damage, especially near the valve cover area as per TSB #9002688.
4. Disconnect the injector and plug a 'noid light' into the harness connector. Start the engine. The light should flash steadily. If it does not flash, or if it stays on constantly, there is a problem with the wiring or the PCM.
5. If the noid light flashes correctly, the problem is likely the injector itself. Turn off the engine.
6. Use a multimeter to measure the electrical resistance across the two terminals of the fuel injector. Compare the reading to the specification (typically 12-14 Ohms for this engine). If the reading is out of spec (often showing an open circuit 'O.L.' or near zero for a short), the injector has failed.
7. As a final confirmation, swap the suspect injector from cylinder 4 with the injector from cylinder 2. Clear the codes and run the engine. If the code changes to P0202, you have definitively confirmed a bad injector. If the P0204 code returns, the problem is in the wiring or PCM.
8. If both the wiring and the injector test good, the issue may be an intermittent connection or a rare failure of the PCM's injector driver circuit, possibly related to the TIPM.

Parts You'll Likely Need

• Fuel Injector Connector Pigtail (OEM #05019952AA) — Often the fix for the common wiring issue, replacing the connector is easier than repairing a damaged wire right at the injector. This part number is for the ignition coil connector but is often cited as a compatible replacement for the fuel injector connector as well.
  Trusted brands: Mopar, Standard Motor Products (S-824), Dorman
  OEM price range: $25-$50
  Aftermarket price range: $15-$30

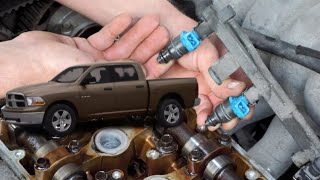

• Fuel Injector (OEM #05037479AE) — If the wiring is confirmed to be good, the injector itself is the next most likely part to have failed electrically. This part supersedes previous versions like 5037479AD.
  Trusted brands: Mopar, Bosch, Standard Motor Products
  OEM price range: $90-$150
  Aftermarket price range: $50-$90
• Fuel Injector Retaining Clip (OEM #53032905AA) — This small clip holds the fuel injector to the fuel rail. It is often brittle and can easily break or be lost during injector replacement. It's a cheap part that is highly recommended to have on hand before starting the job.
  Trusted brands: Mopar
  OEM price range: $2-$5
  Aftermarket price range: $1-$3

Related Codes That Often Appear With This One

• P0304 — P0304 means 'Cylinder 4 Misfire Detected.' Since P0204 indicates a problem with the fuel supply to cylinder 4, a misfire in that same cylinder is a direct and very common consequence.
• P0300 — P0300 means 'Random/Multiple Cylinder Misfire Detected.' If the wiring issue is intermittent or if the fuel pressure is affected, it can sometimes lead to misfires in other cylinders as well.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #9002688: Advises checking the wiring loom and/or connector in the valve cover gasket before replacing fuel injectors for Diagnostic Trouble Codes P0201, P0202, P0203, P0204, P0205, and/or P0206.

Platform-Specific Known Issues

• A known issue documented in TSB #9002688 points to the wiring loom and/or connector in the valve cover gasket as a potential cause for P020x codes. This should be the first area of inspection before considering injector replacement.

Mechanic-Grade Diagnostic Values

• Fuel Injector Internal Resistance — expected: 12.0 to 14.0 Ohms. Failure: A reading of 0 Ohms (short circuit), infinite/O.L. (open circuit), or a value significantly outside the expected range indicates a failed injector.
• Injector Pulse Width (at idle) — expected: 2 to 4 milliseconds (ms). Failure: A pulse width of 0 ms on cylinder 4 while other cylinders show normal values indicates the PCM is not commanding the injector, or the command is not reaching it. Unusually high pulse width on other cylinders can indicate the PCM is trying to compensate for the dead cylinder.
• PCM Injector Control Circuit Resistance to Ground — expected: Greater than 10k Ohms. Failure: A resistance below 10k Ohms indicates a short to ground in the injector control circuit wiring between the PCM and the injector.

Scan Tool Commands That Help

• wiTECH or other professional bidirectional scanner: Injector Kill Test / Cylinder Cutout Test — This function allows a technician to command the PCM to stop firing a specific injector (e.g., cylinder 4). If the engine's idle quality does NOT change when cylinder 4 is 'killed,' it confirms that cylinder was not contributing in the first place, pointing strongly to a problem in that circuit. If the idle gets worse, it means the injector was working to some degree.

Wiring & Ground Locations

• Engine Ground Strap — Typically located at the rear of the cylinder heads, connecting the head to the chassis/firewall. There may be one on each head.. A poor or missing engine ground can cause a host of electrical issues and erratic sensor readings. While not a direct cause of a single injector code, it can create voltage offset problems that may lead the PCM to misinterpret circuit integrity. It's a foundational check for any electrical diagnosis.
• Frame Ground — On the driver's side frame rail, forward of the upper control arm (UCA).. This is a primary chassis grounding point. Corrosion or looseness here can affect the stability of the entire vehicle electrical system, including the PCM and its sensor returns.
• PCM Connector C1 — At the Powertrain Control Module (PCM).. This is where the injector control circuit originates. Advanced diagnostics involve testing for signal and resistance directly at the PCM pins to differentiate between a wiring fault, an injector fault, and a failed PCM driver.

Real Owner Repair Stories

• RamForum.com user (1999 Ram 1500 5.2L (similar issue, demonstrates diagnostic path)) — Rough idle, stalling, smoke from exhaust, multiple codes including P0300, P0172, and intermittently P0204 and P0203.
  ❌ Tried (didn't work) Replacing spark plugs, Replacing IAC (Idle Air Control) valve, Hollowing out catalytic converter, Swapping fuel injector #3 with #1 (code P0203 returned, ruling out the injector)
  ✅ What actually fixed it The user's final post indicated that after swapping injectors didn't work, the problem was still present, leading them to suspect a wiring issue between the PCM and the injector connector, as the code did not follow the swapped injector.

OEM Part Supersession History

• 5037479AB, 5037479AC, 5037479AD → 05037479AE — Standard part evolution for improved reliability or manufacturing process.
  Heads up: The 05037479AE is the current correct OEM replacement for the 2009-2012 Ram 1500 5.7L and is backward compatible with the previous part numbers.

Model Year Variations Within This Range

• 2009-2012: Engines from 2009-2012 5.7L Ram 1500s are considered direct swaps. Engines from 2013+ have a different crankshaft tone ring and are not compatible with the 2009-2012 PCM without significant modification and sensor swaps.
• 2009-2012 vs 2013+: While the core engine wiring changed for 2013+, the fundamental injector circuit design (power from ASD relay, ground-side switched by PCM) remains the same. However, connector types and harness routing may differ, so parts are not interchangeable.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• The 'Hemi Tick' (Lifter/Camshaft Failure) 🔴 High — Common, especially on engines with inconsistent oil changes or higher mileage (70k+ miles). Often starts as a light ticking sound that gets progressively worse.
• Broken Exhaust Manifold Bolts 🟠 Medium — Extremely common. The ticking sound is most noticeable on a cold start and may quiet down as the engine warms and the metal expands.
• Totally Integrated Power Module (TIPM) Failure 🔴 High — Widespread issue affecting 2006-2012 model year Ram trucks. Failures can be intermittent and random. (Ref: Subject of multiple class-action lawsuits.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a junkyard is a very cost-effective and sensible repair if the damage to your original connector is localized. A complete used engine wiring harness is also a viable option if yours has extensive damage (rodents, fire), provided it comes from the exact same year range (2009-2012).

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For wiring: Check for brittle insulation, cracked connector tabs, and any signs of previous repairs (splices, tape).
• For injectors: Look for clean tips without heavy carbon buildup. Ask if the donor vehicle was running when it was taken out of service.
• For TIPM/PCM: Ensure no visible signs of water intrusion or corrosion on the connectors. Check the donor vehicle's history for electrical problems if possible.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - While used ones can work, they require programming to your vehicle's VIN and can be problematic. A remanufactured unit from a reputable supplier with a warranty is a safer bet.
• Totally Integrated Power Module (TIPM) - Due to the high failure rate and critical nature of this part, a new or professionally remanufactured unit with a warranty is strongly recommended over a used one of unknown history.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the OEM supplier)
• Standard Motor Products (SMP)
• GP Sorensen

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand injector sets from online marketplaces should be avoided. They often have poor quality control, leading to inconsistent flow rates, premature failure, and potential engine performance issues.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0304 — A cylinder 4 misfire code that frequently triggers alongside P0204 when the injector circuit fails to deliver fuel.
• P0202 — An injector circuit code for cylinder 2; often mentioned during diagnostics if injectors are swapped to confirm a failure.
• P0201 — Cylinder 1 injector circuit code; listed alongside P0204 in TSB #9002688 as sharing the same wiring loom failure points.
• P0203 — Cylinder 3 injector circuit code; identified in TSB #9002688 as a potential result of heat and vibration damaging the wiring harness.
• P0205 — Cylinder 5 injector circuit code; part of the P020x series of codes related to the valve cover gasket wiring loom issues.
• P0206 — Cylinder 6 injector circuit code; also covered under TSB #9002688 for the 5.7L HEMI platform.
