P0194 on 2010-2015 Hyundai Tucson 2.4L GDI: Intermittent Fuel Pressure Sensor Causes & Fixes

What's Unique About the 2010-2015 Hyundai Tucson

The 2.4L 'Theta II' GDI engine in this generation of Tucson operates a high-pressure fuel system that is sensitive and has several known issues. For code P0194, the main platform-specific challenge is the location of the Fuel Rail Pressure Sensor (FRPS); it is buried underneath the plastic intake manifold, making replacement a labor-intensive job. Furthermore, the wiring harness, including a specific intermediate harness-to-harness connector also under the manifold, is a known weak point prone to heat and vibration damage, which can mimic the symptoms of a failed sensor.

Symptoms You May Notice

• Check Engine Light is on
• Hesitation or stumbling during acceleration.
• Rough or unstable idle.
• Reduced engine power or sluggishness.
• Engine may be difficult to start.
• Potential for engine stalling.

Most Likely Causes

1. Faulty Fuel Rail Pressure Sensor (FRPS) 🔴 High Probability The FRPS on the Theta II GDI engine is a very common failure point due to constant exposure to extreme heat and pressure cycles. This is a shared issue across platform mates like the Kia Sportage and Hyundai Sonata.
   How to confirm: After confirming the wiring is intact (including 5V reference and ground), the sensor is the presumed cause. A scan tool may show erratic or illogical pressure readings that don't correspond to engine load. A Key On, Engine Off (KOEO) voltage reading that is not ~0.5V is a strong indicator of failure.
   Typical fix: Replace the Fuel Rail Pressure Sensor. 🎬 Watch: Step-by-step 2.4L GDI sensor replacement walkthrough This requires removing the intake manifold for access and properly depressurizing the fuel system. It is highly recommended to replace the intake manifold gaskets at the same time.
   Est. part cost: $60-$150
2. Wiring Harness or Connector Issue 🟡 Medium Probability The wiring harness runs under the intake manifold where it is exposed to significant heat and vibration. A specific, hard-to-see intermediate harness connector in this location is a known weak point that can corrode or loosen, causing intermittent signals that trigger P0194.
   How to confirm: Visually inspect the wiring harness for any signs of melting, chafing, or rodent damage. Perform a 'wiggle test' by shaking the harness while monitoring sensor voltage on a scan tool; fluctuations point to a wiring fault. Use a multimeter to check for continuity and shorts between the sensor connector and the ECM. Focus on the intermediate connector under the intake if accessible.
   Typical fix: Repair the damaged section of the wiring harness or clean, apply dielectric grease, and secure the faulty connector. In a documented case on a similar Hyundai GDI engine, cleaning and re-seating a corroded 🎬 See: How to diagnose GDI fuel sensor codes intermediate connector under the intake manifold was the definitive fix.
   Est. part cost: $10-$100

Rare But Worth Checking

• Failing High-Pressure Fuel Pump (HPFP): While the HPFP is a known failure point on this engine (often causing P0087), it's less likely to cause a P0194 circuit code. However, an internally failing pump could cause erratic pressure behavior that the ECM misinterprets as a sensor signal issue.
• Powertrain Control Module (PCM) Fault: This is very rare, but a failing driver circuit within the PCM could cause this code. This should only be considered after all other possibilities have been exhaustively ruled out.

Diagnosis Steps

1. Connect a professional scan tool to confirm the P0194 code and check for any other stored codes.
2. Monitor the live data stream for Fuel Rail Pressure and FRPS voltage. Observe the readings with the key on/engine off, at idle, and while revving the engine. Look for erratic jumps, dropouts, or values that don't make sense.

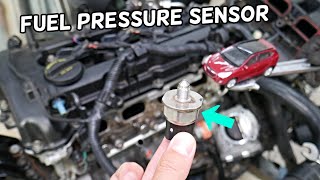

3. Turn the vehicle off. Locate the FRPS on the fuel rail, 🎬 Watch: Finding and replacing the hidden sensor under the intake manifold.
4. Visually inspect the sensor's electrical connector and the nearby wiring harness for any visible damage, melting, corrosion, or loose pins.
5. Perform a 'wiggle test': With the engine running or key on, carefully wiggle the wiring harness leading to the sensor while watching the live data. If the pressure reading fluctuates wildly, you have found a wiring issue. Pay special attention to the area where the harness goes under the intake.
6. If no issue is found, proceed with intake manifold removal to gain access to the sensor connector and the intermediate harness connector.
7. Disconnect the sensor. With the key on, use a multimeter to test the connector terminals for a 5-volt reference signal and a good ground from the ECM.
8. If the 5V reference and ground are present, and the wiring is confirmed to be good, the Fuel Rail Pressure Sensor is the most likely failed component.
9. Before replacing any parts, ensure the high-pressure fuel system is properly and safely depressurized according to the manufacturer's procedure detailed in TSB 19-FL-001H. A scan tool (like the Hyundai GDS) may be required to perform the 'Release Residual Pressure in Fuel Line' function.

Parts You'll Likely Need

• Fuel Rail Pressure Sensor (OEM #35342-2G700) — This sensor is the most common failure point for code P0194 on this engine due to heat and pressure stress.
  Trusted brands: Hyundai (OEM), Bosch, Delphi, Standard Motor Products
  OEM price range: $120-$200
  Aftermarket price range: $60-$120
• Intake Manifold Gasket (OEM #28411-2G000) — The intake manifold must be removed to access the sensor, and the gasket is a single-use part that should always be replaced to prevent vacuum leaks.
  Trusted brands: Hyundai (OEM), Fel-Pro, Mahle
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0192 — This code for 'Fuel Rail Pressure Sensor Circuit Low' can appear alongside P0194 if the intermittent fault includes periods of low voltage signal.
• P0193 — This code for 'Fuel Rail Pressure Sensor Circuit High' can appear with P0194 if the erratic signal includes voltage spikes or shorts to power.
• P0191 — This code for 'Fuel Rail Pressure Sensor Circuit Range/Performance' is often set when the sensor's signal is not rational compared to other engine parameters, which can happen during an intermittent fault.

Technical Service Bulletins (TSBs) & Recalls

• TSB 19-01-001H (Recall 180): Addresses inspection and replacement of the high-pressure fuel pipe due to leak risks on certain 2.4L GDI models, including the 2014-2015 Tucson.
• TSB 19-FL-001H: Provides special service information and handling procedures for the high-pressure GDI fuel system, which is critical for anyone performing this repair.

Platform-Specific Known Issues

• Recall Campaign 180 (TSB 19-01-001H) was issued for 2014-2015 Tucson 2.4L models. It addresses a high-pressure fuel pipe that could leak if it was damaged, misaligned, or improperly torqued during a prior engine replacement, increasing fire risk. This highlights the sensitivity of the GDI fuel system.
• The Theta II 2.4L GDI engine family has a known history of severe connecting rod bearing failure that can trigger code P1326 and lead to complete engine seizure. While unrelated to P0194, it's critical context for any owner of this vehicle, as Hyundai issued a lifetime warranty extension for this specific failure on eligible vehicles.

Mechanic-Grade Diagnostic Values

• FRPS Signal Voltage (Key On, Engine Off) — expected: ~0.5V. Failure: A reading near 5.0V suggests a short to power or open signal circuit; a reading near 0V suggests a short to ground. A reading of ~1.7V or higher can indicate a faulty aftermarket sensor.
• FRPS Signal Voltage (Idle) — expected: ~1.3V - 1.8V. Failure: Voltage that is erratic, jumps randomly, or does not respond to changes in engine RPM.
• FRPS 5V Reference at Connector — expected: 5.0V +/- 0.2V. Failure: No voltage or low voltage indicates a wiring issue from the ECM or a faulty ECM.
• High-Pressure Fuel System (Scan Tool Data) — expected: Idle: ~40 bar (~580 PSI). Under Load: Up to 150 bar (~2175 PSI).. Failure: Readings that are erratic, jump to maximum, or drop to zero intermittently.
• Low-Pressure Fuel System (In-tank pump) — expected: 480 - 520 kPa (69.6 - 75.4 psi). Failure: Pressure below this range indicates a weak in-tank pump or clogged filter, which can starve the High-Pressure Fuel Pump (HPFP).

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Release Residual Pressure in Fuel Line — This is a critical safety function to be run before disconnecting any high-pressure fuel lines, including the FRPS, to prevent high-pressure fuel spray and fire risk.
• Hyundai GDS (Global Diagnostic System): Component Change Routine — Some service data suggests this routine should be performed after replacing the Fuel Rail Pressure Sensor to ensure the ECM correctly recognizes and calibrates to the new component.
• Hyundai GDS (Global Diagnostic System): Learning Values Save / Write — This function is required if the ECM itself is suspected to be faulty and needs replacement. The learning values from the old module must be saved and written to the new one.

Wiring & Ground Locations

• FRPS Signal Wire — Runs from the FRPS connector (under the intake manifold) to the ECM. On some models, this is Pin 27 of the right-hand ECM connector.. Allows for a definitive end-to-end continuity test, bypassing the intermediate connector to isolate a break in the wire itself.
• FRPS Connector Pinout — On the sensor itself, under the intake manifold.. Knowing the pinout (e.g., Pin 1: Power, Pin 2: Signal, Pin 3: Ground) is essential for accurate multimeter testing of voltage, ground, and signal integrity at the sensor.
• Intermediate Harness Connector — Hidden under the intake manifold, between the FRPS pigtail and the main engine harness.. This is a notorious, hard-to-find failure point. Heat and vibration can cause corrosion or a loose connection here, creating an intermittent signal that perfectly mimics a failing sensor.
• Main Engine Ground Strap — Typically a braided metal strap connecting the engine block or transmission housing directly to the vehicle's chassis/frame.. A poor engine ground can cause widespread electrical issues. The alternator may overcharge to compensate, creating unstable voltage that can affect sensor readings and even cause components like the fuel pump to overheat and fail prematurely.

Real Owner Repair Stories

• Go-Parts.com article citing YouTube tech (2012 Kia Optima 2.4L GDI (shared platform/engine)) — Intermittent crank-no-start, long crank times, codes P0087 and P0193.
  ❌ Tried (didn't work) Replacing the High-Pressure Fuel Pump (HPFP) with a new OEM part.
  ✅ What actually fixed it The owner had installed a new aftermarket Fuel Rail Pressure Sensor which was faulty out of the box. It sent an incorrect 1.7V at KOEO instead of the correct ~0.5V. Replacing the new aftermarket sensor with a quality OEM sensor resolved all codes and symptoms.
• Go-Parts.com / YouTube channel 'Fix it Angel' (2014 Hyundai Santa Fe / Elantra GDI (similar GDI fuel system)) — Intermittent P0191, P0192, and P0193 codes, rough idle, hard starting.
  ❌ Tried (didn't work) Initial diagnosis pointed towards replacing the FRPS itself.
  ✅ What actually fixed it A 'wiggle test' on the wiring harness under the intake manifold while monitoring live data revealed the problem. The fault was a loose and corroded intermediate wiring harness connector hidden under the manifold. Cleaning the pins and securely re-seating this hidden connector provided a permanent fix.

OEM Part Supersession History

• 35342-2G700 → 35342-2GGA0 (Possible) — Part update or supplier change.
  Heads up: Part catalogs show 35342-2GGA0 as fitting the 2.4L Tucson. However, always verify the correct part number with a Hyundai dealer using the vehicle's VIN. Be aware that very similar part numbers like 35340-2G710 may refer to the entire fuel rail assembly or a different sensor, leading to confusion.

Model Year Variations Within This Range

• 2014-2015: These model years were included in Recall Campaign 180 for a high-pressure fuel pipe that could leak if improperly handled during prior engine repairs, increasing fire risk. While not a direct cause of P0194, it highlights the sensitivity of the fuel system components on these later models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Catastrophic Engine Failure (Rod Bearing Wear) 🔴 High — Widespread issue, often occurring between 60k-120k miles. Led to class-action lawsuits and a lifetime warranty extension for the engine short block for eligible vehicles that received the KSDS update. Triggers code P1326. (Ref: Campaign 953 (KSDS Update); TSB 20-01-024H (Engine Inspection/Replacement))
• Excessive Oil Consumption 🔴 High — Extremely common, often starting around 60,000-80,000 miles. Considered a primary contributor to sludge buildup and the more severe rod bearing failures.
• ABS Module Internal Leak / Fire Risk 🔴 High — Subject of a major safety recall (NHTSA 20V-520). The ABS module can leak brake fluid internally, causing an electrical short and increasing the risk of an engine compartment fire, even while parked. (Ref: NHTSA Recall 20V-520)
• Intake Valve Carbon Buildup 🟠 Medium — An inherent issue for all GDI engines, including the Theta II. Typically requires walnut blasting or manual cleaning every 60,000-100,000 miles to prevent rough idle, misfires, and power loss.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using used parts is generally not recommended. However, if the issue is confirmed to be a damaged connector pigtail, a used pigtail from a junkyard harness can be a cost-effective solution, provided the wires and connector are in excellent condition.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, inspect for any signs of brittleness, melting, or corrosion on the pins.
• Ensure the locking tab on the connector is intact and functional.
• Avoid parts from vehicles with signs of engine fires, heavy front-end damage, or rodent infestation.

OEM-only on this vehicle (don't cheap out):

• Fuel Rail Pressure Sensor (FRPS)
• High-Pressure Fuel Pump (HPFP)

Aftermarket brands forum-validated for this vehicle:

• Bosch
• Delphi
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost sensors from online marketplaces like eBay or AliExpress should be avoided. A documented repair case showed a brand-new aftermarket sensor was faulty out of the box, causing significant diagnostic confusion.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0191 — Often diagnosed alongside P0194; relates to fuel rail pressure sensor range/performance issues on the same GDI high-pressure system.
• P0193 — A high-input companion code for the fuel rail pressure sensor that can be triggered by the same faulty sensor or wiring corrosion under the intake manifold.
• P1326 — A critical code for the Theta II 2.4L GDI engine involving the Knock Sensor Detection System (KSDS), related to the lifetime warranty extension for rod bearing failure.
• P0171 — May appear if the fuel rail pressure sensor provides incorrect data, leading to improper fuel trim adjustments and a lean condition.
