P0134 on 2007-2013 Acura MDX 3.7L: Causes and Fixes for A/F Sensor No Activity

What's Unique About the 2007-2013 Acura MDX

The J-series V6 engine, including the J37A1 in the MDX, places Bank 1 against the firewall, making access to this specific sensor more challenging than for Bank 2, which is at the front of the engine bay. While the failure itself is a common issue for many vehicles, owners of this MDX often find the repair is more about patience and working in a tight space than complex diagnostics. Using an OEM-equivalent sensor brand like Denso is highly recommended, as these engines can be sensitive to aftermarket sensor quality. Forum users frequently report issues with brands like Bosch on Honda/Acura platforms, even though they are reputable for other makes.

Symptoms You May Notice

• Check Engine Light is on
• Decreased fuel economy
• Failure to pass an emissions test
• Rough idling or engine hesitation
• In some cases, the SH-AWD system light may also illuminate, as the vehicle's computer can disable the system when certain engine faults are present.

Most Likely Causes

1. Failed Bank 1, Sensor 1 Air/Fuel Ratio Sensor 🔴 High Probability The internal heater element within the sensor is a common failure point over time. This prevents the sensor from warming up and sending a signal, triggering the 'No Activity' code. This is the most common cause reported by owners.
   How to confirm: Use a scan tool with live data to monitor the 'B1S1' voltage. A healthy sensor will show rapidly fluctuating voltage after startup. If the voltage is flat, very low (e.g., below 0.1V), or stuck (e.g., at 0.45V), the sensor has likely failed. A professional scanner can also test the heater circuit directly.
   Typical fix: Replace the Bank 1, Sensor 1 Air/Fuel Ratio sensor. The sensor is located on the rear exhaust manifold, against the firewall.
   Est. part cost: $120-$220
2. Damaged Wiring or Poor Connection ⚪ Low Probability The wiring harness is located in a hot, tight area of the engine bay. While protected, it can become brittle, melt, or get damaged during other maintenance, leading to an open or short circuit.
   How to confirm: Visually inspect the wiring harness leading to the Bank 1 Sensor 1 for any signs of melting, chafing, or corrosion at the connector. The connector is tucked between the engine and firewall and may require a mirror to see clearly. Check for continuity using a multimeter if damage is suspected.
   Typical fix: Repair the damaged section of the wire or clean/replace the connector.
   Est. part cost: $5-$50
3. Blown Fuse for Sensor Heater Circuit ⚪ Low Probability
   How to confirm: Check the vehicle's fuse boxes (both under-hood and in-cabin) for any blown fuses related to the emissions system or O2/A/F sensors. On many Honda/Acura models, this is fuse #4 (15A) in the under-hood fuse box, labeled 'A/F SENSOR'.
   Typical fix: Replace the blown fuse. If the fuse blows again immediately, it indicates a short circuit in the wiring or the sensor itself that must be diagnosed.
   Est. part cost: $1-$5

Rare But Worth Checking

• Exhaust Leak: An exhaust leak before the A/F sensor can introduce extra oxygen and skew readings. This would more commonly cause a P0171 (System Too Lean) code but is worth checking if a new sensor doesn't solve the problem.
• Faulty Powertrain Control Module (PCM): This is extremely rare. All other possibilities, including the sensor, wiring, and fuses, should be exhaustively ruled out before considering a PCM failure. Some later model Acuras had TSBs for PCM software updates to fix erroneous P0134 codes, but this is less documented for the 2007-2013 MDX.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0134 is the active code. Note any other codes present, like P0135.
2. Use the scanner's live data function to observe the voltage for 'O2S B1S1' (Bank 1, Sensor 1). After the engine warms up, it should fluctuate rapidly. If it remains flat (e.g., 0.0V - 0.1V) or fixed, it confirms a lack of activity.
3. Turn off the engine. Locate the sensor on the rear exhaust manifold, near the firewall. The connector has a blue wire loom.
4. Inspect the sensor's wiring harness and connector for any visible damage, such as melting, fraying, or loose connections. Use a mirror if needed.
5. Check the vehicle's fuse diagrams and inspect the fuse(s) for the O2/A/F sensor heater circuit. The primary one to check is the 15A 'A/F SENSOR' fuse in the under-hood fuse box.
6. If the wiring and fuses are good, the A/F sensor itself is almost certainly the cause.
7. Replace the Bank 1, Sensor 1 A/F sensor. A 22mm (or 7/8") slotted oxygen sensor socket and a long ratchet or breaker bar will be necessary. Penetrating oil on the threads beforehand is highly recommended. The torque spec is typically around 33 ft-lbs.

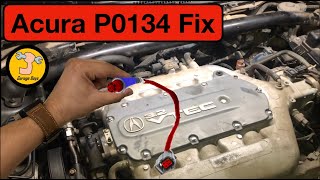

🎬 See this step-by-step walkthrough for replacing the Bank 1 sensor.
8. After replacement, clear the codes with the scanner and perform a test drive to ensure the Check Engine Light does not return.

Parts You'll Likely Need

• Air/Fuel Ratio Sensor (Bank 1, Sensor 1) (OEM #36531-RYE-A01) — This is the upstream sensor for the rear cylinder bank, and its internal heater element is the most common point of failure for code P0134.
  Trusted brands: Denso (OEM supplier, part #234-5053), NGK/NTK (OEM supplier)
  OEM price range: $200-$250
  Aftermarket price range: $120-$160
• Oxygen Sensor Socket — A special 22mm (7/8 inch) slotted socket is required to remove and install the oxygen sensor without damaging the wire. This is considered an essential tool for the job.
  Trusted brands: Lisle, OEMTOOLS, GearWrench
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0135 — This code is for 'O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)'. Since a failed heater is the most common reason for the 'No Activity' of P0134, these two codes often appear together.
• P2243 — This code indicates 'O2 Sensor Reference Voltage Circuit/Open (Bank 1 Sensor 1)'. It often appears with P0134 and points directly to a failed sensor or a wiring issue.

Platform-Specific Known Issues

• Owner Experience: Successful DIY Replacement: An owner on YouTube documented the P0134 repair on a 2008 MDX, confirming the sensor location against the firewall and the tight working space. They successfully completed the replacement using a standard O2 sensor socket and extensions, resolving the code.
🎬 Watch this owner's successful DIY replacement on a 2008 MDX.
• Forum Discussion: Wrong Sensor Replaced: A thread on AcuraZine highlights a common mistake where an owner first replaced the front (Bank 2) sensor by mistake, which did not fix the P0134 code. The issue was only resolved after replacing the correct rear (Bank 1) sensor.

Mechanic-Grade Diagnostic Values

• A/F Sensor Heater Circuit Resistance — expected: 10-40 Ohms is a general specification for many Honda/Acura HO2S heaters.. Failure: A reading of infinite resistance (open circuit) or very low resistance (short circuit). A forum post for a similar Acura engine noted a bad sensor reading over 110-200 ohms, while a good one was around 2.5-4.0 ohms.
• A/F Sensor Live Data Voltage (B1S1) — expected: Should fluctuate rapidly between approximately 0.1V and 0.9V on a warmed-up engine.. Failure: Voltage is flat, stuck near 0V, or fixed at a specific value (e.g., 0.45V), indicating no activity.

Scan Tool Commands That Help

• Honda HDS (or advanced generic scanner): A/F CONTROL Active Test — This function allows a technician to manually command the fuel mixture rich or lean. By observing the B1S1 voltage response during this test, a technician can confirm if the sensor is reacting correctly or if it is truly inactive.

Wiring & Ground Locations

• G101 — Located on the right side of the engine compartment.. This is a primary engine ground point. A corroded or loose G101 can cause a variety of sensor and PCM-related issues, including erratic or missing sensor signals that could potentially trigger a P0134 code.
• Rear A/F Sensor (B1, S1) Connector — On the wiring harness near the rear of the engine, against the firewall, connecting to the sensor. It often has a blue wire loom.. This is the direct connection point for the sensor. Checking for voltage, ground, and signal continuity at this connector's pins is a critical diagnostic step to differentiate between a bad sensor and a wiring problem.

Real Owner Repair Stories

• AcuraZine Forum User (Acura TL (similar J-series engine and issue)) — P0134 code would not clear, preventing passing an emissions test.
  ❌ Tried (didn't work) Replaced all 4 O2 sensors with OEM parts., Disconnected the battery to clear the code.
  ✅ What actually fixed it The user was still diagnosing at the end of the thread, but other members suggested checking the wiring harness for damage and verifying the correct sensor part number was used, as even OEM catalogs can be confusing. The unresolved nature highlights the importance of confirming wiring integrity before assuming the new part is faulty or the PCM is bad.

OEM Part Supersession History

• 36531-RYE-A01 → No direct supersession found for this specific part number within the 2007-2009 model years it is listed for. — N/A
  Heads up: It is critical to use the correct part for the specific bank and position. While the front and rear sensors may look physically similar, they have different internal calibrations and wire lengths. Using the wrong sensor will cause the code to persist.

Model Year Variations Within This Range

• 2010-2013: The 2010 model year received a facelift which included a new 6-speed automatic transmission (replacing the 5-speed) and an updated J37A1 V6 with a higher compression ratio (11.2:1 vs 11.0:1) and forged aluminum pistons. While the fundamental cause of P0134 (sensor failure) remains the same, these powertrain changes could mean subtle differences in PCM software or wiring.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Engine Oil Consumption 🔴 High — Widespread enough to trigger a warranty extension. Caused by carbon buildup on oil control rings. Often becomes noticeable after 70,000 miles. (Ref: Acura TSB 19-006 & 19-052 extended the warranty to 8 years/125,000 miles for this issue.)
• Torque Converter Shudder/Vibration 🟠 Medium — Commonly reported issue causing a vibration or judder, especially between 20-60 mph under light acceleration. Can occur at various mileages. (Ref: Acura TSB 16-044 (for later models) suggests a transmission fluid flush as a first step, though many owners report needing a torque converter replacement.)
• Active Damper System (ADS) Failure 🔴 High — Affects Sport/Advance trims only. The magnetic ride shocks are prone to leaking and electronic failure, with high replacement costs ($500-$1000 per corner). Failures can occur as early as 30,000 miles.
• Hands-Free Link (HFL) Module Failure 🟡 Low — A very common failure where the HFL Bluetooth module fails, causing a parasitic battery drain that can kill the battery overnight.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, a used part is NEVER recommended. Air/Fuel ratio sensors are wear items with a finite lifespan, determined by heat cycles and mileage. A used sensor from a junkyard has an unknown history and is likely to fail soon, if it works at all, wasting time and money.

What to inspect on the donor part:

• Not applicable. Do not purchase a used A/F sensor.

OEM-only on this vehicle (don't cheap out):

• Air/Fuel Ratio Sensor

Aftermarket brands forum-validated for this vehicle:

• Denso (the OEM supplier, part #234-5053)
• NGK/NTK (also a trusted OEM supplier for many Japanese vehicles)

Brands owners have reported issues with on this vehicle:

• Generic 'no-name' parts from online marketplaces.
• Bosch (While a reputable brand for European cars, many Honda/Acura owners report compatibility issues and premature failures with their sensors on J-series engines).

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0135 — Often appears with P0134; it specifically indicates a malfunction in the O2 sensor heater circuit, which is a common failure point for the Bank 1, Sensor 1 on this vehicle.

Frequently Asked Questions
