P0012 on 2015-2018 Lincoln MKX: Causes and Fixes for Over-Retarded Cam Timing

What's Unique About the 2015-2018 Lincoln MKX

On these Lincoln engines, the Variable Camshaft Timing (VCT) system is very sensitive to oil quality and pressure. Ford and Lincoln have acknowledged in multiple Technical Service Bulletins (TSBs) that the VCT solenoids are prone to sticking because of small debris in the engine oil. This is a well-known characteristic of this platform, making an oil check the most critical first step. For V6 models, the repair is more complex because Bank 1 is against the firewall, making the solenoids difficult to access, often requiring removal of the upper intake manifold. The 3.7L Cyclone V6, used in transverse (FWD/AWD) applications like the MKX, also has a known weakness with its internal, timing-chain-driven water pump; a failure can contaminate the oil with coolant, leading to VCT system and timing component failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2015-2018 range covers the end of the first generation (2015) and the beginning of the second generation (2016-2018) of the Lincoln MKX. However, the available 3.7L V6 and 2.7L EcoBoost V6 engines and their VCT systems are similar, and the cited TSBs cover this entire year range, indicating the causes and fixes are consistent across these models. The second-generation MKX was renamed the Lincoln Nautilus for the 2019 model year, which shares the same 2.7L engine and potential issues.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle
• Engine hesitation or stalling, especially at low speeds.
• Reduced engine power and poor acceleration.
• Decreased fuel economy.
• Hard starting condition.
• Rattling noise from the engine, especially on cold starts.

Most Likely Causes

1. Low, Dirty, or Incorrect Viscosity Engine Oil 🔴 High Probability The VCT system uses hydraulic pressure to adjust cam timing, and the solenoids have very small oil passages that are easily clogged by sludge or debris from old oil. EcoBoost engines, in particular, are known to be hard on oil due to turbo heat and fuel dilution, making timely changes with full synthetic oil critical.
   How to confirm: Check the engine oil dipstick. If the oil is below the 'add' line, dark, or gritty, it needs to be changed or topped off. A flickering oil pressure light is a definitive sign of a severe oiling problem. On 3.7L engines, milky-looking oil indicates a potential internal water pump failure.
   Typical fix: Perform an engine oil and filter change using the manufacturer-specified grade of oil (e.g., SAE 5W-30 for 2.7L EcoBoost, SAE 5W-20 for 3.7L Cyclone). In many documented owner experiences, a simple oil change resolves the code.
   Est. part cost: $40-$80
2. Failing Variable Camshaft Timing (VCT) Solenoid 🔴 High Probability TSBs #SSM 48423 and #SSM 47170 specifically state that P0012 on these vehicles may be due to small debris causing the VCT solenoid to stick. The TSBs recommend using a scan tool to cycle the solenoid 10 times to try and clear the debris before replacement.
   How to confirm: Use a scan tool to monitor desired vs. actual cam timing. A common diagnostic step is to swap the Bank 1 intake VCT solenoid with the Bank 2 intake solenoid. If the code changes to P0022 (Bank 2), the solenoid is confirmed as the faulty part. A multimeter can also be used to check the solenoid's resistance, which should typically be between 6.9 and 7.9 ohms. Some sources cite a broader acceptable range of 5-15 ohms.
   Typical fix: Replace the Bank 1 intake VCT solenoid. On V6 engines, this is labor-intensive as Bank 1 is the rear bank and requires removing the intake manifold for access.
   Est. part cost: $40-$90
3. Stretched Timing Chain or Worn Cam Phaser ⚪ Low Probability While less common than oil or solenoid issues, timing chains can stretch over time, and cam phasers can fail. This is a known issue on higher-mileage 3.7L Cyclone and first-generation 2.7L EcoBoost engines (2015-2017). The 3.7L's internal water pump failure can also lead to timing chain damage from coolant-contaminated oil.
   How to confirm: A persistent rattling noise from the engine, especially on cold starts, is a strong indicator. This requires removing the valve and timing covers for visual inspection of chain slack and phaser condition. This is a labor-intensive diagnosis.
   Typical fix: Replace the timing chain, guides, tensioners, and camshaft phasers. This is a complex and expensive repair. If the 3.7L water pump has failed, it must be replaced as part of the timing job.
   Est. part cost: $500-$1500

Rare But Worth Checking

• Failed Camshaft Position Sensor: This is rare because a failing sensor itself usually triggers a different set of codes related to its electrical circuit (like P0340 or P0345), not a mechanical timing correlation code like P0012. Owners sometimes replace this sensor mistakenly when the issue is the VCT solenoid or oil.
• Wiring or Connector Issue: A damaged wire or loose/corroded connector at the VCT solenoid can mimic a failed solenoid. Always inspect the wiring harness for visible damage before replacing parts.
• Clogged VCT Solenoid Oil Passages: In cases of severe engine sludge from neglected oil changes, the small oil passages in the cylinder head that feed the VCT system can become blocked, starving the components of oil pressure even if the pump and solenoid are functional.

Diagnosis Steps

1. Check the engine oil level and condition. If it is low, dirty, or milky (coolant contamination), change the oil and filter, clear the code, and re-test. This is the most common and cheapest fix.
2. Use a diagnostic scan tool to read the freeze frame data and check for any other stored trouble codes.
3. Inspect the wiring and connector for the Bank 1 intake VCT solenoid for any signs of damage, corrosion, or loose connections.
4. With a scan tool, monitor the desired versus actual camshaft position angles for Bank 1. Per TSB #SSM 48423, use the scan tool's bidirectional controls to command the VCT solenoid on and off 10 times to attempt to clear any internal debris.
5. If possible, swap the Bank 1 intake VCT solenoid with the Bank 2 intake VCT solenoid. Clear the codes and drive the vehicle. If the code returns as P0022, the original solenoid is faulty and needs replacement.
6. If the solenoid appears to be working, listen for any rattling or ticking noises from the engine, especially on cold startup. This could indicate a timing chain, tensioner, or cam phaser issue.
7. If a timing chain or phaser issue is suspected, a more in-depth mechanical inspection is required, which typically involves removing the valve cover and timing cover to check for chain slack or damaged components. This is a job for an experienced technician.

Parts You'll Likely Need

• Engine Variable Valve Timing (VVT) Solenoid (OEM #Motorcraft BR3Z-6M280-D (Causal part base 6M280)) — This is the most common failed component for P0012, as noted in multiple manufacturer TSBs. It gets stuck due to oil debris.
  Trusted brands: Motorcraft, Dorman, Standard Motor Products (SMP)
  OEM price range: $60-$90
  Aftermarket price range: $30-$60

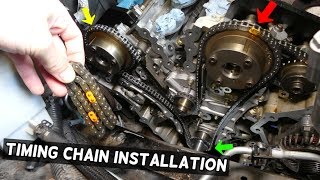

• Timing Chain Kit — If the VCT solenoid and oil are fine, a stretched timing chain or failed phaser is the next likely cause, especially if a startup rattle is present.
  Trusted brands: Melling, Cloyes, Dayco
  OEM price range: $600-$1200
  Aftermarket price range: $400-$800

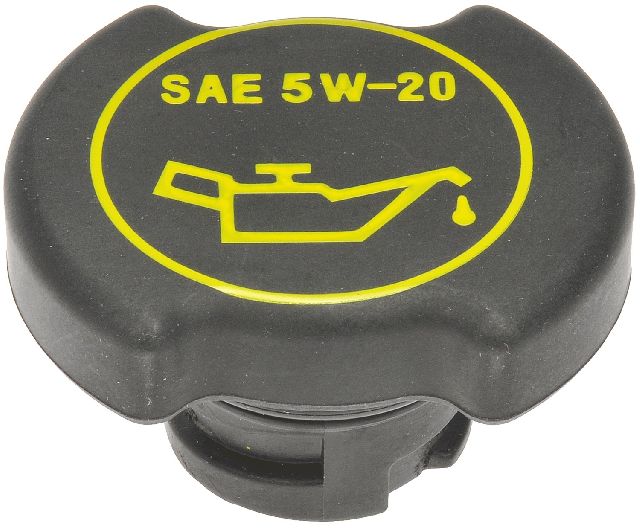

• Engine Oil and Filter (OEM #Motorcraft FL-500S (Filter for 2.7L/3.7L)) — Low or contaminated oil is the leading cause of VCT system faults and should always be the first thing addressed.

Related Codes That Often Appear With This One

• P0022 — This is the same over-retarded code for Bank 2. Seeing P0012 and P0022 together strongly points to a systemic issue affecting both banks, such as low/dirty oil or low oil pressure from a failing pump.
• P0011, P0014, P0021, P0024 — These are other VCT-related codes for over-advanced or exhaust cam timing faults. The TSBs group all these codes as having a common root cause in the VCT solenoids sticking from oil debris.
• P0016 — This indicates a loss of synchronization between the crankshaft and the Bank 1 camshaft, which can occur if the timing chain has stretched or a phaser has failed completely.
• P0017 — This is a crankshaft-camshaft correlation error for the Bank 1 exhaust camshaft. A severe timing chain issue or oiling problem on Bank 1 could cause both P0012 and P0017 to appear, as documented in a case where an engine overheated and jumped time.

Technical Service Bulletins (TSBs) & Recalls

• SSM 54366: Notes P0012 as a potential DTC on 2015-2021 Ford and Lincoln vehicles related to the VCT system.
• SSM 48423: States that P0012 on 2015-2020 models may be due to small debris causing the VCT solenoid to stick and recommends a diagnostic cycling test.
• SSM 47170: An earlier TSB that also identifies sticking VCT solenoids from debris as a primary cause for P0012 and related codes.

Platform-Specific Known Issues

• Technical Service Bulletin #SSM 48423 and #SSM 47170 directly address P0012 on 2015-2020 Ford and Lincoln vehicles, stating the cause may be 'small debris causing the VCT solenoid to stick.' The TSB advises cycling the solenoid with a scan tool before replacement.
• On the 3.7L V6 and 2.7L EcoBoost V6 engines, Bank 1 is located at the rear of the engine bay against the firewall, making access to the VCT solenoid significantly more difficult and labor-intensive than for Bank 2. This often requires removing the intake manifold.
• For the 3.7L Cyclone V6, a known failure point is the internal, timing-chain-driven water pump. When it fails, it leaks coolant into the oil pan, creating a 'milkshake' that destroys lubrication and causes widespread timing system failure, often triggering codes like P0012.

Mechanic-Grade Diagnostic Values

• VCT Solenoid Internal Resistance — expected: 6.9 to 7.9 ohms. Failure: A reading outside this range, or an open circuit (infinite resistance), indicates a failed solenoid.
• VCT Solenoid Internal Resistance (Broader Range) — expected: 5 to 15 ohms. Failure: A reading outside this range suggests a potential issue with the solenoid's internal coil.
• VCT Solenoid Voltage Supply (Key On, Engine Off) — expected: Battery Voltage (approx. 12V). Failure: No voltage indicates a problem with the power supply circuit, fuse, or PCM power relay.
• Scan Tool PID: VCT_ADV_ERR (VCT Advance Error) — expected: Should hover around 0 degrees at idle and during steady-state driving.. Failure: A consistent, significant deviation from 0 degrees for Bank 1 while the P0012 code is active points to a mechanical or hydraulic issue (stuck solenoid, phaser, or oil flow problem).

Hidden / Shadow Codes Worth Checking

• Mode 6, Test ID $81 (TID $81): This test monitor in Mode 6 tracks the bank-to-bank timing error for the Variable Camshaft Timing system. While not a separate code, excessive failure counts here can point to an emerging VCT problem before a code like P0012 is set. (see via A scan tool capable of reading Mode 6 data, such as Ford's IDS or advanced tools like FORScan.)

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): VCT Advance Error PID (VCT_ADV_ERR) — To monitor the real-time difference between the PCM's commanded camshaft angle and the actual angle reported by the sensor. A large, persistent error on Bank 1 confirms the fault condition.
• Professional Scan Tool (Bi-Directional): VCT Solenoid On/Off Command or Duty Cycle Control — To manually activate the Bank 1 intake VCT solenoid while the engine is running at idle. A healthy solenoid, when commanded, will cause the engine to run rough or stall, confirming it is mechanically capable of moving. No change in idle suggests the solenoid is stuck or clogged. This is also the function used to cycle the solenoid to clear debris as per TSBs.

Wiring & Ground Locations

• VCT Solenoid Connector — On the front of the valve cover for the respective cylinder bank (Bank 1 is the rear/firewall side on V6 models). It is a two-wire connector.. This connector is the primary point for electrical testing (voltage and resistance). It can become contaminated with oil or have damaged wires, leading to a loss of control over the solenoid, mimicking a solenoid failure.
• G103 (Ground Point) — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This ground point serves the Engine Control Module (ECM/PCM). A poor ground connection here can cause erratic behavior from the PCM, including incorrect operation of its drivers, which control components like the VCT solenoids.

Real Owner Repair Stories

• eBay buyer feedback (Vehicle with 2.7L engine (specific model not listed, but engine is a match)) — P0012 code present.
  ❌ Tried (didn't work) Installed a new aftermarket timing chain kit.
  ✅ What actually fixed it The P0012 code remained after installing the new aftermarket timing kit. The mechanic then installed a different kit sourced locally, which resolved the issue, confirming the first aftermarket kit was defective from the seller.
• Reddit user in r/MechanicAdvice (2013 Mazda 6 (different vehicle, but demonstrates a common VVT system failure pattern)) — P0012 code appeared immediately after service.
  ❌ Tried (didn't work) Replaced VVT solenoid with an aftermarket (Beck/Arnley) part., Performed an oil change but used 5W-20 instead of the specified 0W-20.
  ✅ What actually fixed it The user posted seeking advice and did not confirm the final fix, but the immediate appearance of the code after using an aftermarket solenoid and incorrect oil viscosity points to one of those two factors being the cause. This highlights the sensitivity of VVT systems to both part quality and correct oil type.

OEM Part Supersession History

• BR3Z-6M280-D → BR3Z-6M280-E, which was then superseded by BR3Z-6M280-F — Standard part revision and improvement by the manufacturer.
  Heads up: The newer part numbers (E and F) replace the older 'D' version and should be fully compatible. It is always recommended to use the latest available revision.

Model Year Variations Within This Range

• 2015-2018: The second generation MKX began in model year 2016, introducing the 2.7L EcoBoost V6 alongside the existing 3.7L V6. However, for the purposes of diagnosing P0012, there are no significant documented changes to the VCT system design or common failure points for either engine within the 2015-2018 range. The troubleshooting and parts are consistent across these years.
