Ford EcoSport C1698 & P06A7: Wiring Harness Issues on 2018-2020 Models

What's Unique About the 2018-2020 Ford ECOSPORT

The 2018-2020 Ford EcoSport with the 2.0L engine has a documented issue with how its main engine wiring harness (part family 12A581) is routed. Due to its position, the harness can rub against the body of the vehicle near the front passenger-side strut tower. Over time, this constant vibration and friction can wear through the protective sheathing and wire insulation, causing electrical shorts or open circuits that trigger the P06A7 code. This specific failure mode is a known pattern failure for this vehicle and engine combination.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp) is on
• Engine may run rough or hesitate
• Potential for engine stalling
• Vehicle may not start
• Engine goes into a reduced power 'de-rate' or 'limp' mode.
• Wrench symbol (powertrain malfunction indicator) may illuminate.

Most Likely Causes

1. Damaged 12A581 Engine Wiring Harness 🔴 High Probability As documented in Ford TSB #SSM 49828, the harness is routed in a way that causes it to chafe against the strut tower behind the coolant reservoir (degas bottle). This is the primary and most widely reported cause for P06A7 on this specific vehicle.
   How to confirm: Visually inspect the wiring harness located behind the coolant reservoir on the front passenger side of the engine bay. Look for signs of abrasion, chafing, or exposed copper wires a few inches back from the connectors labeled C1698 and C1699. The damage is often found on the underside of the harness where it makes contact with the chassis.
   Typical fix: Repair the damaged section of the wiring harness. This involves cutting out the damaged wire(s), splicing in new wire with sealed connectors (like heat-shrink butt connectors), and re-wrapping the harness with high-quality anti-abrasion tape (such as Tesa tape). 🎬 See this walkthrough on how to repair a shorted harness. Rerouting the harness slightly or adding protective conduit (split loom) can prevent recurrence. After repair, clear the codes and perform a drive cycle to ensure the fix is complete.
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. The PCM should only be considered after the wiring harness has been thoroughly inspected and confirmed to be in perfect condition.
• Faulty Sensor: A sensor shorting out internally could theoretically cause a reference voltage issue, but the known TSB makes the wiring harness the primary suspect. Diagnosis would involve unplugging sensors on the affected circuit one by one to see if the short clears.

Diagnosis Steps

1. Confirm the presence of DTC P06A7 using 🎬 Watch: Understanding the P06A7 sensor reference voltage error code. an OBD-II scanner.
2. Locate the coolant reservoir (degas bottle) in the front passenger-side of the engine bay.

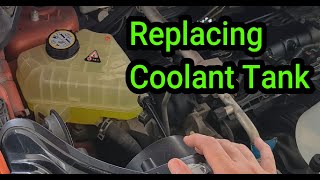

3. Carefully unclip and move the degas bottle aside 🎬 Watch: How to safely move or remove the coolant tank. to gain clear access to the wiring harness running along the strut tower. You do not need to drain the coolant.
4. Identify the main engine harness (part of the 12A581 harness family).
5. Following the instructions of TSB SSM 49828, closely inspect the harness for any signs of chafing, rubbing, or exposed wires, paying close attention to the area a few inches back from connectors C1698 and C1699. Feel the underside of the harness, as the damage is not always visible from the top.
6. If damage is found, disconnect the battery, then proceed with wiring repair. Ensure splices are sealed against moisture.
7. After repair, wrap the affected area with anti-abrasion tape and secure the harness away from the sharp edge of the strut tower to prevent future damage.
8. If no harness damage is present, proceed with standard diagnostics for DTC P06A7 as outlined in the factory service manual, which would include testing the 5V reference circuit at various sensors.

Parts You'll Likely Need

• Wiring Repair Supplies — This is needed to splice and repair the damaged wires in the 12A581 harness. Includes wire, heat-shrink butt connectors, and anti-abrasion tape.
  Trusted brands: 3M, Motorcraft, Tesa (for tape)
  OEM price range: $15-$40
  Aftermarket price range: $10-$25
• Engine Wiring Harness (OEM #GN1Z-12A581-xx (family)) — In rare cases of severe, widespread damage, the entire engine harness may need to be replaced. The exact suffix (e.g., -BT, -LE) depends on the vehicle's manufacturing date and options like AWD.
  Trusted brands: Motorcraft
  OEM price range: $600-$950

Related Codes That Often Appear With This One

• P06A7 — This is the specific DTC that Ford has linked to the wiring harness chafe issue near connector C1698 in TSB SSM 49828.

Technical Service Bulletins (TSBs) & Recalls

• SSM 49828: Addresses DTC P06A7 caused by a damaged 12A581 harness, instructing technicians to inspect the harness near connectors C1698 and C1699 for damage. This is the primary document identifying this specific issue.

Platform-Specific Known Issues

• A known wiring harness chafe point exists on 2018-2020 EcoSport models with the 2.0L engine, specifically affecting the 12A581 harness near the passenger-side strut tower, which can trigger DTC P06A7.
• Owner Experience: An owner on the 'Ford EcoSport Forum' described having the P06A7 code and, upon inspection, found the harness behind the coolant tank had rubbed through on the body. The dealer repaired the wires and added protective covering, resolving the issue. This corroborates the TSB and common fix.

Mechanic-Grade Diagnostic Values

• Sensor Reference Voltage 'A' or 'B' Circuit (VREF) — expected: Approximately 5.0 Volts with key on, engine off (KOEO), when measured with a multimeter.. Failure: A voltage significantly lower than 5.0V (e.g., 0.3V) indicates a short to ground. An open circuit will show 0V.

Hidden / Shadow Codes Worth Checking

• P06A7:16-27: This is an extended DTC format visible on advanced scan tools like the Ford IDS. The numbers following the main code can provide extra detail, such as indicating it's a continuous memory DTC with a specific subtype, helping to narrow down the fault condition. (see via Ford Integrated Diagnostic System (IDS) or other high-level professional scan tools.)

Scan Tool Commands That Help

• Ford IDS / Generic OBD-II: Clear Codes / Clear KAM (Keep Alive Memory) — After the physical wiring repair is complete, codes must be cleared. However, the MIL may not extinguish immediately. The PCM must complete a drive cycle to run its internal monitors and verify the repair is successful before turning the light off.

Wiring & Ground Locations

• Main Ground Point — A primary ground connection point is located in the engine compartment to the right of the battery, near the fuse box.. A poor main ground can cause erratic voltage readings across multiple systems, including the 5V reference circuits. While the TSB focuses on the harness chafe, verifying major ground points is a crucial step in diagnosing any electrical fault.
• Connectors C1698 / C1699 — Part of the 12A581 engine harness, located near the right-front strut tower, behind the coolant degas bottle.. These are the specific connectors referenced in TSB SSM 49828. The harness damage is typically found a few inches back from these connectors.
• PCM Connector Pins — At the Powertrain Control Module (PCM).. Advanced diagnosis may involve checking for 5V reference voltage directly at the PCM output pin or even isolating circuits by de-pinning or cutting a wire to find a short, as demonstrated by professional technicians. Accessing a detailed PCM pinout diagram is necessary for this level of testing.

Real Owner Repair Stories

• ScannerDanner Forum (professional technician discussion) (Ford Transit Custom with P06A7 (Note: Not an EcoSport, but demonstrates an identical electrical fault and advanced diagnosis)) — P06A7 code was present, and the 5V reference line for multiple sensors was reading only 0.3V.
  ❌ Tried (didn't work) Initial checks were confusing as some sensors on the shorted circuit were not setting codes, which was caused by a modified ECU map (ad-blue delete).
  ✅ What actually fixed it After restoring the original ECU map, the technician isolated the problematic circuit. The root cause was not harness chafing, but a bent pin on the 5V reference wire inside the connector for the intake throttle body, causing a short. Straightening the pin restored the 5V reference and cleared the code.

OEM Part Supersession History

• Varies by production date → Varies — The 12A581 engine wiring harness is highly specific to the vehicle's build date and options.
  Heads up: Part number must be matched exactly. For example, part GN1Z-12A581-BT was used for AWD models up to 04/24/2018, while GN1Z-12A581-LE was used for non-AWD models starting from 08/30/2018. Using the wrong harness will lead to incorrect connections.

Model Year Variations Within This Range

• 2018: The engine wiring harness part number changed during the 2018 model year. For example, AWD vehicles built up to April 24, 2018, use a different harness (GN1Z-12A581-BT) than non-AWD vehicles built after August 30, 2018 (GN1Z-12A581-LE). This is critical when ordering a replacement harness.
