2013-2018 RAV4 & 2013-2016 Scion tC 2.5L 2AR-FE: Problems, Identification, and Used Replacement

Part 1: Identification: Is This Your Engine?

This article covers the specific 2.5-liter, inline 4-cylinder engine, code 2AR-FE, used in the 2013-2018 Toyota RAV4 (gasoline models only) and the 2013-2016 Scion tC. It is a non-turbo, non-direct-injection engine from Toyota's "AR" engine family, produced from 2008 to 2020.

Vehicle Fitment Confirmation

Before purchasing a replacement engine, you must confirm it is correct for your vehicle. An incorrect engine will not work due to differences in mounting, wiring, and accessories.

• 2013-2018 Toyota RAV4: Applies to gasoline models only.
• 2013-2016 Scion tC: Applies to all models, which used this 2.5L engine.

Critical Interchange Mismatches

While other Toyota models like the Camry, Highlander, Sienna, and Venza also use a 2.5L 2AR-FE engine, they are NOT interchangeable with the unit for the RAV4 and tC. The primary differences are:

• Engine and transmission mounting points
• Oil pan design (especially for All-Wheel Drive models)
• Wiring harnesses and sensor types
• Accessory placement (alternator, A/C compressor, etc.)

Locating the Engine Code

The engine code "2AR" is physically stamped onto the engine block. You can find it on a machined pad on the left rear of the engine, near where the engine bolts to the transmission. This is the definitive way to identify the engine family.

Part 2: Common Failure Symptoms

Severe engine problems often require complete replacement. Look for these signs of critical failure:

• Catastrophic Oil Loss: A sudden and large loss of oil, often from a hole in the engine block.
• Knocking or Rod Knock: A deep, rhythmic knocking sound from inside the engine that increases with RPMs, indicating failed bearings.
• Excessive Smoke from Exhaust: Continuous, thick blue or white smoke indicates internal oil or coolant leaks from failed seals or a cracked head/block.
• Metal Shavings in Oil: Finding significant metallic particles during an oil change points to severe internal wear and imminent failure.

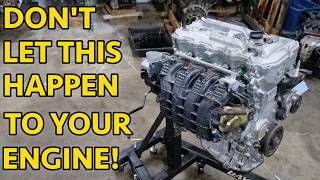

🎬 Watch: Complete 2AR-FE engine teardown showing internal damage
• Overheating and Coolant Loss: If the engine constantly overheats and loses coolant with no visible external leaks, it may have a cracked cylinder head or a failed head gasket.

Diagnostic Flowchart

Part 3: Known Issues, Recalls, and Technical Service Bulletins (TSBs)

The 2AR-FE is a generally reliable engine, but it has several well-documented issues. When replacing the engine, it is wise to address these potential problems at the same time.

VVT-i Cold Start Rattle (TSB T-SB-0041-13)

Some earlier models may exhibit a brief, one-second rattle or knock sound on a cold start. This is caused by a faulty intake camshaft timing gear assembly (the VVT-i phaser). This bulletin supersedes older bulletins T-SB-0146-10 and T-SB-0012-11.
Affected Years: 2009-2013 vehicles with the 2AR-FE engine, including the 2013 RAV4. Later models received an updated part.
Remedy: Replace the intake camshaft timing gear assembly. If you are installing a used engine from these years, consider performing this repair while the engine is out of the vehicle.

Safety Recall: Engine Bay Fire Risk (NHTSA 23V-734 / 23TA13)

Affected Years: 2013-2018 Toyota RAV4.
Remedy: Toyota dealers will replace the battery hold-down clamp, battery tray, and positive terminal cover with improved parts at no cost. Ensure the installer strictly follows the updated battery hold-down clamp and tray specifications.

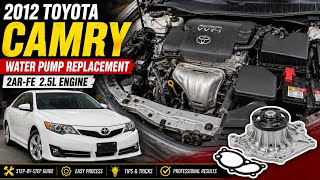

Water Pump Coolant Leaks

A common failure point across all years of the 2AR-FE is the water pump, which can develop coolant leaks over time.
Affected Years: All years (2013-2018 RAV4, 2013-2016 tC).
Remedy: Install a brand-new OEM or high-quality aftermarket water pump and gasket before installing the replacement engine.

Torque Converter Shudder (Transmission Issue)

Some RAV4 models equipped with the U760E/F 6-speed automatic transmission may experience a shudder or vibration while driving. This is often mistaken for an engine problem, but it is related to the transmission's torque converter. Toyota addressed this with a warranty extension program (ZH1). This is not an engine defect.

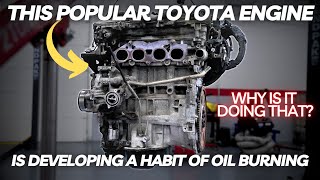

Oil Consumption

High mileage units or engines subjected to extended oil change intervals may burn oil. This is related to low-tension piston rings getting stuck with carbon buildup. Regularly check oil levels to prevent running the engine dry.

Engine Casting Porosity Recall

A small number of 2018 RAV4s were recalled for engine block casting porosity, which could lead to coolant leaks. It is unlikely to affect a used unit that has already run over 61,000 miles, but check the block casting if coolant leaks occur.

Part 4: Replacement Cost Comparison

Engine replacement costs vary based on the type of engine and local labor rates. Labor for this job is typically estimated between 12 and 16 hours.

Part 5: Installation Essentials & Gotchas

A successful engine swap requires attention to detail. This is an advanced DIY job requiring special tools like an engine hoist, heavy-duty jack stands, a torque wrench, a 64mm 14-Flute Oil Filter Wrench (e.g., Motivx Tools MX2320), and a Crankshaft Pulley Holding Tool (Toyota OEM 09960-10010).

Required Parts & Fluids for Installation

Critical Installation Steps & "Gotchas"

• AWD vs. FWD Parts: If installing into an All-Wheel Drive RAV4, you must transfer the original AWD oil pan and the passenger-side intermediate axle shaft carrier bracket from your old engine to the new one.
• Immobilizer Relearn Procedure: If the vehicle does not start after the swap, the immobilizer system may need to be re-synced. This can be done manually without special dealer tools by jumping pins 4 and 13 on the OBD-II diagnostic port with a wire or paperclip, turning the ignition to 'ON' (do not start), and waiting for 30-35 minutes. The security light on the dash should stop flashing when the process is complete.
• VVT-i Phaser Locking: Ensure the intake VVT-i phaser is in the fully retarded/locked position before installing the timing chain to prevent jumping time.
• Torque-to-Yield (TTY) Bolts: Cylinder head bolts and crankshaft balancer bolts are stretch bolts and cannot be reused.
• Ground Straps: Pay meticulous attention to all engine and transmission ground straps to avoid electrical issues.
• Oil Pump O-Rings: If the timing cover is removed, ensure the small O-rings for the oil pump passages are seated perfectly without sealant.

Part 6: What Fails at Every Mileage Band

Under 60K Miles

Engines in this range are generally in excellent condition, though early models may still have the VVT-i cold start rattle. Water pump gasket leaks are less common at this mileage but can happen prematurely.

• ✓Do during install (required): Replace all essential gaskets and seals like the rear main seal, intake, and exhaust gaskets. Inspect the water pump for any signs of pink, crusty coolant residue, indicating a leak.
• ✓Do during install (recommended): Upgrade the plastic oil filter housing to the more durable metal version (OEM Part No. 15620-31060) to prevent future cracking.
• ✓Cheap insurance while the engine is out: If purchasing an engine from the 2013 model year, be aware of the VVT-i rattle TSB and listen for it on cold starts.

60K-100K Miles

This is the prime mileage window for water pump leaks and failures. The VVT-i cold start rattle becomes more commonly reported. Early signs of oil consumption may appear, especially if the previous owner followed 10,000-mile oil change intervals.

• ✓Do during install (required): Replace the water pump with a new OEM (Aisin) or high-quality equivalent, regardless of its appearance. Replace all standard seals: rear main, valve cover, intake/exhaust gaskets, and thermostat gasket.
• ✓Do during install (recommended): Replace spark plugs (Iridium: Denso SK16HR11 or NGK ILKAR7B11). Clean the mesh filters for the VVT-i oil control valves.
• ✓Cheap insurance while the engine is out: If the engine is from an early model year (pre-2014), strongly consider replacing the intake VVT-i cam phaser (gear) to proactively address the common rattle TSB.

100K-150K Miles

Oil consumption due to carbon-stuck piston rings becomes a more significant concern. Water pump failure is highly likely if it is the original unit. The VVT-i cold start rattle is common if the gear has not been updated.

• ✓Do during install (required): Replace the water pump, thermostat, and serpentine belt. Replace spark plugs, all seals (rear main, valve cover, etc.), and gaskets. Upgrade to the metal oil filter housing if not already done.
• ✓Do during install (recommended): Replace the intake VVT-i cam phaser gear to eliminate the cold start rattle. Clean VVT-i oil control valve filters and the throttle body.
• ✓Cheap insurance while the engine is out: Consider a preventative replacement of the timing chain tensioner for added security, although it is not a high-failure part.

Over 150K Miles

Severe oil consumption is the primary complaint in this band, potentially leading to fouled spark plugs, clogged catalytic converters, and excessive carbon buildup. Cylinder wall scoring can occur in engines that have run low on oil frequently. Timing chain tensioner wear or failure becomes a possibility.

• ✓Do during install (required): Replace the water pump, thermostat, spark plugs, and all gaskets/seals. Assume oil consumption may be a factor; it is highly advisable to perform a leak-down and compression test before installation.
• ✓Do during install (recommended): Replace the intake VVT-i cam phaser if there is any question about its history. Clean all intake passages, throttle body, and VVT-i system components thoroughly.
• ✓Cheap insurance while the engine is out: Strongly consider replacing the timing chain, guides, and tensioner as a complete kit for high-mileage peace of mind.

Part 7: Real Owner Experiences

The following table highlights real-world issues reported by owners of vehicles equipped with the 2AR-FE engine.

Part 8: Repair or Replace?

Deciding whether to repair your current engine or replace it with a used unit depends on the severity of the failure.

• VVT-i Cold Start Rattle: Repair makes sense. This is a common, well-documented issue. The main part is the intake camshaft gear (actuator), which costs around $315-$365 for an OEM part. An independent shop might charge around 8 hours of labor, bringing the total typical repair cost to $1,000 - $1,800.
• Water Pump Coolant Leaks: Always repair. This is a standard maintenance item. An independent shop is significantly cheaper than a dealership, with typical costs ranging from $600 - $900.
• Minor to Moderate Oil Consumption: This is a gray area. The cause is typically stuck or clogged low-tension piston rings from extended oil change intervals. A full teardown and rebuild to replace pistons and rings can cost $6,800 or more. If consumption is minor (e.g., 1 quart every 2,000+ miles), it may be cheaper to just top off the oil.

When Replacement is Smarter: Engine replacement is the recommended path when catastrophic failure occurs (e.g., thrown rod, cracked block, pulled head bolts) or when the cost of addressing multiple issues (like severe oil consumption combined with VVT rattle) exceeds the installed cost of a quality used engine ($3,000 - $5,000). Given the high reliability of the RAV4 and tC chassis and transmission, replacing the engine is often a better investment than buying another used car with unknown problems.

Questions to Ask Your Installer

• Have you worked on this specific 2AR-FE engine before?
• If my car is AWD, are you aware that we must transfer my original oil pan and intermediate shaft carrier bracket to the replacement engine?
• Will you be reusing my car's original engine wiring harness and sensors to ensure electronic compatibility?
• What is your procedure for the immobilizer/security relearn if the car doesn't start post-swap? Are you familiar with the OBD-II pin jump method?
• What new consumable parts are included in your quote? (e.g., rear main seal, intake/exhaust gaskets, water pump, thermostat, spark plugs)
• Do you have the correct 64mm 14-flute oil filter wrench to avoid cracking the plastic filter housing, or do you recommend upgrading to the metal housing (part #15620-31060)?
• Does your labor estimate include a full coolant bleed and an oil change with 0W-20 synthetic oil?
• What is the warranty on the used engine and on your labor?

Part 9: Freight & Delivery Reality

If you are ordering a used engine online, understand how it will arrive. A complete 2AR-FE engine assembly weighs approximately 324 lbs and measures roughly 32" x 30" x 28" before crating. Because of this size and weight, it ships as Less-Than-Truckload (LTL) freight on a wooden pallet—it will NOT arrive via standard parcel services like UPS Ground or FedEx Home Delivery.

You must ensure the delivery location has a forklift or a loading dock. If delivering to a residential address or a small shop without a dock, you must request a truck with a liftgate. Always inspect the engine thoroughly for transit damage before signing the driver's delivery receipt.

Before the First Start: Priming and Fluids

A used engine has likely been sitting on a warehouse shelf for months. The oil has drained away from the internal moving parts. If you start the engine dry, the metal parts will rub together and cause instant damage. You must add fresh fluids and prime the oil system before the engine actually runs.

Mandatory Fresh Fluids

Never reuse old fluids. You must install a new oil filter and fill the engine with the correct, fresh fluids:

• Engine Oil: Use 0W-20 full synthetic motor oil. This thin oil is required for the 2AR-FE engine to properly operate its variable valve timing system.
• Engine Coolant: Use Toyota Pink "Super Long Life Coolant" or an equivalent 50/50 pre-mixed HOAT (Hybrid Organic Acid Technology) coolant. Do not use standard green coolant, as it will damage the water pump and seals.

Oil Priming Procedure

Priming means pumping oil through the engine before the spark plugs fire. Follow these steps to safely pre-lube your replacement engine:

1. Fill the fluids: Add the fresh 0W-20 oil and Toyota Pink coolant to the correct levels.
2. Disable the fuel system: Open the under-hood fuse box. Remove the EFI (Electronic Fuel Injection) fuse or the fuel pump fuse. This stops fuel from entering the engine so it cannot start.
3. Crank the engine: Turn the ignition key to the "Start" position and hold it for 10 to 15 seconds. The engine will spin but will not run.
4. Rest the starter: Wait 30 seconds so the starter motor does not overheat.
5. Repeat: Crank the engine again for 10 to 15 seconds. Watch the dashboard. Stop when the red oil pressure warning light turns off. This means oil has successfully reached the top of the engine.
6. Reinstall the fuse: Put the EFI or fuel pump fuse back into the fuse box.
