2023-2025 Toyota Corolla 1.8L Hybrid 2ZR-FXE: Problems, Identification, and Used Replacement

Engine Identification: Confirming the Correct 2ZR-FXE

The engine used in the 2023-2025 Toyota Corolla Hybrid is a specific variant of the long-running 2ZR-FXE family. This 1.8-liter, inline four-cylinder engine is designed with an Atkinson cycle, which prioritizes fuel efficiency for hybrid applications. It produces 98 horsepower on its own and is part of a hybrid system that delivers a combined 138 horsepower. 🎬 Watch: Complete 2ZR-FXE engine review and reliability breakdown Correctly identifying this engine is critical before purchasing a used replacement, as it will not work in other vehicles.

Vehicle Fitment and Identification

This specific engine assembly is designed exclusively for the 2023-2025 Toyota Corolla Hybrid (Sedan). It is crucial to verify that the vehicle is a Hybrid model, as the non-hybrid Corolla uses a completely different engine (the M20A-FKS or older 2ZR-FE/FAE) that does not interchange. You can confirm your vehicle requires this exact engine by checking two key identifiers:

Critical Interchange Mismatches to Avoid

Not all engines labeled "2ZR-FXE" are the same. Ordering the wrong one is a common and expensive mistake.

Common Problems & Failure Symptoms

While the 2ZR-FXE is known for its durability, certain issues can lead to engine failure. Recognizing the symptoms can help you determine if a full engine replacement is necessary.

Symptoms of a Failing Engine

• Significant Coolant Loss: Disappearing coolant without an obvious external leak can point to an internal issue like a failed head gasket or, on older models, a leaking exhaust heat exchanger.
• Engine Overheating: If the temperature gauge frequently enters the red or a coolant warning light appears, it could signal a failing electric water pump, which is a known weak point.
🎬 Watch: Step-by-step electric water pump replacement guide
• Milky or Frothy Engine Oil: Finding a milky, coffee-colored substance on the oil cap or dipstick is a classic sign of coolant mixing with oil, often due to a blown head gasket.
• Excessive Oil Consumption: While some oil use can be normal on high-mileage engines, a sudden increase or burning more than one quart every 2,000-3,000 miles may indicate worn piston rings.
• Knocking or Ticking Noises: Loud, rhythmic knocking from deep within the engine often indicates severe bearing damage, which typically requires a complete engine replacement.

How to Confirm the Engine is the Cause

A mechanic can perform several diagnostic tests to confirm the engine is faulty before you commit to a replacement:

1. Cooling System Pressure Test: This test pressurizes the cooling system to see if it holds steady. A loss of pressure indicates a leak, which could be internal or external.
2. Cylinder Leak-Down Test: This test measures how well each cylinder holds air pressure, which can pinpoint bad piston rings or head gasket leaks more accurately than a simple compression test.
3. Chemical Block Test: A special fluid is used to detect the presence of exhaust gases in the coolant, which is a definitive sign of a compromised head gasket or cracked cylinder head.
🎬 See how to test for a blown head gasket

Diagnostic Flowchart

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While this engine generation is new, the 2ZR family has a long history. Some historical issues are worth noting, and a few recalls apply to the 2023-2025 Corolla Hybrid itself.

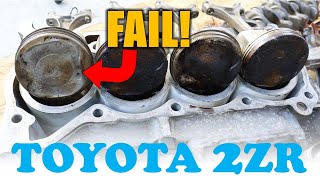

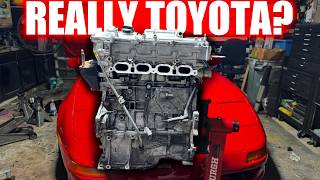

• Historical Head Gasket/Oil Consumption Issues: Earlier versions of the 2ZR-FXE (primarily pre-2015 in Prius models) were known for potential head gasket failure and oil consumption due to piston ring design (noted in TSB T-SB-0169-16 and L-SB-0096-16 for 2010-2014 models). These issues were largely resolved in later generations, but maintaining a clean cooling system is still key to engine longevity.
• Exhaust Heat Exchanger Coolant Leak: Addressed in TSB T-SB-0135-19 for 2016-2019 models. Internal coolant leaks in the front exhaust pipe heat exchanger can mimic a blown head gasket.
• Electric Water Pump Failure: A known wear item across all years. The plastic impeller can degrade or the motor can fail, leading to rapid overheating. It is highly recommended to replace the water pump as a preventative measure whenever the engine is swapped.

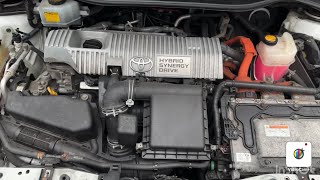

• EGR System Clogging: Common on pre-2013 models. Cleaning the EGR passages and valve regularly is a smart preventative maintenance step.
• Recall 24TA11 / NHTSA 24V708000: Affects 2023-2025 Corolla Hybrid vehicles. A software error in the skid control ECU can cause a loss of power brake assist when turning. Dealers will update the software for free. This does not directly involve the engine assembly but is a critical safety update for the vehicle.
• Recall 26TB08 / 26TA08: Affects 2023-2025 Corolla Cross Hybrid models for a quiet pedestrian warning sound, but may be relevant to Corolla Hybrid owners as well.
• TSB T-SB-0015-25: This bulletin details the process for configuring a replacement ECU (Engine Control Unit) using Toyota's diagnostic software. It confirms that if the engine computer is replaced along with the engine, dealer-level software configuration is required.

What Fails at Every Mileage Band

Under 60,000 Miles

Engines in this range are practically new. Known failures are rare but can include premature 12V auxiliary battery drain (causing a no-start if parked for weeks), clogging of the hybrid battery cooling fan with dust, and isolated reports of head gasket failure or glitchy infotainment screens.

• ✓Do during install (required): Perform an oil and filter change using 4.4 Quarts (4.2 Liters) of 0W-16 or 0W-8 full synthetic oil.
• ✓Do during install (recommended): Inspect and thoroughly clean the hybrid battery cooling fan and intake vents to ensure proper airflow. Replace the engine air filter and cabin air filter.
• ✓Cheap insurance while the engine is out: Inspect all fluids, belts, and hoses, replacing any that show signs of wear.

60,000 to 100,000 Miles

At this stage, minor oil consumption may begin to appear. The EGR system can start to get gummed up, potentially leading to rough idling. Electric water pump failure becomes a possibility, though less common than in older generations.

• ✓Do during install (required): Flush and replace engine coolant and hybrid inverter coolant using Toyota Super Long Life Coolant (SLLC).
• ✓Do during install (recommended): Clean the EGR valve and passages while the intake manifold is accessible. Replace spark plugs with new Iridium plugs (NGK DILKAR6Q8 or Denso FC16HR-C9, gapped 0.8mm to 1.1mm).
• ✓Cheap insurance while the engine is out: Proactively replace the electric water pump as cheap insurance against overheating and potential head gasket failure. Inspect the serpentine belt for wear and replace if necessary. Consider a drain and fill of the eCVT transaxle fluid.

100,000 to 150,000 Miles

Head gasket failure risk increases, often preceded by symptoms like a rough or rattling cold start. Electric water pump failure is a more significant risk. Degradation of the high-voltage hybrid battery may become noticeable, and suspension components like struts and wheel bearings show wear.

• ✓Do during install (required): Replace the electric water pump. Replace spark plugs and all accessible gaskets (new intake manifold gasket, exhaust manifold gasket, and throttle body gasket). Flush and replace both engine and inverter coolant loops.
• ✓Do during install (recommended): Clean the entire EGR system (valve, cooler, and passages). Replace all fluids, including a drain and fill for the eCVT transaxle.
• ✓Cheap insurance while the engine is out: Replace the serpentine belt and inspect all tensioners and idlers. Inspect and consider replacing the thermostat.

Over 150,000 Miles

Head gasket failure is the most significant and well-documented engine-related failure in the high-mileage 2ZR-FXE family. Hybrid battery degradation is a primary concern, and failure of hybrid system components like the inverter or brake actuator becomes a higher probability. Oil consumption due to piston ring wear or clogging is more common.

• ✓Do during install (required): All mandatory items from the 100k-150k band.
• ✓Do during install (recommended): If not included with the engine, replace the intake camshaft gear if there are any signs of startup rattle.
• ✓Cheap insurance while the engine is out: Strongly consider purchasing a complete engine overhaul gasket kit to replace every seal and o-ring possible while the engine is out. This is the last chance to easily service the hybrid transaxle; a fluid change is critical.

Real Owner Experiences

To give you a clear picture of what owners actually face, here is a breakdown of real-world reports regarding the 2ZR-FXE engine family.

Replacement Cost Comparison

The cost of replacing a 2023-2025 Corolla Hybrid engine varies based on the type of part and labor rates. Labor for an engine swap is estimated to take between 10 and 16 hours.

Repair or Replace?

Deciding whether to fix your current engine or swap in a used replacement comes down to the severity of the failure and the math.

• Electric Water Pump Failure: A typical repair costs around $287 for the OEM part, plus several hundred dollars in labor. If the engine has not overheated severely, this repair always makes sense.
• Head Gasket Failure: A head gasket job on a 2023/2024 Corolla typically costs between $3,217 and $4,465, with dealership quotes sometimes reaching $5,000 to $6,000. Labor is the vast majority of this cost.

When Replacement is Smarter: Replacement is the smarter choice when there is catastrophic internal engine failure (like a seized engine from oil starvation), when a head gasket has failed and caused significant secondary damage from overheating (like a warped cylinder head), or when the total cost of repairing a high-mileage engine exceeds the all-in cost of installing a lower-mileage used unit. Given that low-mileage used units can be found starting around $1,599, replacement is a very strong economic alternative to repairs costing over $3,500.

Questions to Ask Your Installer

• Have you worked on Toyota hybrid systems before, specifically the 5th generation found in the 2023+ Corolla?
• Does your quote include all necessary consumables like 0W-16/0W-8 oil, Toyota SLLC pink coolant for both cooling loops, new gaskets, and torque-to-yield bolts?
• How will you handle bleeding the air from both the engine and the inverter cooling loops? Do you have the scan tool required to run the inverter's electric water pump?
• What is the source, mileage, and warranty on the used engine you are quoting?
• How will you handle the ECU and immobilizer re-sync? Will you be using my original ECU and wiring harness?
• Does your labor estimate account for cleaning the EGR passages while the intake manifold is off?
• Are you equipped to perform the high-voltage system safety depowering procedure before starting work?

Installation Essentials & Gotchas

Replacing the engine in a modern hybrid is a complex job that requires special care and tools.

Labor & DIY Difficulty

Special Tools & Programming

• High-Voltage Gloves: Class 0 insulated gloves (rated for 1000V AC / 1500V DC) are mandatory for safety.
• Scan Tool: A Toyota Techstream (GTS+) diagnostic tool is required to bleed the inverter cooling system, perform a Crankshaft Position (CKP) relearn, and re-sync the immobilizer.
• Coolant Funnel: A Spill-Free Coolant Funnel Kit is necessary for proper bleeding.
• Head Bolt Wrench: If doing internal work, a specific cylinder head bolt wrench (SST 09205-16011) is required.
• ECU/Immobilizer Sync: If the Engine Control Unit (ECU) is swapped with the engine, it must be reprogrammed to the vehicle's immobilizer system, or the car will not start. A CKP relearn is also required if the block or CKP sensor is replaced.

Critical Installation Gotchas

• Flywheel / Damper Bolt Torque: The hybrid damper has specific torque-to-yield bolts that must be replaced and torqued to exact specifications.
• Dowel Pins: Ensure both dowel pins are present and correctly seated when mating the engine to the transaxle to prevent misalignment.
• Ground Straps: Ensure all engine and transmission ground straps are clean and securely reconnected.
• Wiring Harness: The engine wiring harness must match the 5th-generation hybrid system. Do not attempt to reuse a harness from a 4th-generation (2020-2022) Corolla Hybrid or Prius. Reuse your original engine wiring harness if the replacement unit does not include one.

Freight & Delivery Reality

When ordering a used 2ZR-FXE engine assembly, it is important to understand how it will arrive. This is a heavy industrial part, not a standard parcel.

• Size and Weight: The engine assembly weighs approximately 340 lbs and measures roughly 36" x 34" x 36" before crating.
• Shipping Method: It ships as LTL (Less Than Truckload) freight on a wooden pallet. It will arrive via a large freight truck.
• Delivery Requirements: You will need a loading dock, a forklift, or a truck equipped with a liftgate to safely lower the pallet to the ground. Most residential deliveries require a liftgate service.
• Inspect Before Signing: Always inspect the engine for physical damage (like cracked plastic covers, broken sensors, or a dented oil pan) before signing the driver's delivery receipt. Once you sign, you are accepting the freight in its current condition.

What is Included and Excluded

When buying a used engine assembly from a professional auto recycler, it is important to know what parts typically come attached and what you will need to transfer from your old engine.

Typically Included: Cylinder block, cylinder head, pistons, connecting rods, crankshaft, camshafts, valves, oil pan, valve cover, intake manifold, timing cover, fuel injectors, fuel rail, throttle body, and harmonic balancer.

Typically Excluded: A/C compressor, starter motor, alternator, exhaust manifold, hybrid transaxle (CVT), engine wiring harness, and ECU.

Before the First Start: Priming and Fluids

Used engines often sit on warehouse shelves for months. The oil drains away from the moving parts. If you start the engine dry, the metal parts will scrape together and cause instant damage. You must add fresh fluids and prime the oil system before letting the engine run.

Mandatory Fluids

Never reuse the oil or coolant from the old engine. Always install a new oil filter and fill the engine with the correct fluids:

• Engine Oil: Use 0W-16 API SP oil. This ultra-thin oil is required for the 2023-2025 Corolla Hybrid to operate correctly.
• Engine Coolant: Use Toyota Super Long Life Coolant (Pink) or an exact aftermarket match. Do not mix colors or use standard green coolant.

How to Prime a Hybrid Engine

Priming means pumping oil through the engine before it actually fires up and runs. Because this Corolla is a hybrid, it does not have a normal starter motor. The hybrid battery spins the engine. Follow these steps to prime the oil system safely:

1. Disable the fuel system: Open the fuse box under the hood. Remove the EFI (Electronic Fuel Injection) fuse or the fuel pump relay. This stops gas from going into the engine.
2. Spin the engine: Get in the car, press the brake pedal, and push the START button. The hybrid electric motor will spin the gas engine, but it will not start because there is no fuel.
3. Build oil pressure: Let the engine spin for 10 to 15 seconds. This pumps the fresh oil up to the top of the engine.
4. Turn it off: Press the START button again to turn the car completely off.
5. Reconnect the fuel: Put the EFI fuse or fuel pump relay back into its correct spot.
