2017-2020 Acura MDX Sport Hybrid Twin Motor Unit: Problems, Identification, and Used Replacement

Identifying the Correct MDX Sport Hybrid Rear Drive Unit

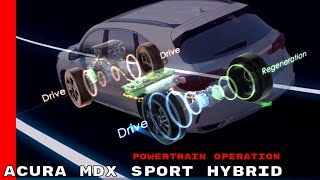

The 2017-2020 Acura MDX Sport Hybrid uses a unique rear drivetrain component called the Twin Motor Unit, or TMU. This is not a traditional engine or a simple differential. It is a sophisticated dual-electric motor e-axle assembly that provides power to the rear wheels, enabling the Sport Hybrid Super Handling All-Wheel Drive (SH-AWD) system. This unit contains two 36-horsepower electric motors, internal differential gearing, an internal electric oil pump, and control electronics within a single die-cast aluminum housing. 🎬 Watch: See how this hybrid powertrain operates in detail. It has a 0.0L displacement as it is entirely electric.

Vehicle Fitment Verification

To ensure your vehicle requires this specific part, follow these verification steps:

• Check your VIN: The 4th, 5th, and 6th characters of your Vehicle Identification Number (VIN) should be "YD7", and the 8th character should be "H".
• Look for badges: The vehicle must have "HYBRID" badges on the front fenders and a blue-accented "SH" on the rear hatch.
• Inspect the undercarriage: A key characteristic of the Sport Hybrid is the absence of a physical driveshaft running from the front of the vehicle to the rear axle.

Part-Specific Identifiers

When inspecting the unit itself, look for an identification code, often stamped or on a sticker, that reads "H3". The official Acura part number for this entire assembly is 41201-5WW-305.

Common Failure Symptoms and Diagnosis

A failing TMU can present several symptoms. Owners may notice a "judder, shudder, or surge" while driving, which is a known issue addressed by a technical service bulletin. Other signs can include warning lights on the dashboard, such as a general malfunction indicator or specific messages related to the hybrid or SH-AWD system. 🎬 Watch: Diagnosing the Acura SH-AWD warning light. In severe cases, a complete failure of an internal component, like the non-serviceable electric oil pump, will disable the rear drive unit and require replacement of the entire assembly. A professional diagnosis with a dealer-level scan tool is necessary to read the specific Diagnostic Trouble Codes (DTCs) and confirm the TMU is the source of the fault.

Diagnostic Flowchart

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Several official documents relate to the MDX Sport Hybrid. Note that some recalls affect the overall vehicle but not the TMU itself.

What Fails at Every Mileage Band

Under 60,000 Miles

Even low-mileage units can experience issues primarily related to software and fluid degradation. TSB B19-004 addresses a transmission/TMU judder or shudder caused by premature fluid deterioration. Some 2017 models also reported hesitation around 16,500 miles, requiring a Transmission Control Module (TCM) software update. Isolated main computer (PCM) issues, like the DTC P061B torque calculation error on 2018 models (TSB B20-018), can also occur.

• ✓Do during install (required): Perform TSB B19-004. Ensure the DCT-TMU software is updated to the latest version to prevent premature fluid breakdown and judder.
• ✓Do during install (required): Replace the TMU fluid with Acura ATF DW-1, even on low-mileage units, as a preventative measure against the judder issue.
• ✓Cheap insurance while the engine is out: Inspect the rear subframe and mounts. A recall was issued in June 2026 for potential subframe corrosion. Check the condition of the rubber TMU mounting brackets, which can tear.

60,000 - 100,000 Miles

At this stage, the risk of internal electric oil pump failure increases. Because this pump is not serviceable, failure requires a full TMU replacement. Vehicles in this range may still be eligible for the TSB B19-004 software and fluid fix under the 8-year or 80,000-mile warranty. Additionally, some Acura models near 100,000 miles experience parasitic battery draw linked to the Bluetooth module.

• ✓Do during install (required): Replace the fluid with Acura ATF DW-1 and install new sealing washers.
• ✓Cheap insurance while the engine is out: Closely inspect the rubber mounting brackets for tears or stress marks and replace them if any damage is noted.
• ✓Do during install (recommended): Check the subframe for corrosion per the June 2026 recall, especially for vehicles operated in regions with heavy road salt use.

100,000 - 150,000+ Miles

The Acura MDX platform is known for longevity, with many reaching 200,000 to 300,000 miles. However, the factory hybrid component warranty expires at 8 years or 100,000 miles. Beyond this point, general drivetrain wear becomes a factor. Rear subframe corrosion risk is significantly higher on high-mileage vehicles exposed to road salt over many years.

• ✓Do during install (required): Replace TMU fluid and washers. This is a mandatory step for any TMU installation.
• ✓Cheap insurance while the engine is out: Proactively replace the rear subframe TMU mounting brackets regardless of their visual condition.
• ✓Do during install (recommended): Carefully inspect the subframe per the recall notice and consider applying a rust-inhibiting coating after cleaning.

Real Owner Experiences

Repair or Replace?

Deciding whether to repair or replace the TMU depends entirely on the specific failure mode.

When Repair Makes Sense

If you are experiencing the transmission/TMU judder or shudder described in TSB B19-004, repair is the correct path. This issue is caused by premature fluid deterioration. The repair involves a software update (billed at 0.2 hours) and an ATF fluid replacement (billed at 0.5 hours). Typical repair costs range from $250 to $650 USD. Some dealers charge as little as $75 for the software update alone, while an independent shop may charge around $200 for the fluid service. This repair may also be covered under the 8-year/80,000-mile warranty.

When Replacement is Smarter

Replacement is mandatory for any internal mechanical failure, such as the failure of the non-serviceable internal electric oil pump. Replacement is also the only option if the unit has been catastrophically damaged by the use of incorrect fluid. Filling this TMU with standard Acura DPSF or VTM-4 fluid will cause an immediate internal electrical short circuit, instantly ruining the electric motors. Given the high cost of a new unit ($10,900 - $15,600), replacing it with a verified used assembly (typically $1,800 - $2,500+) is the most common path for out-of-warranty failures.

Questions to Ask Your Installer

• Can you confirm you have ordered the correct part number (41201-5WW-305) for the Sport Hybrid, not the standard MDX differential?
• Are you aware that this unit requires Acura ATF DW-1 fluid and that using any other fluid will cause immediate failure?
• Do you have the Honda i-HDS diagnostic scanner or an equivalent tool required to perform the mandatory 'Motor Rotor Position Sensor Learning' after installation?
• Will you inspect the rubber subframe mounting brackets for tears or degradation during the replacement process?
• What is your procedure for disabling the high-voltage system before beginning work, per factory safety guidelines?

Replacement Cost Estimates

The cost to replace a Twin Motor Unit can vary significantly based on the source of the part. Shop labor for this job is estimated to take between 4.0 and 6.0 hours.

Installation and Programming Guide

Replacing the TMU is an expert-level task due to the high-voltage systems and post-installation programming requirements.

Critical Safety and Installation Steps

During installation, you must reuse your vehicle's original high-voltage orange power cables and low-voltage control harness. Ensure all electrical pins are clean, dry, and free of corrosion before reconnecting. Do not use impact wrenches on the fragile aluminum housing bolts, and avoid jarring or dropping the unit. A transmission jack or appropriate lift is required to support the subframe. The TMU is suspended by rubber mounting brackets (Acura Part # 50710-TRX-A01 and 50720-TRX-A01) which are prone to tearing and should be inspected or replaced.

Required Parts and Fluids

When installing a replacement TMU, you will need several new consumable items:

• Fluid: 2.56 to 2.75 US Quarts of Acura ATF DW-1 (Part No. 08200-9008A). A manual or pneumatic fluid pump is required to fill the unit.
• Sealing Washers: Two 20mm sealing crush washers (Part No. 94109-20000) for the fill and drain plugs.
• Coolant: Acura Type 2 coolant (if the hybrid power electronics cooling system is drained).

Post-Installation Calibration

Freight and Delivery Reality

When ordering a used TMU assembly, it is crucial to understand how it ships. This unit weighs approximately 65 lbs and measures roughly 10" x 8" x 7" before crating. Because of its weight, value, and fragile aluminum housing, it ships as LTL (Less Than Truckload) freight on a pallet, NOT as a standard parcel. Delivery will require a liftgate if shipping to a residential address or a shop without a loading dock. Always inspect the unit thoroughly for housing cracks or damaged connectors before signing the delivery receipt. A reputable supplier will conduct a pre-purchase verification interview to confirm your VIN and ensure you are not accidentally ordering a standard mechanical differential.

Before the First Start: Fluid and Coolant Setup

Before you turn on the vehicle, you must fill the used Twin Motor Unit (TMU) with new fluids. The TMU needs specific lubrication and cooling to work properly.

• Lubricating Fluid: You must fill the TMU with fresh Acura ATF DW-1 (Automatic Transmission Fluid). Do not use standard gear oil or motor oil. This fluid lubricates the internal gears and cools the electric motors.
• Coolant: The TMU has its own liquid cooling system to stop the electric motors from overheating. You must fill this system with Honda Long Life Antifreeze/Coolant Type 2. This is a pre-mixed blue coolant.

After filling the coolant, you must remove all trapped air bubbles. This process is called bleeding the system. You must use a professional computer scanner (a bi-directional scan tool) to turn on the rear electric water pump. Let the pump run to push the air out of the cooling lines.
