2000-2002 Saturn L200 Wiper Motor: Why It Fails and How to Choose a Replacement

Symptoms of a Failing 2000-2002 Saturn L200 Wiper Motor

A failing wiper motor on a Saturn L-Series can present several distinct symptoms. Recognizing these signs early can help you diagnose the problem correctly and avoid being caught in a storm without working wipers.

• Wipers Won't Park Correctly: This is one of the most common failures for this part. When you turn the wipers off, they may stop in the middle of the windshield, straight up, or in a random position instead of returning to the bottom. This is almost always caused by a failure of the internal park switch inside the motor assembly.
• Only One Speed Works: You may find that the wipers only function on the highest speed setting, while the low and intermittent settings do nothing. This points to a problem with the motor's internal electronics that control the different speed settings.
• Slow or Erratic Wiper Movement: The wipers may move much slower than they used to, even on the fastest setting. They might also seem to stutter or struggle to move across the glass. This can be caused by internal wear or increased resistance within the motor itself.
• Wipers Don't Move at All: The most obvious symptom is a complete failure to move. You might hear a faint humming or buzzing sound from the motor when you turn the switch on, which indicates the motor is receiving power but is unable to move due to an internal mechanical or electrical fault. If you hear nothing, the problem could also be a blown fuse or a bad switch, so it's important to check those first.
• Wipers Won't Turn Off: In less common cases, a short circuit or failure in the park switch can cause the wipers to run continuously, even when the switch is off. The only way to stop them is to turn off the car.

Known Issues, Recalls, and TSBs

As of mid-2026, there are no specific, active recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) that directly address the windshield wiper motor for the 2000-2002 Saturn L200. While some other GM vehicles from this era had major wiper motor recalls, the L-Series was not included in those campaigns. The failures seen in the L200 are generally attributed to normal wear and age of the component rather than a specific manufacturing defect that prompted a recall.

Step-by-Step Diagnosis

1. Check the Fuse: Before assuming the motor is bad, always check the fuse for the wiper system. A simple blown fuse is a common cause of wipers not working at all. Consult your owner's manual for the fuse box diagram and location.
2. Listen for the Motor: Turn the ignition on and activate the wipers. Go to the front of the car and listen near the base of the windshield. If you hear a humming sound, the motor is getting power, which strongly suggests the motor itself has failed internally. If you hear nothing, the problem could be the motor, the switch, or the wiring between them.
3. Inspect the Wiper Linkage: Sometimes the nut connecting the motor's output shaft to the wiper linkage can come loose, or the linkage bushings can break. If the motor is humming but the arms aren't moving, a quick visual inspection under the cowl might reveal a disconnected linkage.
4. Test for Power (Advanced): For those comfortable with a multimeter, you can disconnect the motor's electrical connector and test for voltage. With the 🎬 Watch: How to troubleshoot a wiper motor and switch wiper switch on, you should have power on one or more of the pins. If you have power at the connector but the motor doesn't run, the motor is faulty. If you don't have power, the issue is likely upstream with the switch or wiring.

Buying a Used Windshield Wiper Motor

A used OEM wiper motor is an excellent, cost-effective alternative to expensive and often unavailable new parts. Since these motors are generally durable, a good used unit from a reputable recycler can provide many more years of service. Here’s what to look for:

• Verify the Connector: The most critical check. Ensure the used motor has the same 5-pin rectangular connector as your original part. Ask the seller for a clear photo if you are buying online.
• Inspect for Corrosion: Check the electrical pins in the connector for any green or white corrosion. Also, look at the metal housing for excessive rust, which could indicate it was stored poorly or exposed to the elements.
• Check the Output Shaft: Look at the splined output shaft where the linkage attaches. Ensure the splines are clean and not stripped. Try to turn it by hand; it should be difficult to turn but should move smoothly without grinding or binding.
• Ask About the Source Vehicle: If possible, find out the mileage of the vehicle the part came from. Lower mileage is always better, but the physical condition is a more reliable indicator of the part's health.
• Warranty and Return Policy: Only buy from sellers who offer a warranty and a clear return policy. This protects you in case you receive a defective part.

Cost of Replacing a 2000-2002 Saturn L200 Wiper Motor

Replacement Difficulty: 4/5

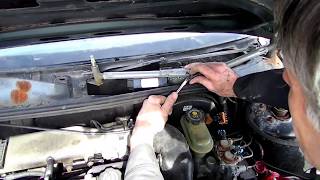

Replacing the wiper motor on a Saturn L200 is more difficult than on many other vehicles. While the basic steps of removing the wiper arms and plastic cowl are straightforward, accessing the motor's mounting bolts can be challenging. On many L-Series models, two of the bolts that hold the wiper transmission assembly are accessed from inside the vehicle, requiring the removal of the top dashboard pad to 🎬 See this video on removing a wiper motor reach them. This significantly increases the complexity and time required for the job.

Estimated Time: 2-3 hours
Is DIY Feasible? Yes, for an experienced DIYer comfortable with removing interior trim panels. A novice may find this job frustrating.
