1992-1996 Mazda MX-3 Windshield Wiper Motor: Diagnosis, Replacement, and Buying Guide

Symptoms of a Failing Windshield Wiper Motor

A failing wiper motor on a Mazda MX-3 will show symptoms common to most vehicles. Problems can range from a minor annoyance to a critical safety failure, especially in poor weather. Here are the most common signs of a bad wiper motor:

• Slow or Erratic Wiper Movement: The wipers may move much slower than usual, even on the high-speed setting. They might also seem hesitant or jerky in their motion. This can be caused by internal wear in the motor's gears or by increased resistance from dirt and grime buildup inside the motor assembly.
• Wipers Only Work on One Speed: If you can only get the wipers to function on the high setting but not low or intermittent, it often points to a failure in the motor's internal speed control module or resistor.
• Wipers Won't Park Correctly: When you turn the wipers off, they should automatically return to their resting position at the bottom of the windshield. If they stop in the middle of the glass or wherever you happen to turn off the switch, it indicates a problem with the motor's internal park switch.
• Humming or Grinding Noises: An audible humming or buzzing sound from the base of the windshield when the wipers are turned on (but they don't move) suggests the motor is receiving power but is mechanically jammed or has failed. Grinding noises during operation point to worn or broken internal gears.
• Wipers Don't Move at All: This is the most obvious symptom. If the wipers are completely unresponsive, the motor may have burned out entirely. However, this can also be caused by a blown fuse or a wiring issue, so further diagnosis is required.

Step-by-Step Diagnosis

Before you replace the motor, follow these steps to confirm it's the actual point of failure:

1. Check the Fuse: The first and easiest step. Locate the fuse box (your owner's manual will show you where) and find the fuse for the wipers. If it's blown, replace it with a new one of the *exact same amperage* and see if the wipers work. If the new fuse blows immediately, you have a short circuit that needs to be traced.
2. Listen for the Motor: With the engine off but the key in the 'On' position, have a friend operate the wiper switch while you listen near the base of the windshield on the passenger side. If you hear a humming sound, the motor is getting power, and the problem is likely the motor itself or a seized wiper linkage. If you hear nothing, the problem is likely electrical.
3. Check for Obstructions: Heavy snow, ice, or debris can physically block the wipers, and sometimes the linkage arms underneath the cowl can become disconnected or jammed. A quick visual inspection can rule this out.
4. Test for Voltage: If you're comfortable using a multimeter, you can perform a more definitive test. Disconnect the electrical connector from the wiper motor. With the key on and the wiper switch activated, carefully test the terminals in the connector for 12-volt power. If you have 12 volts at the connector but the motor doesn't run when plugged in, the motor is bad. If you do not have power at the connector, the problem lies upstream in the wiring, relay, or switch.

Known Issues, TSBs, and Recalls

As of early 2026, research of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls or Technical Service Bulletins (TSBs) for the windshield wiper motor on the 1992-1996 Mazda MX-3. The lack of specific bulletins suggests this is not a high-failure or problematic component for this particular model. An unrelated recall (15V-674) was issued for the ignition switch on some 1992-1993 MX-3 models, but it does not pertain to the wiper system.

Buying a Used Windshield Wiper Motor

Given that new OEM parts are discontinued and this component is not a common failure item, a used OEM wiper motor is an excellent and economical choice for the Mazda MX-3. Here’s what to look for:

• Verify Compatibility: Ensure the part comes from a 1992-1996 Mazda MX-3. While parts from other Mazdas may look similar, the mounting points, electrical connector, or the orientation of the output shaft may differ.
• Inspect the Electrical Connector: The plastic connector and the pins inside should be clean and free of corrosion or any signs of melting/overheating. A damaged connector is a major red flag.
• Check the Output Shaft: This is the splined shaft that the wiper linkage arm attaches to. It should be clean, with no signs of rust, and the splines should be sharp and not stripped.
• Ask for a Function Test: Reputable sellers often test motors before listing them. They can briefly connect it to a 12V power source to show that it spins. This confirms the motor isn't dead on arrival.
• Why Used OEM is a Good Choice: For a non-problematic part like this, a used OEM unit that has already proven its durability for many years is often a more reliable choice than a brand new, unproven aftermarket part, and it comes at a fraction of the cost of a remanufactured unit.

Cost Comparison for Mazda MX-3 Wiper Motor

Prices can vary, but here is a general breakdown of what to expect when purchasing a replacement wiper motor. Labor costs for installation typically range from $100 to $200.

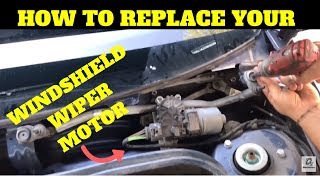

Replacement Overview

Replacing the wiper motor on a 1992-1996 Mazda MX-3 is a relatively straightforward job for a DIY mechanic with basic tools.

• Difficulty: 2 out of 5
• Estimated Time: 1-1.5 hours

General Steps:

1. Mark the position of the wiper blades on the windshield with a piece of tape.
2. Remove the plastic caps at the base of the wiper arms and undo the nuts holding them on. You may need to gently rock the arms to free them from the splined posts.
3. Open the hood and remove the plastic cowl panel that sits at the base of the windshield. It is typically held on by clips and/or screws. Be gentle, as the plastic can be brittle on older vehicles.
4. You will now see the wiper motor and linkage assembly. Disconnect the electrical connector from the motor.
5. Unbolt the motor from the firewall or its mounting bracket. You will also need to disconnect the motor from the wiper linkage arm. This is usually a single nut or a snap-on connection.
6. Installation is the reverse of removal. Before putting the wiper arms back on, briefly turn the wipers on and then off to allow the new motor to return to its 'park' position. Then, install the arms in the position you marked earlier.
