2017-2026 Kia Sportage Camera & Sensor Guide: Backup, Front, and Blind Spot Systems

Understanding the 'Cameras' on Your Kia Sportage

When you need to replace a "camera" on a 2017-2026 Kia Sportage, it's important to know that this can refer to one of three very different parts. Each has its own function, failure symptoms, and replacement requirements. Identifying the correct part for your vehicle's specific options is the most important step.

• Rear Backup Camera: Mounted on the liftgate, this provides the image on your screen when you're in reverse.
• Front-Facing ADAS Camera: Mounted high on the inside of the windshield, this camera 'watches' the road for the Lane Keeping Assist and Forward Collision-Avoidance systems.
• Radar Sensors: These are not cameras but are often related. They are located in the front and rear bumpers and are used for Blind Spot Detection and Smart Cruise Control.

1. Rear Backup Camera

This is the most common camera to fail. It is located on the exterior liftgate, usually near the handle. Its job is to show you what's behind the vehicle when in reverse. Higher trim levels may have multiple cameras (front, side, and rear) as part of a 360-degree Surround View Monitor (SVM) system. This guide focuses on the standard, single rear camera.

Symptoms of a Failing Rear Backup Camera

• Black or Blue Screen: The screen shows nothing, or a solid color screen, when you shift into reverse.
• Flickering or Distorted Image: The picture cuts in and out, is wavy, or has lines running through it.
• Foggy or Blurry Image: The lens seal has failed, allowing moisture and condensation inside. This can make the image look washed out or blurry.
• "Check Rear Camera" Message: The infotainment system displays an error message.

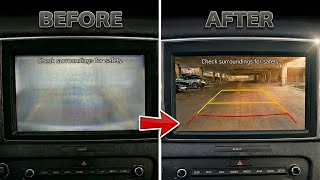

Rear Backup Camera Replacement

For a DIY mechanic, replacing the standard rear backup camera is manageable. The process involves removing the interior trim panel from the liftgate to access the camera's mounting screws and electrical connector.

• Difficulty: 2 out of 5
• DIY Feasible: Yes
• Special Tools: Plastic trim removal tools are highly recommended to avoid scratching the panel.
• Calibration Required: No, the standard backup camera is typically plug-and-play.

2. Front-Facing ADAS Camera (Windshield-Mounted)

This camera is the heart of the Lane Keeping Assist (LKA), Lane Departure Warning (LDW), Forward Collision-Avoidance Assist (FCA), and sometimes Automatic High Beams. It is mounted behind the rearview mirror and looks through the windshield. A failure here will disable these critical safety features.

Symptoms of a Failing Front Camera

• Warning messages like "Check Lane Keeping Assist System," "Forward Collision-Avoidance Assist disabled," or similar alerts on the dashboard.
• The LKA or FCA systems do not activate or function erratically.
• Automatic high beams no longer work.
• Diagnostic Trouble Codes (DTCs) like C160449 or C160649 may be stored.

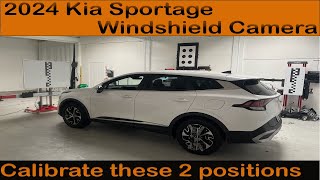

Front Camera Replacement & Calibration

Replacing the front camera is not a DIY-friendly job. The physical replacement is simple, but the camera must be professionally calibrated after installation. The camera needs to be precisely aimed so it knows exactly where the vehicle is within a lane. Driving without proper calibration is unsafe as the safety systems can react incorrectly.

• Difficulty: 5 out of 5 (due to calibration)
• DIY Feasible: No
• Calibration Required: Yes, always.

3. Blind Spot & Front Radar Sensors

Though not video cameras, these radar units are part of the same family of ADAS sensors. The blind spot sensors are located behind the corners of the rear bumper, while the front radar for Smart Cruise Control is typically behind the Kia emblem in the grille.

Symptoms of Failing Radar Sensors

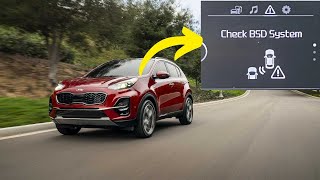

• "Check BSD (Blind Spot Detection) system" warning light.
• Blind spot indicators in the side mirrors do not light up when a car is present.
• Smart Cruise Control is unavailable or will not set.
• False alerts from the blind spot or forward collision systems.

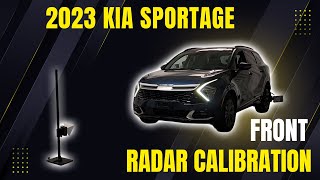

Radar Sensor Replacement & Calibration

Like the front camera, replacing a radar sensor requires professional calibration to ensure it is aimed correctly. This is especially true after any rear-end collision, even a minor one, that could have shifted the sensor's alignment.

• Difficulty: 4 out of 5 (due to calibration)
• DIY Feasible: No
• Calibration Required: Yes.

Buying a Used Camera or Sensor for Your Sportage

Purchasing a used OEM camera or sensor can offer significant savings, but it's crucial to buy the right part and understand the total cost. For ADAS components, a used OEM part is often more reliable than a cheap new aftermarket version.

1. Identify the Correct Part: First, determine which system is faulty—backup camera, front camera, or radar. They are not interchangeable.
2. Verify the Part Number: The best way to ensure compatibility is to match the part number from your old unit. Many different part numbers were used depending on the model year and vehicle options. For example, a camera for a car with Surround View is different from one without.
3. Inspect for Damage: For backup cameras, check the lens for deep scratches or cracks. For all components, inspect the electrical connector pins to ensure they are straight and free of corrosion.
4. Factor in Calibration Costs: This is the most important step. If you are buying a used front camera or radar sensor, you must get quotes for calibration from a local dealer or ADAS-certified shop. The cost of calibration can be several hundred dollars and should be factored into your budget. A cheap used sensor is no bargain if you can't get it calibrated.
5. Ask About the Source Vehicle: If possible, know the history of the donor vehicle. A sensor from a front-end collision is a risky purchase.

Cost Comparison

Prices can vary significantly based on the specific component and your location. Calibration is a major additional cost for front cameras and radar sensors.

Known Issues, Recalls, and TSBs

• Recall (Related Models): While no specific Sportage camera recalls were found, Kia has recalled other models like the Sorento for rearview cameras failing due to water intrusion or having their mounting clips break. This suggests that ensuring a used camera is properly sealed is a good precaution.
• TSB SA449: A service action for some 2019-2021 Sportage models to update the front camera software, improving the logic for the Lane Departure Warning and Lane Keep Assist systems.
• TSB ELE231: Provides a procedure for replacing the front view camera if specific diagnostic trouble codes (C160449, C160649) are present.
• TSB ELE246: Instructs technicians on how to perform a software upgrade after installing a new replacement front camera, as new service parts may not come with the latest software.
