2014-2019 BMW X5 & X6 DSC Module Failure: Diagnosing the 'Chassis Stabilization Malfunction'
This guide explains the common failure of the DSC/ABS module in the 2014-2018 BMW X5 and 2015-2019 BMW X6, why it triggers a cascade of warnings, and the critical programming required for replacement.
- A 'Chassis Stabilization Malfunction' warning is the primary symptom of DSC module failure, but can also be caused by a bad battery or wheel speed sensor.
- Replacement DSC modules, whether new or used, MUST be programmed and coded to the vehicle's VIN to function.
- Driving with this warning is possible but risky, as ABS and stability control are disabled.
- A used OEM module is a cost-effective option, as new OEM units are very expensive and new aftermarket versions are generally not available.
Symptoms of a Failing DSC Module
When the DSC module in a 2014-2018 BMW X5 or 2015-2019 BMW X6 begins to fail, it typically triggers a distinct and alarming set of warnings on the instrument cluster and iDrive screen. The most common sign is a message stating "Chassis Stabilization Malfunction." This primary warning is often accompanied by a cascade of other system alerts because multiple safety and performance systems rely on data from the DSC module.
- Multiple Dashboard Lights: The ABS, DSC (or traction control), and 4x4 warning lights will often illuminate simultaneously.
- Reduced Engine Power: The vehicle may enter a "limp mode" to prevent aggressive driving, with a "Drivetrain Malfunction" message appearing.
- Heavy Steering: The power steering may feel heavier than usual as the variable-assist function, which relies on vehicle speed data, is disabled.
- Disabled Cruise Control: The cruise control system will be inoperative.
- Inconsistent Braking: In some cases, the brake pedal may feel inconsistent, or you might hear buzzing or clicking noises from the ABS pump.
A professional diagnostic scan is essential, as these symptoms can also be caused by less severe issues. Technicians will look for specific fault codes stored in the vehicle's memory. Codes pointing to an internal module failure are a definitive sign.
| Common Fault Codes | Description |
|---|---|
| 480AB1 | Indicates an internal, non-recoverable fault within the DSC control unit itself. |
| 480134 | Signifies a communication failure with the DSC module, meaning other computers in the car can no longer talk to it. |
| 5E1F | This code specifically means the DSC module has the incorrect Vehicle Identification Number (VIN) stored, which will always happen if a used module is installed without being programmed. |
Pro Tip: Before condemning the expensive DSC module, a technician should always check the vehicle's battery and charging system. Low voltage from a weak battery can cause a variety of random electronic warnings on these vehicles, including the chassis stabilization message. Faulty wheel speed sensors are another common, and much cheaper, cause for this warning.
🎬 Watch: Simple DIY checks for chassis stabilization warningsKnown Issues, Recalls, and TSBs
While failure of the DSC/ABS module is a known issue for the F15 X5 and F16 X6, there have been no official recalls issued by the NHTSA for this specific component. Recalls for these vehicles have addressed other issues, such as the EGR cooler on diesel models, airbag inflators, and child seat anchors. The DSC module failure is typically handled as a standard repair by the owner or dealership.
Compatibility Warning: This DSC module fits non-hybrid models only. It is NOT compatible with the 2.0L Plug-in Hybrid BMW X5 xDrive40e. That model uses a different and more complex module to manage its regenerative braking system.
Buying a Used DSC Module: What You Must Know
Given the extremely high cost of a new OEM module, purchasing a quality used OEM unit is a very popular and cost-effective solution. However, there are critical factors to consider.
- Programming is NOT Optional: You cannot simply install a used DSC module and expect it to work. It must be professionally programmed to your vehicle. This process involves electronically writing your car's VIN into the used module and then coding it to match your vehicle's specific features (like adaptive cruise control, parking sensors, etc.). Finally, calibration procedures for the steering angle sensor and other components must be performed.
- Verify Part Numbers: While many part numbers for this module supersede each other, it is always best to match the part number from your original module to the used one you are purchasing. The part number is printed on a sticker on the electronic portion of the unit. The list of known OEM part numbers includes 34526866567, 34526868257, 34526870197, 34526870234, 34526870277, 34526875994, 34526878195, 34526882266, and 34529500006.

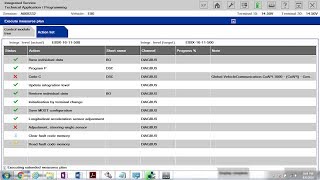

- Factor in Programming Costs: When buying a used module, remember to budget for the cost of programming. This can be done by a BMW dealer, a qualified independent shop with advanced tools (like Autel or ISTA), or through a remote programming service. Expect to pay a few hundred dollars for this service. 🎬 See how to program and code BMW modules using ISTA
- Why Used OEM is a Good Choice: For this specific part, new aftermarket versions are generally not available. Your choices are typically a very expensive new OEM unit, a used OEM unit, or a repair service for your original module. A used OEM module from a reputable supplier offers the same factory performance and reliability as a new part, but at a fraction of the price.
Replacement Overview
Replacing the DSC module is a job for an experienced DIYer or a professional technician due to the need for brake system bleeding.
- Location: The DSC/ABS pump and module assembly is located in the engine bay, typically tucked behind the driver's side front wheel well.
- Process: Access requires removing the driver's side front wheel and the plastic fender liner. The electrical connector is disconnected first, followed by the multiple rigid brake lines. A flare nut wrench is essential to avoid stripping the brake line fittings. After the unit is unbolted and swapped, the lines and connector are reinstalled.
- Brake Bleeding: The most critical step after replacement is bleeding the entire brake system to remove any air that entered the lines. This often requires a special procedure using diagnostic software (like ISTA) to cycle the ABS pump and ensure all air is purged from the hydraulic block. Failure to do this correctly will result in a spongy or ineffective brake pedal. 🎬 Watch: How to properly bleed BMW F15/F16 brakes
Cost Comparison
The cost to replace a DSC module can vary dramatically depending on the path you choose. The estimates below are for the part and labor to install and program it.
| Repair Option | Estimated Cost |
|---|---|
| New OEM Part + Labor | $2,500 - $4,000+ |
| Used OEM Part + Labor | $500 - $900 |
| Remanufacture/Repair Original Part + Labor | $800 - $1,800 |
| Shop Labor Only (Install & Program) | $400 - $600 |
Frequently Asked Questions
Does a used DSC module have to be programmed?
Yes, absolutely. A used DSC module must be programmed with your car's VIN and coded to match its options. If you install it without programming, it will not work and will set a VIN mismatch fault code.
Can I drive my X5 or X6 with the "Chassis Stabilization Malfunction" warning on?
Yes, but with extreme caution. When this warning is active, your ABS, traction control, and stability control systems are disabled. This means your wheels can lock up during hard braking, and the car will not assist you if you start to skid. Drive moderately, increase your following distance, and avoid driving in wet or slippery conditions.
How do I know if it's the DSC module or just a wheel speed sensor?
The only way to know for sure is with a proper diagnostic scan using BMW-specific software. A scanner can read the specific fault codes from the DSC module. If the code points to a specific wheel speed sensor, the repair is simple. If the codes indicate an internal module fault or a communication error with the module, then the module itself is likely the problem.
Can an independent mechanic program a BMW DSC module?
Yes, many independent shops that specialize in European vehicles have the necessary high-level diagnostic tools, like an Autel MaxiSys or a licensed version of BMW's ISTA software, to program and code a replacement DSC module. However, not all shops have this capability, so you should always ask specifically if they can program a used DSC module before booking the repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: 34526866567 34526868257 34526870197 34526870234 34526870277 34526875994 34526878195 34526882266 34529500006
Combined hydraulic ABS pump and electronic DSC control unit. Located in the engine bay on the driver's side.
