2011-2021 BMW X3 & X3 M Power Tailgate Failure: A Guide to the Spindle Drives

Common Symptoms of Failing Power Tailgate Spindles

When a power liftgate spindle begins to fail on your BMW X3 or X3 M, the symptoms are usually very noticeable. Here are the most common indicators:

• Tailgate Stops Mid-Travel: The most frequent complaint is a tailgate that starts to open or close, moves a few inches, and then stops. You may need to press the button multiple times to get it to move in small increments.
• No Power Operation at All: The tailgate may unlatch with a 'click' but won't lift on its own. Similarly, it may not power-close from the open position.
• Grinding or Clicking Noises: Unusual mechanical noises during operation can indicate a stripped gear or internal failure within the spindle drive.
• Tailgate Becomes Heavy: When the power function fails, the tailgate must be lifted and closed manually. It will feel significantly heavier than a non-powered tailgate because you are fighting the resistance of the internal motors.
• Tailgate Won't Stay Up: In cases of complete failure, the spindles may not be able to support the weight of the tailgate, causing it to drift down or not stay open.
• iDrive Warnings: A 'Tailgate Malfunction' message may appear on the vehicle's information display.

Diagnosing the Problem: Spindle, Module, or Just Initialization?

Before buying parts, it's crucial to determine the root cause. The issue could be a failed spindle, a faulty control module, or simply a loss of calibration.

1. Attempt Re-Initialization: If the tailgate stopped working after a battery replacement or disconnection, it may have just lost its programming. Manually open the tailgate to the desired maximum height. Then, press and hold the tailgate close button on the driver's door for at least 5 seconds until a tone is heard. This can sometimes reset the system and restore normal operation.
2. Check for Water Intrusion: The HKL (Rear Lid Lift) control module is located in the cargo area, often near the battery. This area is susceptible to water leaks from clogged sunroof drains or failed seals. A wet or corroded module can cause the exact same symptoms as a failed spindle. Inspect the module and its connectors for any signs of moisture damage.
🎬 See how to check for water damage and module issues.
3. Scan for Fault Codes: A BMW-specific scan tool can read codes from the HKL module. A common code pointing directly to a spindle failure is 801717 - Hall Sensor 1, right: short circuit to negative or open circuit (or a similar code for the left side). This indicates the control module is not receiving a position signal from the sensors inside the spindle.
4. Isolate the Failed Spindle: If you suspect one spindle is bad, you can try disconnecting its electrical connector and operating the tailgate. The working spindle may try to lift the gate for a moment before stopping due to the excessive load. If you disconnect the other spindle and get no movement at all, you have likely found the faulty unit.
🎬 Watch this troubleshooting guide to help isolate the failed spindle.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no major recalls specifically for the spindle drives on these models, BMW has issued several TSBs for related tailgate issues:

• SIB B51 30 16: Addresses complaints of the tailgate opening unintentionally, often due to an accidental press of the key fob button. The fix involves a software update to require two button presses (unlock, then tailgate) to open the lid. This applies to both F25 (2011-2017) and G01 (2018+) generations of the X3.
• SIB 61 06 20: Pertains to malfunctions with the contactless 'Smart Opener' (kick-to-open) feature, which could cause erratic tailgate operation. The solution involves retrofitting updated control units and sensors.

Buying a Used BMW X3 Power Liftgate Spindle

A used OEM spindle drive can be a cost-effective solution, often providing better longevity and fitment than a cheap aftermarket alternative. Here’s what to look for:

• Verify the Part Number: This is the most critical step. BMW used different part numbers for the left and right sides, and there was a significant part change during the 2015 model year (for production dates from 04/2015 onward). You must match the part number from your old spindle or verify compatibility using the vehicle's VIN.
• Physical Inspection: Check the used part for any signs of damage, such as cracks in the housing, bent rods, or corrosion on the electrical connectors. Ensure the ball sockets are intact.
• Source Vehicle Information: If possible, get the mileage from the donor vehicle. A spindle from a lower-mileage vehicle is always preferable.
• Seller Guarantee: Purchase from a reputable seller who offers a warranty or guarantee. This protects you in case the part is dead on arrival.

Replacement Overview

Replacing the spindle drives is a feasible DIY project for those comfortable with removing interior trim panels. The general process involves:

1. Disconnecting the vehicle's battery.
2. Supporting the tailgate securely in the fully open position.
3. Removing the C-pillar and D-pillar interior trim panels to access the spindle's mounting points and wiring.
4. Disconnecting the electrical connectors.
5. Using a screwdriver or trim tool to release the spring clips on the ball sockets at the top and bottom of the spindle, then popping it off the ball studs.
6. Installation is the reverse of removal. After installation, the system must be initialized.

Programming and Initialization Requirements

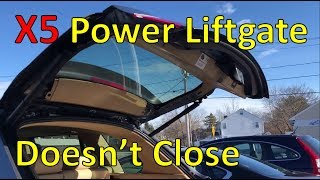

Replacing the spindle drives themselves does not typically require dealer-level programming or coding. However, it is mandatory to perform an initialization procedure after installation. This teaches the HKL control module the upper and lower end-stops of the new spindles. This can usually be done without special tools by using the driver's door tailgate button 🎬 Watch a demonstration of the tailgate diagnosis and calibration process. as described in the diagnosis section. If this user-level reset doesn't work, a shop will use diagnostic software like ISTA to perform the service function.

Estimated Costs

The cost to repair a faulty power tailgate can vary significantly based on the parts used and labor rates.
