2005-2020 Nissan Armada Tailgate: Solving Power Liftgate Failures & Buying Used

Key Differences: First vs. Second Generation

The 2005-2020 Nissan Armada spans two distinct generations, and their tailgates are not interchangeable. Identifying your vehicle's generation is the first step in any repair or replacement.

First Generation (2005-2015)

The first-generation Armada (model code WA60) shares its platform with the Nissan Titan truck and the Infiniti QX56 (2004-2010). These tailgates are known for a specific set of issues, primarily related to the power liftgate mechanism. A common point of failure is the bolt connecting the power lift arm to the drive motor, which can loosen or fall out, causing the power function to stop working. The tailgate can still be opened and closed manually in this case. The external release handle and the latch mechanism can also fail, preventing the gate from opening at all.

Second Generation (2017-2020)

The second-generation Armada (model code Y62), which began with the 2017 model year, is based on the global Nissan Patrol and is a sibling to the Infiniti QX80 (2011-present). These models feature a more integrated design, with options like a kick-to-open sensor and advanced camera systems. A known issue on these models involves the automatic backdoor control module, which can fail and prevent the power liftgate from operating via any switch or the key fob. This issue was common enough that Nissan issued a Technical Service Bulletin (TSB) for it. Additionally, some early second-generation models may require a power liftgate calibration if the system behaves erratically, such as reversing while opening.

Symptoms of Tailgate Failure

Diagnosing a tailgate problem usually starts with observing its behavior. Here are the most common symptoms:

• Power Liftgate Inoperative: The gate does not respond to the key fob, dashboard switch, or the button on the tailgate itself. This can be caused by a failed motor, a loose connection, a bad control module, or a blown fuse.
• Grinding or Popping Noises: Loud noises during operation often point to a problem with the power liftgate drive motor or its linkage. On first-generation models, this is a strong indicator of the common loose bolt issue.
• Tailgate Won't Latch or Stay Closed: If the tailgate doesn't lock securely, it could be a faulty latch mechanism or a problem with the power cinching motor that pulls the gate tight. This is a safety concern and should be addressed immediately.
• Tailgate Opens or Closes Partially: A gate that stops mid-travel or reverses direction without obstruction could be suffering from weak lift struts, a failing motor, or may need recalibration.
• "Tailgate Ajar" Warning Light: If the warning light on the dashboard stays on even when the tailgate is fully closed, the sensor within the latch assembly is likely faulty.

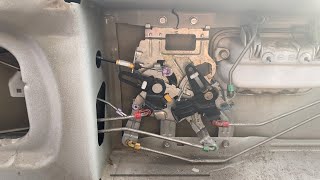

• Exterior Handle Doesn't Work: 🎬 See how to troubleshoot and fix a stuck tailgate If you can hear the actuator click but the gate won't unlatch, a mechanical part inside the handle or latch linkage may be broken.

Known Issues, TSBs, and Recalls

While there have been no major safety recalls directly for the tailgate assembly itself, several Technical Service Bulletins (TSBs) have been issued.

• NHTSA ID: NTB16-071 (July 27, 2016): This TSB specifically addresses the inoperative power back door on 2004-2014 Armadas due to a loose or missing hex bolt on the opener linkage. It instructs technicians to replace the bolt (Part No. 01131-0001U) and torque it to 62 in-lbs.
• NHTSA ID: 10178235 (TSB NTB20-050): For 2018-2020 Pathfinders and Rogues, but relevant to Armada owners experiencing similar issues, this TSB addresses a B2409 diagnostic trouble code where the power back door is inoperative. The cause is often a faulty automatic backdoor control module.
🎬 Watch this guide on fixing code B2409 and TSB repairs
• NHTSA ID: 10243708 (TSB NTB08-097L): While not directly for the tailgate, this TSB for the 2008 Armada mentions an issue where the power liftgate will only open if the handle is not held for a period of time, indicating potential switch sensitivity issues.

No recalls specifically for tailgate structural failure, latch failure, or power motor failure were found. Always check the NHTSA website with your vehicle's VIN for the most up-to-date recall information.

Buying a Used Trunk Lid or Tailgate

A used OEM tailgate is often the best value, providing factory fit and quality at a much lower price than a new part. However, careful inspection is key.

1. Verify Compatibility

Before you buy, know exactly what your Armada has. You must match the following:

• Generation: 2005-2015 (First Gen) or 2017-2020 (Second Gen). They are completely different.
• Power vs. Manual Liftgate: The internal structure, wiring, and mounting points are different. A power liftgate shell has provisions for the drive motor and spindles.
• Rearview Camera: The shell must have the correct mounting hole for the camera if your vehicle is equipped with one.
• Other Options: For second-gen models, check for compatibility with features like kick-to-open sensors or surround-view cameras.

2. Physical Inspection Checklist

• Rust and Corrosion: Check the bottom seam, the area around the window seal, and behind the license plate trim. Surface rust can be treated, but deep corrosion is a red flag.
• Damage and Prior Repairs: Look for dents, deep scratches, and signs of body filler (wavy appearance, magnetic differences). Check for mismatched paint overspray on the inside, which indicates a previous repair.
• Wiring Harness: This is critical. Inspect the flexible rubber conduit between the body and the tailgate. Look for cracked insulation, frayed wires, or damaged connectors. A damaged harness can be difficult to repair.
• Included Components: Determine if you are buying a bare shell or a complete assembly. A complete assembly (with glass, wiper motor, latch, and handle) is much easier to install. If it's a power liftgate, confirm the drive motor and struts are included and appear in good condition.

Cost of Replacement

The cost to replace a Nissan Armada tailgate can vary significantly based on the generation, included options, and whether you choose new or used parts.

Prices are estimates and do not include painting, taxes, or fees.

Replacement Overview

Replacing the tailgate is a moderately difficult job that requires at least two people due to the part's size and weight.

• Difficulty: 3/5
• Estimated Time: 2-4 hours
• Tools Needed: Socket set, trim removal tools, Torx bits.

General Steps:

1. Disconnect the negative battery terminal.
2. Remove all interior trim panels from the tailgate.
3. Disconnect all electrical connectors for the latch, camera, lights, and wiper. Disconnect the washer fluid hose.
4. Have helpers support the weight of the tailgate.
5. Unbolt the gas-charged lift struts from the tailgate.
6. While the gate is supported, unbolt the main hinges from the body.
7. Carefully remove the old tailgate. Installation is the reverse of removal.
