2004-2010 Toyota Sienna Shifter Failures: Getting Stuck in Park and Loose Lever Fixes

Symptoms of a Failing Shift Lever

When the shifter assembly in a 2004-2010 Sienna begins to fail, the symptoms are usually very noticeable. Here are the most common issues owners experience.

1. Shifter is Stuck in Park

This is the most frequent and frustrating symptom. You'll get in the van, start the engine, press the brake pedal, and the shift lever will not move out of the 'Park' position. This is almost always caused by a problem with the shift interlock system. The internal shift lock solenoid may have failed, or an electrical issue (like a bad brake light switch) is preventing the solenoid from getting the signal to release. 🎬 Watch: Diagnose electrical issues causing a Toyota stuck in Park Toyota issued recalls for this exact problem on many of these vans.

2. Loose or Sloppy Shifter Feel

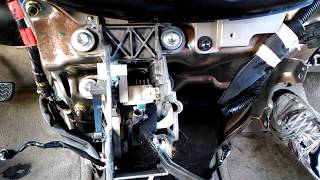

The shifter may feel excessively loose and move freely between gears without the normal resistance or distinct clicks. This is often caused by a worn or broken plastic bushing where the shift cable connects to the base of the shifter assembly. When this bushing fails, the cable can detach completely, leading to the next symptom.

3. Shifter Moves But Van Stays in One Gear

You can move the shift lever through P, R, N, and D, but the transmission doesn't respond and the gear indicator on the dashboard doesn't change. The van is effectively stuck in whatever gear it was in when the failure occurred (often Neutral or Park). This happens when the shift cable has completely disconnected from the lever assembly due to a broken bushing.

4. Can Shift Out of Park Without Pressing Brake

This is a serious safety issue where the shift interlock mechanism has failed in the 'unlocked' position. It allows the lever to be moved out of Park at any time, even without the key in the ignition or the brake pedal depressed. This could allow the vehicle to roll away unexpectedly. This specific failure was the subject of a major Toyota safety recall.

Known Issues, Recalls, and TSBs

The second-generation Sienna was subject to significant recalls related to the shift lever assembly. It's crucial to know if a vehicle, or a part from a donor vehicle, has had these recalls performed.

• NHTSA Recall 13V-429 (Toyota Campaign D0R): This recall was issued for certain 2004, 2005, 2007, 2008, and 2009 model year Siennas. The problem was that the stopper for the shift lock solenoid could be damaged, allowing the lever to be moved out of Park without depressing the brake pedal. The remedy was for dealers to replace the shift lock solenoid assembly.
• NHTSA Recall 17V-657 (Toyota Campaign H0V): This recall affected certain 2005-2007 and 2009-2010 Siennas. In this case, grease inside the shifter assembly could transfer to the shift lock components and cause them to malfunction, again allowing the vehicle to be shifted out of Park without the brake applied. The fix involved dealers replacing the shift lock solenoid and reapplying the correct amount of grease.

Buying a Used Transmission Shift Lever

A used OEM shifter assembly is often a reliable and cost-effective solution. Because the primary failures are often mechanical (bushings) or related to a specific solenoid covered by recalls, a good-condition used part from a reputable recycler can be a smart buy. Here’s what to check.

1. Physical Inspection

• Check the Cable Bushing: Look at the point where the shift cable attaches at the base of the lever. The plastic bushing should be intact, not cracked or crumbling. This is the most common non-electrical failure point.
• Test the Lever Action: Move the lever through all the gear positions. It should move smoothly but have distinct detents (clicks) for each gear. It shouldn't feel overly loose or sloppy.
• Test the Shift Button: Press the thumb button on the lever. It should depress smoothly and spring back firmly. A sticky or weak button can be a sign of internal wear or contamination from spills.
• Inspect the Connector: Check the electrical connector for the shift lock solenoid. Ensure the pins are straight, clean, and free of corrosion.

2. Compatibility

The primary OEM part number for the complete assembly is 33560-08010. This part fits all 2004-2010 Toyota Sienna models. While the knob itself might have different color codes, the core mechanical and electrical assembly is the same. Always confirm the part number when possible.

3. Why Choose Used OEM?

For a part like this, a used original equipment (OEM) shifter is often superior to a new, cheap aftermarket alternative. The OEM part was designed with specific materials for durability and feel. Aftermarket versions may use lower-quality plastics that can become brittle or have a less precise feel, leading to premature failure.

Cost Comparison

Replacing the shifter assembly can vary widely in cost depending on the route you take. Here are typical price ranges:

Replacement Overview (Difficulty: 2/5)

Replacing the shift lever assembly is a manageable DIY project for someone with basic tools. The main challenge is carefully removing the center console trim without breaking any clips.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on electrical components.
2. Remove Console Trim: This is the most time-consuming step. You will need to remove the shift knob (it unscrews), and then use trim removal tools to carefully pry off the various plastic panels around the shifter and center console to gain access.
3. Unbolt the Assembly: Once exposed, the shifter assembly is typically held in place by four 10mm bolts.
4. Disconnect Cable and Connector: Detach the shift cable from the base of the lever (usually with a simple clip) and unplug the electrical connector for the shift lock solenoid.
5. Installation: Installation is the reverse of removal. Attach the cable and connector to the new shifter, bolt it down, and carefully reinstall the console trim panels.

Estimated Time: 1.5 - 2.5 hours
Tools Needed: 10mm socket/wrench, Phillips screwdriver, plastic trim removal tools.
