2019-2024 Ram 1500 Rotary Shifter Guide: Fixing a 'Service Shifter' Warning and Being Stuck in Park

Symptoms of a Failing Ram 1500 Rotary Shifter

When the electronic rotary shifter begins to fail, it can cause a variety of confusing and often critical symptoms that can leave the vehicle stranded. Because it is an essential electronic module, a fault can prevent the truck from starting or moving.

• 'Service Shifter' Warning Message: This is the most common symptom. An alert on the instrument cluster indicates that the truck's computer has detected a fault within the shifter assembly or a loss of communication between the shifter and other control modules. This can be caused by an internal shifter failure, wiring issues, or even a weak battery causing low voltage.
• Stuck in Park: The rotary knob may become physically stuck and unable to turn out of the Park position, even with a foot on the brake. This often happens because the system cannot confirm the brake is pressed or because of an internal module fault.
• Vehicle Will Not Start: As a safety feature, the truck will not start if it cannot confirm the transmission is in Park or Neutral. A faulty shifter may fail to send the correct signal, resulting in a no-start condition where the engine does not crank.
• Flashing Gear Indicator Light: Instead of staying solid, the light for the selected gear (e.g., 'P' or 'D') on the dial may flash continuously. This indicates a disagreement or communication error between the shifter's position and the transmission's actual state.
• Shifter is Unresponsive or Lights Go Dark: In some cases, the shifter may become completely dead. The indicator lights will not illuminate, and turning the knob has no effect. This could be due to a blown fuse, a loose electrical connector, or total internal failure of the module.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no formal recalls for the rotary shifter assembly itself on 2019-2024 Ram 1500s, several related issues and service bulletins are important to know.

NHTSA Rollaway Investigation

A major NHTSA investigation into vehicle rollaways primarily focused on earlier 2013-2017 Ram 1500 models. The investigation was closed without requiring a recall of the shifter hardware. Instead, a software update was issued to add an 'Auto Park' feature that automatically shifts the vehicle into Park under certain conditions, like when the driver's door is opened while the vehicle is in Drive.

Technical Service Bulletin 08-084-23

This TSB, issued for some 2022 Ram 1500 models, directly addresses symptoms like being unable to rotate the shifter out of Park, a dead battery, and communication loss with the Electronic Shift Module (ESM). The cause is identified as a software glitch, and the fix is to reprogram the module. This is significant because it confirms that some shifter problems can be resolved with a software update rather than a part replacement. The TSB lists related trouble codes U11E3-00, U0103-00, and U1267-00.

Buying a Used 2019-2024 Ram 1500 Rotary Shifter

A used OEM shifter is an excellent, cost-effective alternative to an expensive new part, especially since there are no complete aftermarket electronic replacements available. However, compatibility is extremely specific, and careful verification is required.

The #1 Mistake: Ignoring Drivetrain and Option Differences

The biggest pitfall is buying a shifter that looks identical but is electronically different. The correct part number depends on a combination of your truck's factory options. The warnings provided by parts suppliers are not suggestions—they are critical for compatibility.

• Drivetrain: Shifters for 4x2 (RWD) and 4x4 models are different. The 4x4 version includes buttons to control the transfer case (e.g., 2WD, 4WD Auto, 4WD High, 4WD Low).
• eTorque System: The shifter may differ between trucks with the 48-volt eTorque mild-hybrid system and those with a standard 12-volt system.
• Differential: There are different shifters for trucks with an electronic locking differential versus a standard, non-locking differential.
• Other Options: Some part numbers are specific to vehicles with or without features like Hill Descent Control.

Physical Inspection Checklist for a Used Shifter

When inspecting a used part, check the following:

1. Part Number Verification: The part number is printed on a sticker on the module's housing. Ensure it matches your original part or is a verified superseded number.
2. Smooth Rotation: Turn the knob through all positions. It should have distinct, crisp clicks (detents) for each gear. Avoid any shifter that feels mushy, gritty, or spins too freely.
3. Button Function: Press each of the 4WD and/or axle lock buttons. They should depress and return smoothly without sticking.
4. Connector Pins: Inspect the electrical connector on the back. The pins must be straight, clean, and free of any green or white corrosion.
5. Casing Integrity: Check the plastic housing for any cracks, deep scratches, or broken mounting tabs that could prevent a secure installation.

Cost Comparison: New vs. Used

Replacement Overview

Replacing the rotary shifter is a straightforward job that most DIYers can complete. It is generally considered a plug-and-play part that does not require dealer programming.

1. Disconnect the Battery: Disconnect the negative battery terminal as a safety precaution.
2. Remove Dash Trim: The large plastic bezel surrounding the shifter and radio must be removed. It is primarily held in by clips. Some models have Torx screws securing it, often located under rubber inserts in the upper and lower storage trays. Carefully pry the bezel off using a plastic trim removal tool.
3. Unbolt the Shifter Module: With the trim removed, you will see the screws (typically four Phillips or Torx screws) holding the shifter module to the dash structure. Remove them.
4. Disconnect and Replace: Unplug the single electrical connector from the back of the old shifter module. Plug the connector into the new module, bolt it into place, and reinstall the dash trim.

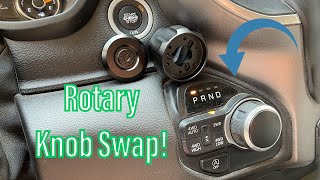

🎬 Watch: Step-by-step guide to replacing the rotary shift knob assembly.
