2017-2026 Pacifica, Voyager & Grand Caravan 'Service Shifter' Warning: A Guide to the Rotary Shifter
This guide covers the common failures of the dash-mounted rotary gear selector in the Chrysler Pacifica, Voyager, and Grand Caravan, including the real causes of the 'Service Shifter' warning and what to check on a used replacement.
- The 'Service Shifter' warning is often caused by a weak battery or a faulty CAN bus star connector behind the glove box, not the shifter itself.
- Before replacing the shifter, always have the battery tested and investigate the CAN bus connector as a more likely and much cheaper root cause.
- A recall (NHTSA 18V395000) exists for 2017-18 Pacificas for a rollaway risk, but it is related to a manual release plug, not electronic shifter failure.
- If you replace the shifter, a 'proxy configuration alignment' with a professional scan tool may be required for it to work correctly.
Symptoms of a Failing Rotary Shifter
When the rotary shifter assembly begins to fail, it can cause a variety of confusing and often intermittent symptoms. Because the shifter is tied into the vehicle's computer network, a problem here can trigger a cascade of other warnings.
- 'Service Shifter' Message: This is the most common symptom. A warning message will appear on the instrument cluster, often accompanied by a check engine light.
- Inability to Shift Gears: The vehicle may start but the rotary knob will not turn, leaving the vehicle stuck in Park. In other cases, it may not shift into Drive or Reverse.
- Multiple Warning Lights: A failing shifter can disrupt the vehicle's computer network (CAN bus), causing numerous other warning lights to illuminate simultaneously, such as those for the Forward Collision Warning (FCW), LaneSense, and parking sensors.
- Loss of Power and Rough Shifting: Some owners report that when the 'Service Shifter' light is on, the vehicle has significantly reduced acceleration, rough idling, and harsh or skipped gear shifts.
- No Backlight on Shifter: The 'PRND' letters on the shifter may not light up, making it difficult to see the selected gear in the dark.
Is the Shifter Really the Problem? Common Root Causes
Before replacing the shifter assembly, it is critical to understand that the shifter itself is often not the root cause of the problem. The 'Service Shifter' warning is frequently a symptom of a communication breakdown between the vehicle's various computer modules. Spending hundreds of dollars on a new shifter may not fix the issue.
1. Failing Battery or Low Voltage
Modern vehicles are extremely sensitive to battery voltage. A weak or failing primary 12V battery can cause a wide range of electronic issues that seem unrelated, including the 'Service Shifter' message. Before performing any other diagnosis, have the battery properly load-tested. Many owners report that replacing a weak battery resolves the issue, at least temporarily.
2. Faulty CAN Bus Star Connector
The most common culprit for persistent, intermittent shifter problems is a faulty CAN Bus star connector (also called a star connector block or CAN bus hub). This small plastic part, located behind the glove box, acts as a central hub where all the vehicle's computer modules communicate. When the connections inside this block become loose or corroded, it causes data errors that can trigger the 'Service Shifter' warning and the associated cascade of other system failures. Many owners have fixed their vehicles permanently by replacing this inexpensive connector after shops failed to diagnose the issue correctly.
Pro Tip: A common DIY diagnostic for a faulty CAN bus connector is to firmly tap on the dashboard above the glove box or slam the glove box door when the 'Service Shifter' error is present. If this temporarily clears the error and allows the vehicle to shift, it strongly points to a bad connection at the star connector.
🎬 Watch: How to fix stalling and power loss caused by the shifter.Known Issues, Recalls, and Technical Service Bulletins (TSBs)
Recall: Risk of Rolling Away
Certain 2017-2018 Chrysler Pacifica models were recalled under NHTSA campaign number 18V395000. This recall is NOT for an electronic failure of the shifter. The issue is that the manual park release plug on the transmission could be removed without a tool, potentially allowing the vehicle to be shifted out of Park unintentionally and roll away. The fix involves a dealer replacing the plug with an improved design.
Technical Service Bulletins (TSBs)
Chrysler has issued several TSBs related to the rotary shifter and transmission performance:
- TSB 21-027-17 Rev. A: Specifically addresses the 'Service Shifter' message appearing on the instrument cluster for some 2017 Pacifica models.

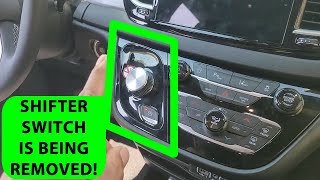

- TSB S228A000005 REV.D: Released for 2024 models, this bulletin addresses 'Shifter Binding Or "Service Shifter" Message' 🎬 See this walkthrough for removing the shifter on 2021-2025 models. along with communication error codes like U11E3, U0103, and U1267. This indicates the issue persists in later model years.
- General TCM Updates: Chrysler has also released software updates for the Transmission Control Module (TCM) to improve overall shift quality. While not a direct fix for the 'Service Shifter' error, ensuring your vehicle's software is up-to-date is good practice.
Buying a Used Transmission Shift Lever: What to Check
If you have ruled out battery and CAN bus issues and confirmed the shifter assembly itself is faulty, a used OEM part can be a cost-effective solution. Here’s what to look for:
- Verify the Part Number: This is the most important step. Part numbers for this shifter have been updated many times. Find the number on your original part and match it. The latest part number will supersede all previous versions. For example, part number 68709971AA replaces over a dozen previous numbers in the 68240089xx series.
- Gasoline vs. Plug-in Hybrid (PHEV) Compatibility: This is a critical point of caution. Some parts catalogs suggest the same shifter is used for both gasoline and hybrid models, while others do not. To avoid compatibility issues, it is safest to purchase a used shifter that came from a vehicle with the exact same powertrain (gas or hybrid) as yours. Always double-check the OEM part number against your original.
- Inspect the Electrical Connector: Carefully examine the electrical connector and pins on the back of the unit. Look for any signs of corrosion, bent pins, or damage to the plastic housing. A clean, undamaged connector is essential.
- Check Physical Condition: Rotate the knob. It should click positively into each gear position without feeling loose, gritty, or overly stiff. Press the electronic parking brake button; it should depress and return smoothly with a solid click. Check the plastic housing for any cracks or deep scratches.
- Why Used OEM is a Good Choice: A genuine used Mopar shifter ensures perfect fitment and compatibility with the vehicle's complex electronics. Aftermarket electronic components can sometimes introduce new, unpredictable communication errors. A tested OEM part from a reputable recycler is often a more reliable choice than a new, unproven aftermarket unit.
Replacement and Programming

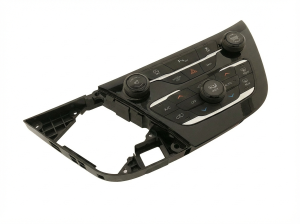

Replacing the rotary shifter assembly is a moderately difficult task for a DIYer. It involves carefully prying off several pieces of dashboard trim to access the mounting screws. The shifter is often integrated with the climate control panel, and they may need to be removed as a single unit.
🎬 Watch: Step-by-step guide to removing the 2018 Pacifica shifter knob.Warning: After installing a replacement shifter, the vehicle may require a 'proxy configuration alignment'. This is a procedure performed with a professional diagnostic scan tool that allows all of the vehicle's computers to recognize the new module. Without this step, the new shifter may not function correctly, or you may still have error messages. It is essential to plan for this possibility before starting the repair.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Mopar) | $300 - $450 |
| New Aftermarket | Not Widely Available |
| Used OEM | $75 - $200 |
| Shop Labor for Replacement | $150 - $250 |
Frequently Asked Questions (FAQ)
Can I drive my vehicle with the 'Service Shifter' light on?
It is not recommended. If the light is on, the system is unstable. The vehicle may fail to shift, get stuck in gear, or lose power while driving, creating a significant safety risk.
Why did my van show a dozen warning lights all at once with the shifter error?
This happens because the shifter, engine computer, brake module, and other systems all communicate over a shared network called the CAN bus. A fault in one area, like a bad connection at the star connector, can corrupt the data for all systems, causing them all to report errors.
What is a 'proxy configuration alignment' and is it always necessary?
A proxy alignment is a dealer-level electronic handshake that introduces a new computer module (like the shifter) to the rest of the car's network. It ensures all components are communicating correctly. It is often required when replacing smart electronic components on Chrysler vehicles. If you install a new shifter and it doesn't work, a proxy alignment is the next step.
Will a shifter from a Pacifica fit my Grand Caravan or Voyager?
Yes, since the 2020+ Chrysler Voyager and 2022+ Chrysler Grand Caravan (in the North American market) are based on the Chrysler Pacifica platform, the shifters are physically interchangeable. However, you must always verify the OEM part number to ensure electronic compatibility.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68227210AG 68240089AD 68240089AE 68240089AF 68240089AG 68240089AH 68240089AI 68240089AJ 68240089AK 68240089AL 68240089AM 68240089AN 68709971AA

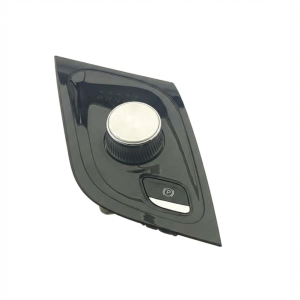

Shift-by-wire rotary electronic gear selector with integrated electronic parking brake switch.
