2008-2015 Smart Fortwo TCM: Solving the 'Three Bars of Death' and Shifting Problems

Symptoms of a Failing Smart Fortwo TCM

A faulty Transmission Control Module in a W451 Smart Fortwo can cause several distinct and often alarming symptoms. Recognizing these signs early can help you diagnose the problem correctly and avoid unnecessary repairs on other transmission components.

• The 'Three Bars of Death': The most notorious symptom is the appearance of three horizontal lines on the dashboard's gear display. This is a general transmission system fault indicator and often points directly to a problem with the TCM, the clutch actuator, or the gear selector motor. When these bars appear, the car may refuse to start or shift out of neutral.
🎬 Watch this video showing a three bars of death TCU error.
• Failure to Shift or Stuck in Gear: The vehicle may get stuck in neutral or a single gear. You might find it impossible to select reverse or any forward gear, rendering the car immobile.
• Erratic and Harsh Shifting: You may experience jerky, abrupt, or delayed gear changes. The transmission might feel like it's slamming into gear, or it may hesitate significantly before shifting.
• Warning Lights: Besides the three bars, a generic Check Engine Light may illuminate on the dashboard.
• No Communication with Scan Tool: In some cases of complete failure, a diagnostic scan tool may be unable to communicate with the TCM, which is a strong indicator that the module itself has failed.

Common OBD-II Codes

When the TCM is failing, it will often store specific Diagnostic Trouble Codes (DTCs) that can be read with an OBD-II scanner. Common codes associated with Smart Fortwo TCM failure include:

• P0700 (Transmission Control System Malfunction): A general code indicating the TCM has detected a fault.
• P1800 (Implausible Transmission Data): This suggests the data the TCM is receiving or sending is incorrect.
• U0103 (Lost Communication With Gear Shift Module): This code often appears when the TCM is faulty.
• P2802 (Signals from incremental sensor of component 'M17 (Gear motor)' are implausible): Points to an issue with the gear selector motor, which is controlled by the TCM.

Known Issues, TSBs, and Recalls

While there are no widespread recalls specifically for the 2008-2015 Smart Fortwo Transmission Control Module in the US market, some related issues and service campaigns are worth noting.

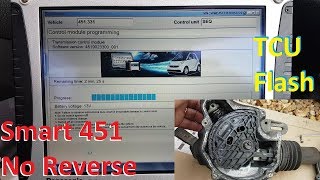

• Software Updates: Mercedes-Benz has released software updates for the TCM to address certain shifting issues, such as a failure to engage reverse. 🎬 See how TCU programming and relearning fixes reverse gear issues. A dealer or a specialist with a Mercedes XENTRY diagnostic tool can check for and apply these updates.
• Wiring Harness Chafing: On some models, the wiring loom for the transmission can chafe against the intercooler scoop, causing wires to short out. This can mimic the symptoms of a failed TCM, so it's crucial to inspect the wiring near the gearbox before replacing the module.
• Clutch Actuator Failure: The clutch actuator is another common failure point that produces symptoms identical to a bad TCM, including the 'three bars of death'. This component can get stuck due to a lack of lubrication or internal wear. 🎬 Watch this guide to removing and lubricating the clutch actuator. Diagnosis with a STAR/XENTRY system is often required to differentiate between a faulty actuator and a faulty TCM.

Buying a Used Transmission Control Module

Purchasing a used OEM Transmission Control Module can be a cost-effective solution, but there are critical factors to consider to ensure you get a functional, compatible part.

1. Match the Part Number EXACTLY

This is the most important rule. Smart used several different TCMs throughout the 2008-2015 production run, with mid-year changes. The part number on the replacement module must match the one on your original module. Do not rely on vehicle year and model alone. Physically inspect your old module and write down the number before ordering a replacement. Common part numbers include A4519001401, 4515456132, and 4519004600.

2. Programming is NOT Optional

A used TCM will not work simply by plugging it in. The module is coded to the original vehicle's Vehicle Identification Number (VIN) and security system. Installing a used module without programming will result in a no-start condition and the 'three bars' error. You have two main options:

• Cloning Service: Many specialized services can 'clone' the data from your original, faulty TCM onto the used replacement unit. This involves sending both your old and new modules to the service. Once cloned, the replacement module becomes plug-and-play, requiring no further dealer visit. This is often the easiest and most reliable method, provided your original module's data is not corrupted.
• Dealer/Specialist Programming: A Mercedes-Benz/Smart dealer or an independent European car specialist with a XENTRY/STAR diagnostic system can program a used module to your car. However, be aware that many dealers are unwilling or unable to program used parts, as their systems are often designed to work only with new parts from the manufacturer. Always confirm with the shop beforehand.

3. Physical Inspection

When you receive the used module, inspect it carefully. Look for any signs of physical damage to the case or connectors. Check the connector pins for corrosion (a sign of water damage) or damage. A clean, well-cared-for part is more likely to be reliable.

Replacement Cost Breakdown

The cost to replace a Smart Fortwo TCM can vary significantly based on the path you choose. Programming and labor are significant factors in the total price.
